Return the expanding rivet, screw in.
› Firmly tighten the two attachment bolts with the screwdriver. ÐChanging the bulb for the licence plate light
Fig. 125
Changing the bulb for the licence plate light
First read and observe the introductory information and safety warn-
ings on page 141.
›
Insert a suitable thin object, e.g. a screwdriver into the recess in the region of
the arrow and carefully prise the number plate light out of the bumper » Fig. 125
-  .
› Pull the number plate light out of the bumper a little.
› Turn the bulb holder
anti-clockwise and remove in the direction of the ar-
row » Fig. 125 - .
› Remove the faulty bulb from the socket.
› Insert a new bulb into the socket.
› Insert the bulb holder into the number plate light and turn
clockwise as far as
the stop.
› Insert the number plate light into the opening of the bumper at the left edge.
Lightly press it until the spring latches. Ð
ä Tail lamp assembly
Fig. 126
Removing the tail lamp assembly Fig. 127
Tail light assembly: Replacing bulbs
First read and observe the introductory information and safety warn-
ings on page 141.
Fold the seat rest of the rear set bench forward to make it easier to reach the
cover of the rear light more easily
» page 40, Folding the rear seat backrest for-
wards.
Removing and installing the tail light
› Open the luggage compartment door and unscrew the luggage compartment
cover » page 43.
› Prise the cover 1
» Fig. 126, insert the screwdriver underneath the lower edge
of the locking mechanism 3
» page 127, Vehicle tool kit
and pull the locking
mechanism at the connector 2
in the direction of arrow.
› Press the locking mechanism 4
and remove the connector 2
.
£
ä
143
Fuses and light bulbs

›

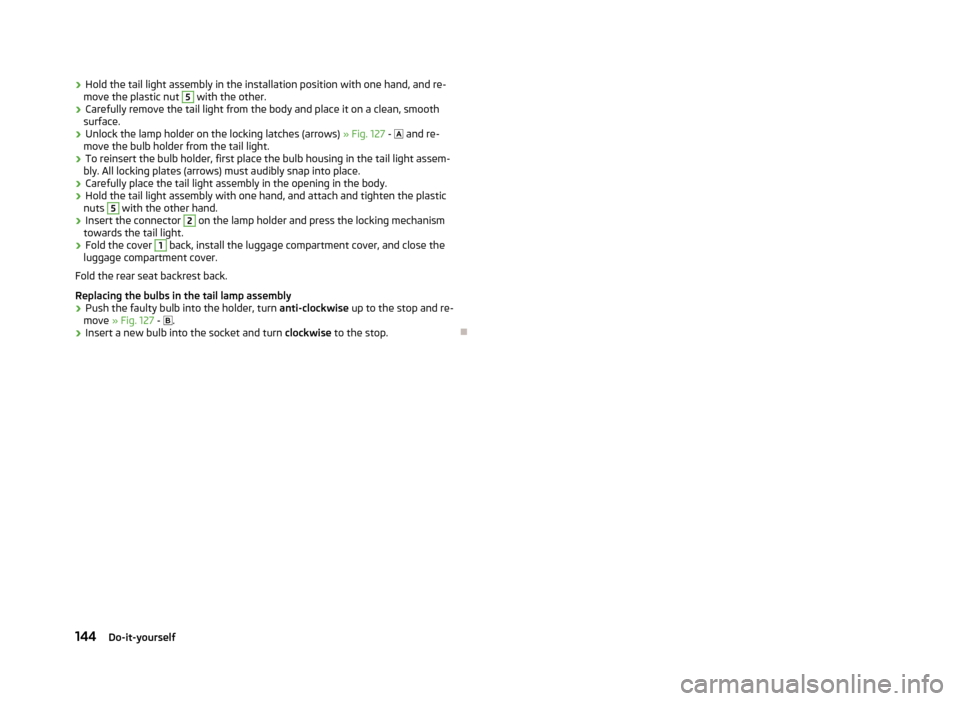

Hold the tail light assembly in the installation position with one hand, and re-
move the plastic nut 5
with the other.
› Carefully remove the tail light from the body and place it on a clean, smooth
surface.
› Unlock the lamp holder on the locking latches (arrows)
» Fig. 127 -  and re-
move the bulb holder from the tail light.
› To reinsert the bulb holder, first place the bulb housing in the tail light assem-
bly. All locking plates (arrows) must audibly snap into place.
› Carefully place the tail light assembly in the opening in the body.
› Hold the tail light assembly with one hand, and attach and tighten the plastic
nuts 5
with the other hand.
› Insert the connector 2
on the lamp holder and press the locking mechanism
towards the tail light.
› Fold the cover 1
back, install the luggage compartment cover, and close the
luggage compartment cover.
Fold the rear seat backrest back.
Replacing the bulbs in the tail lamp assembly
› Push the faulty bulb into the holder, turn
anti-clockwise up to the stop and re-
move » Fig. 127 -  .
› Insert a new bulb into the socket and turn
clockwise to the stop.Ð
144 Do-it-yourself

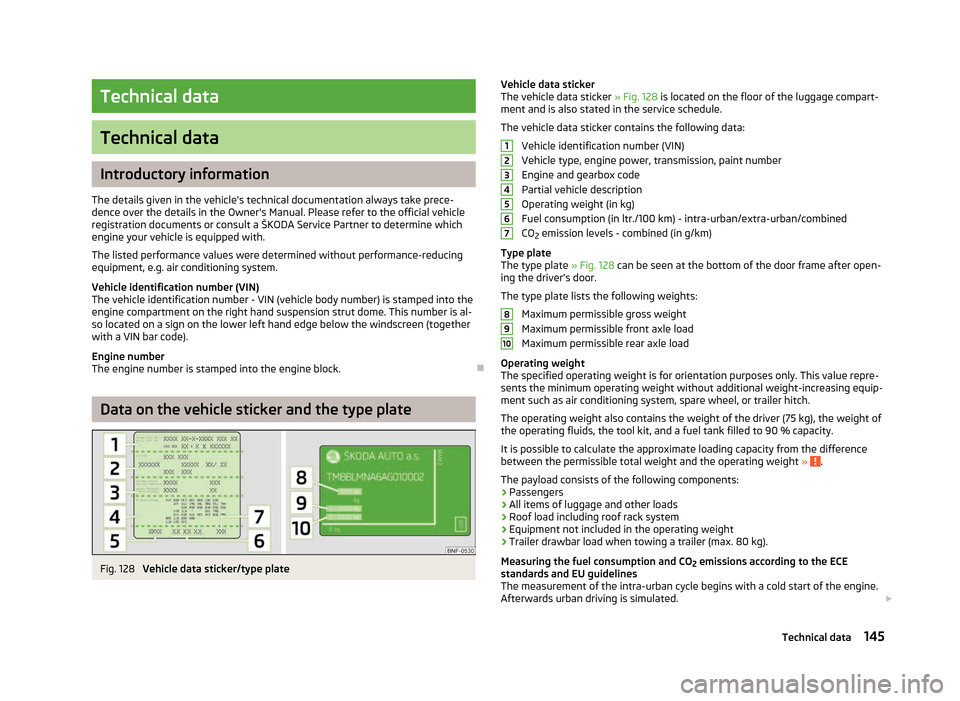

Technical data
Technical data
Introductory information
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual. Please refer to the official vehicle
registration documents or consult a
ŠKODA Service Partner to determine which
engine your vehicle is equipped with.
The listed performance values were determined without performance-reducing
equipment, e.g. air conditioning system.
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into the
engine compartment on the right hand suspension strut dome. This number is al-
so located on a sign on the lower left hand edge below the windscreen (together
with a VIN bar code).
Engine number
The engine number is stamped into the engine block. ÐData on the vehicle sticker and the type plate
Fig. 128
Vehicle data sticker/type plate Vehicle data sticker
The vehicle data sticker » Fig. 128 is located on the floor of the luggage compart-
ment and is also stated in the service schedule.
The vehicle data sticker contains the following data: Vehicle identification number (VIN)
Vehicle type, engine power, transmission, paint number
Engine and gearbox code
Partial vehicle description
Operating weight (in

kg)
Fuel consumption (in ltr./100 km) - intra-urban/extra-urban/combined
CO 2 emission levels - combined (in g/km)
Type plate
The type plate » Fig. 128 can be seen at the bottom of the door frame after open-
ing the driver's door.
The type plate lists the following weights:
Maximum permissible gross weight
Maximum permissible front axle load
Maximum permissible rear axle load
Operating weight
The specified operating weight is for orientation purposes only. This value repre-
sents the minimum operating weight without additional weight-increasing equip-
ment such as air conditioning system, spare wheel, or trailer hitch.
The operating weight also contains the weight of the driver (75 kg), the weight of
the operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
It is possible to calculate the approximate loading capacity from the difference
between the permissible total weight and the operating weight » .
The payload consists of the following components:
› Passengers
› All items of luggage and other loads
› Roof load including roof rack system
› Equipment not included in the operating weight
› Trailer drawbar load when towing a trailer (max. 80 kg).
Measuring the fuel consumption and CO 2 emissions according to the ECE
standards and EU guidelines
The measurement of the intra-urban cycle begins with a cold start of the engine.
Afterwards urban driving is simulated. £ 1
2
3
4
5
6
7
8
9
10
145
Technical data

In the extra-urban driving cycle, the vehicle is accelerated and decelerated in all
gears, corresponding to daily routine driving conditions. The driving speed varies
between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of about
37
% for the intra-urban cycle and 63 % for the extra-urban cycle. WARNING
Do not exceed the specified maximum permissible weights - risk of accident
and damage. Note
■ If required, you can find out the precise weight of your vehicle by contacting a
ŠKODA

Service Partner.
■ Depending on the range of equipment, style of driving, traffic situation, weather
influences and vehicle condition, consumption values may deviate from the indi-
cated values. ÐDimensions
Dimensions (mm) Length 3563
Width 1641/1645a)
Width including exterior mirror 1910
Height 1478/1463b)
Clearance 136/121b)
Wheel base 2420
Track gauge front/rear 1428/1424a)
Valid for vehicles with rear side doors.
b) The value corresponds to the status with the Green tec package. ÐSpecifications and engine oil capacity
The engine has been factory-filled with a high-grade oil that can be use through-
out the year - except in extreme climate zones. Various oils can be mixed together when refilling.
Engine oils are, of course, undergoing continuous further development. Thus the
information stated in this Owner's Manual is only correct at the time of publica-
tion.
ŠKODA Service Partners are informed about the latest changes by

ŠKODA. We
therefore recommend that the oil change is completed by a ŠKODA Service Part-
ner.
The specifications (VW standards) stated in the following can be indicated sepa-
rately or together with other specifications on the bottle.
The oil capacities include oil filter change. Check the oil level when filling; do not
over fill. The oil level must be between the markings » page 111, Checking the en-
gine oil level .
Specifications and capacity (in l) Engine SpecificationFilling level
1.0 l/44 kW VW 502 00, VW 504 00a)
3.4
1.0 l/55 kW VW 502 00, VW 504 00a)
3.4
1.0 l/50 kW - CNG VW 502 003.4 a)
The use of an engine oil with the VW 504 00 specification requires the use of a fuel according to the
EN 228 standard » page 105, Unleaded petrol or a fuel of comparable quality. Note
■ Before a long drive we recommend that you purchase and carry with you engine
oil which complies with the specification for your vehicle. ■ We recommend that you use oils from ŠKODA Original Accessories. Ð146
Technical data

Vehicle-specific information depending on engine type
1.0 ltr./44 kW engineOutput (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
44/5000-6000 95/3000-4300 3/999Performances
MGASG
Top speed (km/h) 160/161a)
Acceleration 0 - 100 km/h (s) 14.415.3a)
The value corresponds to the status with the Green tec package.
1.0 ltr./55
kW engine Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
55/6200 95/3000-4300 3/999Performances
MGASG
Top speed (km/h) 171/172a)
Acceleration 0 - 100 km/h (s) 13.213.9a)
The value corresponds to the status with the Green tec package.
1.0 l/50
kW Engine - CNG Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
50/6200 90/30003/999Performances
MG
Top speed (km/h) 164
Acceleration 0 - 100 km/h (s) 16.3 Ð
