2012 RENAULT TWINGO Owners Manual

JauneNoirNoir texte
2.25
ENG_UD24716_6
Boîte de vitesses Quickshift (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
QUIcKShIFt GeARBoX (4/5)
Parking
To park the vehicle with a gear en -
gaged (on a slope, for example): before
switching off the engine, check that a
gear other than N is displayed on the
instrument panel.
The next time the engine is started, de-
press the brake pedal. The vehicle will
then automatically change to neutral
(letter N on the display).
Audible warning
If you hold the vehicle on a slope for
too long without applying the brakes or
handbrake you will strain the system
and there is a risk that the clutch will
overheat.
In this case, an intermittent beeping
sound will remind you that you should
put your foot on the brake pedal or
apply the handbrake.
Never leave the vehicle with the engine
running when in gear. For safety rea -
sons you will hear an intermittent beep -
ing sound when you open the door if
you have not shifted into neutral or you
have not switched off the ignition or de-
pressed the brake pedal.
An impact to the underside of the vehicle (e.g.: striking a post, raised kerb
or other street furniture) may result in damage to the vehicle (e.g.: defor-
mation of an axle).
To avoid any risk of accident, have your vehicle checked by an approved
Dealer.

2.26
ENG_UD24716_6
Boîte de vitesses Quickshift (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
QUIcKShIFt GeARBoX (5/5)
t owing the vehicle
If the gearbox is stuck in a gear:
– Switch on the ignition;
– select neutral with the brake pedal
depressed;
– check that the gearbox is in neutral
(by pushing the vehicle, for exam -
ple).
If you cannot find neutral you must tow
the vehicle with the front wheels raised.
the vehicle should always be towed
with the ignition switched off.operating faults
ÒWhen driving, if this warning
light comes on together with
warning light
©, this indicates a
system fault. In most cases, you may
still drive the vehicle, although it will not
function perfectly. Contact an approved
dealer as soon as possible.
the vehicle will not start
If you cannot start the engine and if the
battery is not discharged (display lit up):
– Switch on the ignition;
– select neutral;
– push the vehicle or roll it down a suf-
ficiently steep slope. Then push the
selector lever forwards.
The optimum gear for starting the
engine will then be automatically se -
lected.
Note: never attempt this manoeuvre in
reverse.

3.1
ENG_UD30795_17
Sommaire 3 (X44 - Renault)
ENG_NU_952-4_X44_Renault_3
Section 3: Your comfort
Air vents: air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Manual air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4
Heating – air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.7
Automatic climate control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.9
Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.18
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.19
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.20
Sun visor, Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.22
Electric sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.23
Passenger compartment storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.25
Ashtray/cigarette lighter/accessories sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.28
Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.29
Rear seats: adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.30
Rear seats: functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.31
Rear bench seat: functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.32
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.33
Rear parcel shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.34
Boot cover: utility versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.36
Transporting objects in the boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.37
Roof bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.39
Multimedia equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.40

air vents ................................................ (up to the end of the DU)
3.2
ENG_UD26883_3
Aérateurs: sorties d’air (X44 - Renault)
ENG_NU_952-4_X44_Renault_3
Jaune NoirNoir texte
Air vents: air outlets
1 side window demister outlet
2 left-hand side vent
3 windscreen demister outlets
4 centre air vents
5 control panel
6 right-hand side vent
7 front occupant footwell heater out-
lets
123461
77
AIR VENTS: air outlets (1/2)
5

JauneNoirNoir texte
3.3
ENG_UD26883_3
Aérateurs: sorties d’air (X44 - Renault)
ENG_NU_952-4_X44_Renault_3

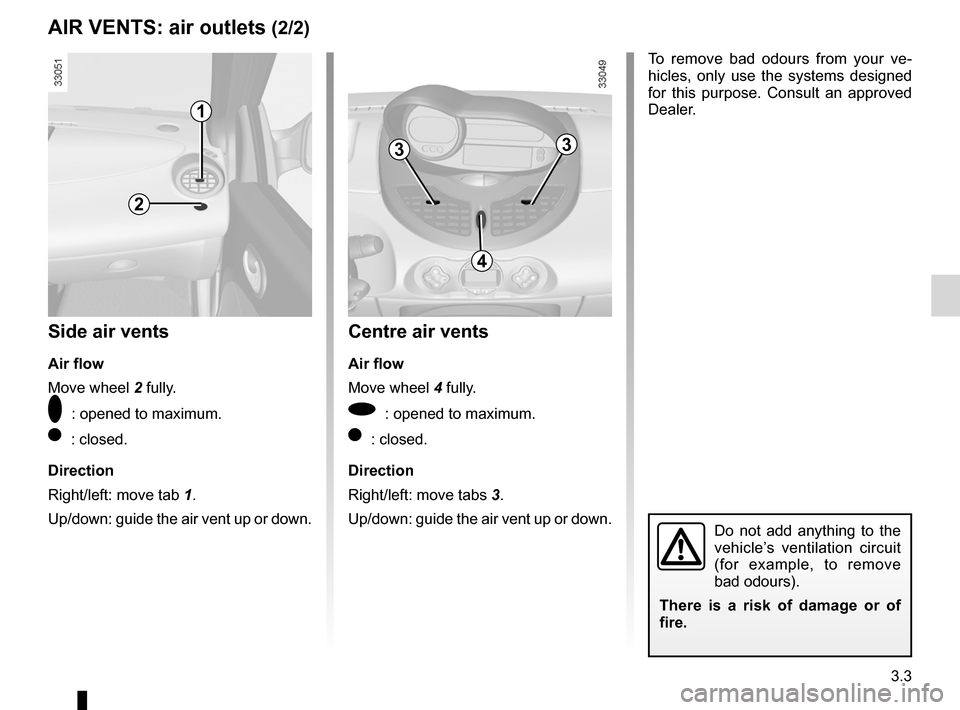

1
2
33
4
Side air vents
Air flow
Move wheel 2 fully.
 : opened to maximum.
 : closed.
Direction
Right/left: move tab 1.
Up/down: guide the air vent up or down.
Centre air vents
Air flow
Move wheel 4 fully.
 : opened to maximum.
 : closed.
Direction
Right/left: move tabs 3.
Up/down: guide the air vent up or down. To remove bad odours from your ve
-
hicles, only use the systems designed
for this purpose. Consult an approved
Dealer.
Do not add anything to the
vehicle’s ventilation circuit
(for example, to remove
bad odours).
There is a risk of damage or of
fire.
AIR VENTS: air outlets (2/2)

heating system ..................................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
3.4
ENG_UD20165_4
Chauffage - Ventilation avec isolation de l habitacle (X44 - Renault)
ENG_NU_952-4_X44_Renault_3
Jaune NoirNoir texte
Manual air conditioning
MANuAl AIR CoNDITIoNINg (1/3)
Controls
A Adjusting the distribution of air in the
passenger compartment.
B Heated rear screen and heated door
mirror button and indicator light (de-
pending on vehicle).
C Adjusting the ventilation speed.
D Air recirculation and isolation of the
passenger compartment.
E Air conditioning button and operating
tell-tale (depending on vehicle).
F Adjusting the air temperature.
Information and advice for use:
Refer to the end of the paragraph on
“Automatic climate control”.
Distribution of air in the
passenger compartment
Turn control A.
WClose the dashboard vents
for more effective demisting.
All the air is then directed to the wind -
screen and front side window demister
outlets.
iThe air flow is distributed be -
tween all the air vents, the
front side window demisting vents, the
windscreen demisting vents and the
footwells.
FThe air flow is directed mainly
towards the footwells.
ABCEFD

demistingrear screen ....................................................... (current page)
rear screen demisting ......................................................... (current page)
JauneNoirNoir texte
3.5
ENG_UD20165_4
Chauffage - Ventilation avec isolation de l habitacle (X44 - Renault)
ENG_NU_952-4_X44_Renault_3
GThe air flow is directed towards
the dashboard vents and the
footwells.
JAll the air flow is directed to the
dashboard vents.
This selection is not appropriate if all
the air vents are closed.
Rear screen de-icing/
demisting
W i t h t h e e n g i n e r u n n i n g , p r e s s
button B , the operating tell-tale for the
button will come on.
This function permits rapid demisting/
de-icing of the rear screen and de-icing
of the door mirrors (on equipped vehi -
cles).
To exit this function, press button B
again.
Demisting automatically stops by de -
fault.
Adjusting the ventilation
speed
Turn control C from 0 to 4.
The passenger compartment is ven -
tilated by blown air. The blower deter -
mines how much air enters but vehicle
speed has a slight effect on this.
The further the control is positioned to
the right, the greater the amount of air
blown into the passenger compartment.
BC
MANuAl AIR CoNDITIoNINg (2/3)

3.6
ENG_UD20165_4
Chauffage - Ventilation avec isolation de l habitacle (X44 - Renault)
ENG_NU_952-4_X44_Renault_3
Air recirculation operation
(isolation of the passenger
compartment)
Turn control D towards air recirculation
symbol
â.
In these conditions air is taken from the
passenger compartment and is recircu-
lated, with no air being taken from out-
side the vehicle. Air recirculation is for:
–
isolating the vehicle from the exter -
nal atmosphere (driving in polluted
areas, etc.);
– bringing the passenger compartment
to the desired temperature as quickly
as possible.
Prolonged use of this position (iso -
lation mode) may mist up the win -
dows slightly or cause odours due
to the air not being renewed.
It is therefore advisable to return to
normal operation (external air) by
pressing control D when you have
passed through the polluted area.
D
MANuAl AIR CoNDITIoNINg (3/3)
