2012 RENAULT LAGUNA COUPE Owners Manual

closing the doors ................................................... (current page)
child safety ............................................................. (current page)
JauneNoirNoir texte
1.11
ENG_UD22175_6
Ouverture et fermeture des portes (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_1
In the event of a fault with the
electric windows
The window does not lower when the
door is opened and does not close
when the door is closed. In this case,
pull the electric window button in ques-
tion six times in succession to close
the window completely.
To close the door, proceed as described
in the section entitled “In the event of a
battery fault”.
card reminder buzzer
A beep will let you know if you have left
the card in the reader when you open
the driver ’s door, and the “Remove
card” message will appear on the in -
strument panel.
OpENINg ANd cLOsINg THE dOORs (2/2)
Do not close the door by
holding the window.
Make sure you do not place
your fingers too high up in
zone 4.
Risk of injury.
43
Operating faults
In the event of a battery fault:
– to open the door: pull handle 5 then
gently open the door to avoid dam -
aging seal 3;
– to close the door : push the top of
the window (zone 4 ) whilst holding
the door using handle 5 to enable it
to pass under seal 3, then close the
door without slamming it.
5
Door locking is accompa -
nied by the windows clos -
ing.
Risk of serious injury.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
driver’s responsibility when parking or stopping the vehicle
Never leave an animal, child or adult who is not self-sufficient alone on
your vehicle, even for a short time.
They may pose a risk to themselves or to others by starting the engine,
activating equipment such as the electric windows or by locking the door\
s.
Also, in hot and/or sunny weather, please remember that the temperature inside
the passenger compartment increases very quickly.
RIsK Of dEATH OR sERIOUs INJURY.

opening the doors ................................. (up to the end of the DU)
closing the doors .................................. (up to the end of the DU)
unlocking the doors .............................. (up to the end of the DU)
central door locking .............................. (up to the end of the DU)
1.12
ENG_UD22177_6
Verrouillage, déverrouillage des ouvrants (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_1
Jaune NoirNoir texte

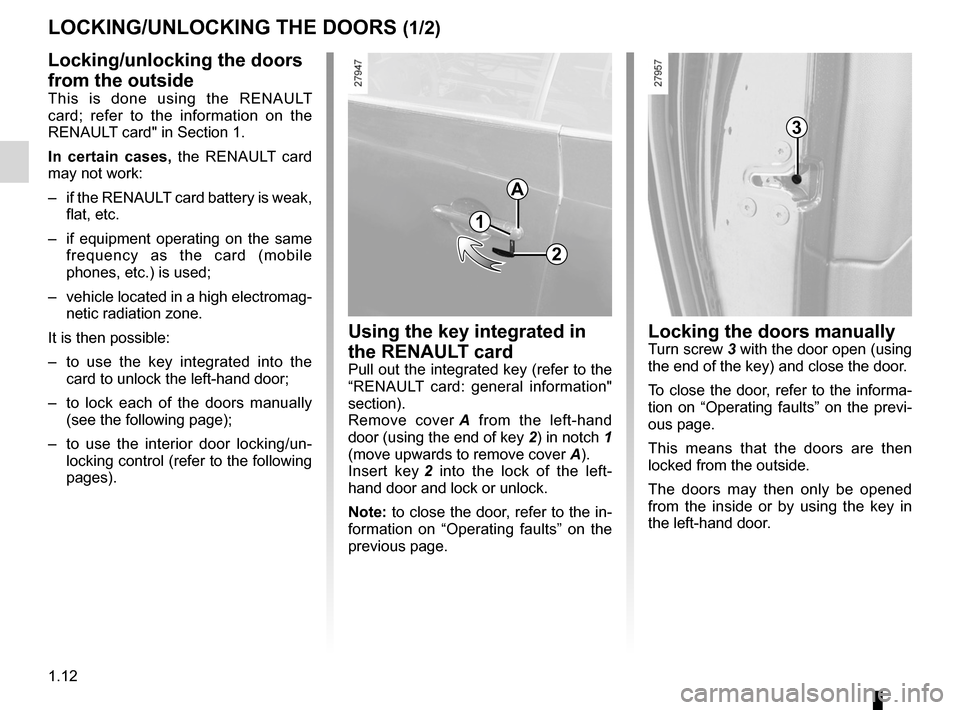

LOcKINg/UNLOcKINg THE dOORs (1/2)
Locking/unlocking the doors
from the outside
This is done using the RENAULT
card; refer to the information on the
RENAULT card" in Section 1.
In certain cases, the RENAULT card
may not work:
– if the RENAULT card battery is weak,
flat, etc.
– if equipment operating on the same
frequency as the card (mobile
phones, etc.) is used;
– vehicle located in a high electromag-
netic radiation zone.
It is then possible:
– to use the key integrated into the
card to unlock the left-hand door;
– to lock each of the doors manually
(see the following page);
– to use the interior door locking/un -
locking control (refer to the following
pages).
Using the key integrated in
the RENAULT card
Pull out the integrated key (refer to the
“RENAULT card: general information"
section).
Remove cover A from the left-hand
door (using the end of key 2) in notch 1
(move upwards to remove cover A).
Insert key 2 into the lock of the left-
hand door and lock or unlock.
Note: to close the door, refer to the in-
formation on “Operating faults” on the
previous page.
Locking the doors manuallyTurn screw 3 with the door open (using
the end of the key) and close the door.
To close the door, refer to the informa-
tion on “Operating faults” on the previ-
ous page.
This means that the doors are then
locked from the outside.
The doors may then only be opened
from the inside or by using the key in
the left-hand door.
A
2
3
1

JauneNoirNoir texte
1.13
ENG_UD22177_6
Verrouillage, déverrouillage des ouvrants (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_1
Locking the opening
elements without the
RENAULT card
For example, in the event of a dis -
charged battery or the RENAULT card
temporarily not working, etc.
With the engine switched off and a
door or tailgate open, press and hold
switch 4 for more than five seconds.
When the door is closed, all the doors
and tailgate will be locked.
The vehicle can only be unlocked from
outside when the RENAULT card is in
the vehicle's access zone.
doors and tailgate status
indicator light
When the ignition is on, the indicator
light integrated in switch 4 informs you
of the status of the doors and tailgate:
– indicator light on, the doors and tail-
gate are locked;
– light off, the doors and tailgate are
unlocked.
When you lock the doors, the indicator
light remains lit and then goes out.
LOcKINg/UNLOcKINg THE dOORs (2/2)
Interior locking/unlocking
door control
Switch 4 controls the doors, the tailgate
and the fuel filler flap simultaneously.
If a door or the tailgate is open or not
closed properly, the doors and tailgate
lock/unlock quickly.
If transporting an object with the tail -
gate open, you can still lock the doors:
with the engine stopped, press and
hold switch 4 for more than five sec -
onds to lock the other doors.
Never leave your vehicle
with the RENAULT card
inside.
4
After locking/unlocking the vehicle
or the luggage compartment only
using the buttons on the RENAULT
card, remote locking and unlocking
in hands-free mode are deactivated.
To reactivate the hands-free mode:
restart the vehicle.driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as -
sisting you to gain access to the
passenger compartment in the
event of an emergency.

RENAULT ANTI-INTRUDER DEVICE (RAID) (up to the end of the DU)
central door locking .............................. (up to the end of the DU)
doors ..................................................... (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
1.14
ENG_UD22178_3
Condamnation automatique des ouvrants en roulage (X91 - D91 - Renault)\
ENG_NU_939-3_D91_Renault_1
Automatic locking when driving
AUTOmATIc LOcKINg WHEN dRIvINg
Activating/deactivating the
function
You can decide whether you want to
activate this function.
Refer to the information on the “Vehicle
settings personalisation menu” in
Section 1; “Automatic locking of the
doors while driving” function:
= function activated
< function deactivated.
Operating principle
After the vehicle is started, the system
automatically locks the doors when
you are driving at approximately 6 mph
(10 km/h) and over.
The door can be unlocked:
– by pressing the door unlocking
button 1.
– with the vehicle stopped, by opening
a door.
Note: if a door is opened or closed,
it will automatically lock again when
the vehicle reaches a speed of 6 mph
(10 km/h).
Operating faults
If you experience an operating fault (no
automatic locking, the indicator light in-
corporated in button 1 does not light up
when trying to lock the doors and tail -
gate, etc.), first check that the doors
and tailgate are properly closed. If they
are properly closed and the fault is still
present, contact an approved Dealer.
Also make sure that locking has not
been inadvertently deactivated.
If it has, switch the ignition off and on
again and reactivate it.
1
driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as -
sisting you to gain access to the
passenger compartment in the
event of an emergency.

headrest................................................ (up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
adjusting your driving position .............. (up to the end of the DU)
1.15
ENG_UD18801_8
Appuis-tête avant (B74 - K74 - X81 - J81 - X91 - B91 - K91 - D91 - X\
95 - B95 - D95 - J95 - R95 - Renault)
ENG_NU_939-3_D91_Renault_1
Headrests - Seats
fRONT HEAdREsTs
To raise the headrest
Pull the headrest upwards to the de -
sired height.
To lower the headrest
Press button 2 and guide the headrest
down to the desired height.
To adjust the angle of the
headrest
Depending on the vehicle, tilt section A
towards or away from you to the re -
quired position.
To remove the headrest
Raise the headrest to its highest po -
sition (tilt the seatback backwards if
necessary). Press button 1 and lift the
headrest to release it.
To refit the headrest
Pull out the headrest rods 3 as far as
possible by pulling from the top. Take
care to ensure they are clean and cor-
rectly aligned and, if there are any prob-
lems, check that the notches are facing
forwards.
Insert the headrest rods into the holes
(tilt the seatback backwards if neces -
sary).
Lower the headrest until it locks, press
button 1 and lower the headrest as far
as possible.
Check that each headrest rod 3 is se -
curely locked in the seatback by trying
to pull them up or push them down.
The headrest is an impor -
tant safety component:
ensure that it is in place and
in the correct position. The
distance between your head and the
headrest and the distance between
the head and section A should be
as small as possible.
2
3
A1
The three upper positions can
be manipulated without pressing
button 2. However, it is preferable to
press this button to lower the head-
rest.

front seat adjustment ............................(up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
front seats with manual controls ........................................ (current page)
1.16
ENG_UD22179_4
Sièges avant à commandes manuelles (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_1
Jaune NoirNoir texte
Depending on the vehicle, the following
may be available:
– front seats with manual controls;
– front seats with electric controls;
– lumbar adjustment for the driver ’s
seatback;
– heated seats;
– driver’s seat position storage (refer
to “Driver’s seat with storage func -
tion” in Section 1).
fRONT sEATs (1/2)
manual controls
To move the seat forwards or back
Lift handle 1 to release. Release the
handle once the seat is in the correct
position and ensure that the seat is fully
locked into position.
To raise or lower the seat base
Move lever 3 as many times as neces-
sary upwards or downwards.
To tilt the seatback
Turn control knob 2 to the required po-
sition.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
1
3
2
Electric controls
To move the seat base forwards or
back, move switch 4 forwards or back-
wards.
To raise or lower the rear of the seat
base , move the rear of switch 4 up or
down.
To raise or lower the front of the seat
base, move the front of switch 4 up or
down.
4

heated seats .......................................................... (current page)
JauneNoirNoir texte
1.17
ENG_UD22179_4
Sièges avant à commandes manuelles (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_1
8
Lumbar adjustmentLower handle 8 to increase the support
and lift it to decrease it.
Heated seatsWith the engine running, turn control 5
to either position 1, 2 or 3 (depending
on the temperature required). An in -
dicator light on the instrument panel
lights up once the front seat heating
system is operating.
The system, which has a thermostat,
decides whether or not the heating is
needed, according to the position se -
lected.
Electric controls (continued)
Adjusting the seatback:
To tilt the seatback , move the top of
switch 7 forwards or backwards.
storage of the seat position
On equipped vehicles, buttons 6 are
used to store the driving positions (refer
to the following page).
fRONT sEATs (2/2)
57
6
force limiter
If an object is obstructing the seat, an
integrated force limiter stops the seat’s
travel. In this case, reverse the seat’s
travel, remove the object and move the
seat again.
Ensure that nothing is ob -
structing the movement of
the front seats.

1.18
ENG_UD22180_4
Accès aux places arrière (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_1
manually controlled seats
Lift handle 2 and slide the seat forward.
To bring the seat into position, bring the
seatback into position.
AccEss TO THE REAR sEATs
2
Electrically controlled seats
Lift handle 2 and tilt the seatback com-
pletely: the seat moves forward.
To bring the seat into position, bring the
seatback into position. The seat returns
to its original position.
force limiter
If an object is obstructing the seat’s
original position, an integrated force
limiter stops the seat’s travel. In this
case, tilt the seat again, remove the
obstacle and return the seatback to its
original position. The seat returns to its
original position.
In some cases, it may be necessary
to modify the seat settings to allow
access to the rear seats.
Risk of interference with the vehicle
roof.
The headrest is an impor -
tant safety component:
ensure that it is in place
and in the correct position.
The distance between your head
and the headrest should be as small
as possible. The top of your head
should be in line with the top of the
headrest.
Ensure that nothing is ob -
structing the movement of
the front seats.
1
Do not move handle 1 and handle 2
or switch 3 at the same time.
3
