Ordinateur de bord : généralités (X91 - B91 - K91 - Renault)
ENG_NU_939-3_D91_Renault_1
Trip computer
Trip computer and warning
system 1
Depending on the vehicle, this includes
the following functions:
– distance travelled;
– journey parameters;
– information messages;
– operating fault messages (associ -
ated with the
© warning light);
– warning messages (associated with
the
® warning light);
– vehicle settings customisation menu.
All these functions are described on the
following pages.
display selection keys 2
and 3
Scroll through the following informa -
tion upwards (button 2 ) or downwards
(button 3 ) by pressing briefly and suc -
cessively (the display depends on the
vehicle equipment and country).
a) total mileage and trip mileage re -
corder;
b) journey parameters:
– fuel used;
– average fuel consumption;
– current fuel consumption;
– estimated range;
– distance travelled;
– average speed;
c) mileage before service;
d) tyre pressure monitor;
e) cruise control/speed limiter pro -
grammed speed;
f) vehicle settings customisation menu;
g) on-board log, operating fault and in-
formation message readout.
12
3
TRIp cOmpUTER: general information (1/2)

1.52
ENG_UD23773_2
Ordinateur de bord : généralités (X91 - B91 - K91 - Renault)
ENG_NU_939-3_D91_Renault_1
Trip mileage resetting
With “trip mileage recorder” selected on
the display, press button 2 or 3 until the
mileage recorder resets to zero.
Resetting the journey
parameters (reset button)
With one of the journey parameters se-
lected on the display, press button 2
or 3 until the display resets.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con -
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing
the reset key you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the average fuel consumption may de-
crease when:
– the vehicle stops accelerating;
– the engine reaches its operat -
ing temperature (if the engine
was cold when the reset key was
pressed);
– when driving from an urban area
onto the open road.
Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa -
rameters is exceeded.2
3
TRIp cOmpUTER: general information (2/2)

trip computer and warning system........(up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
instrument panel messages ..................(up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
1.53
ENG_UD23764_1
Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault\
)
ENG_NU_939-3_D91_Renault_1
The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.
Examples of selections Interpreting the display selected
101778 KM 112. 4 KM
a) Total mileage and trip mileage recorder.
Fuel used
b) Journey parameters.
fuel used.
Fuel consumed since the last reset.
8 L
Average
Average fuel consumption since the last reset.
The value is displayed after having travelled at least 400 metres since the last reset.
7.2 L/100
TRIp cOmpUTER: trip settings (1/5)

1.54
ENG_UD23764_1
Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault\
)
ENG_NU_939-3_D91_Renault_1
Jaune NoirNoir texte
The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.
Examples of selections Interpreting the display selected

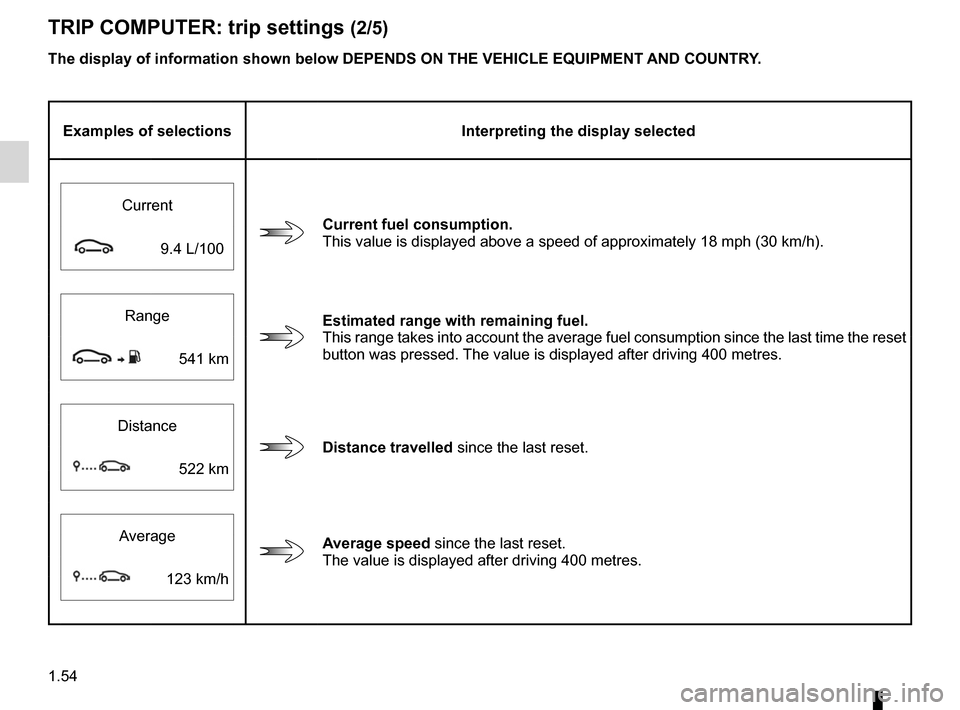

Current
current fuel consumption.
This value is displayed above a speed of approximately 18 mph (30 km/h)\
.
9.4 L/100
Estimated range with remaining fuel.
This range takes into account the average fuel consumption since the last time the reset
button was pressed. The value is displayed after driving 400 metres.
Range
541 km
distance travelled
since the last reset.
Distance
522 km
Average speed since the last reset.
The value is displayed after driving 400 metres.
Average
123 km/h
TRIp
cOmpUTER: trip settings (2/5)

JauneNoirNoir texte
1.55
ENG_UD23764_1
Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault\
)
ENG_NU_939-3_D91_Renault_1
Examples of selections Interpreting the display selected
c) mileage before service. Distance remaining until the next service (displayed in miles/kilometres and months),
then when the service nears, several scenarios are possible:
– distance/time remaining less than 900 miles (1,500 km) or one month: the mes-
sage “Service in” is displayed accompanied by the nearest term (distance or time);
– distance equal to 0 miles or service date reached : the message “Service re-
quired ” is displayed accompanied by the
© warning light.
The vehicle requires a service as soon as possible.
Service in
1936 km/2 months
NB: depending on the vehicle, the mileage before service changes according to the driving style (frequent driving at low speed,
door-to-door journeys, extensive use at idle speed, towing a trailer etc). The distance remaining until the next service can there-
fore decrease more quickly in some cases than the actual distance travel\
led.
Resetting the display after the service in accordance with the maintenan\
ce schedule.
The mileage before service must only be reset after a service which complies with the recommendations in the maintenance
schedule.
If you decide to change the oil more frequently, do not reset this data each time the oil is changed to avoid exceeding the re-
placement intervals for other parts in the maintenance schedule.
special note: To reset the distance before service, press and hold one of the display reset buttons for approximately 10 sec-
onds until the display shows the mileage permanently.
The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.
TRIp
cOmpUTER: trip settings (3/5)

1.56
ENG_UD23764_1
Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault\
)
ENG_NU_939-3_D91_Renault_1
Jaune NoirNoir texte
The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.
Examples of selections Interpreting the display selected

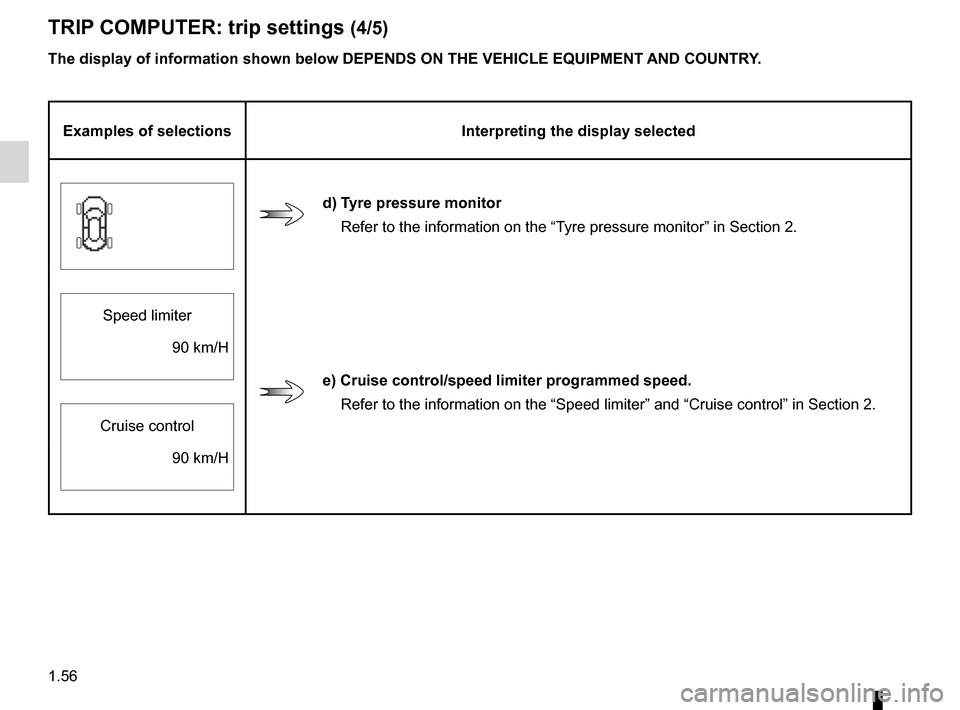

d) Tyre pressure monitor
Refer to the information on the “Tyre pressure monitor” in Section 2.
Speed limiter
e) cruise control/speed limiter programmed speed. Refer to the information on the “Speed limiter” and “Cruise con\
trol” in Section 2.
90 km/H
Cruise control 90 km/H
TRIp cOmpUTER: trip settings (4/5)

JauneNoirNoir texte
1.57
ENG_UD23764_1
Ordinateur de bord : paramètres de voyage (X91 - B91 - K91 - Renault\
)
ENG_NU_939-3_D91_Renault_1

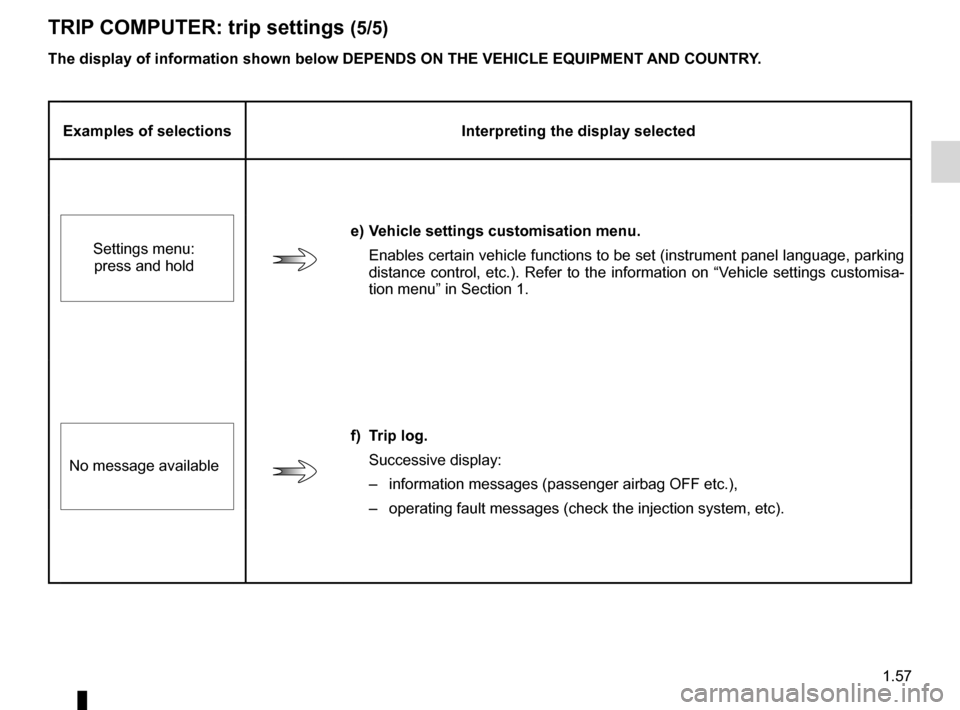

Examples of selections Interpreting the display selected
e) vehicle settings customisation menu.
Enables certain vehicle functions to be set (instrument panel language, parking
distance control, etc.). Refer to the information on “Vehicle settings customisa-
tion menu” in Section 1.
Settings menu:
press and hold
f) Trip log.
Successive display:
– information messages (passenger airbag OFF etc.),
– operating fault messages (check the injection system, etc).
No message available
The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.
TRIp
cOmpUTER: trip settings (5/5)

trip computer and warning system.........................(current page)
warning lights ......................................................... (current page)
instrument panel messages ...................................(current page)
instrument panel .................................................... (current page)
1.58
ENG_UD28946_2
Ordinateur de bord : messages d’information (X91 - B91 - K91 - D91 -\
Renault)
ENG_NU_939-3_D91_Renault_1
TRIp cOmpUTER ANd WARNINg sYsTEm: information messages
Examples of messages Interpreting the display selected
« Battery low
start engine » Indicates that the vehicle must be started to recharge the battery (eg. after the engine has been
switched off for some time whilst listening to the radio).
« please remove keycard » Request to remove the RENAULT card from the reader when you leave the vehicle.
« checking control functions » Displayed with the ignition on when the vehicle is running self-diagnost\
ics.
« Traction control off »Indicates that you have deactivated the ASR function.
« Turn steering
wheel + sTART » Turn the steering wheel slightly whilst pressing the vehicle start button to unlock the steering
column.
« Auto stop »Indicates that the engine is on standby (related to the Stop and Start function). Please see infor-
mation about the “Stop and Start function” in Section 2.
« steering wheel not locked »Indicates that the steering column has not been locked.
These can help in the vehicle starting phase, or give information about \
a selection or a driving status.
Examples of information messages are given in the following pages.
