Speed limiter

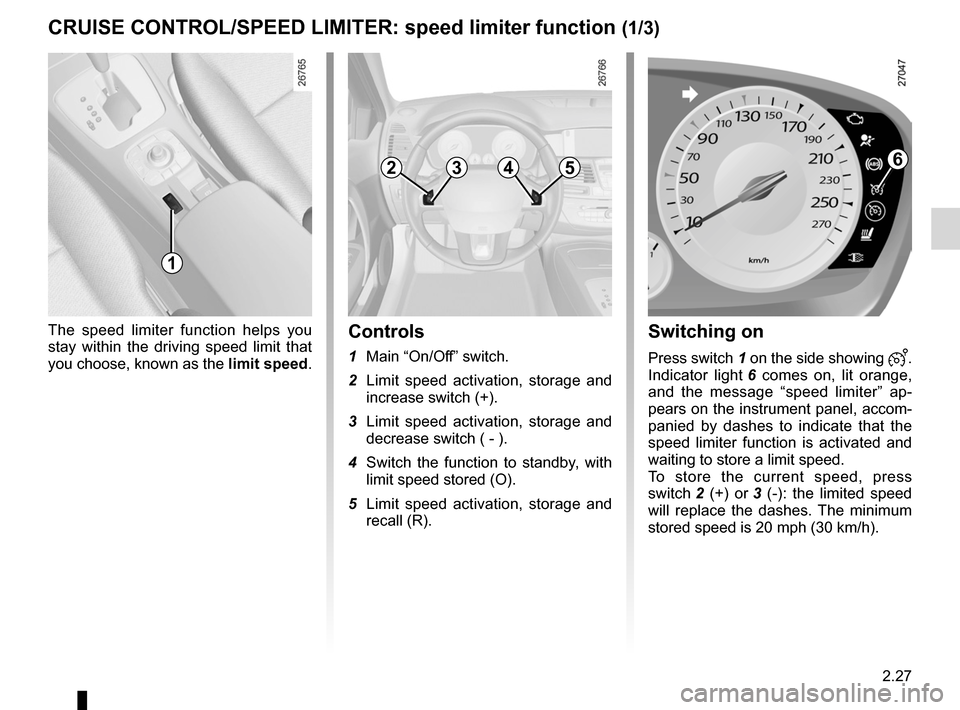

CRUISe CoNtRoL/SPeeD LIMIteR: speed limiter function (1/3)
The speed limiter function helps you
stay within the driving speed limit that
you choose, known as the limit speed.Controls
1 Main “On/Off” switch.
2 Limit speed activation, storage and
increase switch (+).
3 Limit speed activation, storage and
decrease switch ( - ).
4 Switch the function to standby, with
limit speed stored (O).
5 Limit speed activation, storage and
recall (R).
Switching on
Press switch 1 on the side showing .
Indicator light 6 comes on, lit orange,
and the message “speed limiter” ap -
pears on the instrument panel, accom-
panied by dashes to indicate that the
speed limiter function is activated and
waiting to store a limit speed.
To store the current speed, press
switch 2 (+) or 3 (-): the limited speed
will replace the dashes. The minimum
stored speed is 20 mph (30 km/h).
1
23546

2.28
ENG_UD22200_6
Régulateur-limiteur de vitesse : fonction limiteur (X91 - B91 - K91 \
- D91 - Renault)
ENG_NU_939-3_D91_Renault_2
Jaune NoirNoir texte

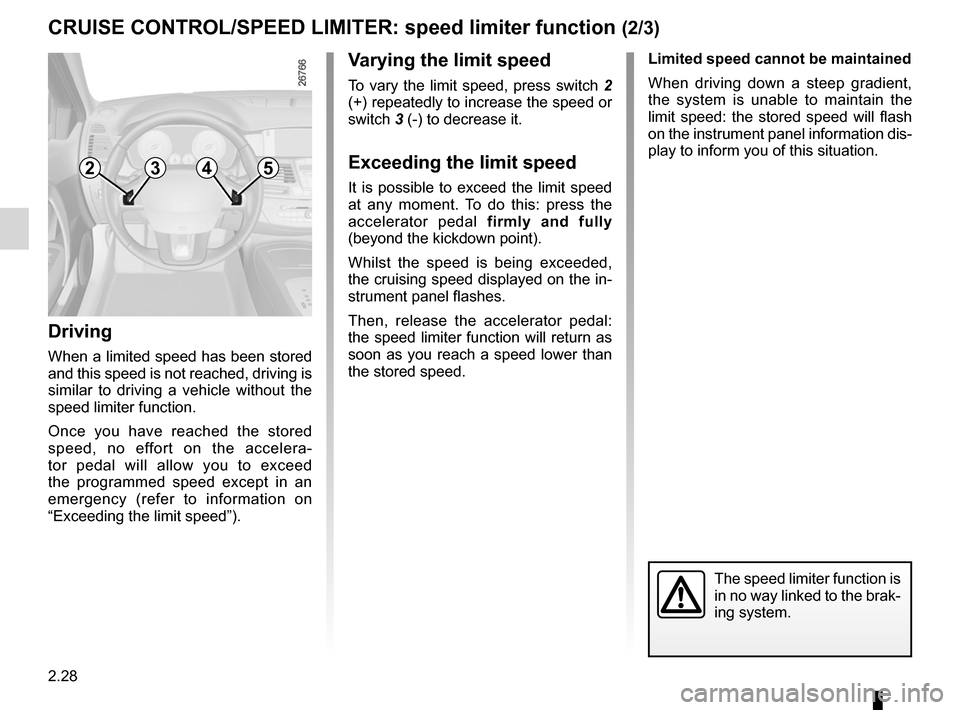

CRUISe CoNtRoL/SPeeD LIMIteR: speed limiter function (2/3)
Driving
When a limited speed has been stored
and this speed is not reached, driving is
similar to driving a vehicle without the
speed limiter function.
Once you have reached the stored
speed, no effort on the accelera -
tor pedal will allow you to exceed
the programmed speed except in an
emergency (refer to information on
“Exceeding the limit speed”).
Varying the limit speed
To vary the limit speed, press switch 2
(+) repeatedly to increase the speed or
switch 3 (-) to decrease it.
exceeding the limit speed
It is possible to exceed the limit speed
at any moment. To do this: press the
accelerator pedal firmly and fully
(beyond the kickdown point).
Whilst the speed is being exceeded,
the cruising speed displayed on the in-
strument panel flashes.
Then, release the accelerator pedal:
the speed limiter function will return as
soon as you reach a speed lower than
the stored speed. Limited speed cannot be maintained
When driving down a steep gradient,
the system is unable to maintain the
limit speed: the stored speed will flash
on the instrument panel information dis-
play to inform you of this situation.
2354
The speed limiter function is
in no way linked to the brak-
ing system.

JauneNoirNoir texte
2.29
ENG_UD22200_6
Régulateur-limiteur de vitesse : fonction limiteur (X91 - B91 - K91 \
- D91 - Renault)
ENG_NU_939-3_D91_Renault_2

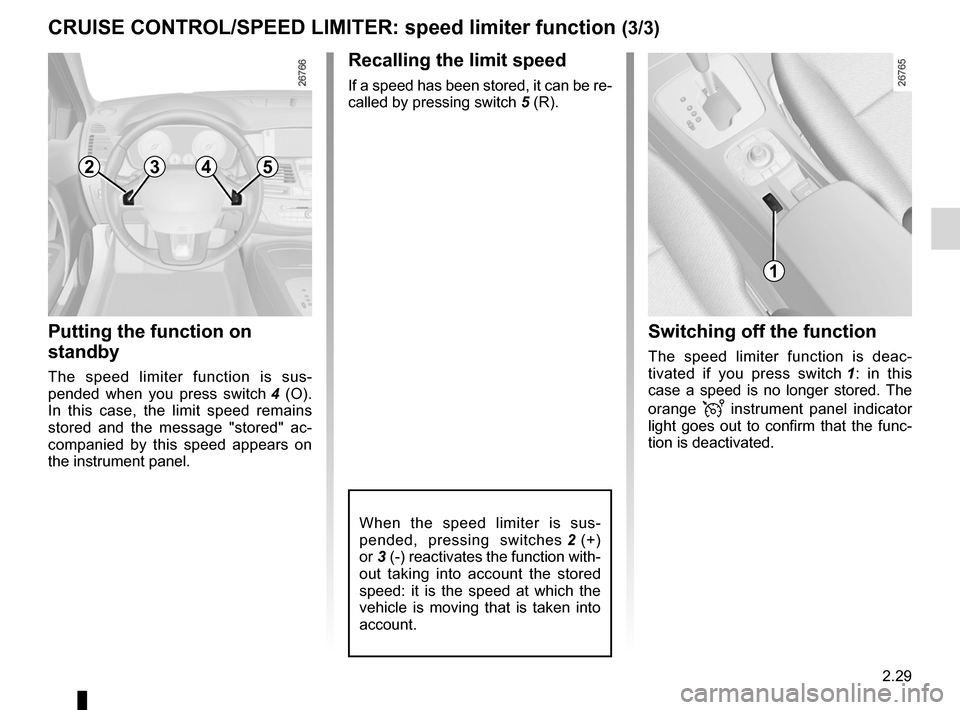

CRUISe CoNtRoL/SPeeD LIMIteR: speed limiter function (3/3)
Putting the function on
standby
The speed limiter function is sus -
pended when you press switch 4 (O).
In this case, the limit speed remains
stored and the message "stored" ac -
companied by this speed appears on
the instrument panel.
1
2354
Recalling the limit speed
If a speed has been stored, it can be re-
called by pressing switch 5 (R).
When the speed limiter is sus -
pended, pressing switches 2 (+)
or 3 (-) reactivates the function with-
out taking into account the stored
speed: it is the speed at which the
vehicle is moving that is taken into
account.
Switching off the function
The speed limiter function is deac -
tivated if you press switch 1 : in this
case a speed is no longer stored. The
orange
 instrument panel indicator
light goes out to confirm that the func-
tion is deactivated.

cruise control ........................................ (up to the end of the DU)
cruise control-speed limiter................... (up to the end of the DU)
driving ................................................... (up to the end of the DU)
2.30
ENG_UD22201_5
Régulateur-limiteur de vitesse : fonction régulateur (X91 - B91 -\
K91 - Renault)
ENG_NU_939-3_D91_Renault_2
Jaune NoirNoir texte
Cruise control
CRUISe CoNtRoL/SPeeD LIMIteR: cruise control function (1/4)
The cruise control function helps you to
maintain your driving speed at a speed
that you choose, called the cruising
speed.
This cruising speed may be set at any
speed above 20 mph (30 km/h).
The cruise control function
is in no way linked to the
braking system.
This function is an addi -
tional driving aid. However,
the function does not take
the place of the driver.
Therefore, it can under no circum -
stances replace the driver’s respon-
sibility to respect speed limits and to
be vigilant (the driver must always
be ready to brake). Cruise control
must not be used in heavy traffic, on
undulating or slippery roads (black
ice, aquaplaning, gravel) and during
bad weather (fog, rain, side winds
etc.).
There is a risk of accidents.
Controls
1 Main “On/Off” switch.
2 Limit speed activation, storage and
increase switch (+).
3 Limit speed activation, storage and
decrease switch (-).
4 Switch the function to standby
(with memorised cruising speed)
(O).
5 Cruising speed activation, storage
and recall (R).
2354
1

JauneNoirNoir texte
2.31
ENG_UD22201_5
Régulateur-limiteur de vitesse : fonction régulateur (X91 - B91 -\
K91 - Renault)
ENG_NU_939-3_D91_Renault_2

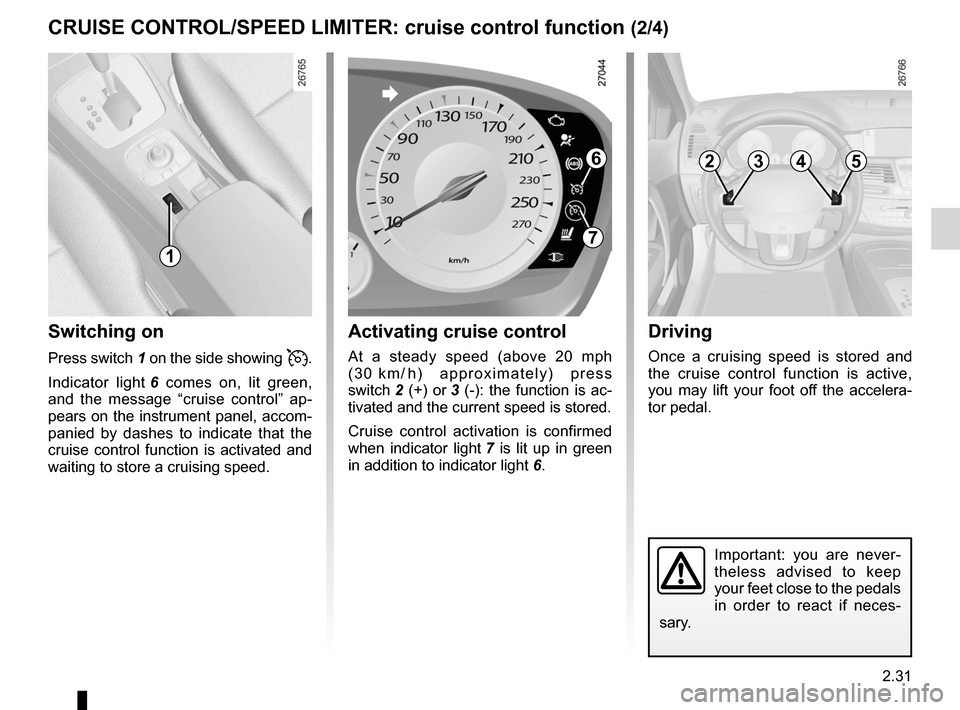

CRUISe CoNtRoL/SPeeD LIMIteR: cruise control function (2/4)
Switching on
Press switch 1 on the side showing .
Indicator light 6 comes on, lit green,
and the message “cruise control” ap -
pears on the instrument panel, accom-
panied by dashes to indicate that the
cruise control function is activated and
waiting to store a cruising speed.
activating cruise control
At a steady speed (above 20 mph
( 3 0 k m / h ) a p p r o x i m a t e l y ) p r e s s
switch 2 (+) or 3 (-): the function is ac-
tivated and the current speed is stored.
Cruise control activation is confirmed
when indicator light 7 is lit up in green
in addition to indicator light 6.
Driving
Once a cruising speed is stored and
the cruise control function is active,
you may lift your foot off the accelera -
tor pedal.
Important: you are never -
theless advised to keep
your feet close to the pedals
in order to react if neces -
sary.
6
1
7
2354

2.32
ENG_UD22201_5
Régulateur-limiteur de vitesse : fonction régulateur (X91 - B91 -\
K91 - Renault)
ENG_NU_939-3_D91_Renault_2
Jaune NoirNoir texte

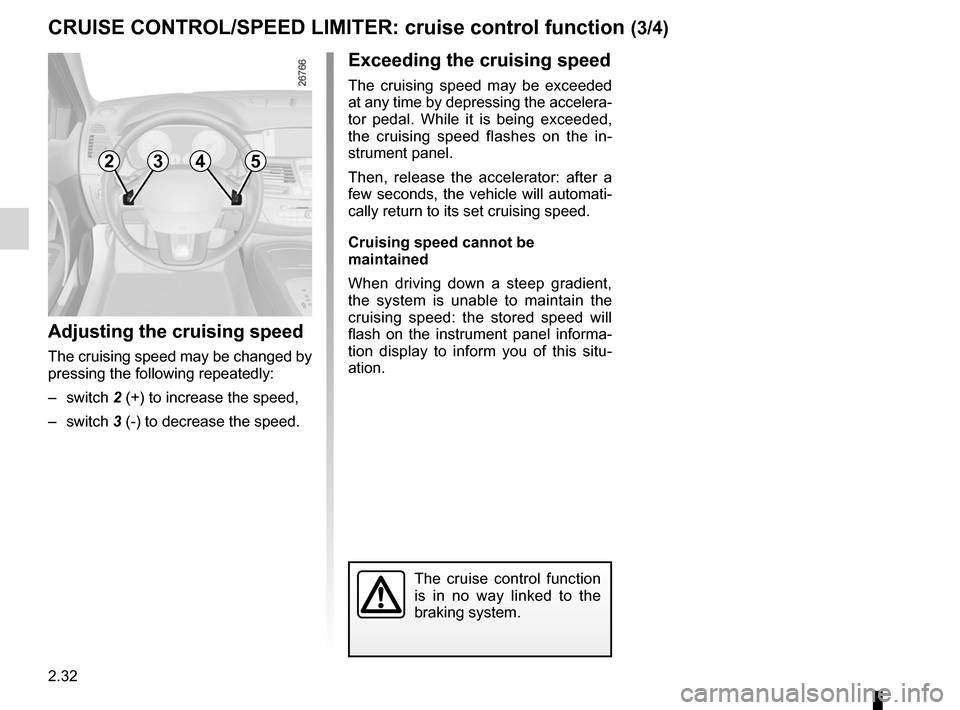

CRUISe CoNtRoL/SPeeD LIMIteR: cruise control function (3/4)
adjusting the cruising speed
The cruising speed may be changed by
pressing the following repeatedly:
– switch 2 (+) to increase the speed,
– switch 3 (-) to decrease the speed.
The cruise control function
is in no way linked to the
braking system.
exceeding the cruising speed
The cruising speed may be exceeded
at any time by depressing the accelera -
tor pedal. While it is being exceeded,
the cruising speed flashes on the in -
strument panel.
Then, release the accelerator: after a
few seconds, the vehicle will automati-
cally return to its set cruising speed.
Cruising speed cannot be
maintained
When driving down a steep gradient,
the system is unable to maintain the
cruising speed: the stored speed will
flash on the instrument panel informa -
tion display to inform you of this situ -
ation.
2354

JauneNoirNoir texte
2.33
ENG_UD22201_5
Régulateur-limiteur de vitesse : fonction régulateur (X91 - B91 -\
K91 - Renault)
ENG_NU_939-3_D91_Renault_2

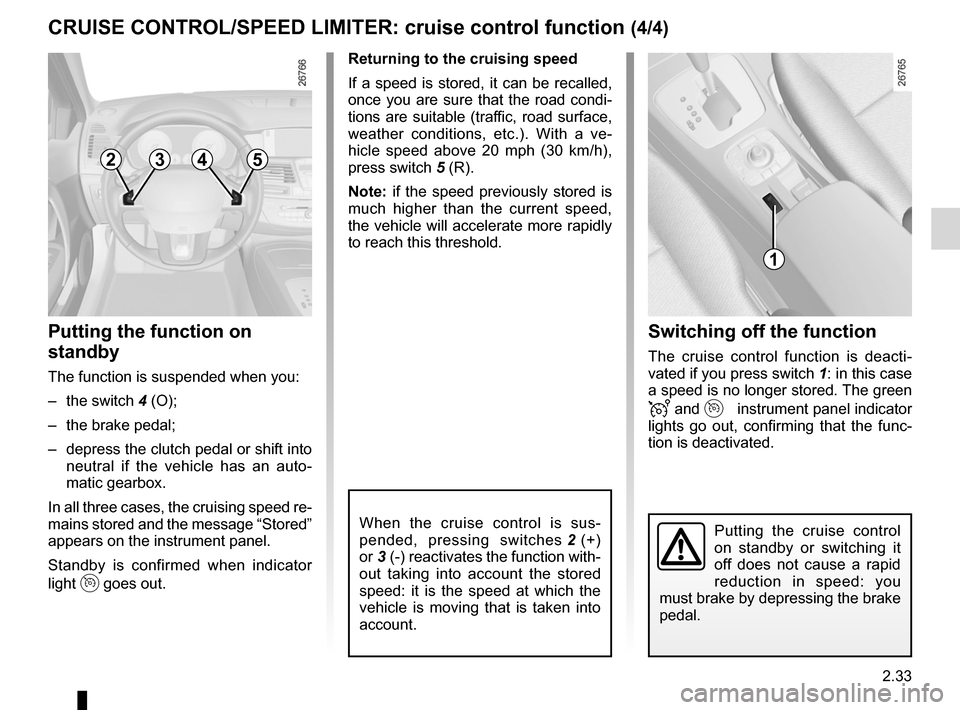

CRUISe CoNtRoL/SPeeD LIMIteR: cruise control function (4/4)
Putting the function on
standby
The function is suspended when you:
– the switch 4 (O);
– the brake pedal;
– depress the clutch pedal or shift into
neutral if the vehicle has an auto -
matic gearbox.
In all three cases, the cruising speed re-
mains stored and the message “Stored”
appears on the instrument panel.
Standby is confirmed when indicator
light
 goes out. Returning to the cruising speed
If a speed is stored, it can be recalled,
once you are sure that the road condi
-
tions are suitable (traffic, road surface,
weather conditions, etc.). With a ve -
hicle speed above 20 mph (30 km/h),
press switch 5 (R).
Note: if the speed previously stored is
much higher than the current speed,
the vehicle will accelerate more rapidly
to reach this threshold.
When the cruise control is sus -
pended, pressing switches 2 (+)
or 3 (-) reactivates the function with-
out taking into account the stored
speed: it is the speed at which the
vehicle is moving that is taken into
account.
Switching off the function
The cruise control function is deacti -
vated if you press switch 1: in this case
a speed is no longer stored. The green
 and  instrument panel indicator
lights go out, confirming that the func -
tion is deactivated.
Putting the cruise control
on standby or switching it
off does not cause a rapid
reduction in speed: you
must brake by depressing the brake
pedal.
1
2354

parking distance control........................(up to the end of the DU)
driving ................................................... (up to the end of the DU)
reversing sensor ................................... (up to the end of the DU)
2.34
ENG_UD27734_1
Aide au parking (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_2
Jaune NoirNoir texte
Parking distance control
This function is an additional aid that indicates the distance between the
vehicle and an obstacle whilst reversing, using sound signals.
Under no circumstances should it replace the driver’s care or responsibil -
ity whilst reversing.
The driver should always look out for sudden hazards during driving: always
ensure that there are no moving obstacles (such as a child, animal, pram or bi-
cycle, etc.) or small, narrow objects such as stones or posts in your path when
manoeuvring.
operating principle
Ultrasonic detectors, installed in the
front or rear bumper depending on the
vehicle, measure the distance between
the vehicle and an obstacle whilst re -
versing.
This measurement is indicated by
beeps which become more frequent the
closer you come to the obstacle, until
they become a continuous beep when
the vehicle is approximately 25 centi -
metres from the obstacle.
P aRKING DIStaNCe CoNtRoL (1/3)
1
2
adjusting the parking
distance control volume
From the vehicle settings customisation
menu (refer to “vehicle settings cus -
tomisation menu” in Section 1), select
the line for the parking distance control
volume, adjust the volume and press
key 1 or 2 to confirm.
