2012 RENAULT LAGUNA COUPE Owners Manual

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: direction indicators ........................................... (current page)
lights: side lights ......................................................... (current page)
lights: brake lights ...................................................... (current page)
lights: reversing lights ................................................. (current page)
lights: fog lights .......................................................... (current page)
indicators: direction indicators ........................................... (current page)
bulbs changing ......................................... (up to the end of the DU)
5.15
ENG_UD22250_4
Feux arrière et latéraux : remplacement des lampes (X91 - D91 - R\
enault)
ENG_NU_939-3_D91_Renault_5
Rear lights and side lights (changing bulbs)
reAr LIGHtS AnD SIDe LIGHtS: changing bulbs (1/2)
2
1
3
Undo screw 2 then pull the light unit
outwards.Direction indicator lights
From the luggage compartment, tilt
cover 1 upwards and remove it to
access the back of the bulb.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.As it is necessary to remove the
protective covers, you are advised
to have the other rear bulbs re -
placed by an approved Dealer.
Undo bulb holder 3 a quarter of a turn.
Replace the bulb.
Bulb type: PY21W.
When replacing a bulb, do not touch
the electrical circuit A.
Risk of damaging the light.
A

lights:main beam headlights ...................................... (current page)
lights: fog lights .......................................................... (current page)
5.16
ENG_UD22250_4
Feux arrière et latéraux : remplacement des lampes (X91 - D91 - R\
enault)
ENG_NU_939-3_D91_Renault_5
Side indicator lights
Unclip indicator light 4 (using a flatb -
lade screwdriver type tool positioned
at A to move the indicator light towards
the front of the vehicle).
Turn the bulb holder a quarter of a turn
and take out the bulb.
Bulb type: W5W.
reAr LIGHtS AnD SIDe LIGHtS: changing bulbs (2/2)
5
6
4
A
number plate lights
Unclip light 5 by pressing tab 6.
Remove the light cover to gain access
to the bulb.
Bulb type: c5W festoon bulb.

courtesy light ........................................ (up to the end of the DU)
lighting: interior ............................................. (up to the end of the DU)
5.17
ENG_UD22251_3
Eclairage intérieur : remplacement des lampes (X91 - D91 - Renault)\
ENG_NU_939-3_D91_Renault_5

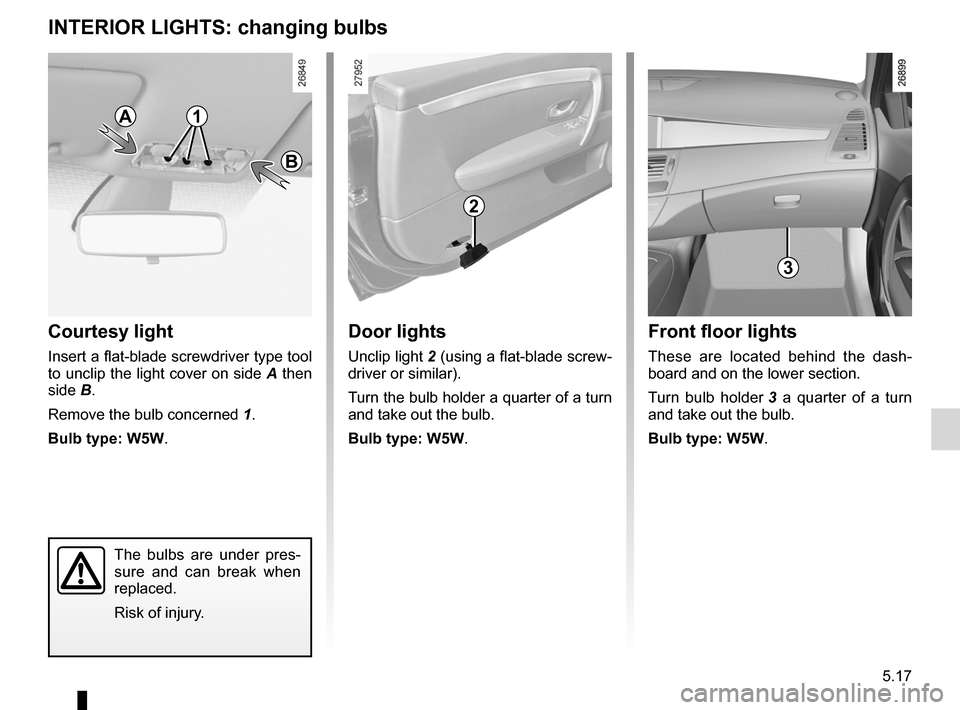

Interior lights (changing bulbs)
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
InterIOr LIGHtS: changing bulbs
courtesy light
Insert a flat-blade screwdriver type tool
to unclip the light cover on side A then
side B.
Remove the bulb concerned 1.
Bulb type: W5W.
1
Front floor lights
These are located behind the dash -
board and on the lower section.
Turn bulb holder 3 a quarter of a turn
and take out the bulb.
Bulb type: W5W.
Door lights
Unclip light 2 (using a flat-blade screw-
driver or similar).
Turn the bulb holder a quarter of a turn
and take out the bulb.
Bulb type: W5W.
2
3
A
B

5.18
ENG_UD22251_3
Eclairage intérieur : remplacement des lampes (X91 - D91 - Renault)\
ENG_NU_939-3_D91_Renault_5

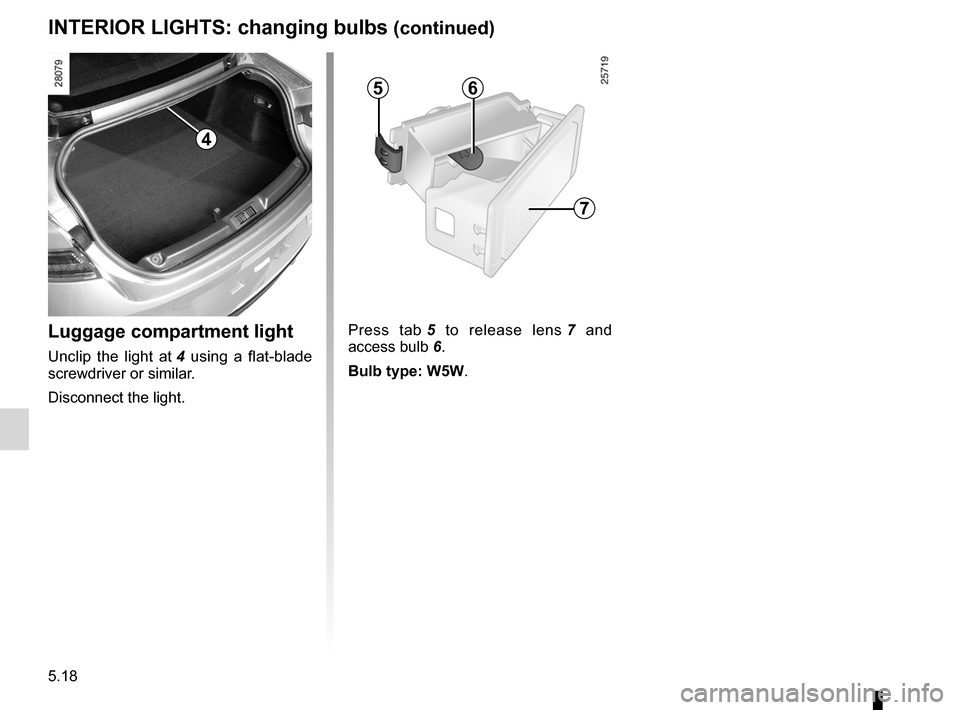

Luggage compartment light
Unclip the light at 4 using a flat-blade
screwdriver or similar.
Disconnect the light.
InterIOr LIGHtS: changing bulbs (continued)
4
56
7
Press tab 5 to release lens 7 and
access bulb 6.
Bulb type: W5W.

fuses ..................................................... (up to the end of the DU)
5.19
ENG_UD22226_3
Fusibles (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_5
Fuses
In accordance with local legislation
or as a precautionary measure:
Obtain an emergency kit containing
a set of spare bulbs and fuses from
an approved Dealer.
Check the fuse in question
and replace it, if neces-
sary, by a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
clip 3
Remove the fuse using tweezers 3, lo-
cated at the back of storage compart -
ment A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
Fuse box 2
If any electrical component does not
work, check the condition of the fuses.
Open storage compartment A . Press
tab 1 to move it then pull it towards you
to unclip it.
To identify the fuses, refer to the fuse
allocation label (shown on the following
page).
FuSeS (1/2)
1
2A
3

5.20
ENG_UD22226_3
Fusibles (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_5
FuSeS (2/2)
Some accessories are protected by
fuses located in the engine compart -
ment in fuse box A.
However, because of their reduced ac-
cessibility, we advise you to have your
fuses replaced by an approved Dealer.
A
Allocation of fuses (DePenDInG On tHe eQuIPMent LeVeL)
Symbol Allocation SymbolAllocation
ZInterior lightingRadio amplifier
Interior rear-view mirrorîRadio
CHeated rear screenaInstrument panel
ÌHornnDriving correction devices
Child safetyElectric seats
DIndicatorëAccessories sockets
Electric windowsyVentilation
ñHeated seatstAir conditioning
ERear screen wiperÆCigar lighter
[SunroofHeating system
Electronic parking brakeHWindscreen washer
ÝTowing equipment supply

batterytroubleshooting ............................... (up to the end of the DU)
5.21
ENG_UD29103_2
Batterie : dépannage (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_5
connecting a battery charger
t he battery charger must be com -
patible with a battery with nominal
voltage of 12 volts.
Follow the instructions given by the
manufacturer of the battery charger
you are using.
t o avoid all risk of sparks:
Do not place metal objects on the bat-
tery as this could create a short circuit
between the terminals.
Battery
Never disconnect it.
Battery
BA tter Y: breakdown recovery (1/2)
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
The engine may be hot when car -
rying out operations in close prox -
imity. In addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Starting the vehicle using the
battery from another vehicle
If you have to use the battery from an-
other vehicle to start, obtain suitable
jump leads (with a large cross section)
from an approved dealer or, if you al -
ready have jump leads, ensure that
they are in perfect condition.
the two batteries must have an iden-
tical nominal voltage of 12 volts. The
battery supplying the current should
have a capacity (amp-hours, Ah) which
is at least the same as that of the dis-
charged battery.
Special procedures may be
required to charge some
batteries. Contact an ap -
proved Dealer.
Avoid all risk of sparks which may
cause an immediate explosion, and
charge the battery in a well-venti -
lated area.
Risk of serious injury.
Deactivate the Stop and
Start function for any opera -
tion performed in the engine
compartment.

5.22
ENG_UD29103_2
Batterie : dépannage (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_5
Battery in the engine compartment
Connect the positive cable A to the
support 1 on the (+) terminal, then to
the (+) terminal 2 of the battery sup -
plying the current.
Connect the negative cable B to the (–)
terminal 3 of the battery supplying the
current and then to the (–) terminal 4 of
the discharged battery.
BA tter Y: breakdown recovery (2/2)
Battery in the luggage compartment
(V6 engines)
Use the terminals in the engine com -
partment.
Turn screw 6 one quarter of a turn to
the right, then pull cover 7 upwards to
access the 8 (+) terminal. Connect the
positive cable A to the support 8 on
the (+) terminal, then to the (+) termi-
nal 3 of the battery supplying the cur -
rent.
Connect the negative cable B to the (–)
terminal 4 of the battery supplying the
current and then to the (–) terminal 5.
Starting the vehicle using the
battery from another vehicle
(continued)
Ensure that there is no risk of contact
between the two vehicles (risk of short
circuiting when the positive terminals
are connected) and that the discharged
battery is properly connected. Switch
off your vehicle ignition.
Start the engine of the vehicle supply -
ing the current and run it at an interme-
diate engine speed.
8
5
6
7
Start the engine, and as soon as it starts running, disconnect cables A and B in
reverse order (4 - 3 - 2 - 1 or 5 - 3 - 2 - 8).
Check that there is no con-
tact between leads A and B
and that the positive lead A
is not touching any metal
parts on the vehicle supplying the
current.
Risk of injury or damage to the ve-
hicle.
Leads A and B must only be con-
nected to the terminals indicated.
1
A
B
1
4
23
