Accessories socket
Ashtray/cigar lighter

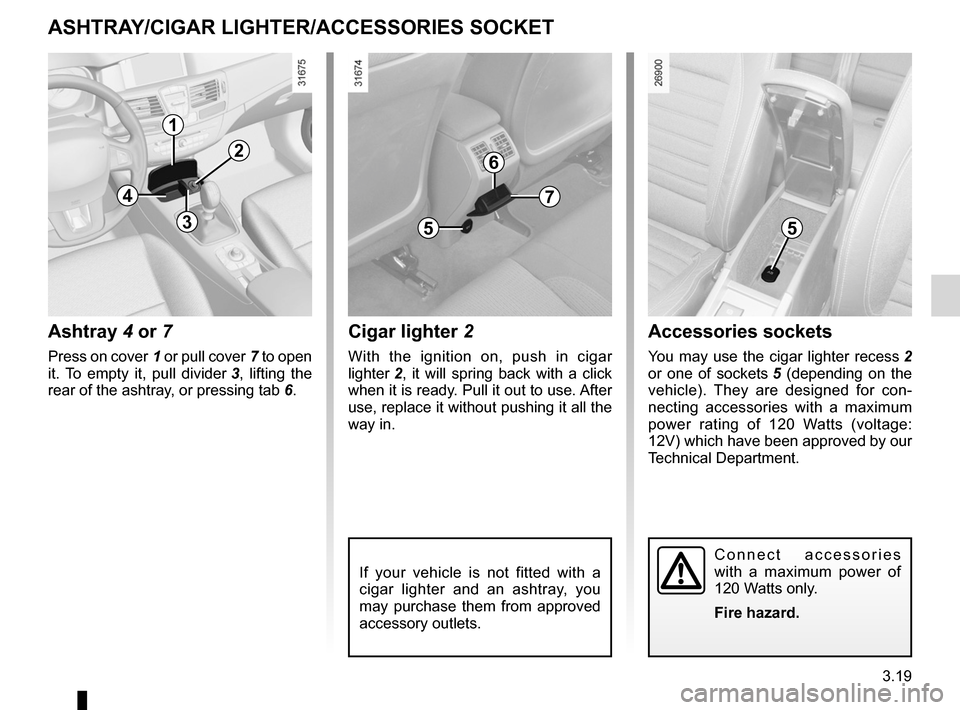

AShTRA y/cIgAR lIghTER/AccESSoRIES SockET
1
2
Accessories sockets
You may use the cigar lighter recess 2
or one of sockets 5 (depending on the
vehicle). They are designed for con -
necting accessories with a maximum
power rating of 120 Watts (voltage:
12V) which have been approved by our
Technical Department.
4
55
If your vehicle is not fitted with a
cigar lighter and an ashtray, you
may purchase them from approved
accessory outlets.
3
7
6
C o n n e c t a c c e s s o r i e s
with a maximum power of
120 Watts only.
Fire hazard.
cigar lighter 2
With the ignition on, push in cigar
lighter 2, it will spring back with a click
when it is ready. Pull it out to use. After
use, replace it without pushing it all the
way in.
Ashtray 4 or 7
Press on cover 1 or pull cover 7 to open
it. To empty it, pull divider 3 , lifting the
rear of the ashtray, or pressing tab 6.

headrest................................................ (up to the end of the DU)
3.20
ENG_UD19872_3
Appuis-tête arrière (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_3
Rear headrests
REAR hEADRESTS
Position for use
Raise or lower the headrest while pull -
ing it towards the front of the vehicle.
To remove the headrest
Tilt the seatback, then press tab 1
and 2 simultaneously and remove the
headrest.
To refit the headrest
Insert the headrest rods into the
sleeves, and lower the headrest to the
first notch.
Storage position
Lower the headrest as far as possi -
ble, then press tab 2 and lower it com-
pletely.
When the headrest is set at the
lowest position (position A ) this is
for storage only: . It should not be in
this position when a seat is occupied.
A
2
12
The headrest is an impor -
tant safety component:
ensure that it is in place and
in the correct position. The
distance between your head and the
headrest and the distance between
the head and section A should be
as small as possible.

rear bench seat..................................... (up to the end of the DU)
rear seats functions .......................................................... (current page)
3.21
ENG_UD19873_3
Banquette arrière (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_3
luggage compartment
To open
Press button 2 and lift the tailgate.
To close
Lower the tailgate using the handles
inside the tailgate to help you.
To put the seatback back in position,
raise it then check that it is locked cor-
rectly.
Rear bench seat
REAR BENch SEAT/luggAgE coMPARTMENT
When refitting the seatback, make sure it is correctly locked in place.
If seat covers are fitted, make sure these do not prevent the seatback
latch from locking in.
Make sure that the seat belts are positioned correctly.
Reposition the headrests.
Rear bench seat
The seatbacks can be folded down in
order to transport large objects.
Pull control 1, the seatback folds down
automatically.
1
In all situations, lower the rear head-
rests (refer to the information on the
“Rear headrests” in Section 1).
2
When moving the rear
bench seat, check that
the bench seat anchor -
age points are clean (they
should be free from grit, cloths or
any other item which may prevent
the bench seat from locking se -
curely).

storage compartments .......................... (up to the end of the DU)
tailgate .................................................. (up to the end of the DU)
3.22
ENG_UD22221_3
Rangements, aménagements coffre à bagages (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_3
Luggage compartment storage space and fittings
Side storage compartments
These storage compartments 1 can be
used to transport an oil container etc.
luggAgE coMPARTMENT ST oRAgE SPAcE AND FITTINgS
1
Storage under carpet
To access storage compartments B ,
fold back section A using belt 2 (these
storage compartments can be used to
store a reflective vest, warning triangle
etc.).
To access storage compartment C , lift
carpet 3.
A
2
B3
Always place objects being trans -
ported so that the heaviest items
are resting against the back of the
rear bench seat.
c

transporting objectsin the luggage compartment ........... (up to the end of the DU)
towing rings .......................................... (up to the end of the DU)
towing towing equipment ............................ (up to the end of the DU)
towing equipment fitting ............................................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
roof bars ............................................... (up to the end of the DU)
3.23
ENG_UD29089_6
Transport d’objets : dans le coffre / attelage (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_3
Transporting objects:
in the boot
A
Always position the heavi -
est items directly on the
floor. Use the lashing points
on the floor of the luggage
compartment, if these are fitted to
the vehicle. The luggage should be
loaded in such a way that no items
will be thrown forward and strike the
occupants if the driver has to brake
suddenly. Fasten the rear seat belts,
even if the seats are not occupied.
Always place the objects to be trans -
ported so that their largest side rests
against the back of the rear bench seat
for normal loads (e.g.: A), or against the
back of the front seats when the rear
bench seatbacks are folded down.
If you have to place objects on the
folded seat back, it is vital that you
remove the headrests before folding
the seat back so that it can be folded as
flat as possible against the seat.
Transporting objects on the
roof
The fitting of roof bars is not permitted
on this vehicle.
TRANSPoRTINg oBjEcTS IN ThE BooT (1/2)

3.24
ENG_UD29089_6
Transport d’objets : dans le coffre / attelage (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_3
towbar
TRANSPoRTINg oBjEcTS IN ThE BooT (2/2)/T oWINg
Permissible nose weight, maxi -
mum permissible towing weight,
braked and unbraked: refer to
the information on “Weights” in
Section 6.
For fitting and conditions of use,
refer to the equipment’s fitting in -
structions.
Please keep these instructions with
the rest of the vehicle documenta -
tion.
B = 1,003 mm
If the towbar ball obscures the regis-
tration plate or the rear fog lights, it
should be removed when not in use.
In all cases, comply with local leg -
islation.
B

multimedia equipment .......................... (up to the end of the DU)
telephone .............................................. (up to the end of the DU)
navigation system ................................. (up to the end of the DU)
hands-free telephone integrated control
(up to the end of the DU)
navigation ............................................. (up to the end of the DU)
radio...................................................... (up to the end of the DU)
3.25
ENG_UD19990_3
Equipement Multimédia (X91 - B91 - K91 - Renault)
ENG_NU_939-3_D91_Renault_3
Multimedia equipment
Mul TIMEDIA EquIPMENT
Navigation systemThe equipment described below may
or may not be fitted to the vehicle, and
its location may vary, depending on the
vehicle navigation system version.
1 Radio;
2 Central control;
3 CD or DVD reader;
4 Microphone;
5 Steering column controls.
hands-free telephone
integrated control
On equipped vehicles, use micro -
phone 4 and steering column control 5.
To use this equipment, consult the
instructions for the equipment which
should be kept with the other vehi -
cle documentation.
1
2
3
4
5
using the telephone
We remind you of the need
to conform to the legislation
in force concerning the use
of such equipment.
