2012 RENAULT LAGUNA COUPE tow bar

3.1
ENG_UD29929_4
Sommaire 3 (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_3
Section 3: Your comfort
Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Manual air conditioning and heating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4
Automatic climate control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6
Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.11
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.13
Passenger compartment storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.15
Accessories socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.19
Ashtray, cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.19
Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.20
Rear bench seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.21
Boot storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.22
Transporting objects: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.23
in the boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.23
towbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.24
Multimedia equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.25

transporting objectsin the luggage compartment ........... (up to the end of the DU)
towing rings .......................................... (up to the end of the DU)
towing towing equipment ............................ (up to the end of the DU)
towing equipment fitting ............................................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
roof bars ............................................... (up to the end of the DU)
3.23
ENG_UD29089_6
Transport d’objets : dans le coffre / attelage (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_3

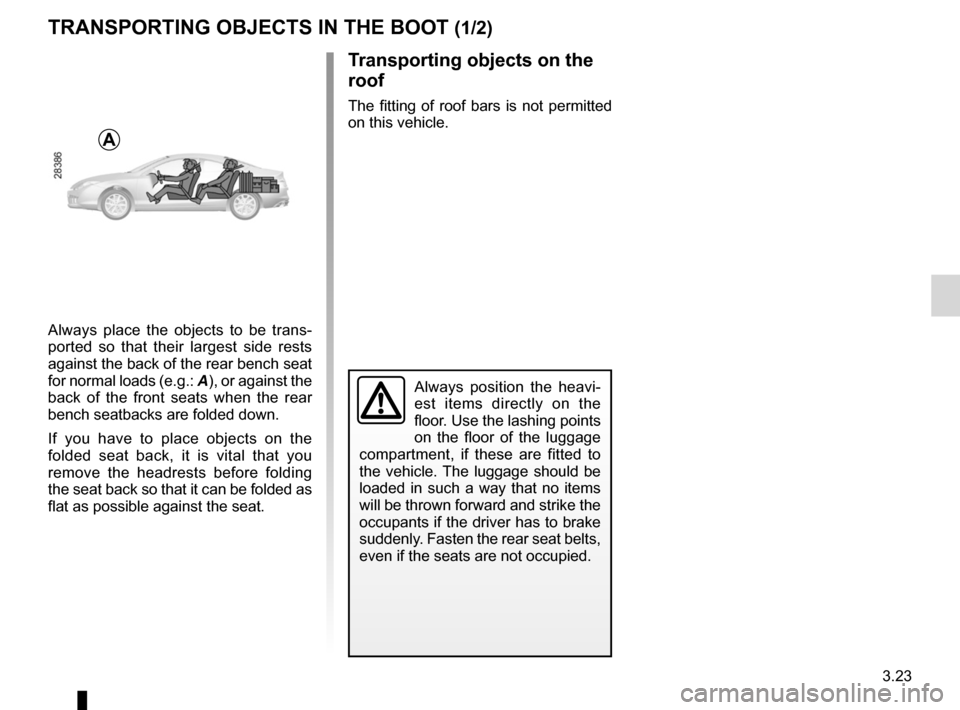

Transporting objects:
in the boot
A
Always position the heavi -
est items directly on the
floor. Use the lashing points
on the floor of the luggage
compartment, if these are fitted to
the vehicle. The luggage should be
loaded in such a way that no items
will be thrown forward and strike the
occupants if the driver has to brake
suddenly. Fasten the rear seat belts,
even if the seats are not occupied.
Always place the objects to be trans -
ported so that their largest side rests
against the back of the rear bench seat
for normal loads (e.g.: A), or against the
back of the front seats when the rear
bench seatbacks are folded down.
If you have to place objects on the
folded seat back, it is vital that you
remove the headrests before folding
the seat back so that it can be folded as
flat as possible against the seat.
Transporting objects on the
roof
The fitting of roof bars is not permitted
on this vehicle.
TRANSPoRTINg oBjEcTS IN ThE BooT (1/2)

3.24
ENG_UD29089_6
Transport d’objets : dans le coffre / attelage (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_3
towbar
TRANSPoRTINg oBjEcTS IN ThE BooT (2/2)/T oWINg
Permissible nose weight, maxi -
mum permissible towing weight,
braked and unbraked: refer to
the information on “Weights” in
Section 6.
For fitting and conditions of use,
refer to the equipment’s fitting in -
structions.
Please keep these instructions with
the rest of the vehicle documenta -
tion.
B = 1,003 mm
If the towbar ball obscures the regis-
tration plate or the rear fog lights, it
should be removed when not in use.
In all cases, comply with local leg -
islation.
B

tyre pressure......................................... (up to the end of the DU)
tyre pressures ....................................... (up to the end of the DU)
tyres ...................................................... (up to the end of the DU)
4.11
ENG_UD27737_1
Pression de gonflage des pneumatiques (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_4
Tyre pressure
tyRe pReSSURe
A
CD
Fe
G
A
H
B
BC
e
D
F
When they need to be replaced, only tyres of the same make, size, type
and profile should be used on a single axle.
t yres fitted to the vehicle should either be identical to those fitted
originally or conform to those recommended by your approved
dealer.
F : tyre pressures for the rear wheels
(motorway).
G : tyre pressure for the emergency
spare wheel.
H: emergency spare wheel tyre dimen -
sion if different to the four tyres fitted to
the vehicle.
Special note concerning fully laden
vehicles (Maximum Permissible All-Up
Weight) and towing a trailer: the maxi-
mum speed must be limited to 60 mph
(100 kph) and the tyre pressure in -
creased by 0.2 bar.
Please refer to the information on
“Weights” in Section 6.
t yre safety and use of snow chains:
Refer to the information on “Tyres” in
Section 5 for the servicing conditions
and, depending on the version, the use
of chains.
C
: tyre pressures for the front wheels
(non-motorway).
D : tyre pressures for the rear wheels
(non-motorway).
E : tyre pressures for the front wheels
(motorway).
Label A
Open the door to read it.
Tyre pressures should be checked
when the tyres are cold.
If the tyre pressures cannot be checked
when the tyres are cold, increase the
pressures from 0.2 to 0.3 bar (or 3 pSI).
never deflate a hot tyre.
B : dimension of the tyres fitted to the
vehicle.

towingbreakdown ...................................... (up to the end of the DU)
towing hitch ........................................... (up to the end of the DU)
5.26
ENG_UD29837_5
Remorquage : dépannage (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_5
Jaune NoirNoir texte
Before towing, unlock the steering
column: with the clutch depressed,
engage first gear (lever in position n
or r for vehicles with automatic trans -
missions), insert the RENAULT card in
the card reader then press the engine
start button for two seconds.
The column is unlocked, the acces -
sory functions are supplied: the vehi -
cle lights can be used (indicators, brake
lights etc.). At night the vehicle must
have its lights on.
Once you have finished towing, press
the engine start button twice (risk of
running down the battery).
The speed specified by current legis -
lation for towing must always be ob -
served. If your vehicle is the towing
vehicle, do not exceed the maximum
towing weight for your vehicle (refer
to the information on “Weights” in
Section 6).
Towing
tOWInG : breakdown
towing a vehicle with an
automatic gearbox
With the engine switched off, the trans-
mission is no longer lubricated. It is
preferable to tow this type of vehicle on
a trailer or tow it with the front wheels
off the ground.
u nder exceptional circumstances ,
you may tow the vehicle with all four
wheels on the ground, only going for -
ward, with the gear lever in the n posi-
tion, and for a distance not exceeding
30 miles (50 km).
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
– A vehicle must not be towed if it is
not fit to be driven.
– Avoid accelerating or braking
suddenly when towing, as this
may result in damage being
caused to the vehicle.
– When towing a vehicle, it is ad -
visable not to exceed 15 mph
(25 km/h).
1
D o n o t r e m o v e t h e
RENAULT card from the
reader when the vehicle is
being towed.
If the lever is stuck in P,
even though you are de -
pressing the brake pedal,
the lever can be released
manually. To do this, insert a rigid
rod in the hole 1, press the rod and
unlocking button located on the gear
lever knob simultaneously.

technical specifications ......................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
towing weights ...................................... (up to the end of the DU)
weights ................................................. (up to the end of the DU)
6.7
ENG_UD27741_2
Masses (en kg) (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_6
Weights
Towing weights
Weights (in kg)
the weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment. consult
your approved dealer.
maximum permissible all-up weight ( MMAC)
gross t rain Weight ( MTR) Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked t railer Weight* found by calculating:MTR - MMAC
Unbraked t railer Weight* 650
permissible nose weight* 75
maximum permissible load on roof prohibited
* t owing weight (towing a caravan, boat, etc.)
Towing is prohibited when the MTR - MMAC calculation is equal to zero, or when the MTR is equal to zero (or is not listed) on the
identification plate.
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact your approved dealer about any towing equipment\
.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
– rear axle MMTA exceeded by no more than 15%,
– maximum MMAC exceeded by no more than 10% or 100 kg (whichever is reached first).
In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 kph) and the tyre pressures must
be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
Weight transfer
The towing load must not exceed 1,500 kg.
If the Maximum Authorised Mass of the vehicle has not been reached, up to 200 kg can be transferred to the braked trailer, within
the limits of the Gross Train Weight.

7.4
FRA_UD29933_4
Index (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (4/5)
rear seats
functions ...................................................................... 3.21
rear view mirrors ..................................................... 1.63 – 1.64
RENAULT ANTI-INTRUDER DEVICE (RAID) ...................1.14
RENAULT card battery .......................................................................... 5.23
use ....................................................................... 1.2 → 1.9
RENAULT card battery ...................................................... 5.23
replacement parts ................................................................ 6.8
reverse gear selecting .................................................. 2.11, 2.37 → 2.39
reversing sensor .................................................... 2.34 → 2.36
roof bars ................................................................. 3.23 – 3.24
running in ............................................................................. 2.2
S
seat belt pretensioners .......................................... 1.23 → 1.26
seat belts ............................................. 1.20 → 1.26, 1.28, 1.48
see-me-home lighting ........................................................ 1.67
service sheets .......................................................... 6.9 → 6.14
side protection devices ...................................................... 1.28
signals and lights ................................................... 1.66 → 1.68
special features of diesel versions .....................................2.10
special features of petrol vehicles ....................................... 2.9
speed limiter ................................................. 1.48, 2.27 → 2.29
starting the engine ..................................................... 2.3 → 2.8
steering wheel adjustment ................................................................... 1.41
Stop & Start ............................................................... 2.6 → 2.8
Stop & Start function .................................................. 2.6 → 2.8
stopping the engine ................................................... 2.3 → 2.5
storage compartment ............................................. 3.15 → 3.18
storage compartments .................................. 3.15 → 3.18, 3.22
switching on the vehicle ignition .......................................... 2.4t
tailgate
............................................................................... 3.22
tanks and reservoirs brake fluid ...................................................................... 4.9
coolant ........................................................................... 4.8
tanks and reservoirs: windscreen washer ...................................................... 4.10
technical specifications .............................................. 6.2 → 6.8
telephone ........................................................................... 3.25
temperature regulation .............................................. 3.6 → 3.9
tool kit .................................................................................. 5.8
towing breakdown ........................................................ 5.26 – 5.27
towing equipment .............................................. 3.23 – 3.24
towing a caravan ............................................. 3.23 – 3.24, 6.7
towing equipment fitting ................................................................. 3.23 – 3.24
towing hitch ...................................................... 5.8, 5.26 – 5.27
towing rings ................................................... 1.31, 3.23 – 3.24
towing weights ..................................................................... 6.7
traction control: ASR .............................................. 2.22 → 2.26
traction control system: ASR .................................2.22 → 2.26
transporting children .......................... 1.30 – 1.31, 1.33 → 1.37
transporting objects in the luggage compartment ............................. 3.23 – 3.24
trip computer and warning system ...1.46 → 1.49, 1.51 → 1.60
tyre inflation kit ........................................................... 5.3 → 5.7
tyre pressure ........................................ 2.19 → 2.21, 4.11, 5.12
tyre pressure monitor ............................................. 2.19 → 2.21
tyre pressures .................................................................... 4.11
tyres ........................................ 2.19 → 2.21, 4.11, 5.11 → 5.13
U
unlocking the doors ................................................ 1.12 – 1.13
