2012 Lancia Flavia Owner handbook (in English)

 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . 66
 PHONE CALL FEATURES . . . . . . . . . . . . . . . . 70
 UCONNECT™ PHONE FEATURES . . . . . . . . . . 72
 ADVANCED PHONE CONNECTIVITY . . . . . . . 75
 THINGS YOU SHOULD KNOW ABOUTYOUR UCONNECT™ PHONE . . . . . . . . . . . . . . 76
 VOICE COMMAND . . . . . . . . . . . . . . . . . . . . . . . . 82  VOICE COMMAND SYSTEM OPERATION . . . . 82
 COMMANDS . . . . . . . . . . . . . . . . . . . . . . . . . . 83
 VOICE TRAINING . . . . . . . . . . . . . . . . . . . . . . 85
 SEATS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85  POWER SEATS . . . . . . . . . . . . . . . . . . . . . . . . 85
 HEATED SEATS . . . . . . . . . . . . . . . . . . . . . . . . 86
 RECLINER ADJUSTMENT . . . . . . . . . . . . . . . . 87
 LUMBAR SUPPORT . . . . . . . . . . . . . . . . . . . . . 87
 EASY ENTRY SYSTEM . . . . . . . . . . . . . . . . . . 88
 HEAD RESTRAINTS . . . . . . . . . . . . . . . . . . . . 88
 TO OPEN AND CLOSE THE HOOD . . . . . . . . . . . 90
 LIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91  MULTIFUNCTION LEVER . . . . . . . . . . . . . . . . 91
 HEADLIGHTS AND PARKING LIGHTS . . . . . . 91
 LIGHTS-ON REMINDER . . . . . . . . . . . . . . . . . 91
 AUTOMATIC HEADLIGHTS . . . . . . . . . . . . . . . 91
 HEADLIGHTS WITH WIPERS (AVAILABLEWITH AUTOMATIC HEADLIGHTS ONLY) . . . . 91
 HEADLIGHT TIME DELAY . . . . . . . . . . . . . . . 92
50

 INSTRUMENT PANEL DIMMER . . . . . . . . . . . 92
 FOG LIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . 92
 Rear Fog Lights . . . . . . . . . . . . . . . . . . . . . . . . 93
 TURN SIGNALS . . . . . . . . . . . . . . . . . . . . . . . . 93
 LANE CHANGE ASSIST . . . . . . . . . . . . . . . . . . 93
 HIGH/LOW BEAM SWITCH . . . . . . . . . . . . . . . 93
 FLASH-TO-PASS . . . . . . . . . . . . . . . . . . . . . . . 93
 INTERIOR LIGHTS . . . . . . . . . . . . . . . . . . . . . 93
 Headlight Leveling System . . . . . . . . . . . . . . . . 94
 BATTERY SAVER FEATURE . . . . . . . . . . . . . . 94
 WINDSHIELD WIPERS AND WASHERS . . . . . . . 94  INTERMITTENT WIPER SYSTEM . . . . . . . . . . 95
 WINDSHIELD WASHERS . . . . . . . . . . . . . . . . 95
 MIST FEATURE . . . . . . . . . . . . . . . . . . . . . . . . 96
 HEADLIGHTS WITH WIPERS FEATURE(AVAILABLE WITH AUTOMATIC
HEADLIGHTS ONLY) . . . . . . . . . . . . . . . . . . . . 96
 TILT/TELESCOPING STEERING COLUMN . . . . . 96
 ELECTRONIC SPEED CONTROL . . . . . . . . . . . . . 97  TO ACTIVATE . . . . . . . . . . . . . . . . . . . . . . . . . 97
 TO SET A DESIRED SPEED . . . . . . . . . . . . . . 97
 TO DEACTIVATE . . . . . . . . . . . . . . . . . . . . . . . 98
 TO RESUME SPEED . . . . . . . . . . . . . . . . . . . . 98
 TO VARY THE SPEED SETTING . . . . . . . . . . . 98
 TO ACCELERATE FOR PASSING . . . . . . . . . . . 98
 ELECTRICAL POWER OUTLETS . . . . . . . . . . . . 98
51

 CIGAR LIGHTER AND ASH RECEIVER(for versions/markets, where provided) . . . . . . . 100
 CUPHOLDERS . . . . . . . . . . . . . . . . . . . . . . . . . . 100  FRONT SEAT CUPHOLDER . . . . . . . . . . . . . . 100
 REAR SEAT CUPHOLDERS . . . . . . . . . . . . . . 101
 STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101  GLOVE BOX STORAGE COMPARTMENT . . . 101
 CONSOLE FEATURES . . . . . . . . . . . . . . . . . . . . 101  Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
 REAR WINDOW FEATURES . . . . . . . . . . . . . . . 102  REAR WINDOW DEFROSTER . . . . . . . . . . . . 102
52

CONVERTIBLE TOP
OPERATIONCAUTION!
Failure to follow these cautions may
cause interior water damage, stains
or mildew on the top material:
 Avoid high-pressure car washes,as they can damage the top mate-
rial. Also, increased water pres-
sure may force water past the
weather strips.
 Remove any standing water from
the top and dry the surface before
opening it. Operating the top,
opening a door or lowering a win-
dow while the top is wet may al-
low water to drip into the vehicles
interior.
 Use care when washing the ve-
hicle, water pressure directed at
the weather strip seals may cause
water to leak into the vehicles in-
terior.
WARNING!
The convertible top does not provide
the structural protection that a rein-
forced metal roof does and the fabric
top cannot be expected to prevent
the ejection of the occupants in a
collision. Therefore, it is important
that all occupants wear their seat
belts at all times. Death or serious
injuries could occur if you are
ejected from the vehicle during a
collision.
You can lower or raise the power con-
vertible top from inside the vehicle or
lower the top remotely using the Re-
mote Keyless Entry (RKE) transmit-
ter. Either operation takes approxi-
mately 30 seconds. The entire
process, including unlatching or
latching the top at the windshield
header is automatic.
The top does take up some space in
the trunk when retracted. However,
the trunk will still hold a significant
amount of cargo. When operating the power convert-
ible top, the trunk lid will pivot at the
rear of the vehicle, swing open by the
rear window, and then pivot back-
ward. This allows room for the top to
retract into or unfold from its stowage
area in the trunk.
When lowering the top, the system
extends the hard tonneau cover,
which stows conveniently underneath
the trunk lid. The tonneau cover
closes the area between the rear seats
and the trunk lid to conceal the top
when stowed.
When raising the top, the system re-
tracts the hard tonneau cover back
into its stowage area underneath the
trunk lid.
To complete either operation, the
trunk lid returns to its normal posi-
tion and then latches.
Spring-loaded flipper doors, which
provide clearance for the linkage,
close off notches in the quarter trim
panels when the top is down.
53

POWER CONVERTIBLE
TOP USAGE PRECAUTIONS
NOTE:
 The convertible top will not op-erate unless the vehicle is sta-
tionary, the cargo shield is posi-
tioned correctly, and the trunk
lid is closed and latched. In ad-
dition, the system is prohibited
from opening when the ambient
temperature is below ­18°C.
 The top system is prohibited from closing when the ambient
temperature is below ­40°C.
 Do not attempt to lower the top when frost, ice, or snow may be
present, this could cause dam-
age or prevent the top from stow-
ing completely.
 The Power Top Control Module (PTCM) monitors and controls
lowering and raising of the top.
A series of micro-switches verify
that operations are complete be-
fore allowing the next stage of
lowering or raising operation.  Opening and closing the top
consecutively without the engine
running may run the battery
down.
 If a fluttering noise is heard from the rear seat belts while driving
with the top down, safely bring
the vehicle to a stop and buckle
the rear seat belts over the empty
seats. This will keep tension on
the seat belts and remove the
fluttering condition.
CAUTION!
 Correctly position the cargo shieldin the trunk before stowing the
top. Doing so closes a switch that
allows top operation (stowing) to
proceed. If the switch is not
closed, a warning message dis-
plays in the instrument cluster to
notify the driver.
 Always place items carefully into
the trunk.
 Do not push items too far into the
trunk, particularly when the top is
retracted into its stowage area in
the trunk.
(Continued)
CAUTION!(Continued)
 Do not use the area on top of the
tonneau cover for storage.
Failure to follow these cautions can
cause damage to the convertible top
components, trunk contents, cargo
shield, and the vehicle interior.CAUTION!
Before operating the power top:
 Always check on top of the ton-
neau cover area to be sure that it is
clear of debris or other items.
 Make sure the ambient tempera-
ture is above ­18°C if you want to
open the top.
 Make sure the ambient tempera-
ture is above ­40°C if you want to
close to the top.
 Never attempt to lower a frozen
convertible top. Wait until the top
is thawed before lowering it into
the stowage compartment. Low-
ering a cloth top at temperatures
below 0°C should be avoided.
(Continued)
54

CAUTION!(Continued)
 Make sure the convertible top is
dry before lowering it into the
stowage compartment. Lowering
the top when damp, wet, or dirty
can cause stains, mildew, and
damage to the inside of your ve-
hicle.
 Make sure there is sufficient clear-
ance of at least 2.2 m for the top to
move up.
 To prevent striking a low ceiling
or automatic door opener with the
top, it is strongly recommended
that you do not operate the power
top inside a garage or parking
structure.
Failure to follow these cautions can
cause damage to the convertible top
components, trunk contents, and the
vehicle interior.CAUTION!
 Do not operate the power top with
the hydraulic pump valve open.
(Continued)
CAUTION!(Continued)
 Do not allow the top to remain in
the suspended position. After ap-
proximately 10 minutes in the
suspended position, the hydraulic
pressure will release, which will
allow the top and the trunk lid to
lower. Pressing the power top
switch will cancel this operation.
 Always use a normal ice scraper to
remove snow or ice from the rear
window. Use of a sharp object or
other tools could scratch the pan-
els (hard top) or tear the fabric
(soft top) when removing snow or
ice.
 Always close the top when leaving
your vehicle so as not to leave the
interior exposed to potentially
damaging outdoor conditions.
 Do not leave the top lowered for
several weeks at a time. Close it
occasionally to prevent discolor-
ation in the folds of the fabric and
to allow the creases to smooth out.
This is especially important if the
top was stowed when not com-
pletely dry.
(Continued)
CAUTION!(Continued)
Failure to follow these cautions can
cause damage to the convertible top
components, trunk contents, and the
vehicle interior:WARNING!
Failure to follow these warnings can
result in injuries that are serious or
fatal to you, your passengers, and
others around you:
 Before operating the power top,
make sure that no moving parts of
the convertible top can injure a
person or animal.
 Never place any extremities
(hands, feet, etc.) near the con-
vertible top components, the up-
per windshield area, the shelf area
behind the rear seats, or the con-
vertible top stowage area while
raising or lowering the convertible
top.
 When using the power top button
on RKE transmitter, if potential
danger exists while lowering the
top, release the button immedi-
ately to interrupt the operation.
(Continued)
55

WARNING!(Continued)
 When using the power top switch
on the instrument panel, if poten-
tial danger exists while lowering
the top, release the switch imme-
diately to interrupt the operation.
 When using the power top switch
on the instrument panel, if poten-
tial danger exists while raising the
top, release the switch immedi-
ately to interrupt the operation.
 Only drive the vehicle with the
convertible top completely closed
and latched or fully lowered into
its stowage compartment.
 Do not operate the power top
when the vehicle is in motion.

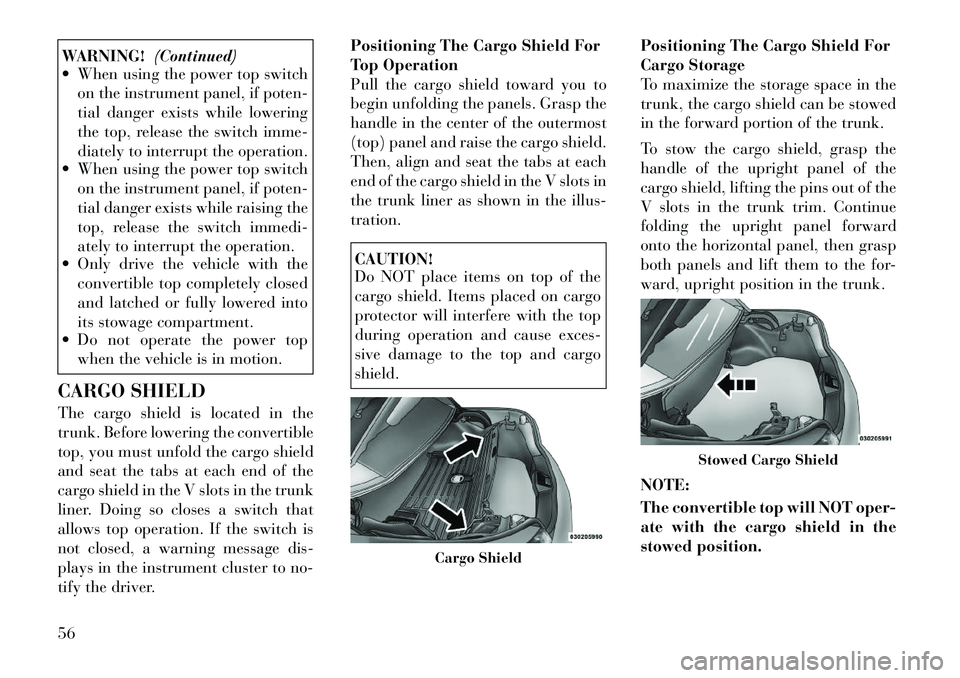

CARGO SHIELD
The cargo shield is located in the
trunk. Before lowering the convertible
top, you must unfold the cargo shield
and seat the tabs at each end of the
cargo shield in the V slots in the trunk
liner. Doing so closes a switch that
allows top operation. If the switch is
not closed, a warning message dis-
plays in the instrument cluster to no-
tify the driver. Positioning The Cargo Shield For
Top Operation
Pull the cargo shield toward you to
begin unfolding the panels. Grasp the
handle in the center of the outermost
(top) panel and raise the cargo shield.
Then, align and seat the tabs at each
end of the cargo shield in the V slots in
the trunk liner as shown in the illus-
tration.
CAUTION!
Do NOT place items on top of the
cargo shield. Items placed on cargo
protector will interfere with the top
during operation and cause exces-
sive damage to the top and cargo
shield.
Positioning The Cargo Shield For
Cargo Storage
To maximize the storage space in the
trunk, the cargo shield can be stowed
in the forward portion of the trunk.
To stow the cargo shield, grasp the
handle of the upright panel of the
cargo shield, lifting the pins out of the
V slots in the trunk trim. Continue
folding the upright panel forward
onto the horizontal panel, then grasp
both panels and lift them to the for-
ward, upright position in the trunk.
NOTE:
The convertible top will NOT oper-
ate with the cargo shield in the
stowed position.
Cargo Shield
Stowed Cargo Shield
56

POWER CONVERTIBLE
TOP CONTROLS
The power top switch is located on the
front of the center console.
There is also a power top button on
the Remote Keyless Entry (RKE)
transmitter for remotely lowering the
power convertible top.
LOWERING THE POWER
CONVERTIBLE TOP
Using The Power Top Switch
NOTE:
The power top switch will operate
when the ignition switch is turned
to the ON or ACC position and
when in the power accessory delay.There are two Top Down
switch positions. Press and
hold the switch to the first
detent, which is indicated
by the EVIC displaying “CONVERT-
IBLE TOP IN OPERATION” mes-
sage. The system will lower all fully
raised windows approximately
10 mm, lower the top to its fully re-
tracted position, and then raise the
windows. Press and hold the switch to
the second detent. The system will
lower all four windows and the top to
their fully retracted positions.
The driver has to press and hold the
convertible top switch during the en-
tire opening cycle, if there is an ob-
struction and the driver is alerted, the
convertible top operation can be
stopped by releasing the switch.
Using The Remote Keyless Entry
Transmitter
NOTE:
Steps 1 – 3 must be performed
within five seconds.
1. Press and release the UNLOCK
button on the RKE transmitter. 2. Press and release the
POWER TOP button on the
RKE transmitter.
3. Press and hold the POWER TOP
button until the Power Top and All
Windows Down feature is complete.
NOTE:
If the RKE transmitter button is
released before the power top is
completely down steps 1–3 must be
performed again.
RAISING THE POWER
CONVERTIBLE TOP
Using The Power Top Switch
NOTE:
The power top switch will operate
when the ignition switch is turned
to the ON or ACC position and
when in the power accessory delay.
Power Top Button
57
