2012 FORD FOCUS ELECTRIC key

Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKey system
status menus may include the non-Ford-approved remote start system as
an additional key in the total count. See the Checking system status
section.
For all vehicles with a non-Ford-approved remote start installed, it is
possible to program all “real” keys as MyKeys, in which case, you will
need to use your remote start system to clear all MyKeys (which
removes all restrictions and returns them to admin key status) by doing
the following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using your non-Ford-approved remote start fob.
3. Follow Steps 1-3 in the Clearing all keyssection.
MyKey Troubleshooting
Condition Potential Causes
I cannot program a
key •
The key does not have admin privileges.
• The key is the only admin key (there always
has to be at least one admin key).
• The intelligent access key is not held close
enough to the steering column.
• SecuriLock passive anti-theft system is
disabled or in unlimited mode.
• The vehicle has been started using a remote
start system that is not programmed with
admin privileges. Refer to Using MyKey with
remote start systems.
I cannot program the
optional settings •
The key does not have admin privileges.
• No keys are programmed to the vehicle.
Refer to Creating a MyKey.
• The vehicle has been started using a remote
start system that is not programmed with
admin privileges. Refer to Using MyKey with
remote start systems.
Locks and Security 159
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

ConditionPotential Causes
I cannot clear the
restricted keys •
Key does not have admin privileges.
• No restricted keys are programmed to the
vehicle. Refer to Creating a MyKey.
• The vehicle has been started using a remote
start system that is not programmed with
admin privileges. Refer to Using MyKey with
remote start systems.
I lost the only admin
key •
Purchase a new key from your authorized
dealer.
I lost a key •Program spare keys as outlined under
SecuriLock in theSecurity chapter.
I accidentally
programmed all keys
as restricted keys •
The vehicle has a remote start system that
is recognized as an admin key. Refer to the
Using MyKey with remote start systems
section to reset all restricted keys using
remote start.
No restricted key
functions with
intelligent access key
(push button start) •
An admin key is present at vehicle start-up.
• No restricted keys are programmed to the
vehicle. Refer to Creating a MyKey
Restricted key
programmed total
includes one additional
key •
An unknown key has been programmed to
the vehicle as a restricted key.
• The vehicle is equipped with a remote start
system. Refer to Using MyKey with remote
start systems.
Admin keys
programmed total
includes one additional
key •
An unknown key has been programmed to
the vehicle as an admin key.
• Vehicle is equipped with a remote start
system. Refer to Using MyKey with remote
start systems.
MyKey miles do not
accumulate •
The restricted key is not being used by the
intended user.
• The key system has been reset.
160 Locks and Security
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

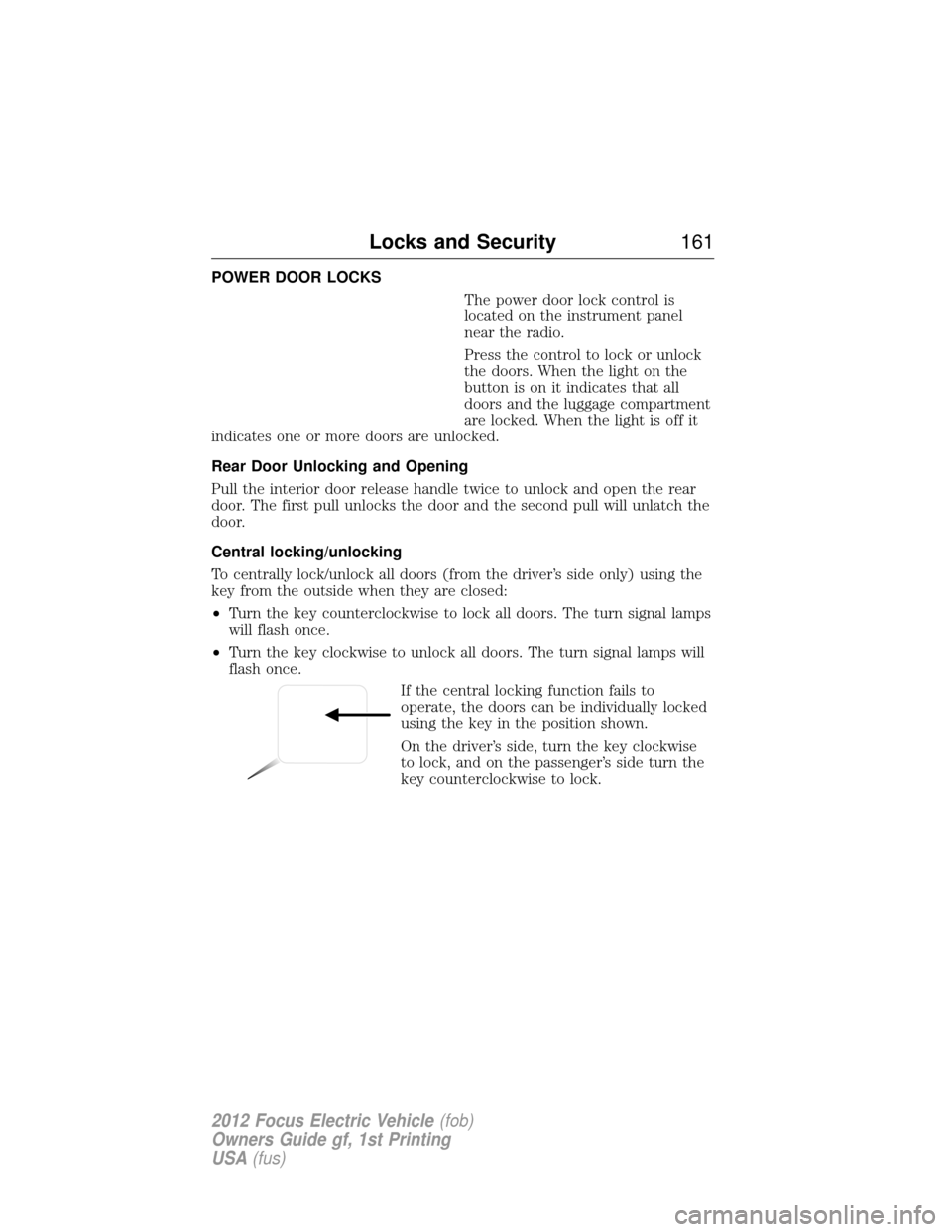

POWER DOOR LOCKSThe power door lock control is
located on the instrument panel
near the radio.
Press the control to lock or unlock
the doors. When the light on the
button is on it indicates that all
doors and the luggage compartment
are locked. When the light is off it
indicates one or more doors are unlocked.
Rear Door Unlocking and Opening
Pull the interior door release handle twice to unlock and open the rear
door. The first pull unlocks the door and the second pull will unlatch the
door.
Central locking/unlocking
To centrally lock/unlock all doors (from the driver’s side only) using the
key from the outside when they are closed:
• Turn the key counterclockwise to lock all doors. The turn signal lamps
will flash once.
• Turn the key clockwise to unlock all doors. The turn signal lamps will
flash once.
If the central locking function fails to
operate, the doors can be individually locked
using the key in the position shown.
On the driver’s side, turn the key clockwise
to lock, and on the passenger’s side turn the
key counterclockwise to lock.
Locks and Security 161
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

CHILD SAFETY LOCKS•When these locks are set, the rear doors
cannot be opened from the inside.
• The rear doors can be opened from the
outside when the childproof door locks are set,
but the doors are unlocked.
The childproof locks are located on the rear edge
of each rear door and must be set separately for
each door. Setting the lock for one door will not
automatically set the lock for both doors.
• On the driver side, turn counterclockwise to lock and clockwise to
unlock.
• On the passenger side, turn clockwise to lock and counterclockwise to
unlock.
REMOTE ENTRY SYSTEM
FCC ID: LXP-RX4318 IC: 2298A-RX4318
The intelligent access keys (IA key) comply with part 15 of the FCC
rules and with RSS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). A decrease in operating range could be caused by:
• weather conditions,
• nearby radio towers,
• structures around the vehicle, or
• other vehicles parked next to your vehicle.
The transmitter allows you to:
• remotely unlock the vehicle doors.
• remotely lock all the vehicle doors.
• remotely open the trunk.
Locks and Security 163
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

•arm and disarm the perimeter anti-theft system.
• activate the panic alarm.
• operate the illuminated entry feature.
• remotely start the vehicle.
The remote entry lock/unlock feature operates in any power mode
except when the vehicle is running and vehicle speed is more than
4 mph (7 km/h).
If there are problems with the remote entry system, make sure to take
ALL intelligent access keys with you to the authorized dealer in order
to aid in troubleshooting the problem.
Intelligent access
The intelligent access system uses a radio frequency (RF) signal to
communicate with your vehicle and authorize your vehicle to unlock
when commanded (either by touching the inside of any exterior door
handle, the luggage compartment handle, or a button on the transmitter
itself). If excessive RF interference is present in the area, or if your
vehicle battery is low, it may be necessary to mechanically unlock your
door. The mechanical key blade in your IA key can be used to open the
driver’s door in this situation (refer to Intelligent access keyin this
chapter for more information on the location and use of the mechanical
key blade).
Your vehicle will allow you to unlock and enter your vehicle without
actively using a key or transmitter. You can use the intelligent access
feature at any door or at the liftgate. You can activate the intelligent
access feature as long as you have one of your IA keys within range of
the front doors or the liftgate.
Activating intelligent access at
the doors:If your IA key is within
3 feet (1 meter) of the doors you can
activate your intelligent access
system by touching the inside of any
exterior door handle. The door(s) will
automatically unlock and the door
can be opened.
164 Locks and Security
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

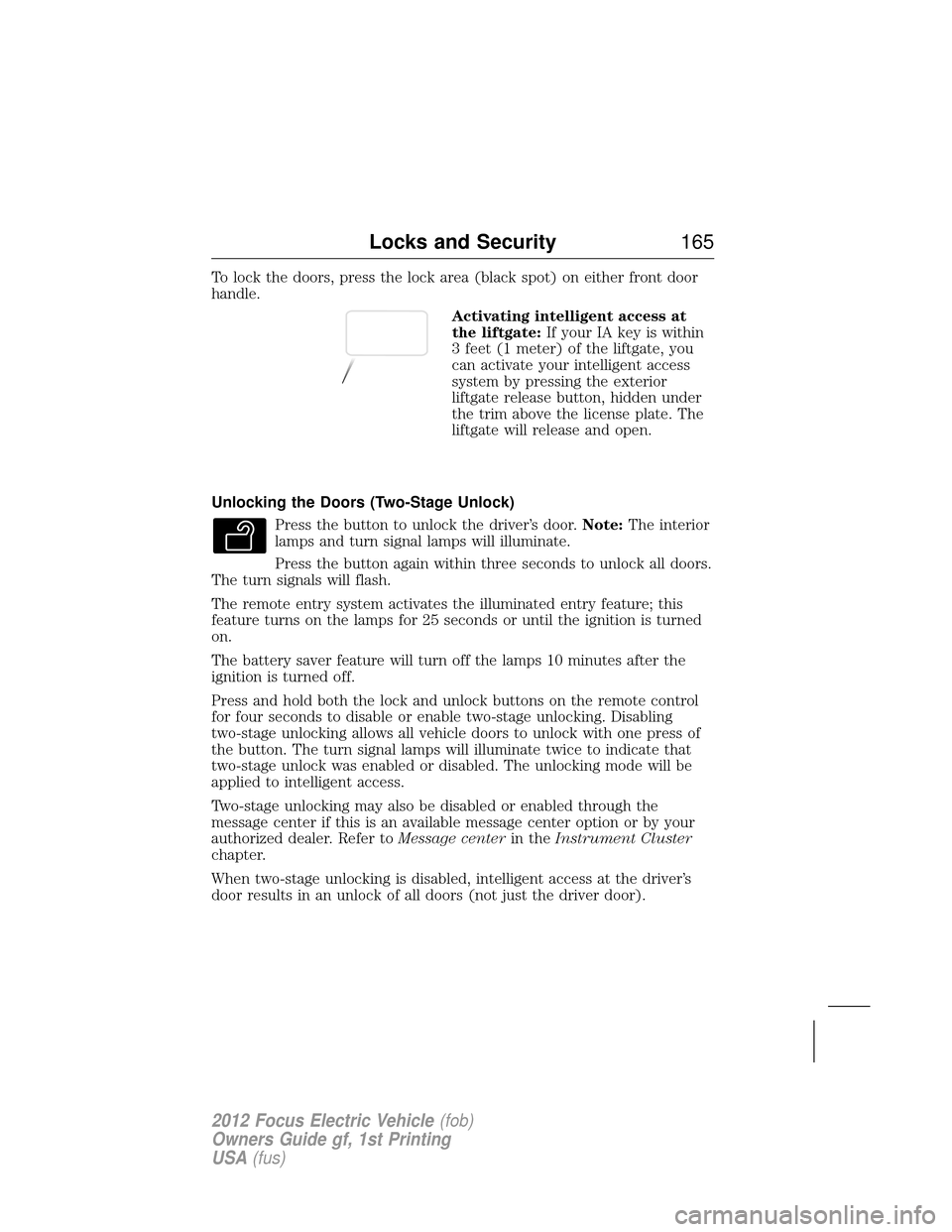

To lock the doors, press the lock area (black spot) on either front door
handle.Activating intelligent access at
the liftgate:If your IA key is within
3 feet (1 meter) of the liftgate, you
can activate your intelligent access
system by pressing the exterior
liftgate release button, hidden under
the trim above the license plate. The
liftgate will release and open.
Unlocking the Doors (Two-Stage Unlock) Press the button to unlock the driver’s door. Note:The interior
lamps and turn signal lamps will illuminate.
Press the button again within three seconds to unlock all doors.
The turn signals will flash.
The remote entry system activates the illuminated entry feature; this
feature turns on the lamps for 25 seconds or until the ignition is turned
on.
The battery saver feature will turn off the lamps 10 minutes after the
ignition is turned off.
Press and hold both the lock and unlock buttons on the remote control
for four seconds to disable or enable two-stage unlocking. Disabling
two-stage unlocking allows all vehicle doors to unlock with one press of
the button. The turn signal lamps will illuminate twice to indicate that
two-stage unlock was enabled or disabled. The unlocking mode will be
applied to intelligent access.
Two-stage unlocking may also be disabled or enabled through the
message center if this is an available message center option or by your
authorized dealer. Refer to Message centerin theInstrument Cluster
chapter.
When two-stage unlocking is disabled, intelligent access at the driver’s
door results in an unlock of all doors (not just the driver door).
Locks and Security 165
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Intelligent Access Transmitter
1. Remove the backup key from the transmitter.2. Twist a thin coin in the slot
hidden behind the backup key slot
to remove the battery cover.
3. Remove the old battery.
4. Insert the new battery. Refer to the instruction inside the transmitter
for the correct orientation of the battery. Press the battery down to
make sure it is fully in the housing.
5. Snap the battery cover back onto the transmitter and install the
backup key.
Replacing lost remote entry transmitters
If you would like to have additional intelligent access keys programmed
to your vehicle, please contact your authorized dealer.
Illuminated Entry
The interior lamps and select exterior lamps illuminate when the remote
entry system is used to unlock the door(s).
The illuminated entry system will turn off the lights if:
• the ignition is on,
• the remote transmitter lock control is pressed, or
• after 25 seconds of illumination.
Locks and Security 167
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

The power windows will be inhibited during the remote start and the
radio will not turn on automatically.
The parking lamps will remain on and the vehicle will run for 5, 10, or
15 minutes, depending on the setting. Refer to theMessage centerin the
Instrument Cluster chapter to select the duration of the remote start
system.
Extending the Vehicle Run Time
Repeat Steps 1 and 2 with the vehicle still running to extend the run
time for another remote start duration. If you programmed the duration
to last 10 minutes, the second 10 minutes will be added. For example, if
the vehicle had been running from the first remote start for five minutes,
the vehicle will continue to run now for a total of 20 minutes. You can
only extend the remote start once.
Wait at least five seconds before remote starting after a vehicle
shutdown. Only two remote starts are allowed.
The vehicle must be started without remote start then switched back off
or allow one hour to pass before using remote start again if additional
remote starts are desired.
Turning the Vehicle Off After Remote Starting
Press the button once. The parking lamps will turn off.
You may have to be closer to the vehicle than when starting due to
ground reflection and the added noise of the running vehicle.
You can disable or enable the remote start system through the message
center. Refer to the Instrument Cluster chapter.
SECURILOCK PASSIVE ANTI-THEFT SYSTEM
SecuriLockpassive anti-theft system is an vehicle immobilization system.
This system is designed to help prevent the vehicle from being started
unless an intelligent access keys programmed to your vehicle is used.
The use of the wrong type of coded key may lead to a “no-start” condition.
The message center will display that no key is detected.
If you are unable to start the vehicle with a correctly coded key, this
indicates a malfunction.
Your vehicle comes with two intelligent access keys; additional ones may
be purchased from your authorized dealer. The authorized dealer can
program your spare transmitters.
170 Locks and Security
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
