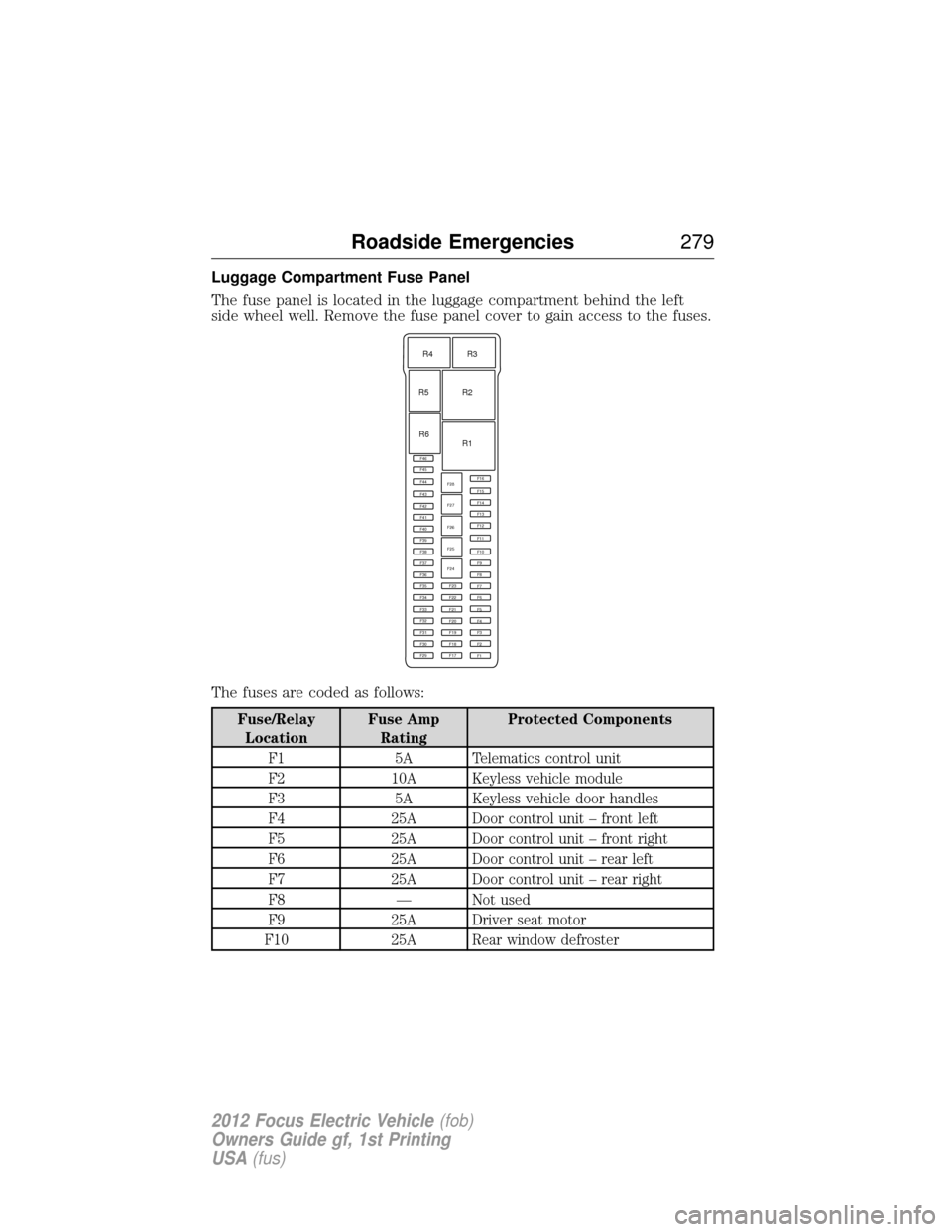

2012 FORD FOCUS ELECTRIC key

Luggage Compartment Fuse Panel
The fuse panel is located in the luggage compartment behind the left
side wheel well. Remove the fuse panel cover to gain access to the fuses.
The fuses are coded as follows:
Fuse/RelayLocation Fuse Amp
Rating Protected Components
F1 5A Telematics control unit
F2 10A Keyless vehicle module
F3 5A Keyless vehicle door handles
F4 25A Door control unit – front left
F5 25A Door control unit – front right
F6 25A Door control unit – rear left
F7 25A Door control unit – rear right
F8 — Not used
F9 25A Driver seat motor
F10 25A Rear window defroster
R4
R5
R6 R2
R1R3
F46
F28 F16
F15
F14
F13
F12
F11
F10
F9
F8
F7
F6
F5
F4
F3
F2
F1
F27
F26
F25
F24
F45
F44
F43
F42
F41
F40
F39
F38
F37
F36
F35
F23
F22
F21
F20
F19
F18
F17
F34
F33
F32
F31
F30
F29
Roadside Emergencies
279
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

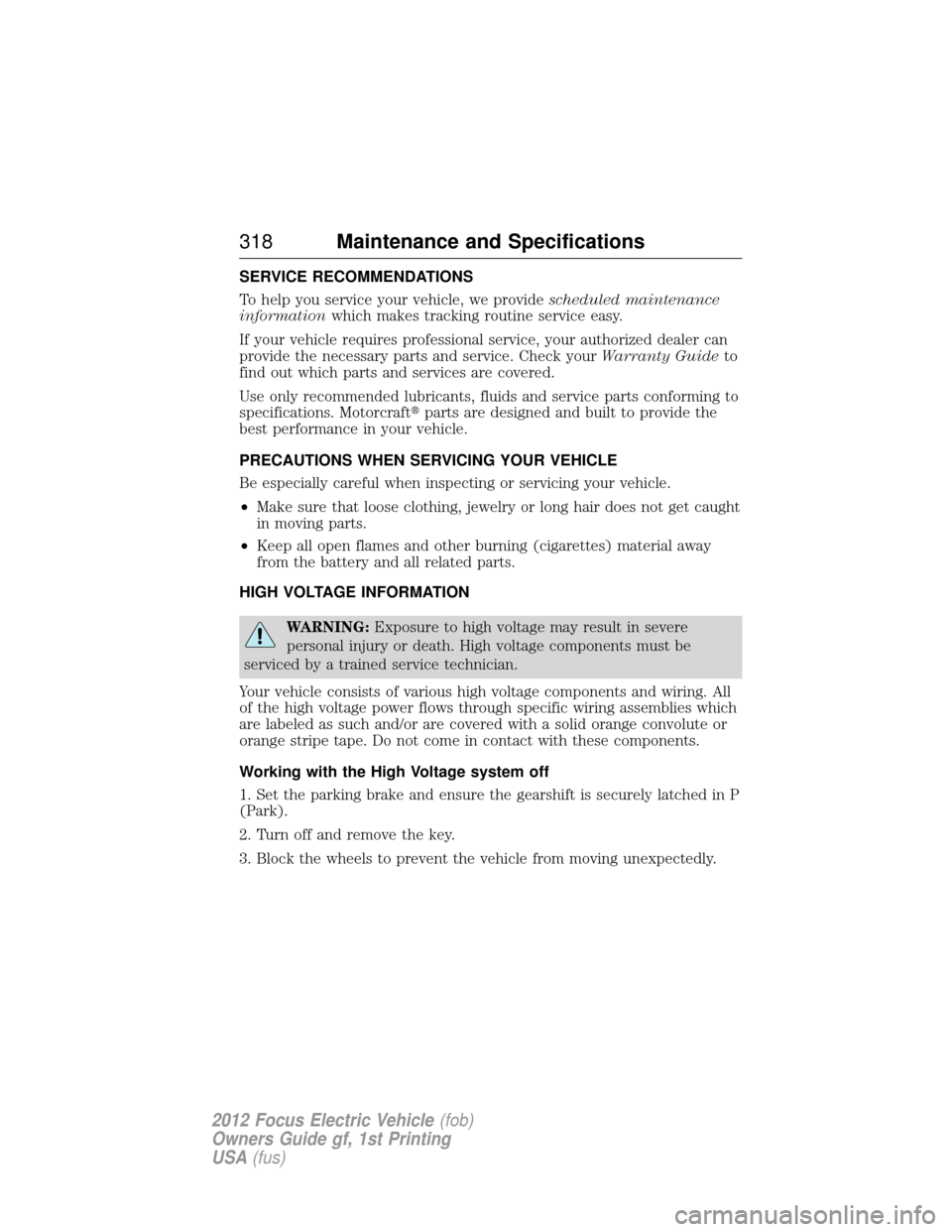

SERVICE RECOMMENDATIONS
To help you service your vehicle, we providescheduled maintenance
information which makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide the necessary parts and service. Check your Warranty Guideto
find out which parts and services are covered.
Use only recommended lubricants, fluids and service parts conforming to
specifications. Motorcraft parts are designed and built to provide the
best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
Be especially careful when inspecting or servicing your vehicle.
• Make sure that loose clothing, jewelry or long hair does not get caught
in moving parts.
• Keep all open flames and other burning (cigarettes) material away
from the battery and all related parts.
HIGH VOLTAGE INFORMATION
WARNING: Exposure to high voltage may result in severe
personal injury or death. High voltage components must be
serviced by a trained service technician.
Your vehicle consists of various high voltage components and wiring. All
of the high voltage power flows through specific wiring assemblies which
are labeled as such and/or are covered with a solid orange convolute or
orange stripe tape. Do not come in contact with these components.
Working with the High Voltage system off
1. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
2. Turn off and remove the key.
3. Block the wheels to prevent the vehicle from moving unexpectedly.
318 Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

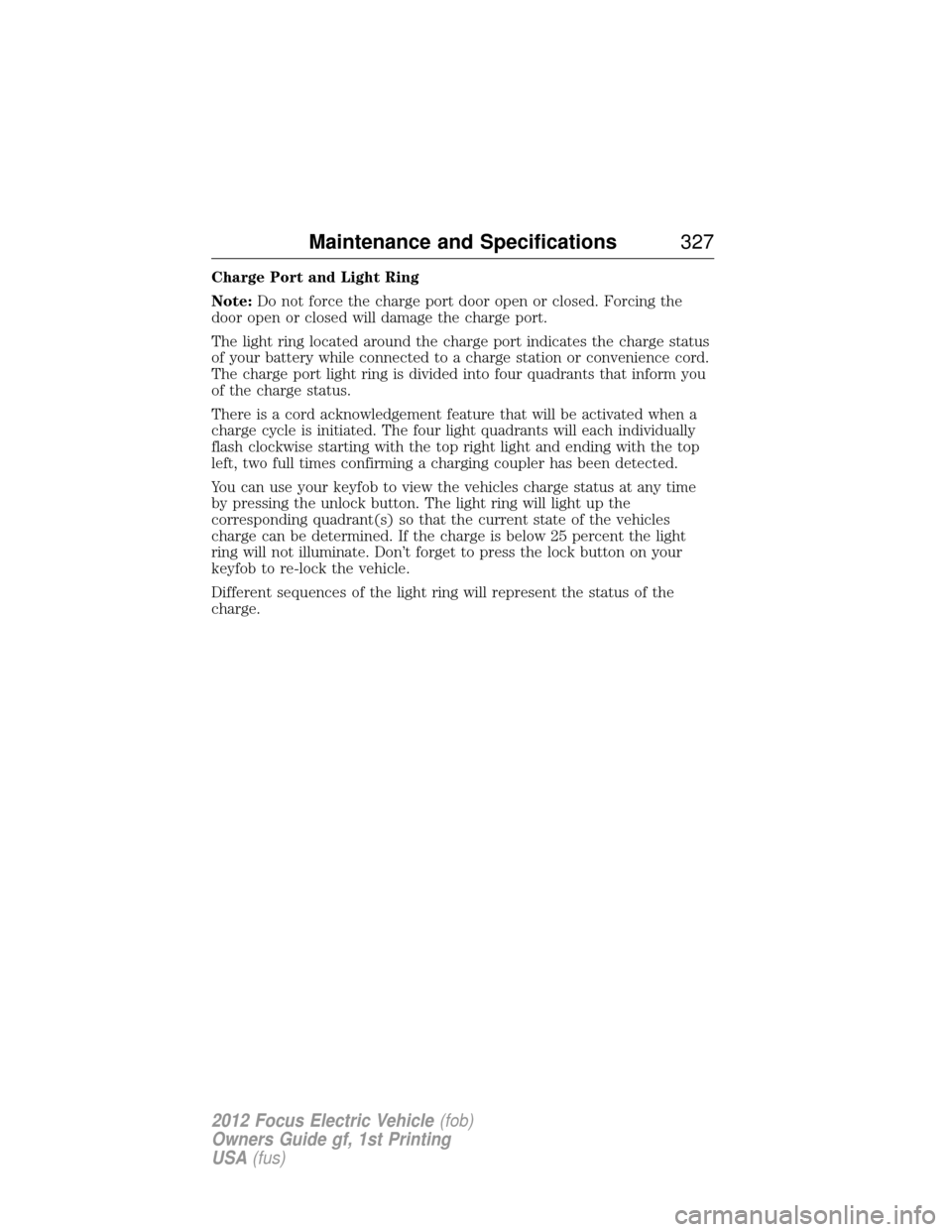

Charge Port and Light Ring
Note:Do not force the charge port door open or closed. Forcing the
door open or closed will damage the charge port.
The light ring located around the charge port indicates the charge status
of your battery while connected to a charge station or convenience cord.
The charge port light ring is divided into four quadrants that inform you
of the charge status.
There is a cord acknowledgement feature that will be activated when a
charge cycle is initiated. The four light quadrants will each individually
flash clockwise starting with the top right light and ending with the top
left, two full times confirming a charging coupler has been detected.
You can use your keyfob to view the vehicles charge status at any time
by pressing the unlock button. The light ring will light up the
corresponding quadrant(s) so that the current state of the vehicles
charge can be determined. If the charge is below 25 percent the light
ring will not illuminate. Don’t forget to press the lock button on your
keyfob to re-lock the vehicle.
Different sequences of the light ring will represent the status of the
charge.
Maintenance and Specifications 327
