2012 FORD FOCUS ELECTRIC key

Note:The SecuriLock passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note: Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the vehicle. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
vehicle. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the vehicle.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Automatic Arming
The vehicle is armed immediately after switching the ignition off.
Automatic Disarming
Switching the ignition on with a coded key disarms the vehicle.
Replacement of intelligent access keys
Note: Your vehicle comes equipped with two intelligent access keys.
The intelligent access key functions as both a programmed key that
operates the driver door lock, activates intelligent access with push
button start systems as well as a remote keyless entry transmitter. A
maximum of eight intelligent access keys can be programmed to your
vehicle.
If your intelligent access keys are lost or stolen and you don’t have an
extra coded key, you will need to have your vehicle towed to an
authorized dealer. The key codes need to be erased from your vehicle
and new coded keys will need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Locks and Security 171
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

PERIMETER ALARM SYSTEM
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmitters are taken to the authorized
dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Either of the following actions will prearm the alarm system:
• Press the lock control on the remote entry transmitter.
• Open a door and press the power door lock control to lock all the
doors, and then close the door.
Disarming the system
You can disarm the system by any of the following actions:
• Unlock the doors by pressing the
control on your remote entry
transmitter.
• Turn the ignition on or start the vehicle.
• If using a key in the driver’s door to unlock the vehicle, a chime will
sound when you open the door and you will have 12 seconds to
disarm the alarm system using any of the actions above, otherwise the
alarm will trigger.
Pressing the power door unlock control within the 11 second prearmed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if any door, trunk or the hood is
opened without using the key or the remote entry transmitter.
172 Locks and Security
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Push Button Start SystemThe power button is located on the
instrument panel to the right of the
steering wheel.
Starting the Vehicle
Note: To start your vehicle, your intelligent access key (IA key) must be
present inside the vehicle.
1. Press the power button (for any length of time) while applying the brake pedal.
2. Release the parking brake, apply the brake, shift into gear and drive.
There may be areas inside your vehicle where the IA key is not detected.
If the message KEY NOT DETECTED appears on your multifunction
display when you press the power button, it may be necessary to move
your IA key to another area within the vehicle. The IA key may not be
detected near the roof (between the driver or passenger sun visor and
the roof, or in the overhead console area) or in the extreme corners of
the rear package tray, near your audio speakers. It is not recommended
that you stow the IA key in these locations. If you move the IA key to a
location where it has been detected before and you still see the KEY
NOT DETECTED message, your IA key’s battery may be low or you may
be in an area with excessive radio frequency interference. If this occurs,
you can use the backup method to start your vehicle.
Driving 253
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Type 1
Type 2
Backup Starting Method
Your IA key uses a radio frequency signal to communicate with your
vehicle and authorize your vehicle to start when you press the power
button and apply the brake pedal. If excessive radio frequency
interference is present in the area, or if the battery in your IA key is low,
it may be necessary to start your car by placing the IA key at the backup
location on the steering column. After placing the IA key at the backup
location, use the power button and brake pedal to start your vehicle as
usual. The vehicle should respond normally as long as the IA key is at
the backup location on the steering column. Once the vehicle is started,
the IA key can be moved from the backup location, if desired.
Fast Restart
The fast restart feature allows you to re-start your vehicle within
10 seconds of switching the vehicle off, if a valid IA key is not present
when the vehicle is switched off. You can re-start the vehicle (by
applying the brake pedal and pressing the power button) for up to
10 seconds, even though the IA key is not present. After 10 seconds
have expired, you can no longer start your vehicle without the IA key
present inside the vehicle. If the driver door is opened within this
10 seconds, the fast restart timer expires immediately.
254 Driving
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Switching the Vehicle Off When Not in P (Park)
It is recommended that you shift into the P (Park) position before
switching your vehicle off. If you switch your vehicle off with the shifter
in any position other than P (Park), the message SHIFT TO PARK is
displayed in the multifunction display. If the vehicle is left in this state,
your key in ignition chime activates when the driver door is opened, and
you may drain your vehicle’s battery. In order to avoid draining your
battery, it is recommended that you always shift to P (Park) before or
immediately after switching your vehicle off.
Absence of the Intelligent Access Key
Once the vehicle has started, the vehicle remains running until being
turned off by the power button, even if the IA key is no longer found in
the vehicle. Whenever a door is opened and then closed while the
vehicle is running, the system searches for an IA key inside the vehicle
and the multifunction display reads KEY OUTSIDE CAR if the IA key is
no longer present. This message is a reminder that someone else in the
vehicle may have taken the IA key when exiting the vehicle. If the IA key
is no longer present in the vehicle, you cannot start your vehicle outside
of the Fast Restart time (seeFast restartabove). It is important to be
aware of where your IA key is located in the vehicle, to avoid becoming
stranded without an IA key.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toWarning lights and indicators in theInstrument
Cluster chapter for information on the brake system warning
light.
Under normal operating conditions, brake dust may accumulate on the
wheels. Some brake dust is inevitable as brakes wear and does not
contribute to brake noise. The use of modern friction materials with
emphasis on improved performance and environmental considerations
can lead to more dust than in the past. Brake dust can be cleaned by
weekly washing with soapy water and a soft sponge. Heavier deposits can
be removed with Motorcraft Wheel and Tire Cleaner. See the Cleaning
chapter for more information.
Driving 255
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

If the steering wanders or pulls, check for:
•an improperly inflated tire.
• uneven tire wear.
• loose or worn suspension components.
• loose or worn steering components.
• improper steering alignment.
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless the brake pedal is pressed, your charge cord
may be plugged into the vehicle, or there may be a fault with the
associated electrical system. If this is the case, you must follow the
instructions in your instrument cluster display before your vehicle will
start.
If you cannot move the gearshift lever out of P (Park) with ignition on
and the brake pedal pressed, it is also possible that a fuse has blown or
the vehicle’s brake lamps are not operating properly. Refer to Fuses and
relays in theRoadside Emergencies chapter.
If your charge cord is not connected and there is not a fault with the
associated electrical system, the fuse is not blown and the brake lamps
are working properly, the following procedure will allow you to move the
gearshift lever from P (Park): 1. Apply the parking brake, turn the
ignition key to the off position and
remove the key.
2. Using a screwdriver (or similar tool),
carefully pry off and remove the
passenger side access cover. Remove the
fastener, then remove the console side
panel to expose the inside of the shifter
assembly.
262Driving
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

WARNING:Certain add-on devices such as large trailer hitches,
bike or surfboard racks and any device that may block the normal
detection zone of the forward and reverse sensing system may create
false beeps.
The system detects obstacles up to
6 ft (2 m) from the rear bumper with
a decreased coverage area at the
outer corners of the bumper, (refer
to the illustration for approximate
zone coverage areas). As you move
closer to the obstacle, the rate of the
tone increases. When the obstacle is
less than 10 inches (25 cm) away,
the tone will sound continuously. If
the system detects a stationary or
receding object further than
10 inches (25 cm) from the side of
the vehicle, the tone will sound for
only three seconds. Once the system
detects an object approaching, the
tone will sound again.
While receiving a detection warning,
the radio volume will be reduced to
a predetermined level. After the
warning goes away, the radio will
return to the previous value.
The system is automatically turns on when the gearshift lever is placed
in R (Reverse) and the ignition is on. A control in the message center
allows the driver to disable the system. Refer to Message centerin the
Instrument Cluster chapter for more information.
Note: If the system cannot be turned off, refer to MyKey™in theLocks
and Security chapter for more information.
Keep the sensors (located on the rear bumper/fascia) free from
snow, ice and large accumulations of dirt (do not clean the
sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the system.
If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
Driving 267
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

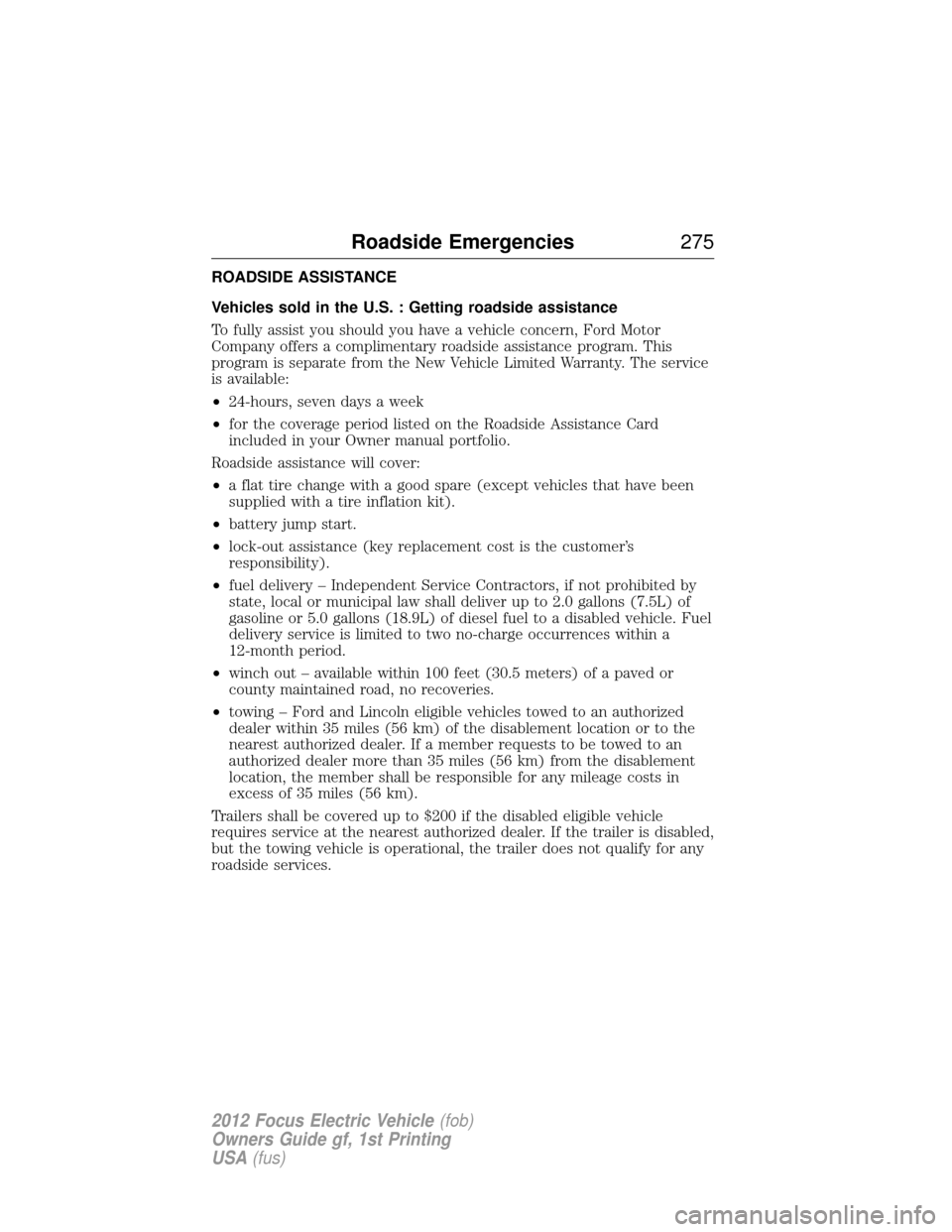

ROADSIDE ASSISTANCE
Vehicles sold in the U.S. : Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24-hours, seven days a week
• for the coverage period listed on the Roadside Assistance Card
included in your Owner manual portfolio.
Roadside assistance will cover:
• a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit).
• battery jump start.
• lock-out assistance (key replacement cost is the customer’s
responsibility).
• fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
• winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
• towing – Ford and Lincoln eligible vehicles towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Roadside Emergencies 275
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)
