2011 TOYOTA AVALON Owners Manual

41 1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U (OM41428U)
■Certification for wireless remote control
For vehicles sold in the U.S.A.
FCC ID: HYQ14AAB
FCC ID: HYQ13BZH
FCC ID: HYQ14ABK
FCC ID: HYQ13BZW
FCC ID: NI4TMLF-1
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Jordan.
Type Approval Number: TRC/LPD/2009/4
NOTE:
This device complies with the specifications mentioned in test reports No.
(20071409200), (20071409300), and (20071409500) issued by Telefication
B.V./The Netherlands.
TRC WARNING:
This Certificate does not apply to any modified or changed product nor does
it authorize its holder to enter the subject equipment into Jordan without hav-
ing a special permissions.
If this occurs Jordan TRC has the right to impose any penalties stipulated in
Jordan’s Telecommunications Law No. 13 of 1995 and its amendments and
regulations of the Telecommunication Regulatory Commission.

42 1-2. Opening, closing and locking the doors and trunk
AVALON_U (OM41428U)
For vehicles sold in the U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

43
1
1-2. Opening, closing and locking the doors and trunk
Before driving
AVALON_U (OM41428U)

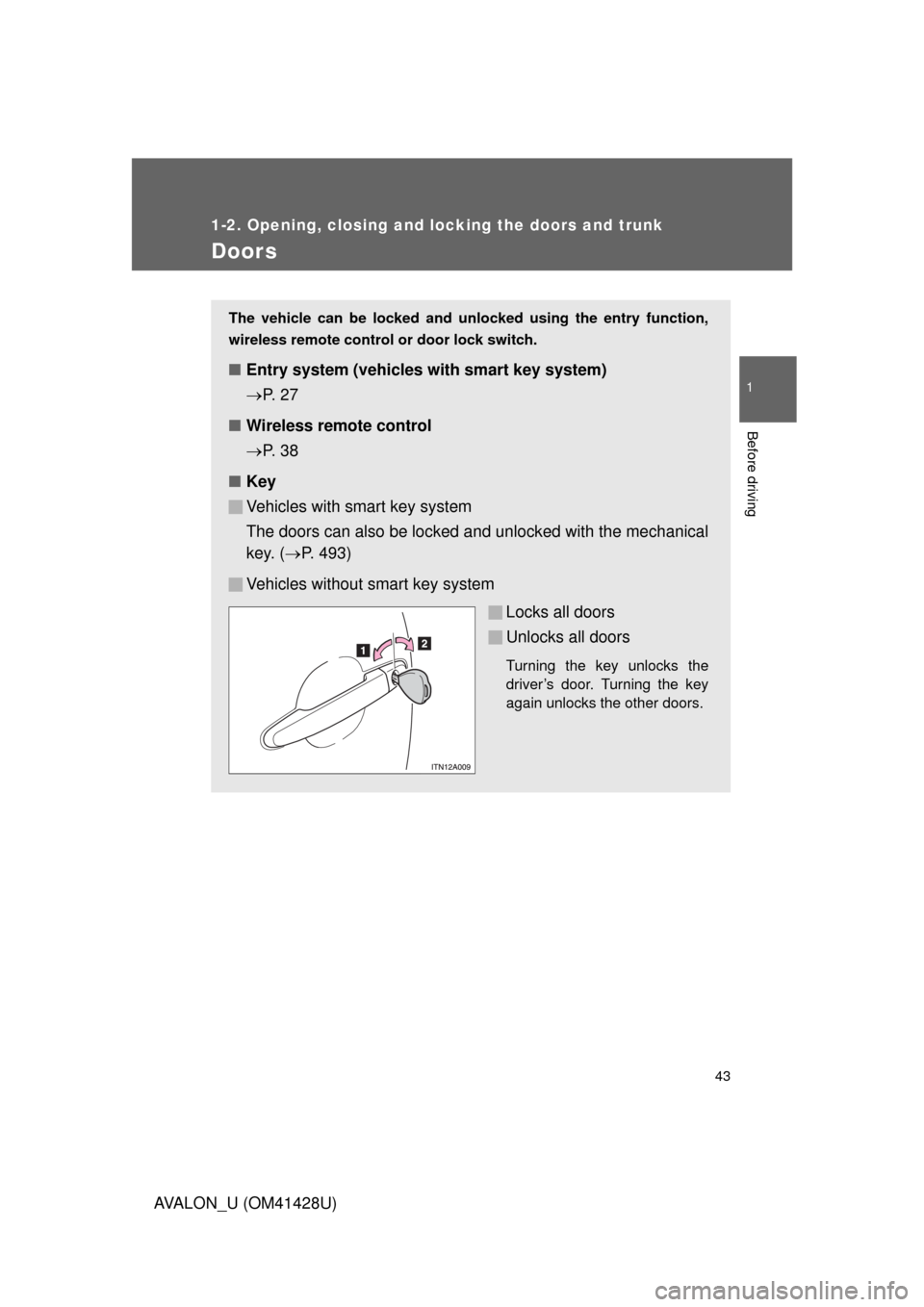

Doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control or door lock switch.
■Entry system (vehicles with smart key system)
P. 2 7
■Wireless remote control
P. 3 8
■Key
Vehicles with smart key system
The doors can also be locked and unlocked with the mechanical
key. (P. 493)
Vehicles without smart key system
Locks all doors
Unlocks all doors
Turning the key unlocks the
driver’s door. Turning the key
again unlocks the other doors.

44 1-2. Opening, closing and locking the doors and trunk
AVALON_U (OM41428U)

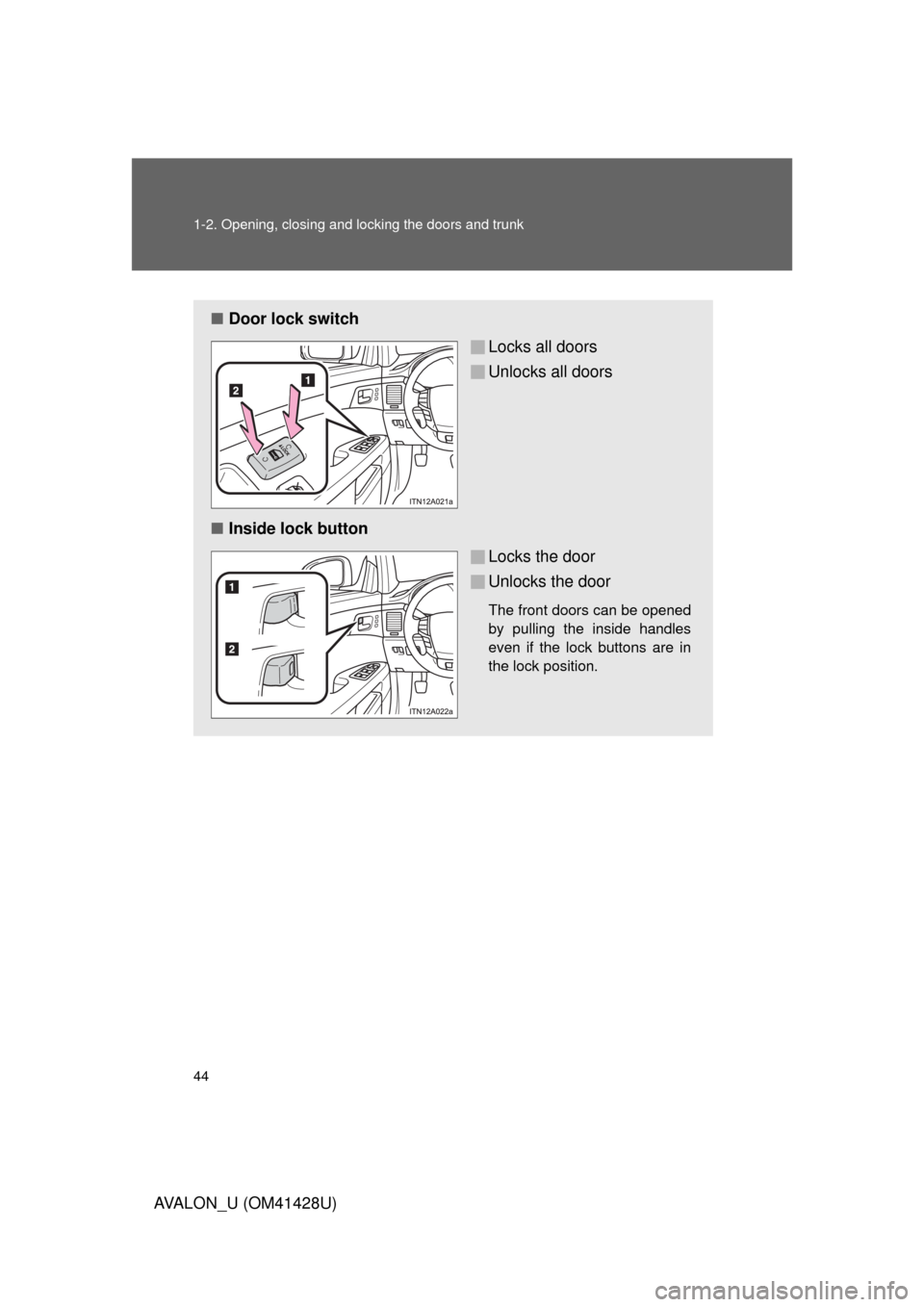

■Door lock switch
Locks all doors
Unlocks all doors
■Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.

45 1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U (OM41428U)
Locking the front doors from the outside without a key
Move the inside lock button to the lock position.
Close the door.
Vehicles with smart key system
The door cannot be locked if the “ENGINE START STOP” switch is
in the ACCESSORY or IGNITION ON mode, or the electronic key
is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Vehicles without smart key system
The door cannot be locked if either front door is open and the key
is in the engine switch.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
These locks can be set to prevent
children from opening the rear
doors. Push down rear door
switches to lock the rear doors.

46 1-2. Opening, closing and locking the doors and trunk
AVALON_U (OM41428U)
Automatic door locking and unlocking systems
The following functions can be set or canceled:
FunctionOperation
Shift position linked
door locking functionShifting the shift lever out of “P” locks all
doors.
Shift position linked
door unlocking functionShifting the shift lever to “P” unlocks all
doors.
Speed linked door lock-
ing functionAll doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking function
Vehicles with smart key system
All doors are unlocked when the driver’s door
is opened within 10 seconds after turning the
“ENGINE START STOP” switch OFF.
Vehicles without smart key system
All doors are unlocked when the driver’s door
is opened within 10 seconds after turning the
engine switch to the “LOCK” position.

47 1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U (OM41428U)■Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below:
Vehicles with smart key system: Close all the doors and turn
the “ENGINE START STOP” switch to IGNITION ON mode.
(Perform within 10 seconds.)
Vehicles without smart key system: Close all the doors and
turn the engine switch to the “ON” position. (Perform
within 10 seconds.)
Shift the shift lever to “P” or “N”,
press and hold the driver’s door
lock switch (
or ) for about 5
seconds then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown as follows.
Use the same procedure to can-
cel the function.

48 1-2. Opening, closing and locking the doors and trunk
AVALON_U (OM41428U)When the setting or canceling operation is complete, all doors are
locked and then unlocked.
FunctionShift lever
positionSwitch position
Shift position linked door lock-
ing function
“P”
Shift position linked door
unlocking function
Speed linked door locking func-
tion
“N”
Driver’s door linked door unlock-
ing function
