2011 TOYOTA AVALON Owners Manual

209 2-5. Driving information
2
When driving
AVALON_U (OM41428U)
Selecting snow chains
Use the correct snow chain size when mounting the snow chains.
Chain size is regulated for each tire size.
Side chain:
0.12 in. (3.0 mm)
1.18 in. (30.0 mm)
0.39 in. (10.0 mm)
Cross chain:
0.16 in. (4.0 mm)
0.98 in. (25.0 mm)
0.55 in. (14.0 mm)
Regulations on the use of snow chains
●Regulations regarding the use of tire chains vary according to loca-
tion and type of road. Always check local regulations before install-
ing chains.
●Install the chains on the front tires.
●Retighten the chains after driving 1/4 - 1/2 mile (0.5 - 1.0 km).

210 2-5. Driving information
AVALON_U (OM41428U)
■Snow chain installation
Observe the following precautions when installing and removing chains.
●Install and remove tire chains in a safe location.
●Install tire chains on the front tires only.
●Install tire chains following the instructions provided in the accompanying
instructions.
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the size specified for your vehicle.
●Maintain the specified level of tire inflation pressure.
●Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
●Snow tires should be installed on all wheels.
■Driving with snow chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden turns and braking, as use of chains may adversely affect
vehicle handling.
●Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.

211 2-5. Driving information
2
When driving
AVALON_U (OM41428U)
NOTICE
■Repairing or replacing snow tires
Request repairs of and obtain replacement snow tires from Toyota dealers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.

212
2-5. Driving information
AVALON_U (OM41428U)

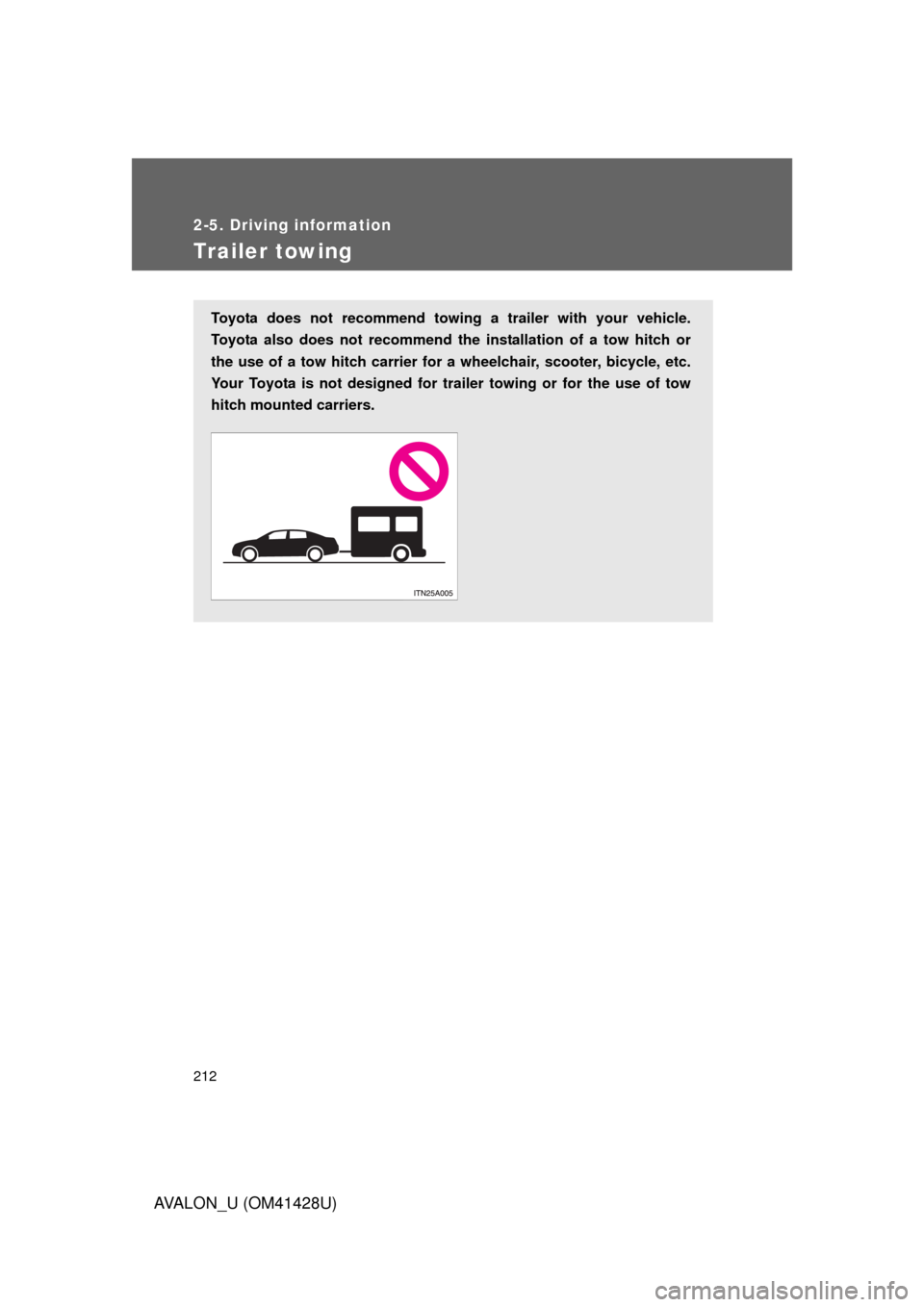

Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your Toyota is not designed for trailer towing or for the use of tow
hitch mounted carriers.

213
2-5. Driving information
2
When driving
AVALON_U (OM41428U)

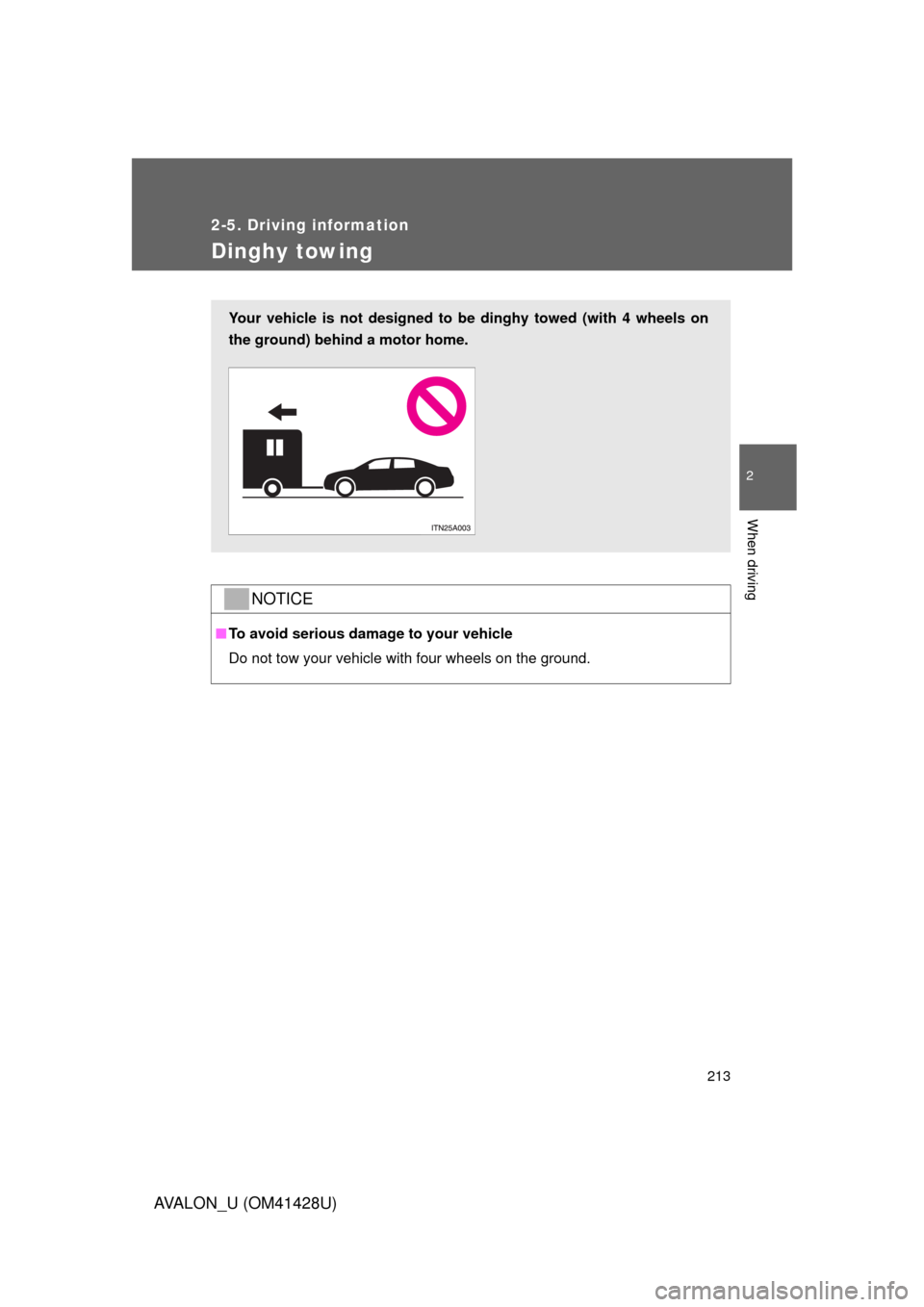

Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

214
AVALON_U (OM41428U)
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ........................... 216
Using the steering wheel climate control
switches ......................... 224
Rear window and outside rear view mirror defoggers .... 225
3-2. Using the audio system Audio system type............ 227
Using the radio ................. 231
Using the CD player ......... 239
Playing back MP3 and WMA discs ..................... 247
Operating an iPod ............ 255
Operating a USB memory .......................... 262
Optimal use of the audio system ........................... 270
Using the AUX port .......... 273
Using the steering switches ......................... 274
Interior features3

Interior features3
215
AVALON_U (OM41428U)
3-3. Using the Bluetooth® audio
system
Bluetooth
® audio
system ........................... 277
Using the Bluetooth
®
audio system.................. 280
Operating a Bluetooth
®
enabled portable
player ............................. 287
Setting up a Bluetooth
®
enabled portable
player ............................. 289
Bluetooth
® audio system
setup .............................. 295
3-4. Using the hands-free system
(for cellular phone)
Hands-free system
(for cellular phone) ......... 296
Using the hands-free
system ........................... 299
Making a phone call ......... 308
Setting a cellular
phone ............................. 313
Security and system
setup .............................. 320
Using the phone book ...... 3253-5. Using the interior lights
Interior lights list ............... 334
3-6. Using the storage features
List of storage features .... 337
3-7. Other interior features
Sun visors ........................ 345
Vanity mirrors ................... 346
Clock ................................ 347
Ashtrays ........................... 348
Power outlets ................... 349
Seat heaters/
ventilators ...................... 351
Armrest ............................ 353
Rear sunshade................. 354
Floor mats ........................ 356
Trunk features .................. 358
Garage door opener......... 360
Compass .......................... 368

216
AVALON_U (OM41428U)
3-1. Using the air conditioning system and defogger

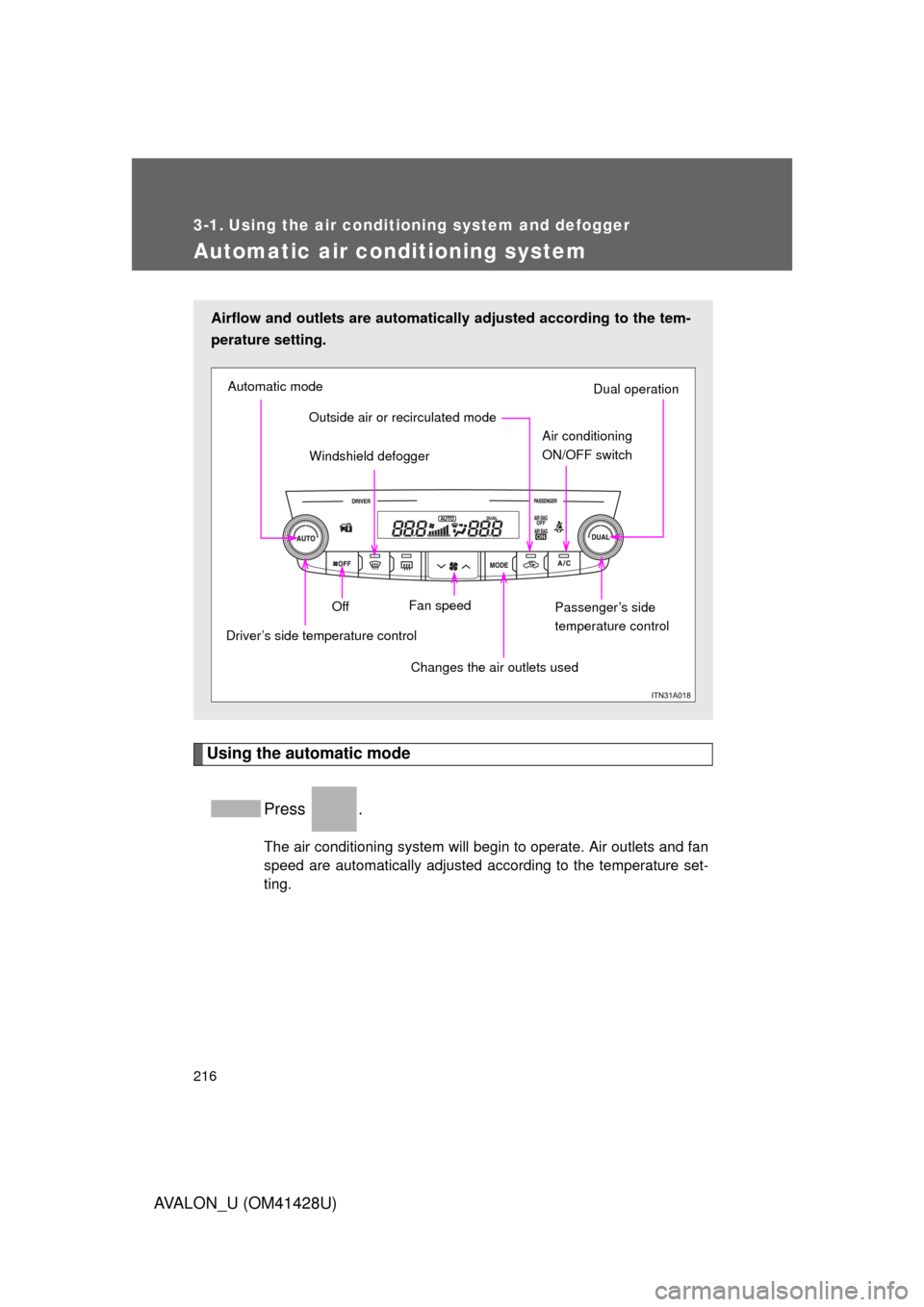

Automatic air conditioning system
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Automatic mode
Off
Driver’s side temperature controlAir conditioning
ON/OFF switch Outside air or recirculated mode
Passenger’s side
temperature controlDual operation
Windshield defogger
Fan speed
Changes the air outlets used
