2011 TOYOTA AVALON Owners Manual

177
2-3. Operating the lights and windshield wipers
2
When driving
AVALON_U (OM41428U)
Windshield wipers and washer
■Intermittent wiper with interval adjuster (if equipped)
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

178 2-3. Operating the lights and windshield wipers
AVALON_U (OM41428U)
Wash/wipe operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.
■Raindrop detection windshield wipers (if equipped)
With “AUTO” selected, the wipers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume and vehicle
speed.
Raindrop detection wiper
operation
Low speed wiper operation
High speed wiper operation
Temporary operation

179 2-3. Operating the lights and windshield wipers
2
When driving
AVALON_U (OM41428U)
■The windshield wiper and washer can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
Sensor sensitivity (high)
Sensor sensitivity (low)
Wash/wipe operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.

180 2-3. Operating the lights and windshield wipers
AVALON_U (OM41428U)
■Effects of vehicle speed on wiper operation
Vehicle speed affects the following even when the wipers are not in “AUTO”
mode.
●Intermittent wiper interval ( mode)
●Wiper operation when the washer is being used
With low speed mode, wiper operation will be switched from low speed to
intermittent wiper operation only when the vehicle is stationary.
■Rain drop sensor (vehicles equipped with the raindrop detection wind-
shield wipers)
●If the wiper switch is turned to the “AUTO” position while the “ENGINE
START STOP” switch is in ON mode, the wipers will operate once to
show that “AUTO” mode is activated.
●If the temperature of the raindrop sensor is 194 °F (90 °C) or higher, or
14 °F (-10 °C) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
■Customization that can be configured at Toyota dealer
Settings (e.g. switching operation when the vehicle is stationary) can be
changed. (Customizable features P. 532)
●The sensor judges the amount of rain-
drops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc.
are present on the windshield.

181 2-3. Operating the lights and windshield wipers
2
When driving
AVALON_U (OM41428U)
CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers or anything else do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

182
AVALON_U (OM41428U)
2-4. Using other driving systems

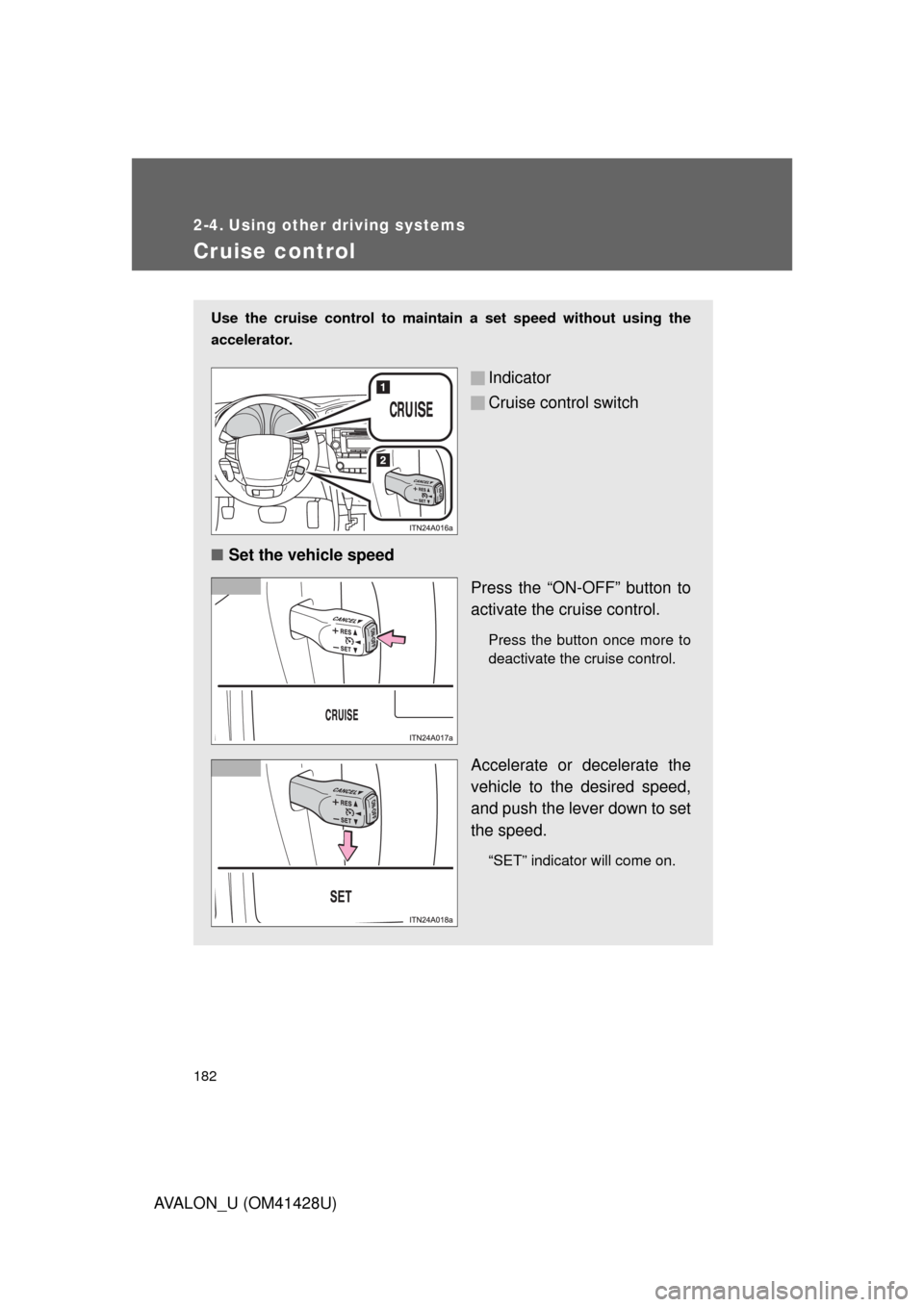

Cruise control
Use the cruise control to maintain a set speed without using the
accelerator.
Indicator
Cruise control switch
■Set the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Press the button once more to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.

183 2-4. Using other driving systems
2
When driving
AVALON_U (OM41428U)
■Adjusting the speed setting
To change the set speed, operate the lever until the desired set
speed is obtained.
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment. Momentarily
move the lever in the desired
direction.
Large adjustment. Hold the
lever in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the
lever is operated.
Large adjustment: The set speed can be increased or decreased
continually until the lever is released.

184 2-4. Using other driving systems
AVALON_U (OM41428U)
■Cruise control can be set when
●The shift lever is in the “D” or range “4” or higher of “S” has been
selected.
●Vehicle speed is above approximately 25 mph (40 km/h).
■Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
■Canceling and resuming regular acceleration
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied.
Pushing the lever up
resumes the constant
speed control.
Resuming is available when
the vehicle speed is more than
approximately 25 mph (40
km/h).
