2011 TOYOTA AVALON Owners Manual

345
3
Interior features
AVALON_U (OM41428U)
3-7. Other interior features

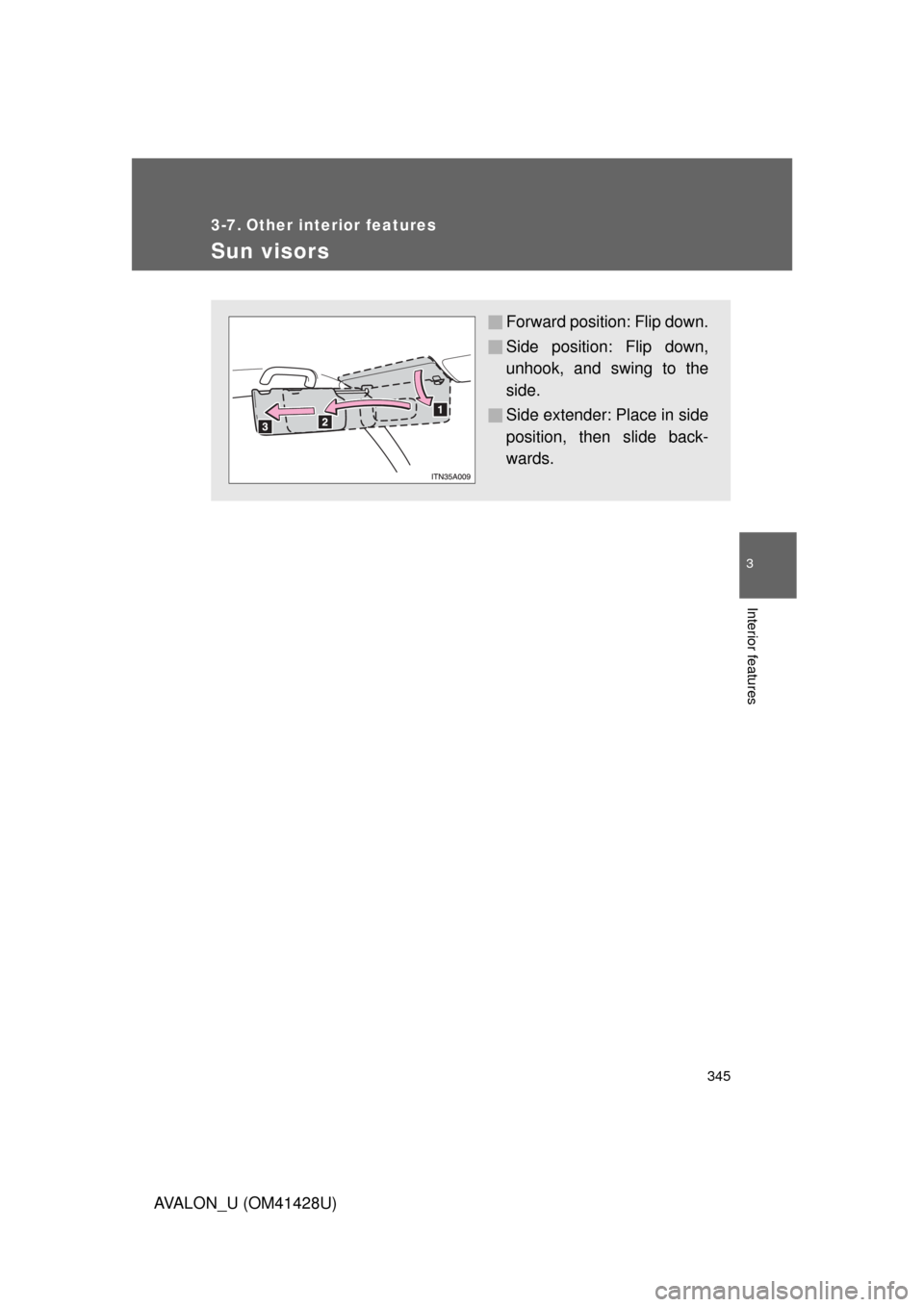

Sun visors
Forward position: Flip down.
Side position: Flip down,
unhook, and swing to the
side.
Side extender: Place in side
position, then slide back-
wards.

346
3-7. Other interior features
AVALON_U (OM41428U)

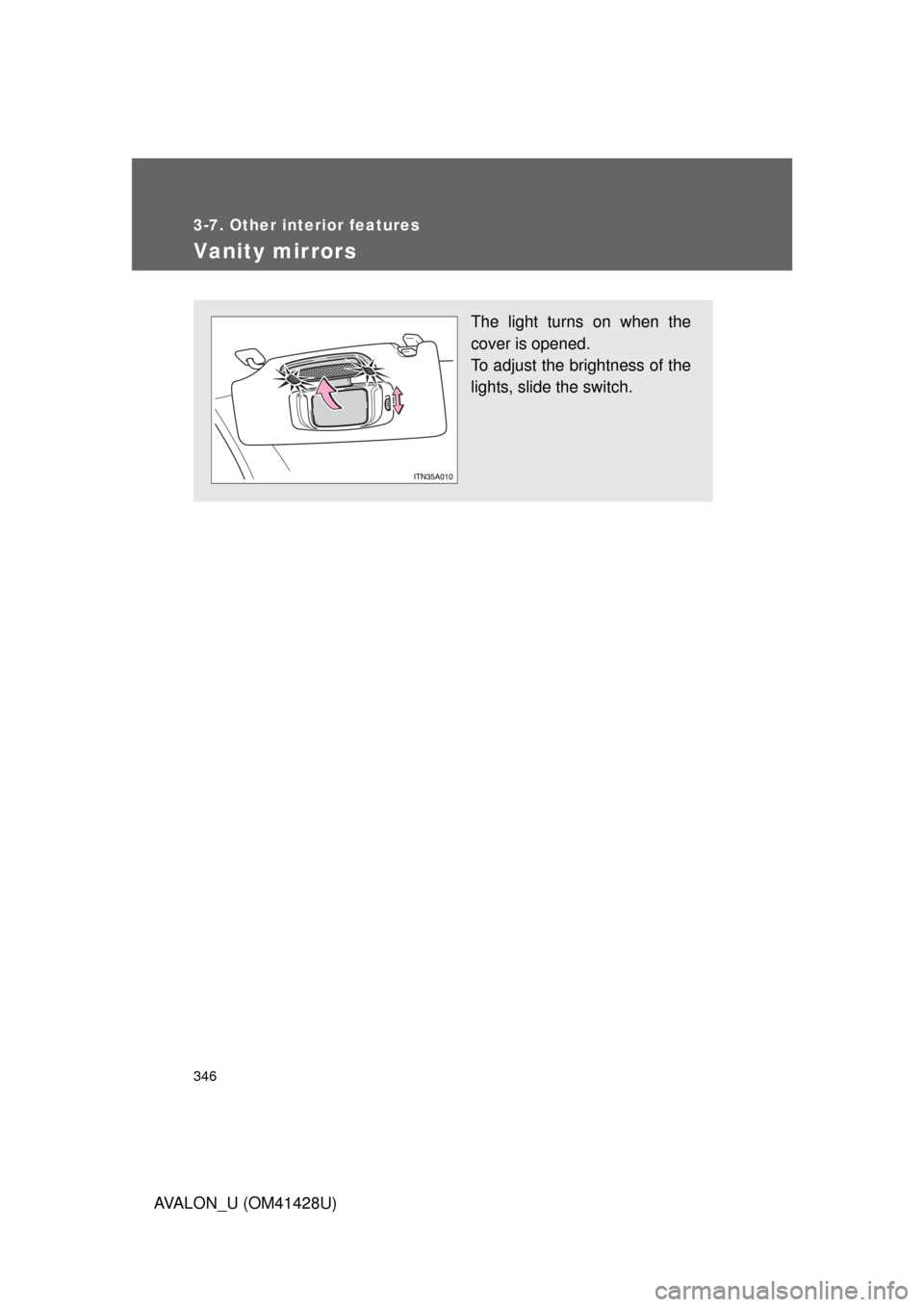

Vanity mirrors
The light turns on when the
cover is opened.
To adjust the brightness of the
lights, slide the switch.

347
3-7. Other interior features
3
Interior features
AVALON_U (OM41428U)
Clock
■The clock is displayed when
Vehicles with smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position.
■When the battery is disconnected
The time display will automatically be set to 1:00.
Adjust the hour
Adjust the minutes
Rounds to the nearest hour

348
3-7. Other interior features
AVALON_U (OM41428U)
Ashtrays
: If equipped
CAUTION
■When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
■To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
●Do not place paper or any other type of flammable object in the ashtray.

349
3-7. Other interior features
3
Interior features
AVALON_U (OM41428U)

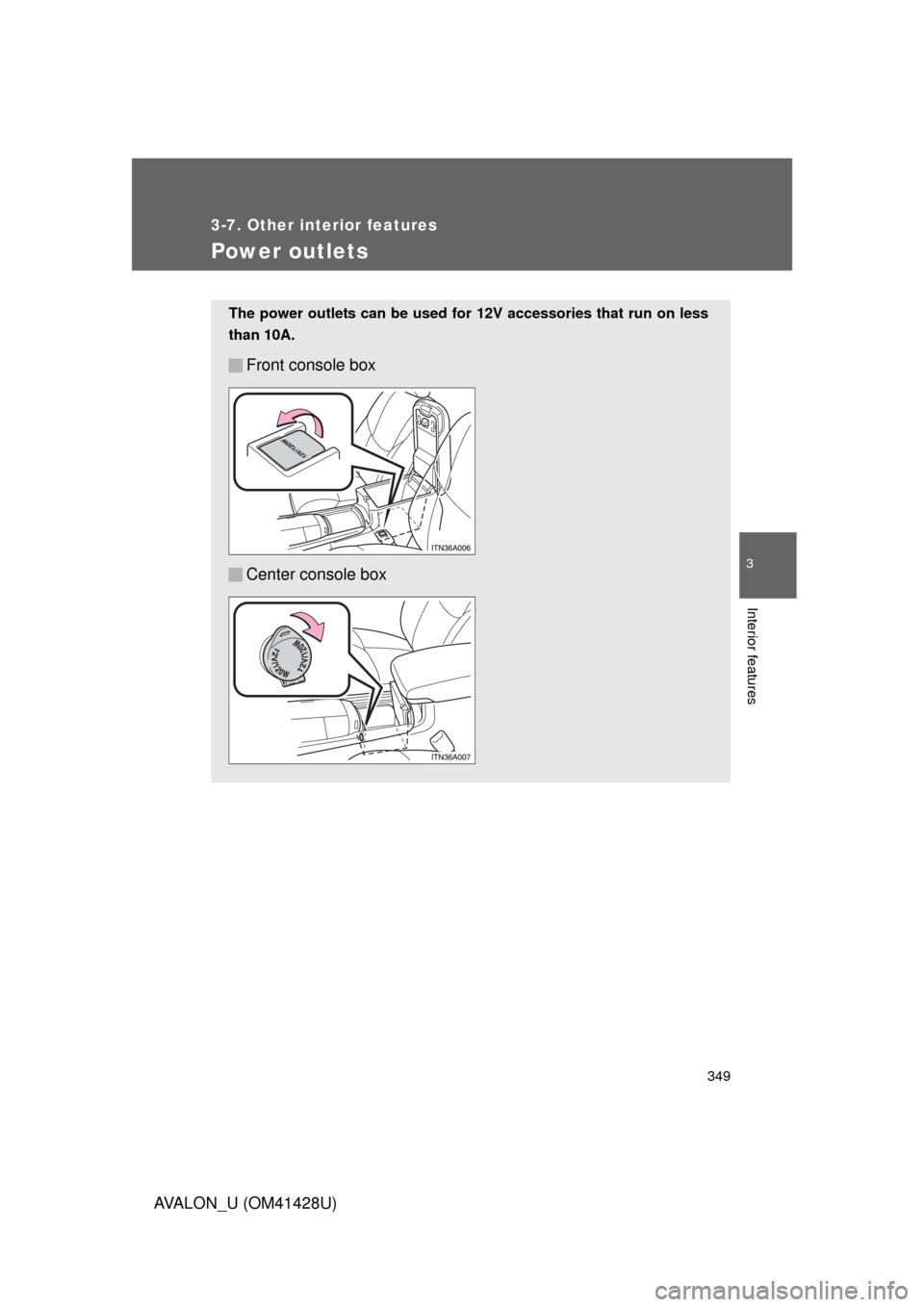

Power outlets
The power outlets can be used for 12V accessories that run on less
than 10A.
Front console box
Center console box

350 3-7. Other interior features
AVALON_U (OM41428U)
■The power outlets can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position.
NOTICE
■To avoid damaging the power outlets
Close the power outlets lid when not in use.
Foreign objects or liquids that enter the power outlets may cause a short cir-
cuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12V/10A.
■To prevent battery discharge
Do not use the power outlets longer than necessary when the engine is not
running.

351
3-7. Other interior features
3
Interior features
AVALON_U (OM41428U)

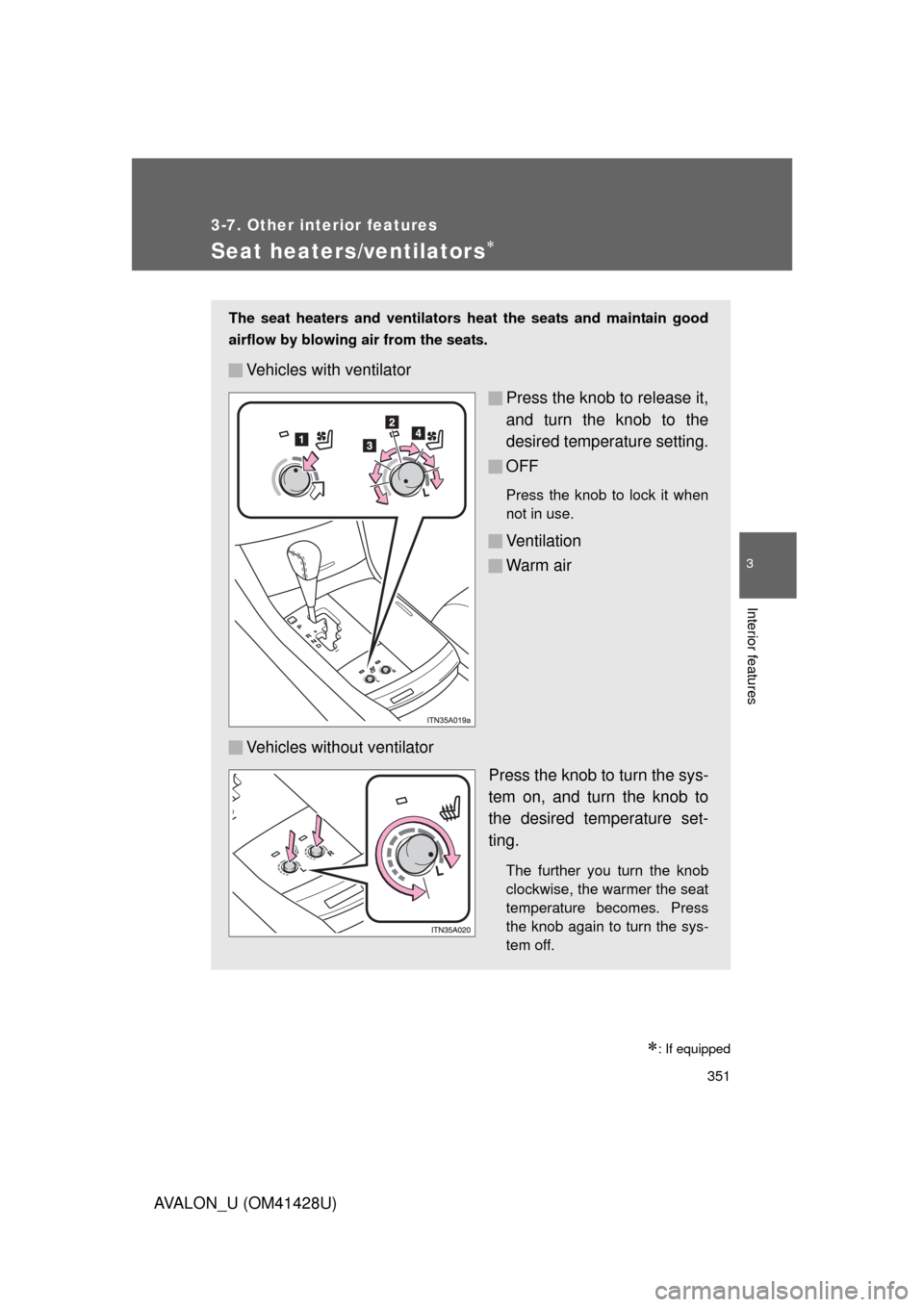

Seat heaters/ventilators
: If equipped
The seat heaters and ventilators heat the seats and maintain good
airflow by blowing air from the seats.
Vehicles with ventilator
Press the knob to release it,
and turn the knob to the
desired temperature setting.
OFF
Press the knob to lock it when
not in use.
Ve n t i l a t i o n
Warm air
Vehicles without ventilator
Press the knob to turn the sys-
tem on, and turn the knob to
the desired temperature set-
ting.
The further you turn the knob
clockwise, the warmer the seat
temperature becomes. Press
the knob again to turn the sys-
tem off.

352 3-7. Other interior features
AVALON_U (OM41428U)
■The seat heaters and ventilators can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater/ventilator damage
Do not put heavy objects on the seat and do not stick sharp objects (nee-
dles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the switches off when the engine is not running.
