Page 394 of 564
394
4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)

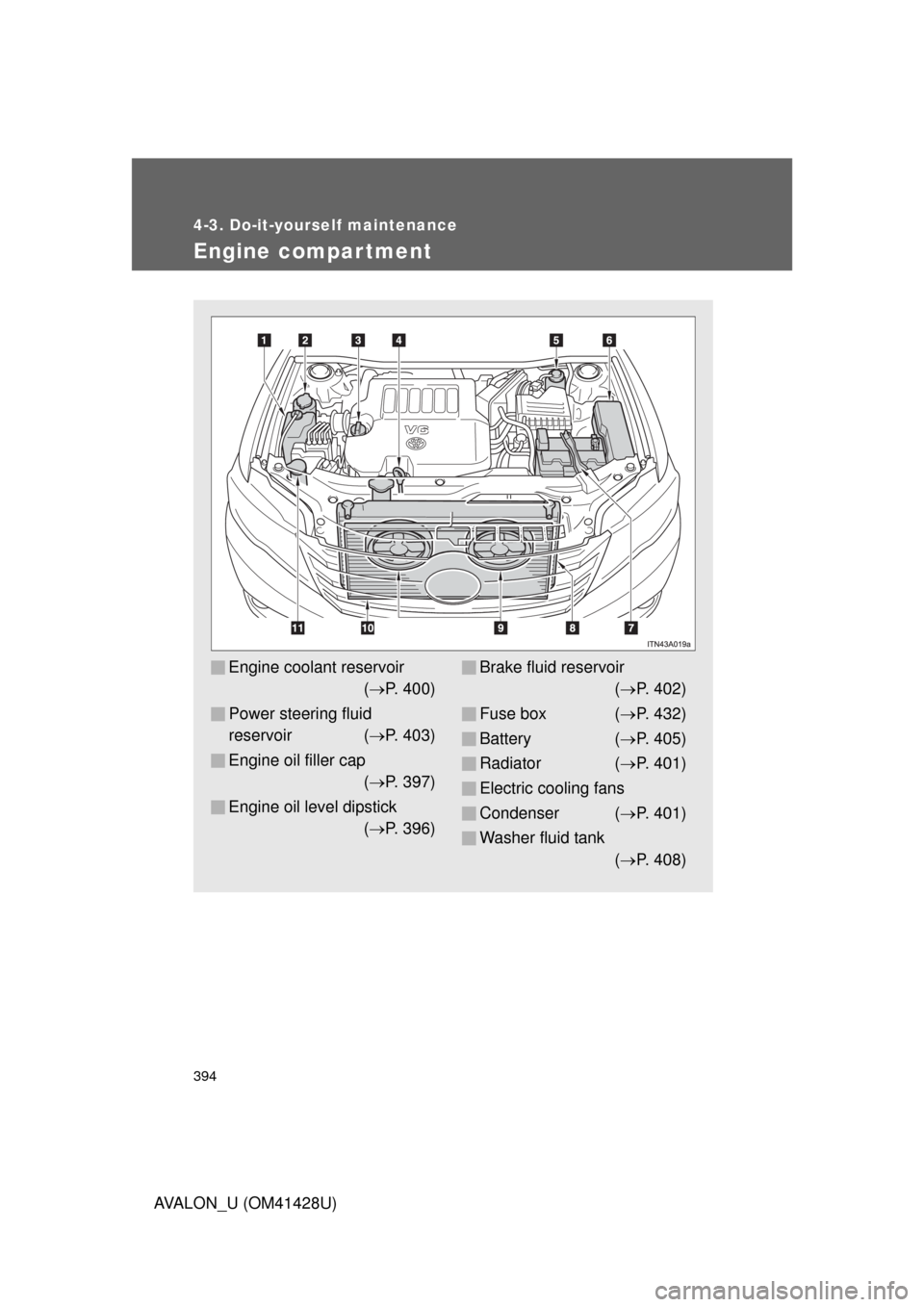

Engine compar tment
Engine coolant reservoir
(P. 400)
Power steering fluid
reservoir (P. 403)
Engine oil filler cap
(P. 397)
Engine oil level dipstick
(P. 396)Brake fluid reservoir
(P. 402)
Fuse box (P. 432)
Battery (P. 405)
Radiator (P. 401)
Electric cooling fans
Condenser (P. 401)
Washer fluid tank
(P. 408)
Page 432 of 564
432
4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch or the engine
switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 434) for details about which fuse to check.
Page 433 of 564
4
Maintenance and care
433 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Page 438 of 564
438 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)
FuseAmpereCircuit
14TA I L10 A
Parking lights, license plate lights,
tail lights, front and rear side
marker lights
15PA N E L7.5 A
Seat heaters, navigation system,
emergency flashers,
electronically controlled
automatic transmission system,
glove box light, instrument panel
lights, power outlets
16ECU IG No.110 A
Center display, shift lock control
system, moon roof, multiplex
communication system, tire pres-
sure monitoring (warning) system
17ECU IG No.210 A
Anti-lock brake system, automatic
headlight leveling system, vehicle
stability control system, multiplex
communication system
18HTR7.5 A
Air conditioning system,
instrument panel lights, electric
cooling fan
19A/C COMP7.5 AAir conditioning system
20GAUGE No.110 ABack-up lights, navigation
system, emergency flashers
21WIP30 AWindshield wipers
22RR S/SHADE10 ARear sunshade
Page 440 of 564
440 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 443)
●If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.
Page 557 of 564

557 Alphabetical index
AVALON_U (OM41428U)
Emergency, in case of
If a warning light turns on ..... 467
If the electronic key does not
operate properly ................. 493
If the engine will not start...... 489
If the shift lever cannot be
shifted from P ..................... 491
If the battery is discharged .. 496
If the warning buzzer
sounds ............................... 467
If the warning light
turns on .............................. 467
If you have a flat tire ............ 479
If you lose your keys............. 492
If you think something is
wrong ................................. 463
If your vehicle becomes
stuck................................... 503
If your vehicle has to be stopped
in an emergency ................ 504
If your vehicle needs to be
towed ................................. 459
If your vehicle overheats ...... 500
Engine
Compartment........................ 394
Engine switch ............... 149, 153
Hood ..................................... 391
How to start the
engine ........................ 149, 153
Identification number ............ 509
If the engine will not start...... 489
Ignition switch ............... 149, 153
Overheating .......................... 500
Engine compartment cover .... 395
Engine coolant
Capacity ............................... 512
Checking .............................. 400
Preparing and checking
before winter ...................... 207
Engine coolant temperature
gauge ..................................... 164
Engine immobilizer system ...... 91Engine oil
Capacity ................................510
Checking ...............................396
Preparing and checking
before winter .......................207
Event data recorder .................465
Floor mats.................................356
Fluid
Brake .....................................402
Washer ..................................408
Fog lights
Switch....................................176
Wattage .................................515
Foot light...................................334
Front passenger occupant
classification system ............114
Front passenger’s seat belt
reminder light.........................470
Front seats
Adjustment ..............................54
Driving position memory..........58
Front turn signal lights
Wattage .................................515
Fuel
Capacity ................................510
Fuel gauge ............................164
Fuel pump shut off system ....464
Gas station information .........564
Information ............................516
Refueling .................................87
Fuel door.....................................87
Fuel filler door ............................87
Fuel pump shut off system .....464
Fuses.........................................432
Garage door opener.................360
Gas station information...........564
Gauges ......................................164
Glove box..................................338
