2011 TOYOTA AVALON bluetooth

TABLE OF CONTENTSIndex
4
AVALON_U (OM41428U)
3-1. Using the air conditioning
system and defogger
Automatic air conditioning
system .............................. 216
Using the steering wheel climate
control switches................ 224
Rear window and outside rear
view mirror defoggers....... 225
3-2. Using the audio system
Audio system type .............. 227
Using the radio ................... 231
Using the CD player ........... 239
Playing back MP3 and
WMA discs ....................... 247
Operating an iPod .............. 255
Operating a USB
memory ............................ 262
Optimal use of the audio
system .............................. 270
Using the AUX port ............ 273
Using the steering
switches ........................... 2743-3. Using the Bluetooth
® audio
system
Bluetooth
® audio
system .............................. 277
Using the Bluetooth
®
audio system .................... 280
Operating a Bluetooth
®
enabled portable
player ................................ 287
Setting up a Bluetooth
®
enabled portable
player ................................ 289
Bluetooth
® audio system
setup ................................. 295
3-4. Using the hands-free system
(for cellular phone)
Hands-free system
(for cellular phone) ........... 296
Using the hands-free
system .............................. 299
Making a phone call............ 308
Setting a cellular phone ...... 313
Security and system
setup ................................. 320
Using the phone book......... 325
3-5. Using the interior lights
Interior lights list.................. 334
3Interior features

Interior features3
215
AVALON_U (OM41428U)

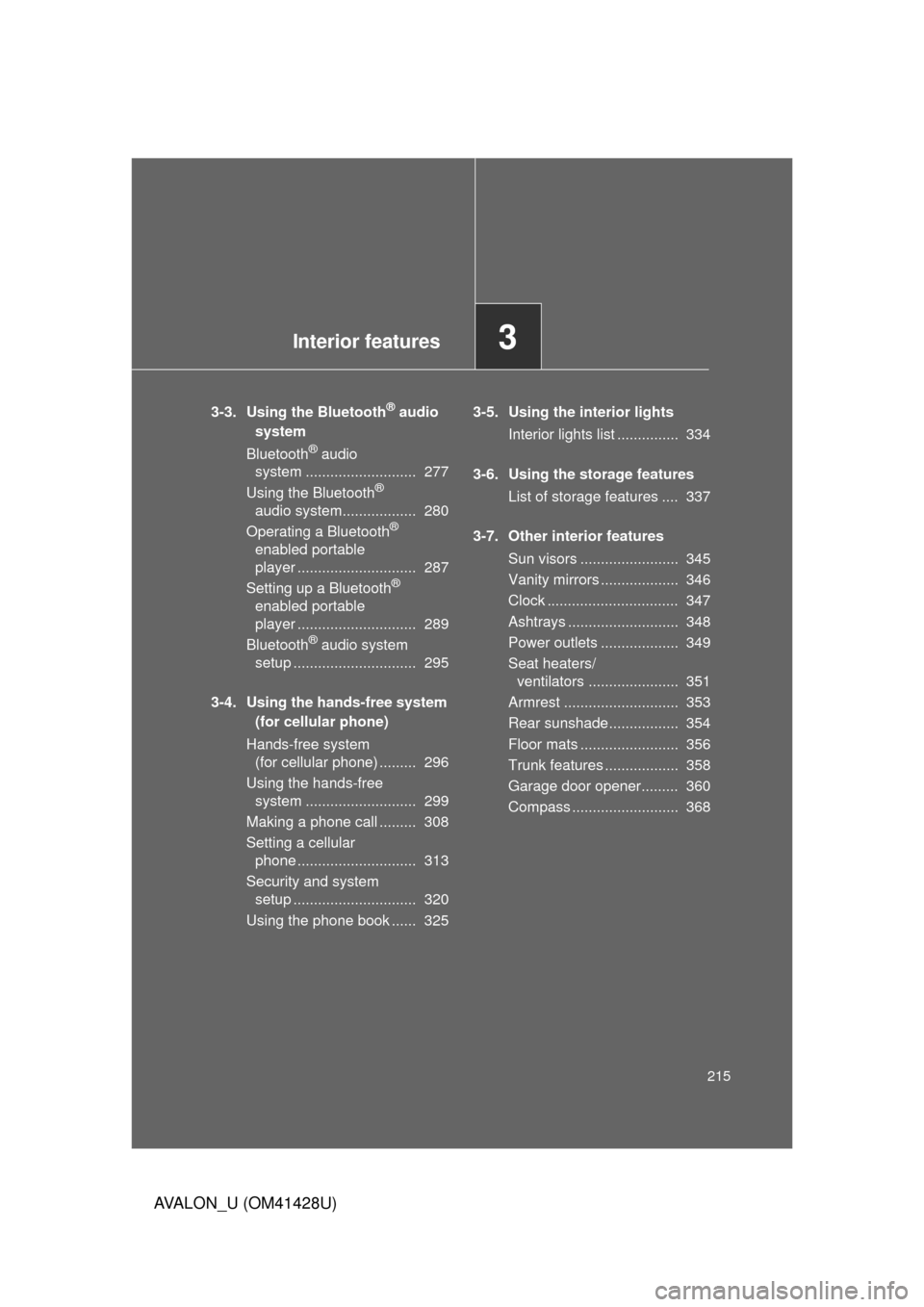

3-3. Using the Bluetooth® audio
system
Bluetooth
® audio
system ........................... 277
Using the Bluetooth
®
audio system.................. 280
Operating a Bluetooth
®
enabled portable
player ............................. 287
Setting up a Bluetooth
®
enabled portable
player ............................. 289
Bluetooth
® audio system
setup .............................. 295
3-4. Using the hands-free system
(for cellular phone)
Hands-free system
(for cellular phone) ......... 296
Using the hands-free
system ........................... 299
Making a phone call ......... 308
Setting a cellular
phone ............................. 313
Security and system
setup .............................. 320
Using the phone book ...... 3253-5. Using the interior lights
Interior lights list ............... 334
3-6. Using the storage features
List of storage features .... 337
3-7. Other interior features
Sun visors ........................ 345
Vanity mirrors ................... 346
Clock ................................ 347
Ashtrays ........................... 348
Power outlets ................... 349
Seat heaters/
ventilators ...................... 351
Armrest ............................ 353
Rear sunshade................. 354
Floor mats ........................ 356
Trunk features .................. 358
Garage door opener......... 360
Compass .......................... 368

274
3-2. Using the audio system
AVALON_U (OM41428U)
Using the steering switches
Some audio features can be controlled using the switches on the
steering wheel.
Increases/decreases vol-
ume
Radio mode:
Selects radio stations
CD mode:
Selects tracks files
(MP3 and WMA) and
discs
iPod mode: Selects a song
USB memory mode:
Selects a file and folder
Bluetooth
® audio mode:
Selects a track and
album
Turns the power on, selects
an audio source

275 3-2. Using the audio system
3
Interior features
AVALON_U (OM41428U)
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding the switch down until you
hear a beep.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time the button is pressed. If a CD is not
inserted, that mode will be skipped.
FM SAT CD CD changer (type A only) USB/iPod

AUX Bluetooth
® audio AM
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the
volume.
Press and hold the switch to continue increasing or decreasing the vol-
ume.
Selecting a radio station
Press to select the radio mode.
Press “” or “” on to select a preset station.
To scan for receivable stations, press and hold the switch until you
hear a beep.

276 3-2. Using the audio system
AVALON_U (OM41428U)
Selecting a track/file or song
Press to select the CD, iPod, USB memory or
Bluetooth
® audio mode.
Press “” or “” on to select the desired track/file or
folder.
Selecting a folder or album
Press to select the CD, USB memory or Bluetooth
®
audio mode.
Press and hold “” or “” on until you hear a beep.
Selecting a disc in the CD player (type A only)
Press to select the CD mode.
Press and hold “” or “” on until you hear a beep.
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

277
3
Interior features
AVALON_U (OM41428U)
3-3. Using the Bluetooth® audio system
Bluetooth® audio system
The Bluetooth® audio system enables you to enjoy music played on
a portable digital audio player (portable player) from the vehicle
speakers via wireless communication.
This audio system supports Bluetooth
®, a wireless data system
capable of playing portable audio music without cables. If your por-
table player does not support Bluetooth
®, the Bluetooth® audio sys-
tem will not function.
Vehicles with a navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
TitlePage
Using the Bluetooth® audio systemP. 280
Operating a Bluetooth® enabled portable playerP. 287
Setting up a Bluetooth® enabled portable playerP. 289
Bluetooth® audio system setupP. 295

278 3-3. Using the Bluetooth
® audio system
AVALON_U (OM41428U)
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth
®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. (P. 323)
■About Bluetooth
®
■Compatible models
●Bluetooth
® specifications:
Ver. 1.2, or higher (Recommended: Ver. 2.0+EDR or higher)
●Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher
(Ver. 1.3 or higher recommended)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

279 3-3. Using the Bluetooth
® audio system
3
Interior features
AVALON_U (OM41428U)
■Certification for the Bluetooth® audio system
Type A
FCC ID: BABFT0001A
IC ID: 2024B-FT0001A
MADE IN CHINA
Type B
FCC ID: L2C0045TR
IC ID: 3432A-0045TR
MADE IN MEXICO
This device complies with Part 15 of the FCC Rules and RSS-210 Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any interfer-
ence received, including interference that may cause undesired operation.
CAUTION
■FCC WARNING
Changes or modifications in construction not expressly approved by the
party responsible for compliance could void the user’s authority to operate
the equipment.
Radio frequency exposure. This device is approved for Mobile Application
only and, to comply with applicable FCC radio frequency exposure regula-
tions, must be used with a distance of at least 7.9 in. (20 cm) between the
antenna and the body of any person at all time during use.
■While driving
Do not connect portable players or operate the controls.
NOTICE
■To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.
