2011 TOYOTA AVALON bluetooth

296
AVALON_U (OM41428U)
3-4. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone)
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without operating the cellular phone.
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navigation system
TitlePage
Using the hands-free systemP. 299
Making a phone callP. 308
Setting a cellular phoneP. 313
Security and system setupP. 320
Using the phone bookP. 325

297 3-4. Using the hands-free system (for cellular phone)
3
Interior features
AVALON_U (OM41428U)
■Hands-free System Additional Information
For additional information pairing and connecting cellular phone or for phone
compatibility with vehicle’s Bluetooth
® system, please visit the following
website: http://www.toyota.letstalk.com
■Conditions affecting operation
The hands-free phone system may not operate normally in the following situ-
ations:
●The cellular phone is turned off, or located outside the service area.
●The cellular phone has a low battery.
●The cellular phone is not connected to the system.
●The cellular phone is behind the seat or in the glove box, or metal mate-
rial covers or touches the phone.
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being
improperly accessed.
■About Bluetooth
®
■Compatible models
Compatible with HFP (Hands Free Profile) Ver. 1.0 and OPP (Object Push
Profile) Ver. 1.1.
If your cellular phone does not support HFP, you cannot enter the Bluetooth
®
phone, and take OPP service individually.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

298 3-4. Using the hands-free system (for cellular phone)
AVALON_U (OM41428U)
■Certification for the hands-free system
Type A
FCC ID: BABFT0001A
IC ID: 2024B-FT0001A
MADE IN CHINA
Type B
FCC ID: L2C0045TR
IC ID: 3432A-0045TR
MADE IN MEXICO
This device complies with Part 15 of the FCC Rules and RSS-210 Rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CAUTION
■FCC WARNING
Changes or modifications in construction not expressly approved by the
party responsible for compliance could void the user’s authority to operate
the equipment.
Radio frequency exposure. This device is approved for Mobile Application
only and, to comply with applicable FCC radio frequency exposure regula-
tions, must be used with a distance of at least 7.9 in. (20 cm) between the
antenna and the body of any person at all time during use.
■While driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
NOTICE
■To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may
become high resulting in damage to the phone.

299
3-4. Using the hands-free system (for cellular phone)
3
Interior features
AVALON_U (OM41428U)

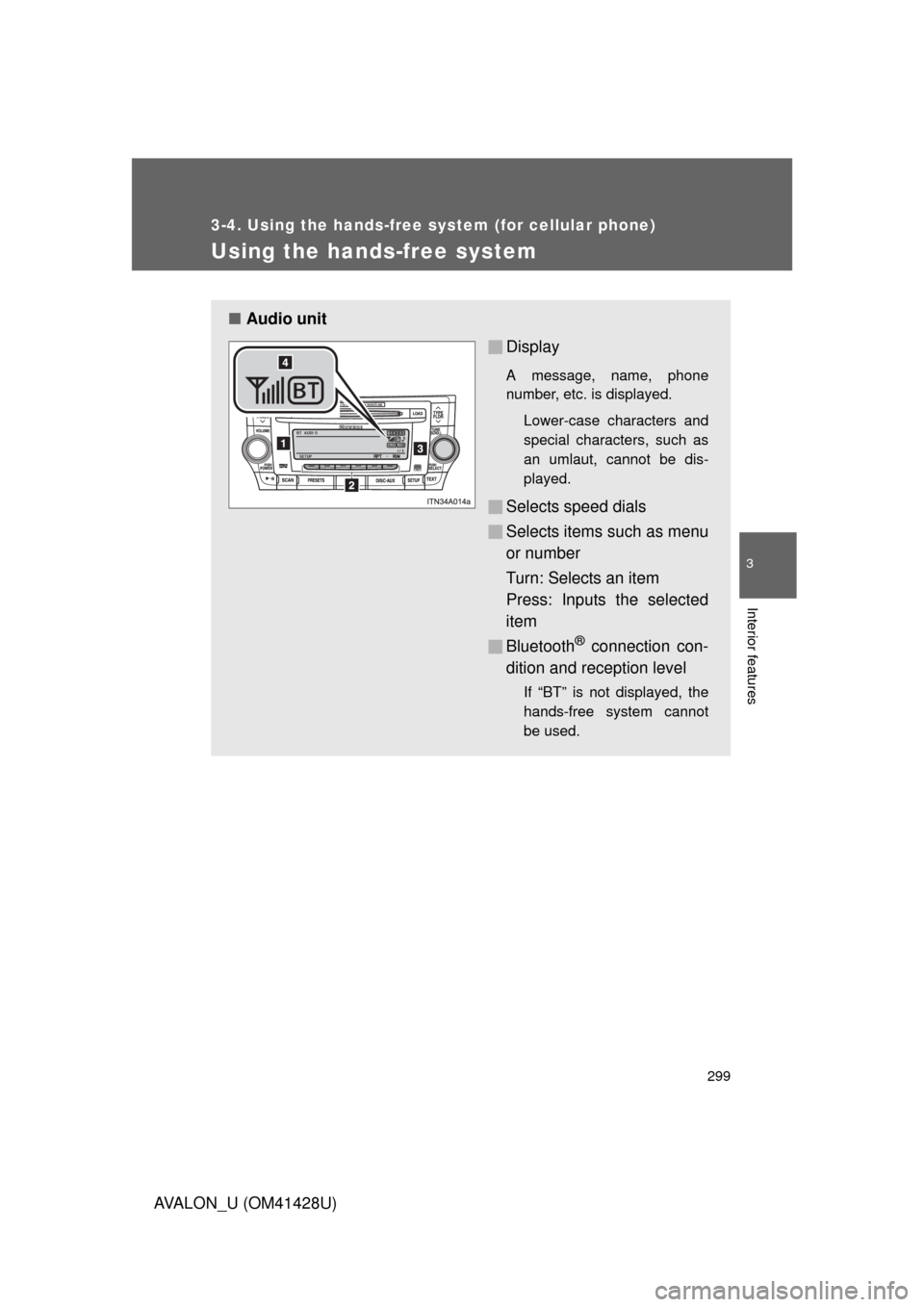

Using the hands-free system
■Audio unit
Display
A message, name, phone
number, etc. is displayed.
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Selects speed dials
Selects items such as menu
or number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth
® connection con-
dition and reception level
If “BT” is not displayed, the
hands-free system cannot
be used.

303 3-4. Using the hands-free system (for cellular phone)
3
Interior features
AVALON_U (OM41428U)Registration to the hands-free phone system only
Select “Phone Only” using a voice command or .
Registration to the hands-free phone system and Bluetooth
® audio
system at the same time
Select “Internal Audio (Int. Audio)” using a voice command or
.
Select “Confirm” by using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction
for inputting the passkey into the cellular phone is heard.
Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
Guidance for registration completion is heard.

320
3-4. Using the hands-free system (for cellular phone)
AVALON_U (OM41428U)

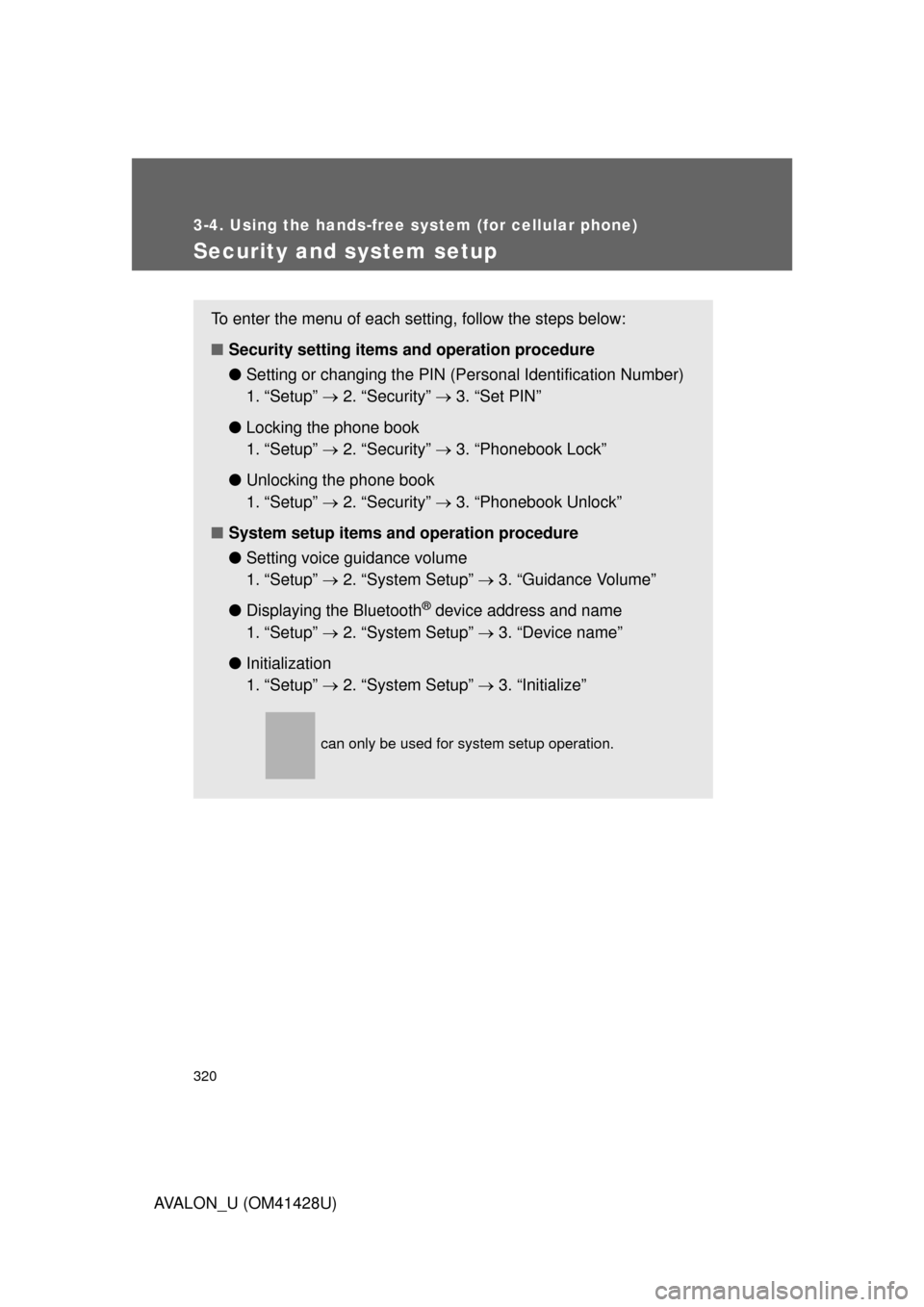

Security and system setup
To enter the menu of each setting, follow the steps below:
■Security setting items and operation procedure
●Setting or changing the PIN (Personal Identification Number)
1. “Setup”  2. “Security”  3. “Set PIN”
●Locking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Lock”
●Unlocking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Unlock”
■System setup items and operation procedure
●Setting voice guidance volume
1. “Setup”  2. “System Setup”  3. “Guidance Volume”
●Displaying the Bluetooth
® device address and name
1. “Setup”  2. “System Setup”  3. “Device name”
●Initialization
1. “Setup”  2. “System Setup”  3. “Initialize”
can only be used for system setup operation.

323 3-4. Using the hands-free system (for cellular phone)
3
Interior features
AVALON_U (OM41428U)
Displaying the Bluetooth® device address and name
Select “Device Name” using .
Turn to display the Bluetooth
® device address and
name.
Select “Go Back” using to return to “System Setup”.
Initialization
Select “Initialize” and then “Confirm” by using .
Select “Confirm” by using .

555
AVALON_U (OM41428U)
Alphabetical index
Alphabetical index
A/C ............................................ 216
ABS........................................... 195
Air conditioning system
Air conditioning filter ............. 425
Automatic air conditioning
system................................ 216
Steering switches ................. 224
Airbags
Airbag operating conditions .. 104
Airbag precautions for your
child.................................... 108
Airbag warning light .............. 469
Curtain shield airbag
precautions ........................ 111
Front passenger occupant
classification system .......... 114
General airbag precautions .. 108
Locations of airbags ............. 101
Modification and disposal of
airbags ............................... 113
Side airbag precautions........ 108
Side and curtain shield airbags
operating conditions ........... 104
SRS airbags ......................... 101
Alarm .......................................... 94
Antenna .................................... 236
Anti-lock brake system ........... 195
Armrest .................................... 353
Ashtrays ................................... 348
Audio input .............................. 273
Audio system
Antenna ................................ 236
Audio input ........................... 273
AUX port ............................... 273
CD player/changer ............... 239
iPod ...................................... 255
MP3/WMA disc ..................... 247
Optimal use .......................... 270
Portable music player ........... 273
Radio .................................... 231
Steering wheel audio
switches ............................. 274
USB memory ........................ 262Automatic headlight leveling
system ....................................175
Automatic light control
system ....................................173
Automatic transmission
Automatic transmission .........156
If the shift lever cannot be
shifted from P......................491
S mode ..................................158
AUX port ...................................273
Back-up lights
Wattage .................................515
Battery
Checking ...............................405
If the vehicle battery is
discharged ..........................496
Preparing and checking
before winter .......................207
Bluetooth
® audio......................277
Bluetooth® phone ....................296
Brake
Fluid ......................................402
Parking brake ........................162
Brake assist ..............................195
Break-in tips .............................139
Care
Exterior ..................................374
Interior ...................................377
Seat belts ..............................378
Cargo capacity .........................200
CD player/changer ...................239
Chains .......................................209
Child-protectors .........................45
A
B
C
