2011 TOYOTA AVALON oil type

4
Maintenance and care
397 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)■Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
Engine oil
selectionP. 510
Oil quantity
(Low  Full)1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel

510 6-1. Specifications
AVALON_U (OM41428U)
Engine
Fuel
Lubrication system
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Model2GR-FE
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.27 in. (94.0  83.0 mm)
Displacement 210.9 cu.in. (3456 cm3)
Drive belt tension Automatic adjustment
Fuel typeUnleaded gasoline only
Octane Rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)18.5 gal. (70 L, 15.4 lmp.gal)
Oil capacity
(Drain and refill —
reference)
with filter
without filter6.4 qt. (6.1 L, 5.4 lmp.qt.)
6.0 qt. (5.7 L, 5.0 lmp.qt.)

564
AVALON_U (OM41428U)

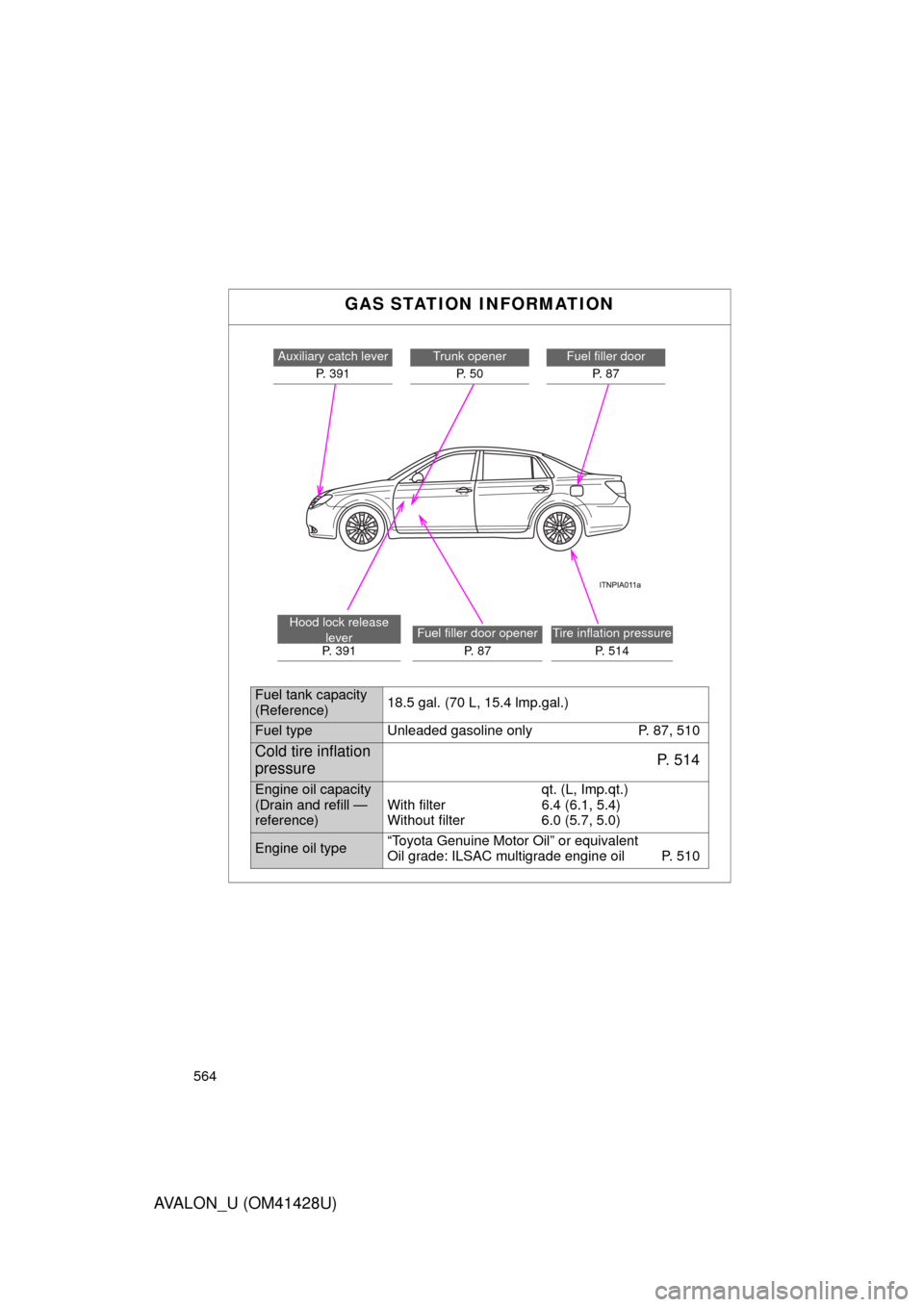

GAS STATION INFORMATION
Auxiliary catch lever
P. 391Trunk opener
P. 5 0Fuel filler door
P. 8 7
Hood lock release
lever
P. 391Fuel filler door opener
P. 8 7Tire inflation pressure
P. 5 1 4
Fuel tank capacity
(Reference)18.5 gal. (70 L, 15.4 lmp.gal.)
Fuel typeUnleaded gasoline only P. 87, 510
Cold tire inflation
pressureP. 5 1 4
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
With filter 6.4 (6.1, 5.4)
Without filter 6.0 (5.7, 5.0)
Engine oil type“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC multigrade engine oil P. 510
