2011 SKODA OCTAVIA TOUR Owner's Manual

Airbag system
96
Front passenger airbags switched off using the switch for front passenger
airbags* in storage compartmen t on the front passenger side:•
the airbag indicator light in the instrument cluster comes on for about 4 seconds
each time the ignition is switched on,
•
if the airbags are switched off, this is indicated in the middle of the dash panel
by the lighting up of the indicator light

  fig. 102 - right.
Note
Your authorised Škoda Servic e Partner will be able to advise you whether national
legislation in your country allows airbags in your vehicle to be deactivated, and
which ones.Switch for switching off the front passenger airbag*Fig. 102 Storage compartment: Switch for switching off the front passenger airbag/indicator
light for a switched off front seat passenger airbagThe front passenger airbag is deactivated with the switch.Deactivating an airbag– Switch off the ignition.
– Turn the switch for the front passenger ai rbag using the key in the position
( OFF) page 96, fig. 102 .
– Check whether the indicator light

 in the middle of the dash panel
lights up when the ignition is switched on page 96, fig. 102 - right.
Switching on an airbag– Switch off the ignition. – Turn the switch for the front passenger airbag using the key in the position
(ON )  page 96, fig. 102 .
– Check whether the indicator light

 in the middle of the dash panel
lights up when the ignition is switched on page 96, fig. 102 - right.
The airbag should only be switched off under exceptional circumstances
 page 95.
Indicator light

 (airbag switched off)
The indicator light for the front passenger ai rbag is located in the middle of the dash
panel page 96, fig. 102 - right.
If the front passenger airbag is switched off, the warning light for the front
passenger airbag switch-o ff comes on about 4 seconds after the ignition is
switched on.
There is a system fault present in the airbag switch off  if the indicator light
for the front passenger airbag switch off flashes. Please have the car inspected
immediately by a specialist garage.
WARNING
•
The driver is responsible for whether the front passenger airbag is switched
on or switched off.
•
Only switch off the front passenger airbag when the ignition is switched off!
Otherwise a fault can occur in the system for the front passenger airbag deacti-
vation.
•
If the warning light

 (airbag switched off) flashes:
− Front passenger airbag is not depl oyed in the event of an accident!
− It is also important to have the sy stem inspected without delay by a
specialist garage.
2
1
s2lk.2.book Page 96 Monday, April 18, 2011 7:41 AM

Transporting children safely97
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Transporting children safelyWhat you should know about transporting children!An introduction to the subject
Accident statistics have revealed that children are generally more
safely transported on the rear se ats than on the front passenger
seat.Children younger than 12 years of age should normally travel on the rear seat of the
vehicle (take note of any national legal pr ovisions which differ from this). They
should be secured there by means of a child restraint system or by using the
existing seat belts depending on their age, body size and weight. The child seat
should be mounted behind the front passenger seat for safety reasons.
The physical principle of an accident does, of course, also apply to children
 page 85, “The physical principle of a frontal collision”. They differ from adults in
that their muscles and bone structure of children are not yet fully developed. Thus
children are exposed to increased risk of injury.
Children should be transported by using special child safety seats in order to reduce
this risk of injury.
Use only child safety seats which are official ly approved and are suitable for children
and which comply with the ECE-R 44 standard . Child safety seats are classified in 5
groups page 99. Child restraint systems which have been tested for conformity
to ECE-R 44 standard have a non-detachable test seal (a large E within a circle and
below this the test number) attached to the seat.
We recommend that you use child safety se ats from the Škoda genuine accessories.
These child seats were developed and also tested for use in Škoda vehicles. They
fulfil the ECE-R 44 standard.
WARNING
Always comply with legal provisions and instructions from the relevant child
safety seat manufacturer when installing and using the child seat page 97.
Note
Any varying national legal regulations take priority over the information provided in
these instructions for use, or stated in this chapter.
Important safety information regarding the use of child safety seats
Correct use of child safety seats considerably reduces the risk of
injury!
WARNING
•
All the occupants of the car - in particul ar children - must wear a seat belt
when the car is moving.
•
Children, who are less than 1.50 m in he ight and who weigh less than 36 kg,
must not use a normal seat belt without a child restraint system otherwise this
may result in injuries to the stomach and neck areas. Comply with the national
legal requirements.
•
One should never carry children, and also not babies! - on one's lap.
•
You can transport a child safely in a suitable child safety seat page 99,
“Child seat”!
•
Only one child may be fastened with a seat belt into a child safety seat.
•
Never leave the child sitting unattended in the seat.
•
Certain outside climatic conditions c an cause life-threatening temperatures
in the vehicle.
•
Never allow your child to be transported in a vehicle without the use of a
suitable restraint system.
•
Children should also never stand up in a vehicle or kneel on the seats when
the vehicle is moving. In the event of an accident the child will be thrown
through the vehicle and may as a result suffer fatal injuries, and also injure other
occupants.
•
Children are exposed to an increased risk of injury in the event of an accident
if they lean forward or adopt an incorrec t seated position when the vehicle is
moving. This particularly applies to ch ildren who are transported on the front
passenger seat if the airbag system deploys in the event of an accident. This can
result in severe or even fatal injuries.
•
It is important that the belt webbing is properly routed if the seat belts are
to offer their maximum protection page 87, “How are seat belts correctly
fastened?”. Pay particular attention to the information prov ided by the manu-
facturer of the child safety seat regarding correct routing of the belt. Seat belts
which are not correctly adjusted can them selves cause injuries even in minor
accidents.
s2lk.2.book Page 97 Monday, April 18, 2011 7:41 AM

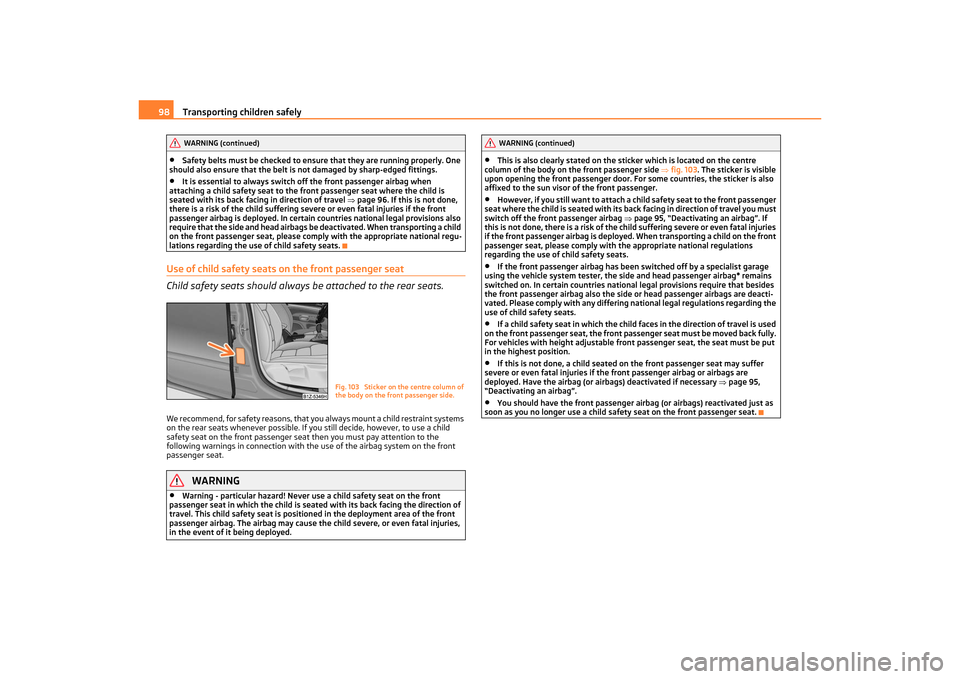

Transporting children safely
98
•
Safety belts must be checked to ensure that they are running properly. One
should also ensure that the belt is not damaged by sharp-edged fittings.
•
It is essential to always switch off the front passenger airbag when
attaching a child safety seat to the fr ont passenger seat where the child is
seated with its back facing in direction of travel page 96. If this is not done,
there is a risk of the child suffering severe or even fatal injuries if the front
passenger airbag is deployed. In certain countries national legal provisions also
require that the side and head airbags be deactivated. When transporting a child
on the front passenger seat, please comp ly with the appropriate national regu-
lations regarding the use of child safety seats.
Use of child safety seats on the front passenger seat
Child safety seats should always be attached to the rear seats.W e r e c o m m e n d , f o r s a f e t y r e a s o n s , t h a t you always mount a child restraint systems
on the rear seats whenever possible. If you still decide, however, to use a child
safety seat on the front passenger seat then you must pay attention to the
following warnings in connection with the use of the airbag system on the front
passenger seat.
WARNING
•
Warning - particular hazard! Never use a child safety seat on the front
passenger seat in which the child is seated with its back facing the direction of
travel. This child safety seat is position ed in the deployment area of the front
passenger airbag. The airbag may cause th e child severe, or even fatal injuries,
in the event of it being deployed.
•
This is also clearly stated on the sticker which is located on the centre
column of the body on the front passenger side fig. 103 . The sticker is visible
upon opening the front passenger door. Fo r some countries, the sticker is also
affixed to the sun visor of the front passenger.
•
However, if you still want to attach a child safety seat to the front passenger
seat where the child is seated with its back facing in direction of travel you must
switch off the front passenger airbag page 95, “Deactivating an airbag”. If
this is not done, there is a risk of the child suffering severe or even fatal injuries
if the front passenger airbag is deployed. When transporting a child on the front
passenger seat, please comply with the appropriate national regulations
regarding the use of child safety seats.
•
If the front passenger airbag has been switched off by a specialist garage
using the vehicle system tester, the si de and head passenger airbag* remains
switched on. In certain countries national legal provisions require that besides
the front passenger airbag also the side or head passenger airbags are deacti-
vated. Please comply with any differing national legal regulations regarding the
use of child safety seats.
•
If a child safety seat in which the child faces in the direction of travel is used
on the front passenger seat, the front passenger seat must be moved back fully.
For vehicles with height adjustable fron t passenger seat, the seat must be put
in the highest position.
•
If this is not done, a child seated on the front passenger seat may suffer
severe or even fatal injuries if the front passenger airbag or airbags are
deployed. Have the airbag (or ai rbags) deactivated if necessary page 95,
“Deactivating an airbag”.
•
You should have the front passenger airbag (or airbags) reactivated just as
soon as you no longer use a child safety seat on the front passenger seat.
WARNING (continued)
Fig. 103 Sticker on the centre column of
the body on the front passenger side.
WARNING (continued)
s2lk.2.book Page 98 Monday, April 18, 2011 7:41 AM

Transporting children safely99
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Child safety and side airbag*
Children must never be seated in the deployment area of side or
head airbags.Fig. 104 Seated position of an unprotected child at risk from side airbag/Child properly
protected by safety seat?In the event of a side collision, the side airbags offer the vehicle occupants
enhanced protection.
The side airbags are inflated in fractions of a second in order to be able to provide
this protection page 92, “Function of the side airbags”.
An airbag inflating develops such a strong force that an occupant who has not
adopted an upright seated position may suffer injuries from the airbag or as a result
of objects which are located within the deployment area of the side airbag.
This applies particularly to children if they are not transported in accordance with
legal requirements.
The child is protected when seated in a child safety seat matching its age. Adequate
room is available between the child and the deployment area of the side airbag and
head airbag. The airbag offers optimal protection.
WARNING
•
It is essential to always switch off the front passenger airbag when
attaching a child safety seat on the fr ont passenger seat where the child is
seated with its back facing in direction of travel (in some countries also when
the child is facing the direction of travel) page 95. If this is not done, there is
a risk of the child suffering severe or ev en fatal injuries if the front passenger
airbag is deployed. In certain countries nat ional legal provisions also require that
the side and head airbags be deactivated. When transporting a child on the front passenger seat, please comply with
the appropriate national regulations
regarding the use of child safety seats.
•
When transporting a child on the front passenger seat, please comply with
the appropriate national regulations rega rding the use of child safety seats.
•
Children must never be seated with their head in the deployment area of the
side airbag - risk of injury!
•
Do not place any objects within the deploy ment area of the side airbag - risk
of injury!
Child seatClassification of child seats into groups
Only child safety seats which have an official approval and are suit-
able for the child, may be used.ECE-R 44 standard applies to child safe ty seats. ECE-R means: Economic Commis-
sion of Europe - Regulation.
Child safety seats which have been tested for conformity to ECE-R 44 standard have
a non-detachable test seal (a large E within a circle and below this the test number)
attached to the seat.
Child safety seats are classified in 5 groups:
Children of more than 150 cm in height ma y use the seat belts fitted to the vehicle
without a seat bolster.
Group
Weight
0
0 - 10 kg
 page 100
0+
up to 13 kg
page 100
1
9 - 18 kg
page 100
2
15 - 25 kg
page 101
3
22 - 36 kg
page 101
WARNING (continued)
s2lk.2.book Page 99 Monday, April 18, 2011 7:41 AM

Transporting children safely
100
Use of child safety seatsAn overview of the usefulness of child seats on each of the seats according to the
ECE-R 44 standard:
Universal category - seat is suitable for all approved types of child safety seats.
The seat can be fitted with fixing eyes for the “ ISOFIX*”system.
The divided rear seat - seat can be fitt ed with fixing eyes for the system “Top
Tether *”  page 103.Child seats of group 0/0+The optimal solution for babies of up to about 9 months old weighing up to 10 kg or
babies up to about 18 months old weighing up to 13 kg is a child safety seat which
can be adjusted into the reclining position fig. 105.
In view of the fact that such child seats are installed that the child is seated with its
back facing the direction of travel, they must not be used on the front passenger
seat page 98, “Use of child safety seats on the front passenger seat”.
WARNING
•
It is essential to always switch off th e front passenger airbag (airbags) when
attaching in exceptional circumstances a child safety seat on the front
passenger seat where the child is seated with its back facing in direction of
travel (in some countries also when the child is facing the direction of travel),
− in a specialist garage
− or by using the key-operated switch for the front passenger airbag*
 page 96, “Switch for switching of f the front passenger airbag*”.
•
The national legal provisions in certain countries require that both the front,
side and head airbags be deactivated. Please comply with the appropriate
national legal provisions which may diff er regarding the use of child safety
seats.
•
If this is not done, a child seated on the front passenger seat may suffer
severe or even fatal injuries if the front passenger airbag or airbags are
deployed.
•
You should have the front passenger airbag (or airbags) reactivated just as
soon as you no longer use a child safety seat on the front passenger seat.
Child safety seats in Group 1Child seats in Group 1 are for babies and small children up to 4 years of age with a
weight of between 9 and 18 kilograms. It is best for children in the lower range of
this group, to use a child seat which allows the child to sit with its back to the direc-
tion of travel. It is best for children in the upper range of the Group 0+, to use a child
seat which allows the child to sit fig. 106 in the direction of travel.
Child safety seats in which the child is seated with its back facing the direction of
travel, must not be used on the front passenger seat page 98, “Use of child
safety seats on the front passenger seat”.
Child seat
of the group
Seat
passenger seat
Rear seat outside
Rear seat middle
0


0+


1


2 and 3
U
+
U
+
T
U
U
+
U
+
T
U
U
+
U
+
T
U
U
U
U
U+T
Fig. 105 Child seats of group 0/0+
Fig. 106 Child seat with padded table in
Group 1 installed on rear seat bench
facing the direction of travel
s2lk.2.book Page 100 Monday, April 18, 2011 7:41 AM

Transporting children safely101
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING
•
It is essential to always switch off the front passenger airbag (airbags) when
attaching in exceptional circumstances a child safety seat on the front
passenger seat where the child is seated with its back facing in direction of
travel (in some countries also when the child is facing the direction of travel),
−in a specialist garage
− a key-operated switch for switching on/off the front seat passenger
airbag* page 96, “Switch for switching off the front passenger airbag*”,
•
The national legal provisions in certain countries require that both the front,
side and head airbags be deactivated. Please comply with the appropriate
national legal provisions which may diffe r regarding the use of child safety
seats.
•
If this is not done, a child seated on the front passenger seat may suffer
severe or even fatal injuries if the front passenger airbag or airbags are
deployed.
•
You should have the front passenger airb ag (or airbags) reactivated just as
soon as you no longer use a child safe ty seat on the front passenger seat.
Child safety seats in Group 2For children up to about 7 years of age we ighing between 15 and 25 kg the optimal
solution is a child safety seat in combination with the three-point seat belt
 fig. 107 .
WARNING
•
When transporting a child on the front passenger seat, please comply with
the appropriate national regulations regard ing the use of child safety seats. If
required, the airbag has to be deactivated,
− in a specialist garage
− or by using the key-operated switch for the front passenger airbag*
 page 96, “Switch for switching off the front passenger airbag*”.
•
The shoulder part of the seat belt mu st run approximately across the middle
of the shoulder and fit snugly against the chest. It must on no account run across
the neck. The lap part of the seat belt mu st run across the pelvis and fits snugly;
it must not run over the belly. Tighten the belt webbing over your hip if neces-
sary.
•
Please comply with any differing natio nal legal regulations regarding the use
of child safety seats.
Child safety seats in Group 3For children of about 7 years of age weighing between 22 and 36 kg and of a height
of less than 150 cm, the optimal solution is a child safety seat (seat bolster) in combi-
nation with the three-point seat belt fig. 108 .
Children of more than 150 cm in height ma y use the seat belts fitted to the vehicle
without a seat bolster.
WARNING
•
When transporting a child on the front passenger seat, please comply with
the appropriate national regulations regard ing the use of child safety seats. If
required, the front passenger ai rbag has to be deactivated,
Fig. 107 Child seat in Group 2 installed on
the rear seat facing the direction of travel
Fig. 108 Child seat in Group 3 installed on
the rear seat facing the direction of travel
s2lk.2.book Page 101 Monday, April 18, 2011 7:41 AM

Transporting children safely
102− in a specialist garage
− or by using the key-operated switch for the front passenger airbag*
 page 96, “Switch for switching off the front passenger airbag*”.
•
The shoulder part of the seat belt mu st run approximately across the middle
of the shoulder and fit snugly against the chest. It must on no account run across
the neck. The lap part of the seat belt mu st run across the pelvis and fits snugly;
it must not run over the belly. Tighten th e belt webbing over your hip if neces-
sary.
•
Please comply with any differing national legal regulations regarding the use
of child safety seats.
Attaching a child seat using the “ISOFIX” systemFig. 109 Locking eyes (ISOFIX system)/the ISOF IX child seat is pushed into the mounting
funnelsThere are two fixing eyes* between the seat backrest and the seat cushion of the
front passenger seat for fixing the “ISOFIX” system child seat in place. The locking
eyes on the rear outside seats are loca ted below the upholstery. The places are
marked with signs with the logo “ISOFIX” fig. 109 - left.Install child seat– Open the zip fasteners between the seat cushion and the seat backrest of the
rear exterior seat.
– Insert the mounting funnels onto the locking eyes between the seat backrest and the seat cushion fig. 109 . – Push the notched arms of the child seat into the locking eyes in direction of
arrow , until they are he ard to lock in place fig. 109 .
– Pull on both sides of the child seat!
One can mount a child safety seat using the “ISOFIX” system quickly, easily and reli-
ably. Please pay close attent ion to instructions from the manufacturer of the child
safety seat when installing and removing the seat.
Child seats fitted with the “ISOFIX” system can only be mounted and fixed in a
vehicle fitted with an “ISOFIX” system wh en these child seats have been released
for this type of vehicle according to the ECE-R 44 standard.
You can obtain child seats with the “ISOFIX” attachment system from specialist
garages who will also installed it as well.
Complete installation instructions are enclosed with the child safety seat.
WARNING
•
The locking eyes have just been develo ped for child safety seats which use
the “ISOFIX” system. You should therefore never attach other child safety seats,
seat belts or objects to the locking eyes - hazard!
•
Ask an authorised Škoda Service Partner whether a child seat which you
bought for another vehicle is recommend ed for use in a Škoda before using an
“ISOFIX” system.
•
Certain child seats which use the “ISOFIX” system can be attached with
standard three-point seat belts. Please pa y close attention to instructions from
the manufacturer of the child safety seat when installing and removing the seat.Note
•
Child seats which use the “ISOFIX” system are currently available for children
weighing from 9 up to 18 kg. This corresponds to an age range of from 9 months to
4 years.
•
The child seats can also be fitted with the “Top Tether” system page 103.
WARNING (continued)
A
B
1
s2lk.2.book Page 102 Monday, April 18, 2011 7:41 AM

Transporting children safely103
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Attaching child seat using the “Top Tether”* systemIn certain countries national legal provisions also require the eq uipment of the rear
seat with fixing eyes for child seat using the “Top Tether” system fig. 110 .
Always perform the installation and removal of the child seat using the “Top Tether”
system as stated in the instructions from the manufacturer of the child seat.
WARNING
•
Attach the child seats with the “Top Tether” system only to the points
provided for this purpose fig. 110 .
•
On no account should you equip your vehicle, e.g. mount screws or other
anchorage points.
•
Pay attention to the important safety information regarding the use of child
seats.Note
Store the remaining part of the belt for the “Top Tether” system in a textile pocket,
which is located at the child seat.
Fig. 110 Rear seat: Top Tether
s2lk.2.book Page 103 Monday, April 18, 2011 7:41 AM
