2011 RENAULT SCENIC Engine And Peripherals EDC16 Injection Workshop Manual

13B-177
DIESEL INJECTION
Fault finding - Interpretation of statuses13B
V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ET703
(CONTINUED 1)
DECREASEStatus ET703 becomes DECREASE when the cruise control/speed limiter "-" button is
pressed. This button is on the steering wheel, on the left-hand side.
If status ET703 does not display DECREASE, check the condition of the cruise control/
speed limiter +/- button, and the condition of its connector. Repair if necessary.
To carry out these checks and measurements in complete safety, observe the
recommendations for removing the driver's front airbag (see MR 364 (Mégane II) or 370
(Scénic II), Mechanical, 88C, Airbag and pretensioners, Driver's front airbag,
Removal - Refitting).
Measure the resistance of the following connection whilst pressing the "-" button
(on the button tracks):
– Connection code86G of component 331.
– Connection code 86M of component 331.
If the resistance is not approximately 100 Ω, check the continuity of the button in rest
position.
If there is continuity, replace the +/- control button.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
SUSPENDStatus ET703 becomes SUSPEND when the cruise control/speed limiter 0 button is
pressed. This button is located on the steering wheel, to the right.
If status ET703 does not change to SUSPEND, check the condition of the cruise control/
speed limiter R/0 button, and the condition of its connector.
To carry out these checks and measurements in complete safety, observe the
recommendations for removing the driver's front airbag (see MR 364 (Mégane II) or 370
(Scénic II), Mechanical, 88C, Airbag and pretensioners, Driver's front airbag,
Removal - Refitting).
Measure the resistance of the following connection whilst pressing the 0 button
(on the button tracks):
– Connection code86G of component 331.
– Connection code 86M of component 331.
If the resistance is not approximately 0 Ω, replace the R/0 control button.
If there is continuity, replace the R/0
control button.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

13B-178
DIESEL INJECTION
Fault finding - Interpretation of statuses13B
V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ET703
(CONTINUED 2)
RESUMEStatus ET703 becomes RESUME when the cruise control/speed limiter R button is
pressed. This button is located on the steering wheel, to the right.
If status ET703 does not become RESUME, check the condition of the cruise control/
speed limiter R/0 button, and the condition of its connector. Repair if necessary.
To carry out these checks and measurements in complete safety, observe the
recommendations for removing the driver's front airbag (see MR 364 (Mégane II) or 370
(Scénic II), Mechanical, 88C, Airbag and pretensioners, Driver's front airbag,
Removal - Refitting).
Measure the resistance on the following connection while pressing the R button
(on the button tracks):
– Connection code86G of component 331.
– Connection code 86M of component 331.
If the resistance is not approximately 900 Ω, check the continuity of the connection when
the button is in the rest position.
If there is continuity, replace the R/0 control button.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

13B-179
DIESEL INJECTION
Fault finding - Interpretation of statuses13B
V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
EDC16_V44_ET704/EDC16_V48_ET704/EDC16_V4C_ET704/
EDC16_V44_ET705/EDC16_V48_ET705/EDC16_V4C_ET705
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
ET704
ET705
BRAKE SWITCH NO. 1
BRAKE SWITCH NO. 2
NOTESSpecial note:
Statuses ET704 and ET705 should change status at the same time. In the event of
inconsistency, refer to the interpretation of fault DF050 Brake switch circuit.
ACTIVE
OR
INACTIVEIf the brake lights are working:
check the continuity and make sure there is no interference resistance on the following
connection:
Connection code 5A between components 160 and 120/645/119.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the brake lights are not operational, check:
– the condition and fitting of the brake switch,
– the condition and conformity of the brake light fuse,
– the conformity of the values in the following table:
disconnect the switch and carry out the following checks:
For Mégane II and Scénic II with ESP
Continuity between
connectionsInsulation between
connections
Switch pressed
(Brake pedal released)5A and BPT 65G and SP17
Switch released
(Brake pedal depressed)65G and SP17 5A and BPT
For Mégane II and Scénic II without ESP
Continuity between
connectionsInsulation between
connections
Switch pressed
(Brake pedal released)5A and BPT 65A and SP17
Switch released
(Brake pedal depressed)65A and SP17 5A and BPT
Replace the switch if the values obtained are not correct

13B - 180
DIESEL INJECTION
Fault finding - Parameter summary table13B
V10 MR-372-J84-13B150$611.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4CDIESEL INJECTION
Fault finding - Parameter summary table
Tool parameter Diagnostic tool title
PR005EGR valve opening setpoint
PR006Rail pressure regulator current
PR007Rail pressure regulator current setpoint
PR008Rail pressure setpoint
PR009Turbocharging pressure setpoint
PR011Turbocharging solenoid valve position correction
PR015Engine torque
PR016Alternator flow
PR017Fuel flow
PR022EGR valve position feedback loop difference
PR030Accelerator pedal position
PR035Atmospheric pressure
PR037Refrigerant pressure
PR038Rail pressure
PR041Turbocharging pressure
PR046EGR solenoid valve OCR
PR047Turbocharging pressure OCR
PR048Rail pressure regulation valve OCR
PR050Damper flap OCR
PR051EGR valve position feedback
PR053Speed requested by air conditioning
PR055Engine speed
PR059Inlet air temperature
MR-372-J84-13B150$611.mif

13B - 181
DIESEL INJECTION
Fault finding - Parameter summary table13B
V10 MR-372-J84-13B150$611.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C

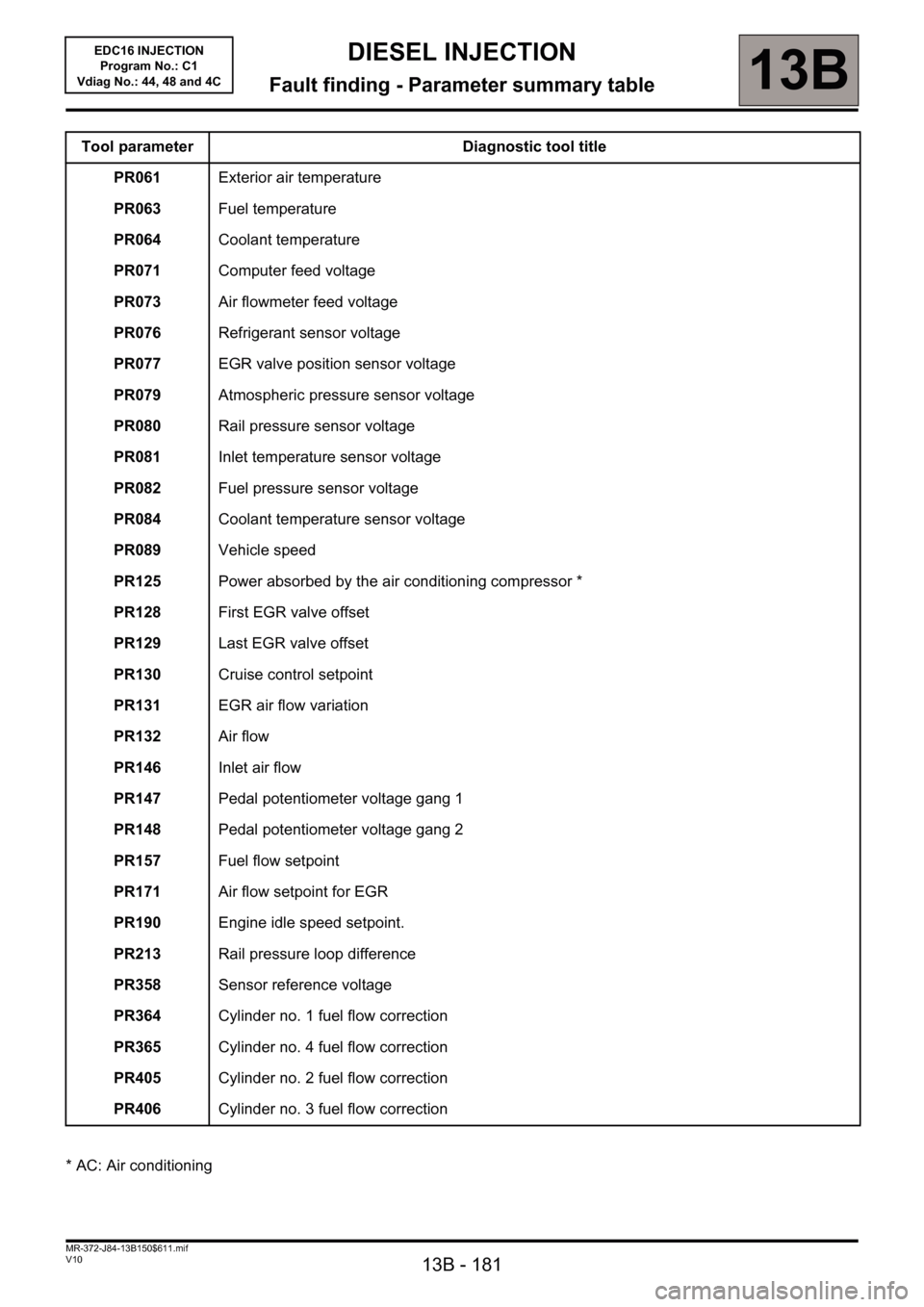

Tool parameter Diagnostic tool title
PR061Exterior air temperature
PR063Fuel temperature
PR064Coolant temperature
PR071Computer feed voltage
PR073Air flowmeter feed voltage
PR076Refrigerant sensor voltage
PR077EGR valve position sensor voltage
PR079Atmospheric pressure sensor voltage
PR080Rail pressure sensor voltage
PR081Inlet temperature sensor voltage
PR082Fuel pressure sensor voltage
PR084Coolant temperature sensor voltage
PR089Vehicle speed
PR125Power absorbed by the air conditioning compressor *
PR128First EGR valve offset
PR129Last EGR valve offset
PR130Cruise control setpoint
PR131EGR air flow variation
PR132Air flow
PR146Inlet air flow
PR147Pedal potentiometer voltage gang 1
PR148Pedal potentiometer voltage gang 2
PR157Fuel flow setpoint
PR171Air flow setpoint for EGR
PR190Engine idle speed setpoint.
PR213Rail pressure loop difference
PR358Sensor reference voltage
PR364Cylinder no. 1 fuel flow correction
PR365Cylinder no. 4 fuel flow correction
PR405Cylinder no. 2 fuel flow correction
PR406Cylinder no. 3 fuel flow correction
* AC: Air conditioning

13B - 182
DIESEL INJECTION
Fault finding - Interpretation of parameters13B
V10 MR-372-J84-13B150$658.mif
EDC16 INJECTION
Program No.: C1
Vdiag No: 44, 48 and 4CDIESEL INJECTION
Fault finding - Interpretation of parameters
PR035
ATMOSPHERIC PRESSURE
NOTESThere must be no present or stored faults.
Perform this fault finding procedure after detecting an inconsistency in the Parameters
menu of the computer or following a customer complaint (lack of power, smoke, etc.).
The atmospheric pressure sensor is incorporated in the computer, so no electrical check can be made.
The sensor default value is 750 mbar.
If this value or any other inconsistent value appears, then reset the computer.
If the computer is to be reprogrammed (see Replacement of components).
If the fault persists and remains present, contact the Techline.
AFTER REPAIRRepeat the conformity check from the start.
EDC16_V44_PR035/EDC16_V48_PR035/EDC16_V4C_PR035
MR-372-J84-13B150$658.mif

13B - 183
DIESEL INJECTION
Fault finding - Interpretation of parameters13B
V10 MR-372-J84-13B150$658.mif
EDC16 INJECTION
Program No.: C1
Vdiag No: 44, 48 and 4C
PR037
REFRIGERANT PRESSURE
NOTESThere must be no present or stored faults.
Perform this fault finding procedure after an inconsistency is displayed in the
Parameters menu or after a customer complaint (no air conditioning, etc.).
Step 1
– Start the engine, switch on the air conditioning and increase the engine speed to 1,500 rpm:
– Display PR037 Refrigerant pressure in the Cold loop function on the diagnostic tool:
If the pressure is greater than ~27bar, go to step 2.
If the pressure does not rise, or remains below normal:
– Ensure that the air conditioning compressor and the relay are operating correctly.
– Check the conformity of the refrigerant pressure sensor by comparing* the value displayed by the tool (PR192)
with the reading given by the charging station high pressure gauge.
If the pressure difference = ±1.5bar, (or 1500 mbar):
Check the continuity and the absence of interference resistance on the connections between:
Injection computer, grey 24-track connector C,
track C3Track A of the refrigerant pressure sensor
Injection computer, brown 48-track connector
B, track F1Track C of the refrigerant pressure sensor
Injection computer, brown 48-track connector
B, track F3Track B of the refrigerant pressure sensor
If these connections are not faulty, replace the refrigerant pressure sensor.
If there is no difference, the refrigerant pressure sensor is correct: go to step 2.
Step 2
– Perform fault finding on the air conditioning.
*Note:
The diagnostic tool displays the absolute pressure, the charging station high pressure gauge displays the relative
pressure.
The normal difference between the two is equal to atmospheric pressure, i.e. ~1,000mbar.
AFTER REPAIRRepeat the conformity check from the start.
EDC16_V44_PR037/EDC16_V48_PR037/EDC16_V4C_PR037

13B - 184
DIESEL INJECTION
Fault finding - Interpretation of parameters13B
V10 MR-372-J84-13B150$658.mif
EDC16 INJECTION
Program No.: C1
Vdiag No: 44, 48 and 4C
PR038
RAIL PRESSURE
NOTESPerform this fault finding procedure:
– after the interpretation of fault DF053 Rail pressure regulation function,
– after an inconsistency for PR038 noted in the Parameters menu,
– after the interpretation of the fault finding procedure for AC011 Rail pressure
regulator,
– following a customer complaint (starting faults, poor performance, stalling, etc.).
Check the continuity and the absence of interference resistance on the following connections:
Injection computer, brown 48-track connector
B, track G3Track 2 of the rail pressure sensor connector
Injection computer brown 48-track
connector B, track A4Track 3 of the rail pressure sensor connector
Injection computer, brown 48-track connector
B, track C4Track 1 of the rail pressure sensor connector
If all these connections are correct, check for fuel pressure sensor power supply:
+ 5 V Track 3 of the rail pressure sensor connector
Earth Track 1 of the rail pressure sensor connector
Repair if necessary.
Check the sealing of the low and high-pressure diesel circuits (visual inspections, odour) pump housing,
overpressure valve, pipes, rail and injector unions, injector wells, etc.
If all of the previous checks are correct, switch the ignition on, wait for more than 1 minute and display PR038 Rail
pressure.
If the value is less than 50 bar, the rail pressure sensor is correct. If it is greater than this value, replace the rail
pressure sensor and tighten it to 35 ± 5 Nm.
AFTER REPAIRRepeat the conformity check from the start.
EDC16_V44_PR038/EDC16_V48_PR038/EDC16_V4C_PR038
