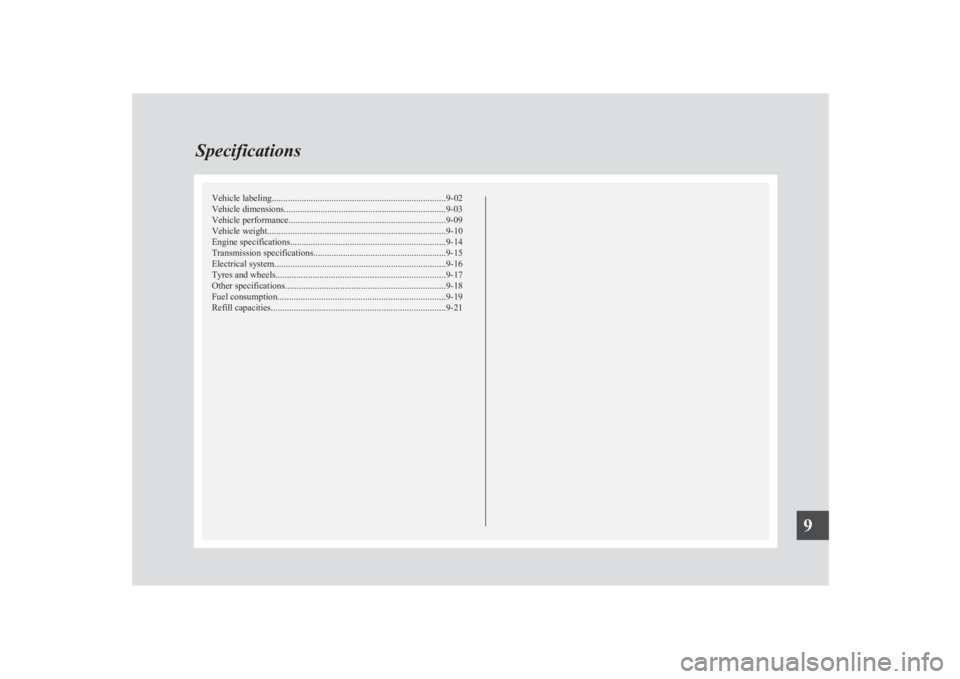

Page 297 of 330

Vehicle labeling............................................................................ 9-02
Vehicle dimensions.......................................................................9-03
Vehicle performance.....................................................................9-09
Vehicle weight .............................................................................. 9-10
Engine specifications .................................................................... 9-14
Transmission specifications .......................................................... 9-15
Electrical system ........................................................................... 9-16
Tyres and wheels .......................................................................... 9-17
Other specifications ...................................................................... 9-18
Fuel consumption ......................................................................... 9-19
Refill capacities ............................................................................ 9-21Specifications9
Page 298 of 330
Vehicle labelingE01100101791
Vehicle identification number
The vehicle identification number is stamped as
shown in the illustration.
Vehicle information code plate
The vehicle information code plate is located as
shown in the illustration.
The plate shows model code and engine model,
transmission model and body colour code, etc.
Please use this number when ordering replacement
parts.
1- Model code
2- Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code
Vehicle identification number plate
(RHD vehicles only)
The vehicle identification number is stamped on
the plate riveted to the left front corner of the instru-
ment panel pad. It is visible from outside of the ve-
hicle through the windscreen.
Engine number
The engine number is stamped on the engine cylin-
der block as shown in the illustration.
Specifications
9-02
9
Page 299 of 330
Vehicle dimensionsE01100202308
Single cab
Specifications
9-03
9
Page 300 of 330
Single cab1Front track1,505 mm2Overall width1,750 mm3Front overhang830 mm4Wheel base3,000 mm5Rear overhang1,210 mm6Overall length5,040 mm7Ground clearance (unladen)200 mm8Overall height (unladen)1,775 mm9Rear track1,500 mm10Cargo bed length2,220 mm11Cargo bed width1,470 mm12Cargo bed height845 mm
Specifications
9-04
9
Page 301 of 330
Club cab
Specifications
9-05
9
Page 302 of 330
Club cabItemEasy select 4WDSuper select 4WD1Front track1,505 mm1,520 mm2Overall width1,750 mm1,800 mm3Front overhang795 mm, 830 mm*14Wheel base3,000 mm5Rear overhangWithout rear bumper1,325 mmWith rear bumper1,400 mm6Overall lengthWithout rear bumper5,120 mm, 5,155 mm *1With rear bumper5,195 mm, 5,230 mm*17Ground clearance (unladen)200 mm205 mm8Overall height (unladen)1,775 mm1,780 mm9Rear track1,500 mm1,515 mm10Cargo bed length1,805 mm11Cargo bed width1,470 mm12Cargo bed height855 mm860 mm*1
: Vehicles for Russia and Ukraine
Specifications
9-06
9
Page 303 of 330
Double cab
Specifications
9-07
9
Page 304 of 330
Double cabItem2WD and Easy select 4WDSuper select 4WD1Front track1,505 mm1,520 mm2Overall width1,750 mm1,800 mm3Front overhang795 mm, 830 mm*14Wheel base3,000 mm5Rear overhangWithout rear bumper1,210 mm, 1,390 mm *1With rear bumper1,285 mm, 1,465 mm*16Overall lengthWithout rear bumper5,005 mm, 5,185 mm*1
, 5,040 mm *2
, 5.220 mm *3With rear bumper5,080 mm, 5,260 mm *1
, 5.115 mm *2
, 5.295 mm *37Ground clearance (unladen)200 mm205 mm8Overall height (unladen)1,775 mm1,780 mm9Rear track1,500 mm1,515 mm10Cargo bed length1,325 mm, 1,505 mm *111Cargo bed width1,470 mm12Cargo bed height845 mm850 mm*1
: Vehicles with long bed
*2 : Vehicles for Russia and Ukraine
*3 : Vehicles for Russia and Ukraine with long bed
Specifications
9-08
9
