2011 MITSUBISHI L200 Owner's Manual (in English)

1. Room lamp (rear)* p. 5-39, 8-24, 8-32
2. Bottle holder p. 5-45
3. Head restraints p. 2-08
4. Seat belts (for rear seats) p. 2-09
5. Jack handle* 1
p. 6-07
6. Tools* 1
p. 6-07
7. Jack p. 6-07
8. Rear seats p. 2-07
9. Armrest (for rear seat) p. 2-07
10. Cup holder p. 5-45

NOTE:* 1
- Tools differ according to the vehicle model.
OverviewRHD1 2
3
4
5 6
7
8
9
10

Exterior - front (Single cab)E001005039521. Wiper and washers p. 3-36
2. Antenna p. 5-34
3. Outside rear-view mirrors p. 4-10
4. Fuel tank filler door p. 02
5. Locking and unlocking p. 1-02
6. Side turn-signal lamps p. 3-33, 8-24, 8-28
7. Front turn-signal lamps p. 3-33, 8-24, 8-27
8. Headlamps p. 3-30, 8-24, 3-31 Position lamps p. 3-30, 8-24, 8-27
9. Headlamp washers* p. 3-39
10. Engine compartment p. 9-21 Bonnet p. 8-03
Overview12
3
45
6
7
8
9
10

Exterior - rear (Single cab)E001005031121. Rear turn-signal lamps p. 3-33, 8-24, 8-30
2. Stop and tail lamps p. 3-30, 8-24, 8-30
3. Reversing lamps p. 8-24, 8-30
4. Tyre inflation pressures p. 8-12 Changing tyres p. 6-17
Tyre rotation p. 8-13
Tyre chains p. 8-14
5. Spare wheel p. 6-16
6. Licence plate lamps p. 3-30, 8-24, 8-31
7. Rear fog lamp (Driver’s side only) p. 3-35, 8-24, 8-29
8. Rear gate p. 1-11
9. High-mounted stop lamp p. 8-24, 8-31
Overview123
4
5
6
7
8 9

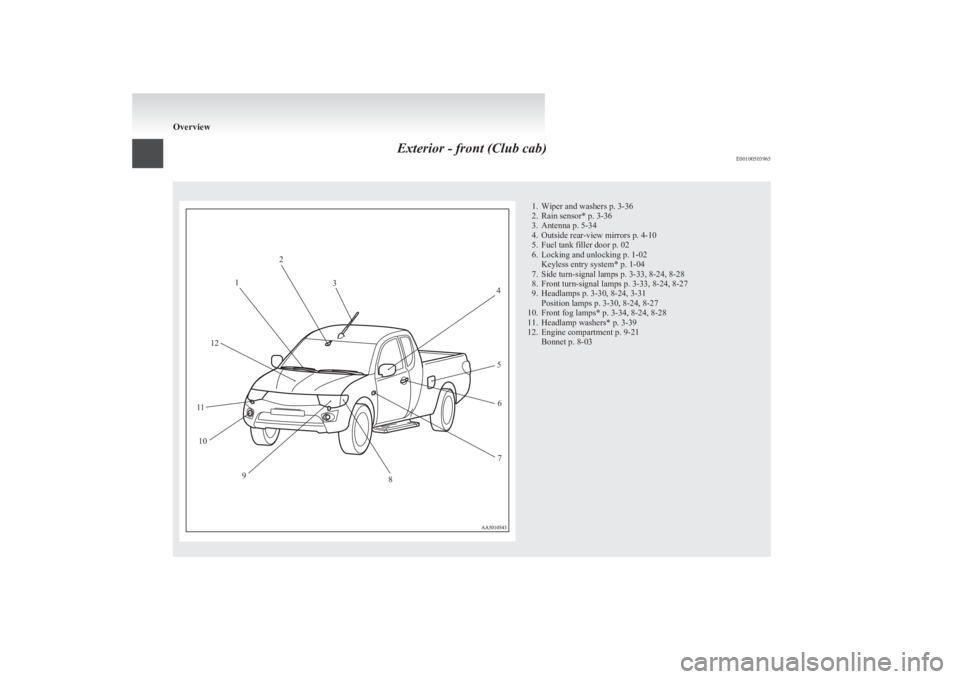

Exterior - front (Club cab)E001005039651. Wiper and washers p. 3-36
2. Rain sensor* p. 3-36
3. Antenna p. 5-34
4. Outside rear-view mirrors p. 4-10
5. Fuel tank filler door p. 02
6. Locking and unlocking p. 1-02 Keyless entry system* p. 1-04
7. Side turn-signal lamps p. 3-33, 8-24, 8-28
8. Front turn-signal lamps p. 3-33, 8-24, 8-27
9. Headlamps p. 3-30, 8-24, 3-31 Position lamps p. 3-30, 8-24, 8-27
10. Front fog lamps* p. 3-34, 8-24, 8-28
11. Headlamp washers* p. 3-39
12. Engine compartment p. 9-21 Bonnet p. 8-03
Overview12
3 4
5 6
7
8
9
10
11 12

Exterior - rear (Club cab)E001005039781. Rear turn-signal lamps p. 3-33, 8-24, 8-30
2. Stop and tail lamps p. 3-30, 8-24, 8-30
3. Reversing lamps p. 8-24, 8-30
4. Tyre inflation pressures p. 8-12 Changing tyres p. 6-17
Tyre rotation p. 8-13
Tyre chains p. 8-14
5. Spare wheel p. 6-16
6. Licence plate lamps p. 3-30, 8-24, 8-31
7. Rear fog lamp (Driver’s side only) Type 2* p. 3-35, 8-24, 8-29
8. Rear fog lamp (Driver’s side only) Type 1* p. 3-35, 8-24, 8-29
9. Rear gate p. 1-11
10. High-mounted stop lamp p. 8-24, 8-31
Overview12
3
4
5
6
7 8
9
10

Exterior - front (Double cab)E001005039811. Wiper and washers p. 3-36
2. Rain sensor* p. 3-36
3. Antenna* p. 5-34
4. Sunroof* p. 1-13
5. Antenna* p. 5-34
6. Outside rear-view mirrors p. 4-10
7. Fuel tank filler door p. 02
8. Locking and unlocking p. 1-02 Keyless entry system* p. 1-04
9. Side turn-signal lamps p. 3-33, 8-24, 8-28
10. Front turn-signal lamps p. 3-33, 8-24, 8-27
11. Headlamps p. 3-30, 8-24, 3-31 Position lamps p. 3-30, 8-24, 8-27
12. Front fog lamps* p. 3-34, 8-24, 8-28
13. Headlamp washers* p. 3-39
14. Engine compartment p. 9-21 Bonnet p. 8-03
Overview12
3 4 5
6 7
8
9
10
11
13
14
12

Exterior - rear (Double cab)E001005031381. Rear turn-signal lamps p. 3-33, 8-24, 8-30
2. Stop and tail lamps p. 3-30, 8-24, 8-30
3. Reversing lamps p. 8-24, 8-30
4. Tyre inflation pressures p. 8-12 Changing tyres p. 6-17
Tyre rotation p. 8-13
Tyre chains p. 8-14
5. Spare wheel p. 6-16
6. Licence plate lamps p. 3-30, 8-24, 8-31
7. Rear fog lamp (Driver’s side only) Type 2* p. 3-35, 8-24, 8-29
8. Rear fog lamp (Driver’s side only) Type 1* p. 3-35, 8-24, 8-29
9. Rear gate p. 1-11
10. High-mounted stop lamp p. 8-24, 8-31
Overview12
3
4
5
6
7 8
9
10
