Page 225 of 330
The floor console box can also be used as an armrest.
1- Upper box
2- Lower box
NOTE l The Auxiliary Audio connector (RCA) or the
Auxiliary Video connector (RCA) is located
in the lower box (if so equipped). For details,
refer to “To use the external audio input func-
tion” on page 5-27.
Upper box
To open the upper box, lift the right release lever
(A) and raise the lid.
Lower box
To open the lower box, lift the left release lever (B)
and raise the lid.Utility box* E00717900100
To open, pull up the knob (A).
Sunglasses holder*E00718600250
Push the lid to open.
Close the lid by pushing it till it clicks.CAUTIONlThe holder should not be used to store any-
thing heavier than sunglasses. These ob-
jects could drop out.
NOTE
l The holder may not be able to accomodate ev-
ery possible size and shape of sunglasses; it
is advisable to check compatibility before use.
Secret box (Club cab) E00724900043
The secret box is in the floor behind the seat.
For pleasant driving
5-43
5
Page 226 of 330
To use the box, open the lid.Seat under tray (under front passen-
ger’s seat)* E00725700035
A tray is provided underneath passenger’s seat.
To use
Draw out the tray.
To store
Push in the tray positively until it is fully locked.
To remove
Pull off the tray while lifting upward.Cup holder* E00714500802CAUTIONlDo not drink beverages while driving the
vehicle; doing so could distract you and
result in an accident.
For the front seat
The cup holder is located between the front seats.
Type 1Type 2
For pleasant driving
5-44
5
Page 227 of 330
NOTEl The cup holder adapter (A) can be removed
to enable the cup holder to hold relatively
large cup. Remove the cup holder adapter
when necessary.Type 3For the rear seat (Double cab) E00716900389
In order to use the cup holder, allow the armrest to
drop down.
Bottle holder E00718200171CAUTIONlDo not drink beverages while driving the
vehicle; doing so could distract you and
result in an accident.
l Beverages can spill due to vibration or oth-
er movement during vehicle operation.
Be careful not to get scalded by a hot bev-
erage if spilled
NOTE
l Make sure the cap of any plastic bottle
placed in a bottle holder is tightly closed.
l The bottle holders may not accommodate bot-
tles of certain shapes and sizes.
For the front seat
The bottle holders are provided at both sides.
For the rear seat (Double cab)
The bottle holders are provided at both sides.
For pleasant driving
5-45
5
Page 228 of 330

Convenient hookE00732900071
Light items of luggage can be hung from the hook.
NOTE
l Do not hang heavy luggage (more than about
4 kg) on the hook.
Doing so could cause damage to the hook.
Coat hook* E00725600438
There is a coat hook on the rear seat assist grip.
Type 1Type 2
WARNINGl Do not put a hanger or any heavy or poin-
ted object on the coat hook. If the curtain
airbag was activated, any such item could
be propelled away with great force and
could prevent the curtain airbag from in-
flating correctly. Hang clothes directly on
the coat hook (without using a hanger).
Make sure there are no heavy or sharp ob-
jects in the pockets of clothes that you
hang on the coat hook.First-aid kit and warning
triangle securing bands* E00717200028
A first-aid kit and a warning triangle can be se-
cured with the band(s) installed in the illustrated po-
sition.
Single cab, Double cab
The wall behind the seat is provided with a band
for securing a first-aid kit and a warning triangle.
Single cab, Double cab*Double cab*
For pleasant driving
5-46
5
Page 229 of 330
Club cab
A band for securing a first-aid kit is installed in the
secret box.
A band for securing a warning triangle is installed
left under the rear seat.
For pleasant driving
5-47
5
Page 230 of 330
Page 231 of 330

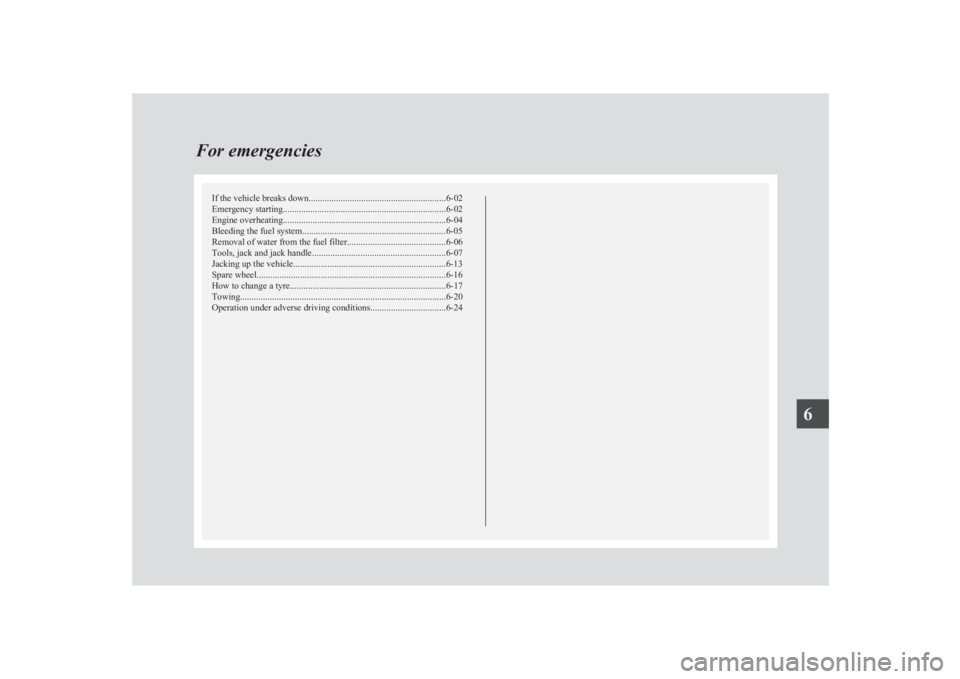

If the vehicle breaks down............................................................ 6-02
Emergency starting ....................................................................... 6-02
Engine overheating ....................................................................... 6-04
Bleeding the fuel system...............................................................6-05
Removal of water from the fuel filter ...........................................6-06
Tools, jack and jack handle .......................................................... 6-07
Jacking up the vehicle...................................................................6-13
Spare wheel...................................................................................6-16
How to change a tyre .................................................................... 6-17
Towing .......................................................................................... 6-20
Operation under adverse driving conditions .................................6-24For emergencies6
Page 232 of 330

If the vehicle breaks downE00800101166
If the vehicle breaks down on the road, move it to
the shoulder and use the hazard warning flashers and/
or the warning triangle etc.
Refer to “Hazard warning flasher switch” on page
3-34.
If the engine stops/fails
Vehicle operation and control are affected if the en-
gine stops.
Before moving the vehicle to a safe area, be aware
of the following:
l The brake booster becomes inoperative and
the pedal effort will increase. Press down the
brake pedal harder than usual.
l Since the power steering pump is no longer
operative, the steering wheel feels heavy
when turning it.Emergency starting E00800502112
If the engine cannot be started because the battery
is weak or dead, the battery from another vehicle
can be used with jumper cables to start the engine.WARNINGl To start the engine using jumper cables
connected from another vehicle, perform
the correct procedures according to the in-
struction manual. Incorrect procedures
could result in a fire or explosion or dam-
age to the vehicles.
1. Get the vehicles close enough so the jumper
cables can reach, but be sure the vehicles
aren’t touching each other.
If they are, it could cause a ground connec-
tion you don’t want. The vehicle will not
start, and the bad grounding could damage
the electrical systems.
CAUTIONl Check the other vehicle. It must have a 12-
volt battery.
If the other system isn’t 12-volt, shorting
can damage both vehicles.
2. You could be injured if the vehicles move.
Set the parking brake firmly on each vehicle.
Put an automatic transmission in “P”
(PARK) or a manual transmission in “N”
(Neutral). Turn off the ignition switch.
WARNINGl Turn off the ignition on both vehicles be-
forehand.
Make sure that the cables or your clothes
cannot be caught by the fan or drive belt.
Personal injury could result.
NOTE
l Turn off all lamps, heater and other electrical
loads. This will avoid sparks and help save
both batteries.
3. Make sure battery electrolyte is at the proper
level.
Refer to “Battery” on page 8-09.
WARNINGl If electrolyte fluid is not visible, or ap-
pears to be frozen, Do Not Attempt Jump
Starting!
A battery might rupture or explode if the
temperature is below the freezing point
or if it is not filled to the proper level.
4. Connect one end of one jumper cable to the
positive (+) terminal of the discharged bat-
tery (A), and the other end to the positive (+)
terminal of the booster battery (B).
For emergencies
6-02
6
