2011 MITSUBISHI L200 Owner's Manual (in English)

L200
OWNER’S MANUALL200 - ENGLISH - OCRE11E1L200 - ENGLISH - OCRE11E1

ForewordE09200103398
Thank you for selecting a MITSUBISHI L200 as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.

MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu-
factured.
It is an absolute requirement for the driver to strictly observe all laws and reg-
ulations concerning vehicles.

This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later amend-
ment of the laws and regulations.

Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this own-
er’s manual.

Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.

Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION ap-
pear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.WARNING
indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol:
NOTE:gives helpful information.*:indicates optional equipment.
It may differ according to the sales classification; refer
to the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual Transmission
A/T: Automatic Transmission
Information for station service E09300102174
Fuel
Fuel tank capacity75 litresFuel requirementsCetane number (EN590)
51 or higher
Refer to the “General information” section for the fuel selection.Engine oilRefer to the “Maintenance” section for the selection of engine oil.Tyre inflation pressureRefer to the “Maintenance” section for the tyre inflation pressure.
© 2010 Mitsubishi Motors Corporation11
OCRE11E1
BLC10.002829

Table of contentsOverviewGeneral informationLocking and unlocking1Seat and seat belts2Instruments and controls3Starting and driving4For pleasant driving5For emergencies6Vehicle care7Maintenance8Specifications9

Instruments and Controls (Driver’s area)E001001054441. Combination headlamps and dipper switch p. 3-30
Turn-signals lever p. 3-33
Front fog lamp switch* p. 3-34
Rear fog lamp switch p. 3-35
Headlamp washer switch* p. 3-39
2. Audio remote control switches* p. 5-28
3. Instruments p. 3-02
4. Wiper and washer switch p. 3-36
5. Cruise control switches* p. 4-49
6. Supplemental restraint system (SRS) - airbag (for driver’s seat) p. 2-27
Horn switch p. 3-40
7. Ignition switch p. 4-11
8. Steering wheel height adjustment p. 4-09
9. Fuel tank filler door release lever* p. 02
10. Bonnet release lever p. 8-03
11. Fuses p. 8-20
12. Active stability control (ASC) OFF switch Type 2* p. 4-46
13. Headlamp levelling switch* p. 3-32
14. Active stability control (ASC) OFF switch Type 1* p. 4-46 Rear differential lock switch* p. 4-34
15. Outside rear-view mirrors switch* p. 4-10
OverviewLHD12
3
4
5
6
7
8
9
10
11
12
13 14
15

1. Supplemental restraint system (SRS) - airbag (for driver’sseat) p. 2-27
Horn switch p. 3-40
2. Audio remote control switches* p. 5-28
3. Combination headlamps and dipper switch p. 3-30 Turn-signals lever p. 3-33
Front fog lamp switch* p. 3-34
Rear fog lamp switch p. 3-35
Headlamp washer switch* p. 3-39
4. Cruise control switches* p. 4-49
5. Instruments p. 3-02
6. Wiper and washer switch p. 3-36
7. Ignition switch p. 4-11
8. Outside rear-view mirrors switch* p. 4-10
9. Active stability control (ASC) OFF switch Type 1* p. 4-46 Rear differential lock switch* p. 4-34
10. Headlamp levelling switch* p. 3-32
11. Active stability control (ASC) OFF switch Type 2* p. 4-46
12. Fuses p. 8-20
13. Bonnet release lever p. 8-03
14. Fuel tank filler door release lever* p. 02
15. Steering wheel height adjustment p. 4-09
OverviewLHD
RHD
1 23
4
5
67
8
9
10
11
12
13
14
15

Instruments and Controls (Single cab)E001001045771. Hazard warning flasher switch p. 3-34
2. Heater/Manual air conditioning* p. 5-03
3. Rear window demister switch p. 3-40
4. Utility box p. 5-43
5. Ventilators p. 5-02
6. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 2-27
7. Front passenger’s airbag OFF indication lamp p. 2-31
8. Glove box p. 5-42 Front passenger’s airbag ON-OFF switch p. 2-30
9. Cigarette lighter p. 5-37
10. Gearshift lever p. 4-14
11. Transfer shift lever (4WD only) p. 4-20
12. Cup holder* p. 5-44
13. Parking brake lever Type 1* p. 4-07
14. Parking brake lever Type 2* p. 4-07
15. Ashtray p. 5-36
Overview12
3
4
5
6
78
9
10
11
12
13
14 15
LHD

1. Supplemental restraint system (SRS) - airbag (for front passen-ger’s seat) p. 2-27
2. Ventilators p. 5-02
3. Utility box p. 5-43
4. Rear window demister switch p. 3-40
5. Heater/Manual air conditioning* p. 5-03
6. Hazard warning flasher switch p. 3-34
7. Cigarette lighter p. 5-37
8. Parking brake lever Type 2* p. 4-07
9. Parking brake lever Type 1* p. 4-07
10. Cup holder* p. 5-44
11. Transfer shift lever (4WD only) p. 4-20
12. Gearshift lever p. 4-14
13. Ashtray p. 5-36
14. Glove box p. 5-42 Front passenger’s airbag ON-OFF switch p. 2-30
15. Front passenger’s airbag OFF indication lamp p. 2-31
Overview12
3
4
5
6
7
8
9
10
11
12
13
14
15
RHD

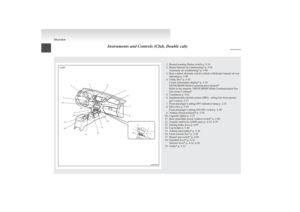

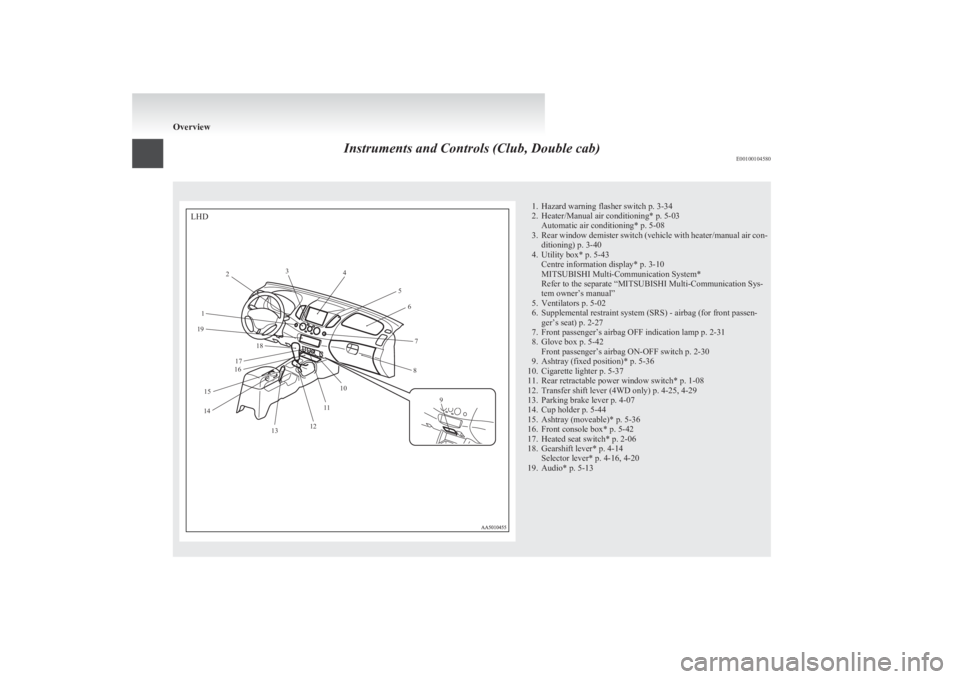

Instruments and Controls (Club, Double cab)E001001045801. Hazard warning flasher switch p. 3-34
2. Heater/Manual air conditioning* p. 5-03 Automatic air conditioning* p. 5-08
3. Rear window demister switch (vehicle with heater/manual air con-
ditioning) p. 3-40
4. Utility box* p. 5-43 Centre information display* p. 3-10
MITSUBISHI Multi-Communication System*
Refer to the separate “MITSUBISHI Multi-Communication Sys-
tem owner’s manual”
5. Ventilators p. 5-02
6. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 2-27
7. Front passenger’s airbag OFF indication lamp p. 2-31
8. Glove box p. 5-42 Front passenger’s airbag ON-OFF switch p. 2-30
9. Ashtray (fixed position)* p. 5-36
10. Cigarette lighter p. 5-37
11. Rear retractable power window switch* p. 1-08
12. Transfer shift lever (4WD only) p. 4-25, 4-29
13. Parking brake lever p. 4-07
14. Cup holder p. 5-44
15. Ashtray (moveable)* p. 5-36
16. Front console box* p. 5-42
17. Heated seat switch* p. 2-06
18. Gearshift lever* p. 4-14 Selector lever* p. 4-16, 4-20
19. Audio* p. 5-13
OverviewLHD1 2
3
4
56
7
8
9
10
11
12
13
14 15 16
17 18
19
