2011 MERCEDES-BENZ GL350 BlueTEC Owner's Manual

Page 145 of 376

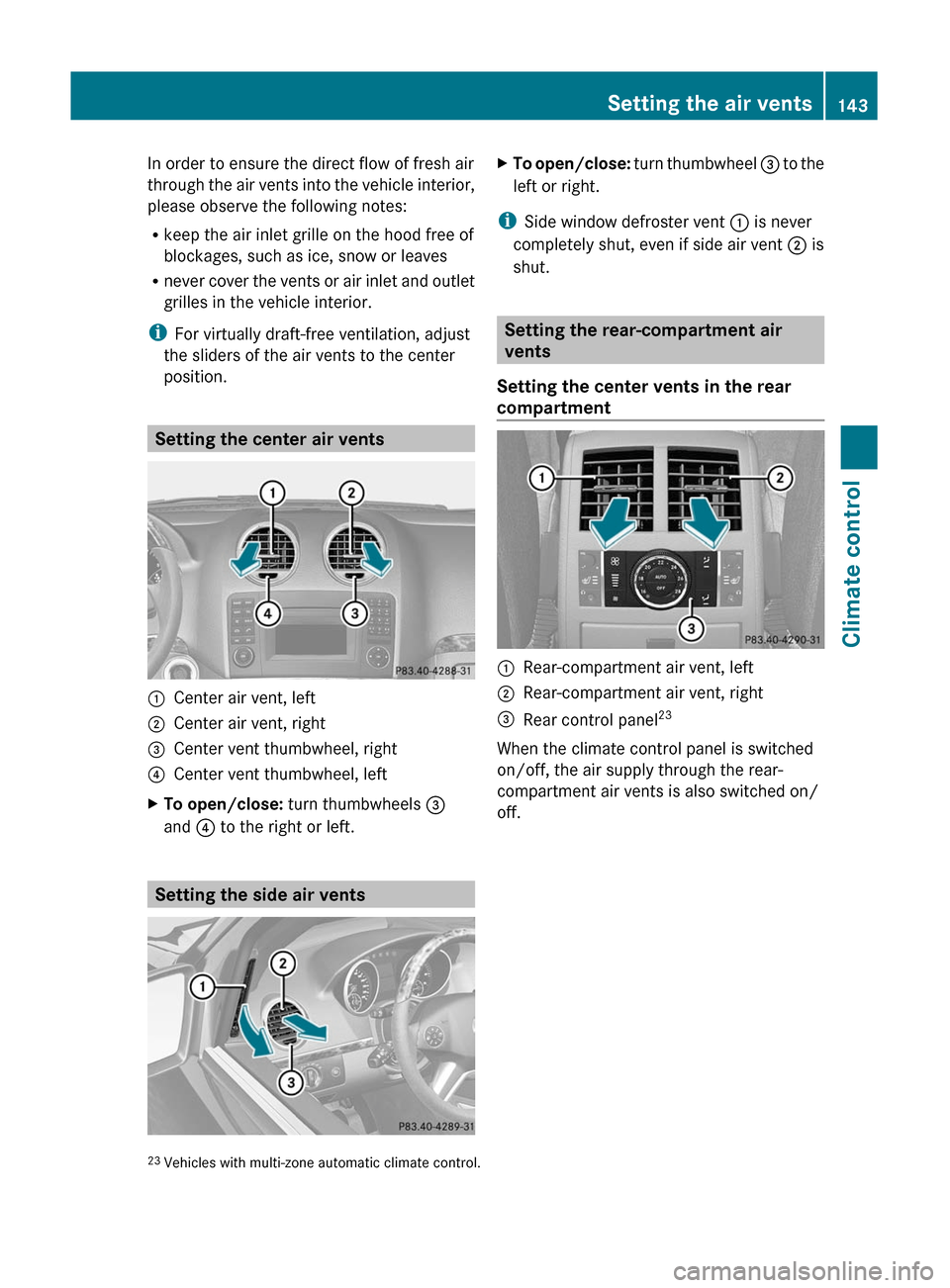

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual In order to ensure the direct flow of fresh air
through the air vents into the vehicle interior,
please observe the following notes:
R keep the air inlet grille on the hood free of
blockages, such as

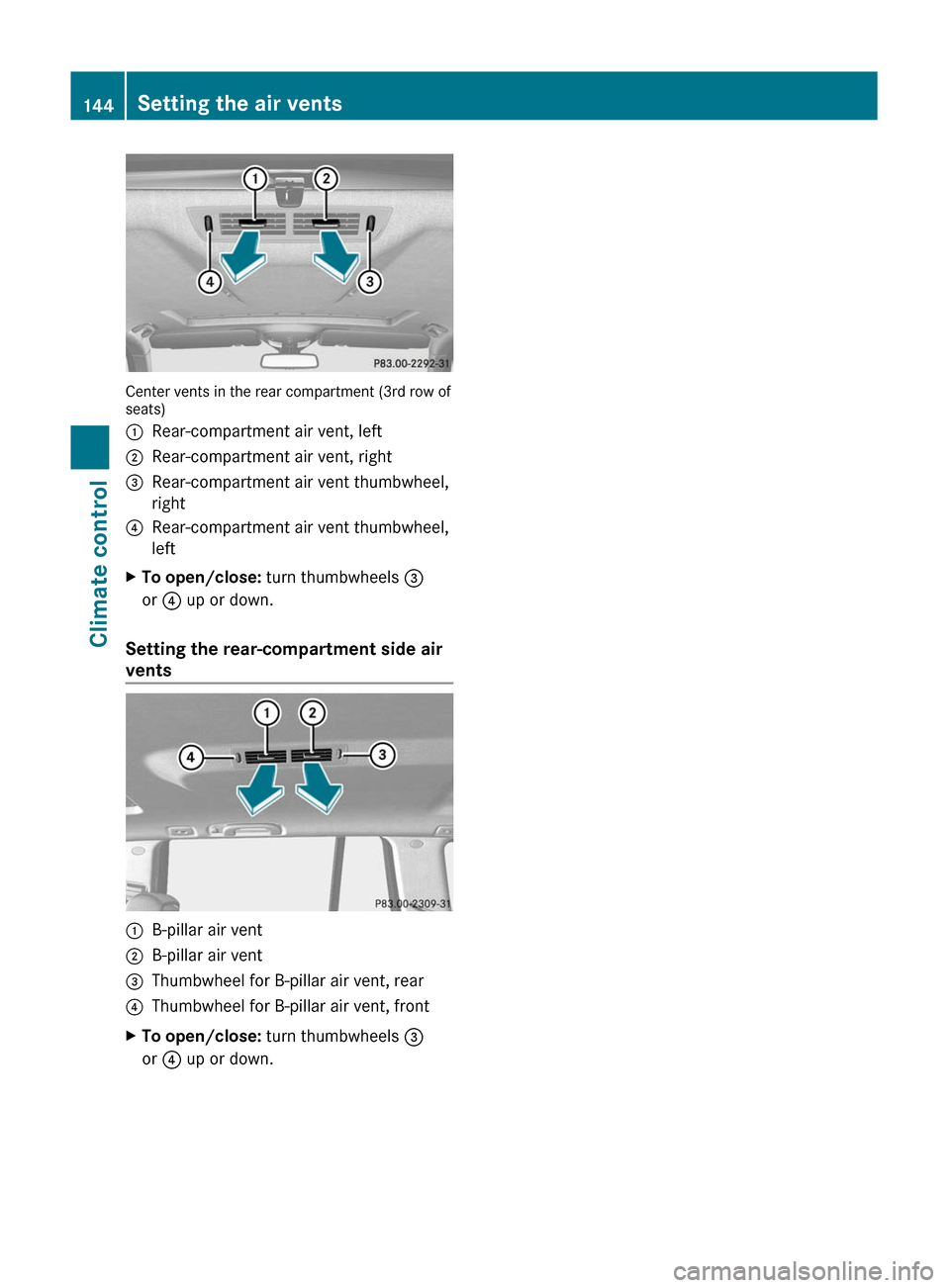

Page 146 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Center vents in the rear compartment (3rd row of
seats)
:Rear-compartment air vent, left;Rear-compartment air vent, right=Rear-compartment air vent thumbwheel,
right?Rear-compartment air vent thumbwhe

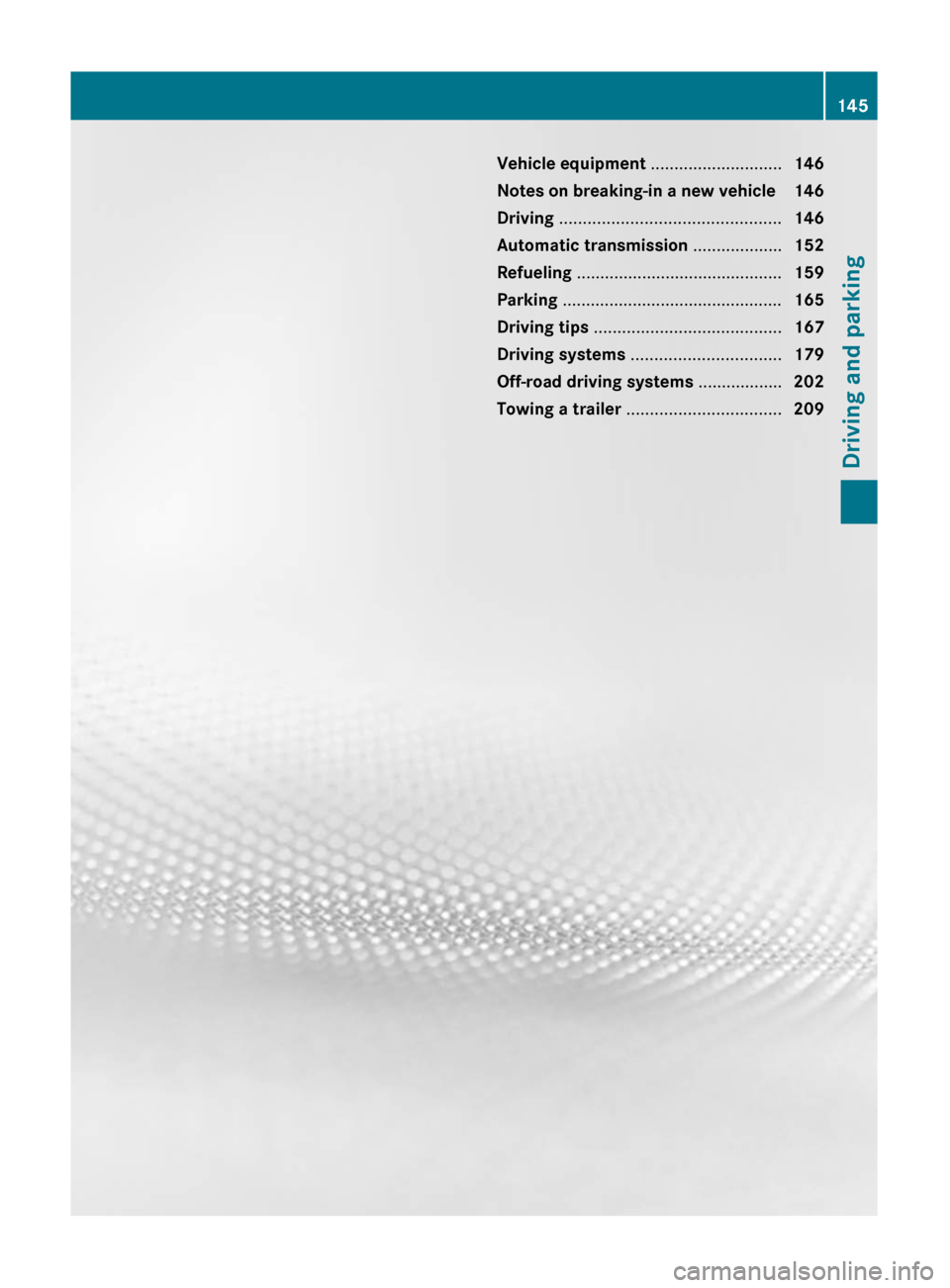

Page 147 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Vehicle equipment ............................146
Notes on breaking-in a new vehicle  146
Driving  ............................................... 146
Automatic transmission  ...................152
Re

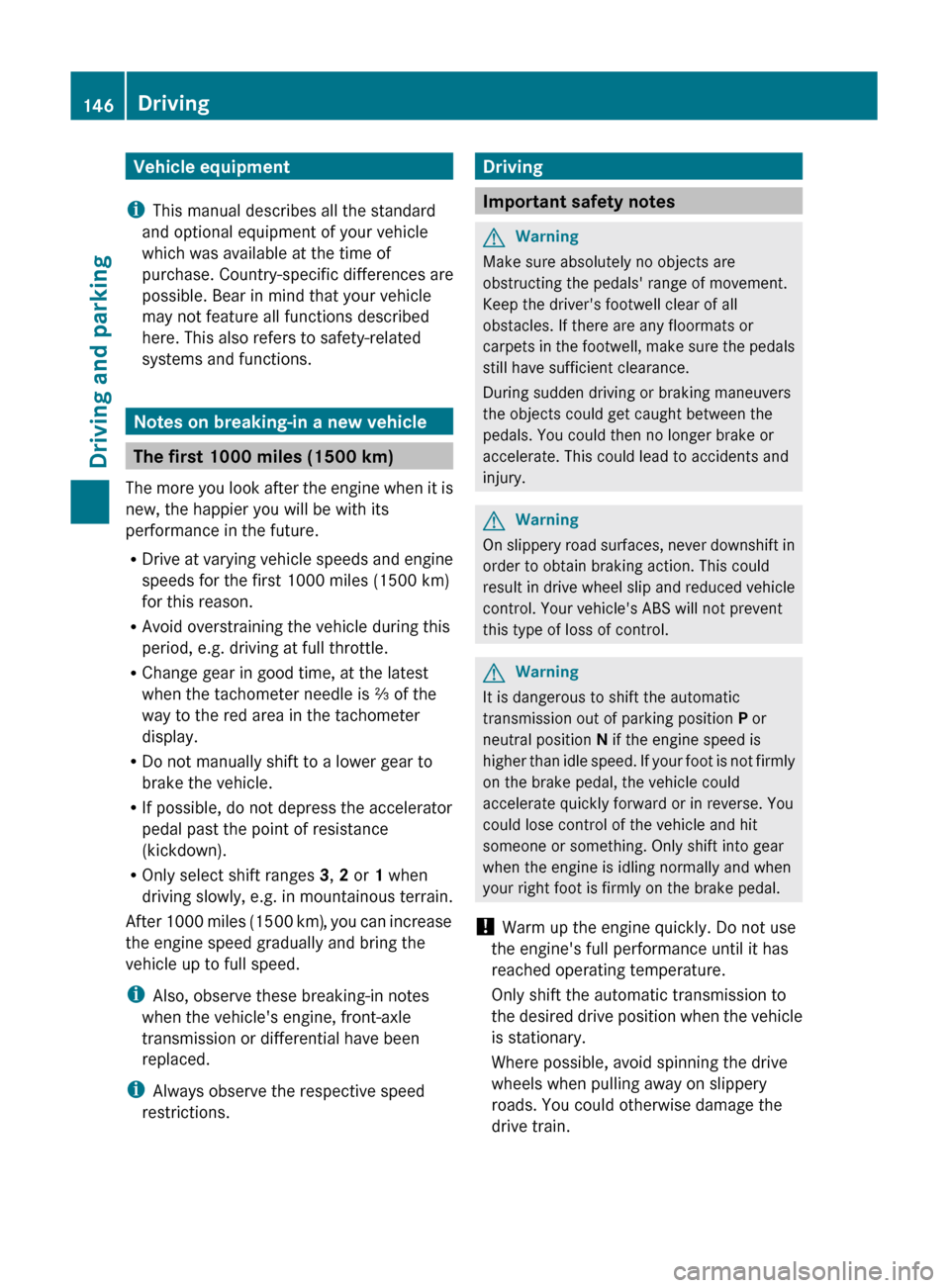

Page 148 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Vehicle equipment
i This manual describes all the standard
and optional equipment of your vehicle
which was available at the time of
purchase. Country-specific differences are
possible. Bear in mind t

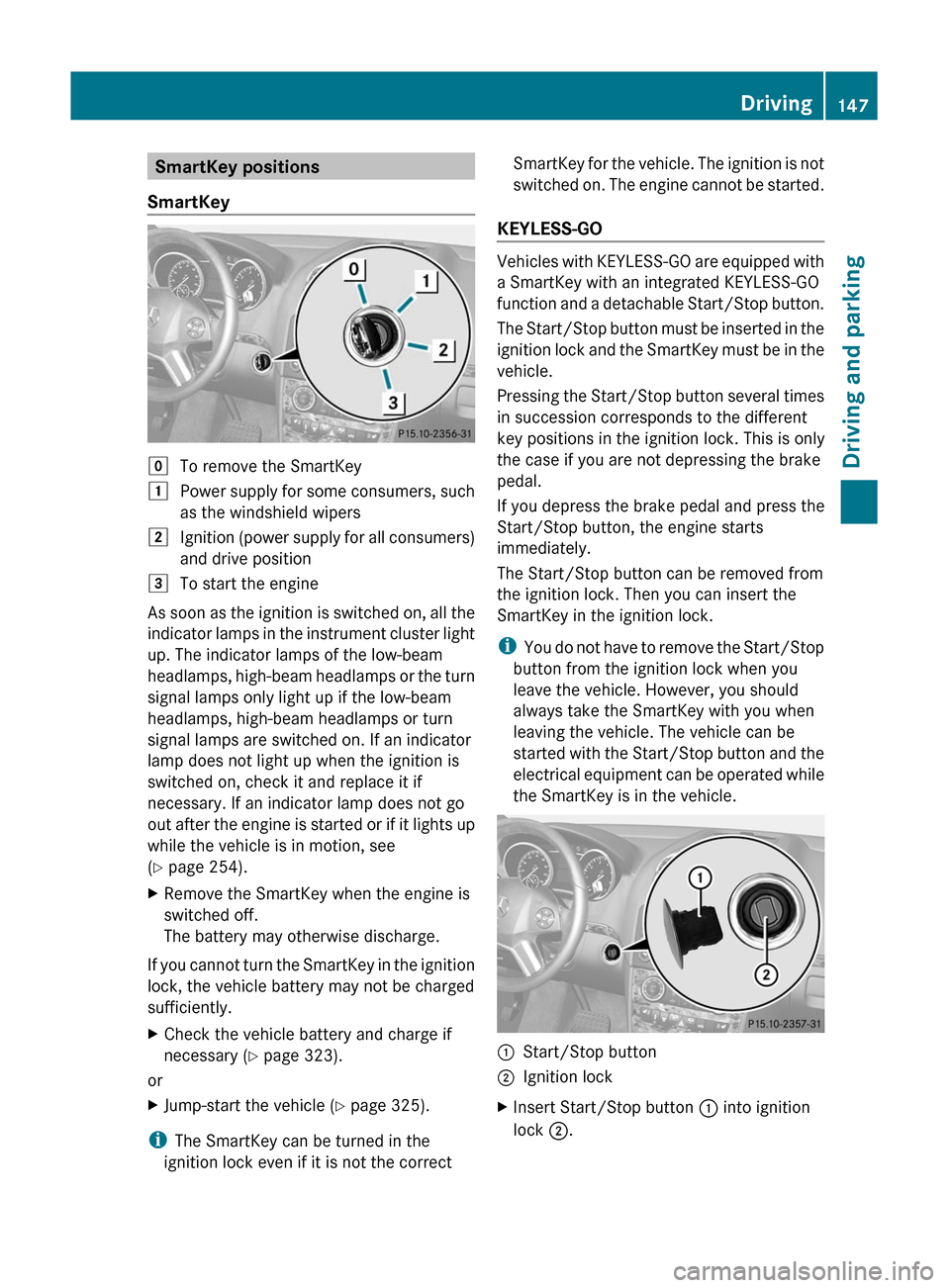

Page 149 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual SmartKey positions
SmartKeygTo remove the SmartKey1Power supply for some consumers, such
as the windshield wipers2Ignition (power supply for all consumers)
and drive position3To start the engine
As so

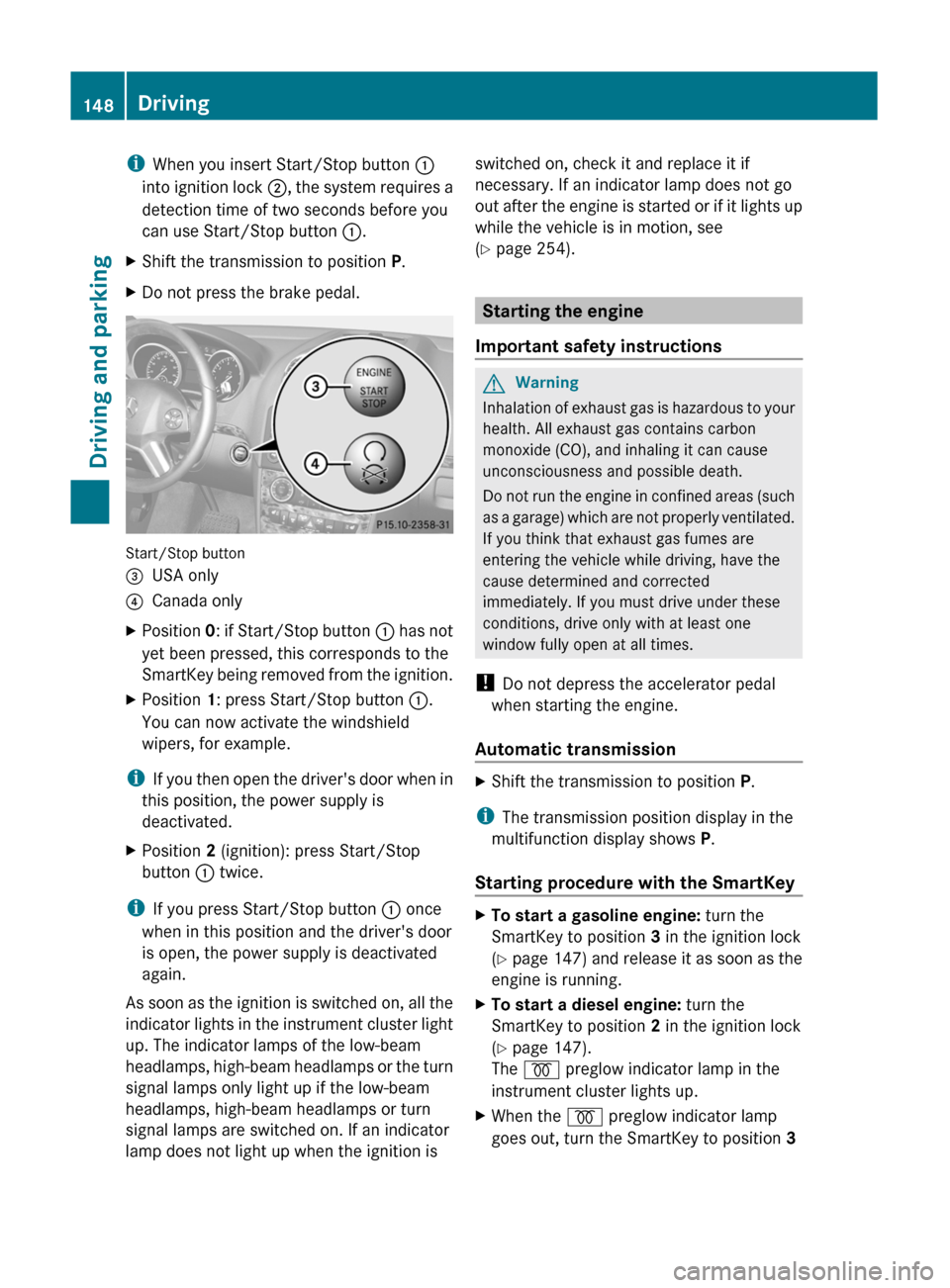

Page 150 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual iWhen you insert Start/Stop button  :
into ignition lock  ;, the system requires a
detection time of two seconds before you
can use Start/Stop button  :.XShift the transmission to position  P.XDo not

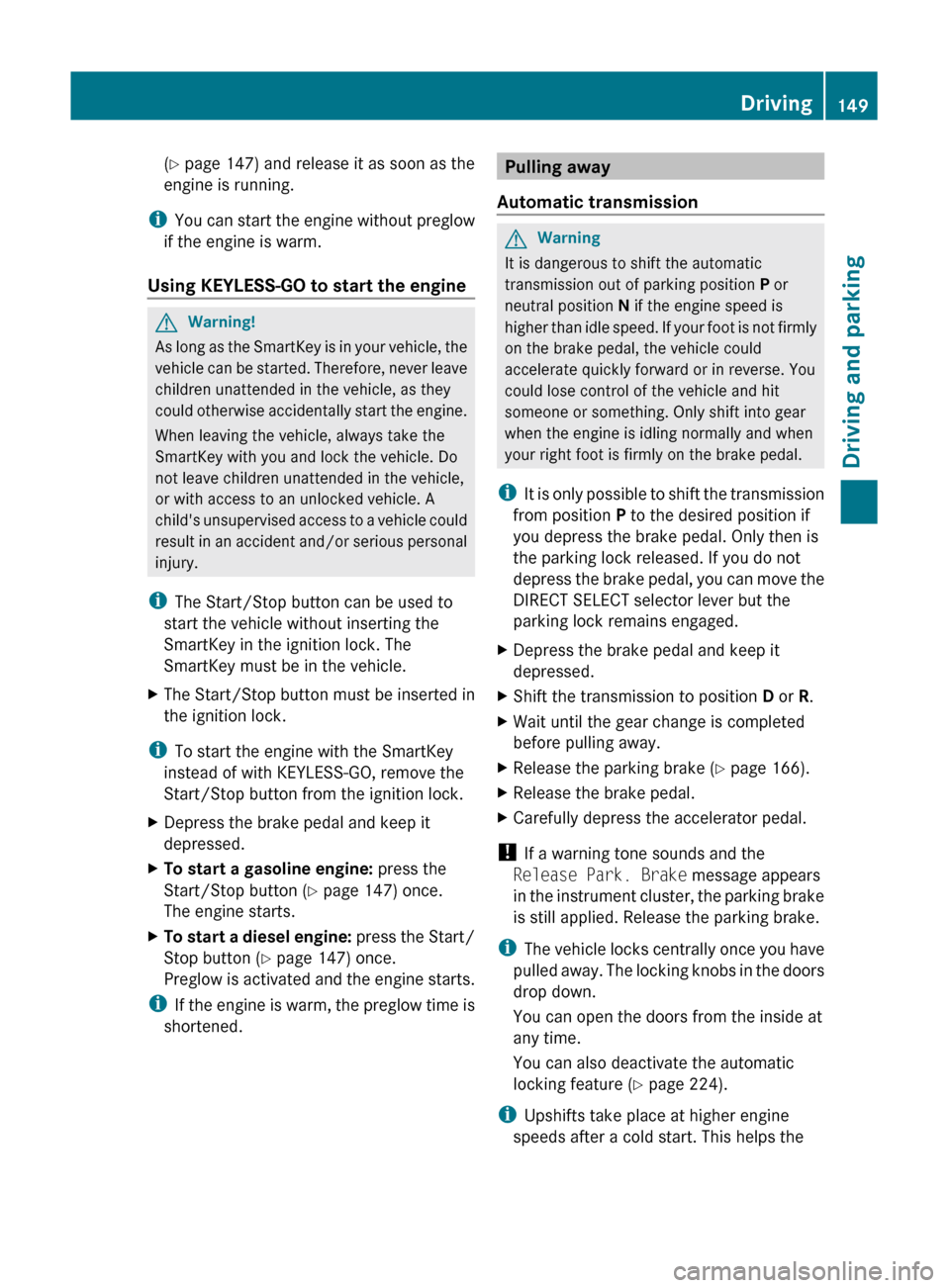

Page 151 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual (Y  page 147) and release it as soon as the
engine is running.
i You can start the engine without preglow
if the engine is warm.
Using KEYLESS-GO to start the engine
GWarning!
As long as the SmartKey

Page 152 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual catalytic converter to reach its operating
temperature more quickly.
Hill start assist
Hill start assist helps you when pulling away
forwards or in reverse on an uphill gradient.
It holds the vehicle
