2011 MERCEDES-BENZ GL350 BlueTEC Owner's Manual

Page 297 of 376

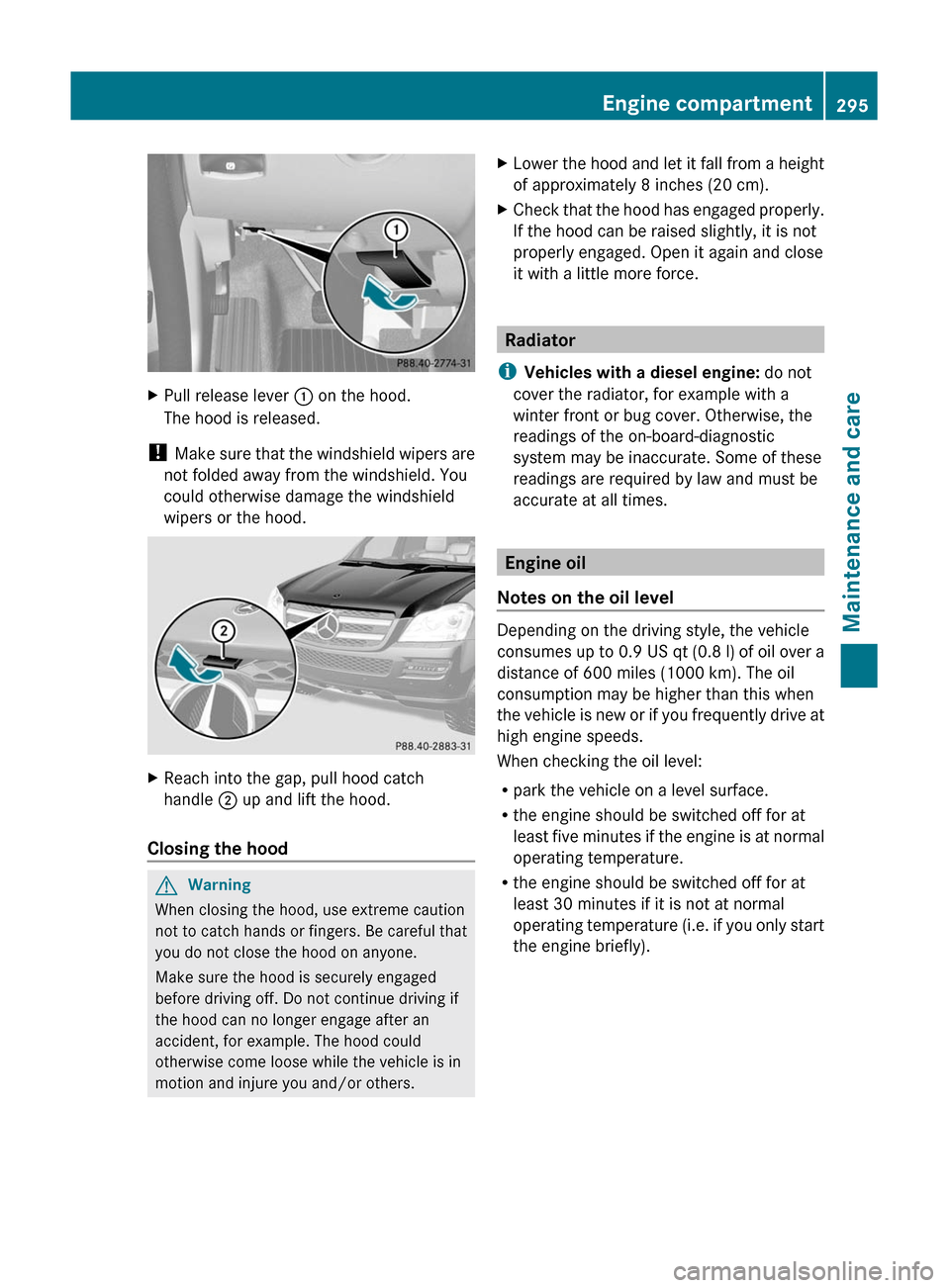

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual XPull release lever : on the hood.
The hood is released.
!  Make sure that the windshield wipers are
not folded away from the windshield. You
could otherwise damage the windshield
wipers or the hood.

Page 298 of 376

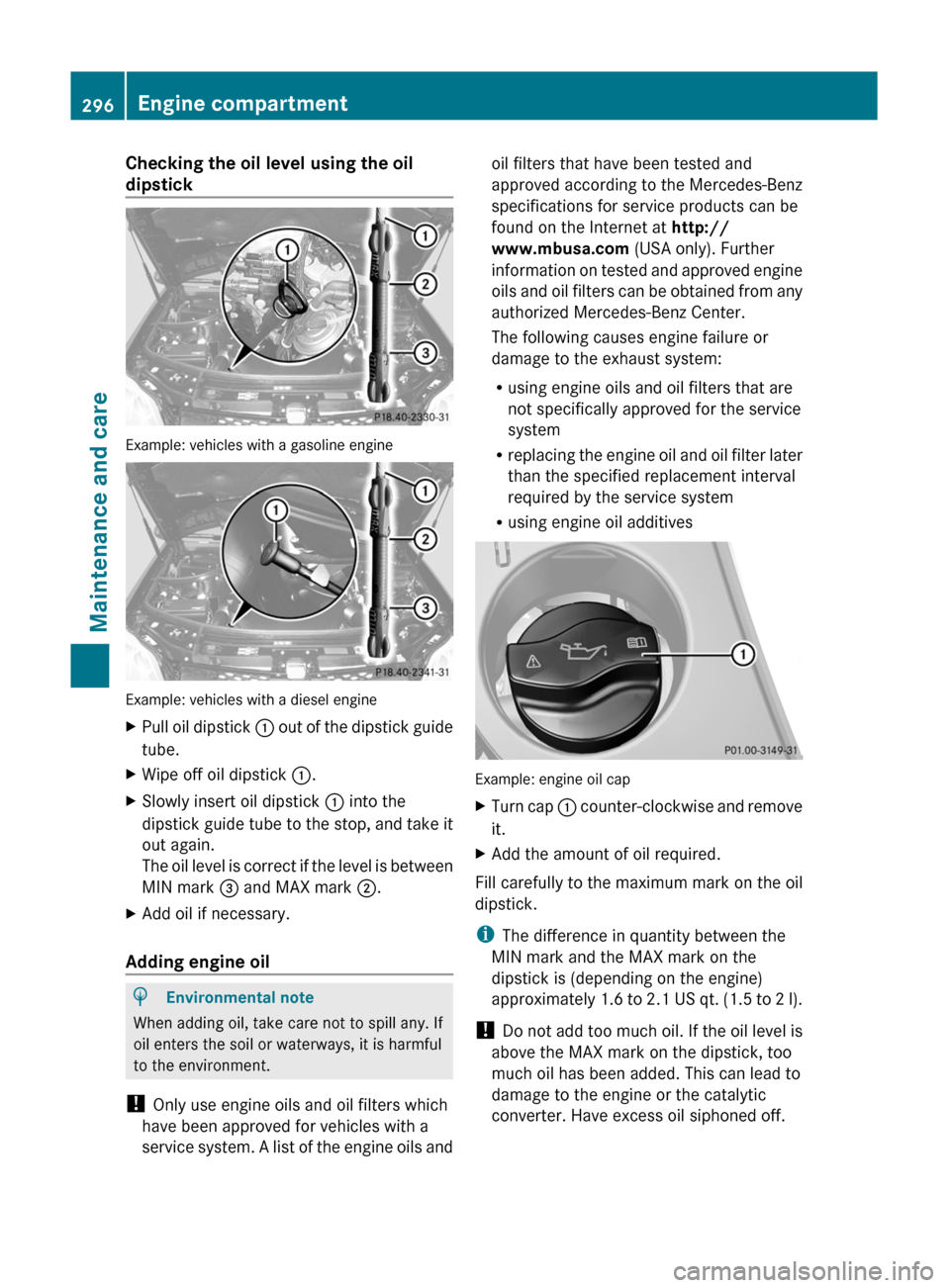

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Checking the oil level using the oil
dipstick
Example: vehicles with a gasoline engine
Example: vehicles with a diesel engine
XPull oil dipstick : out of the dipstick guide
tube.
XWipe off oil dipstic

Page 299 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Further information on engine oil
( Y  page 368).XReplace cap  : on the filler neck and
tighten clockwise.
Ensure that the cap locks into place
securely.
Checking and adding other service
products
Che

Page 300 of 376

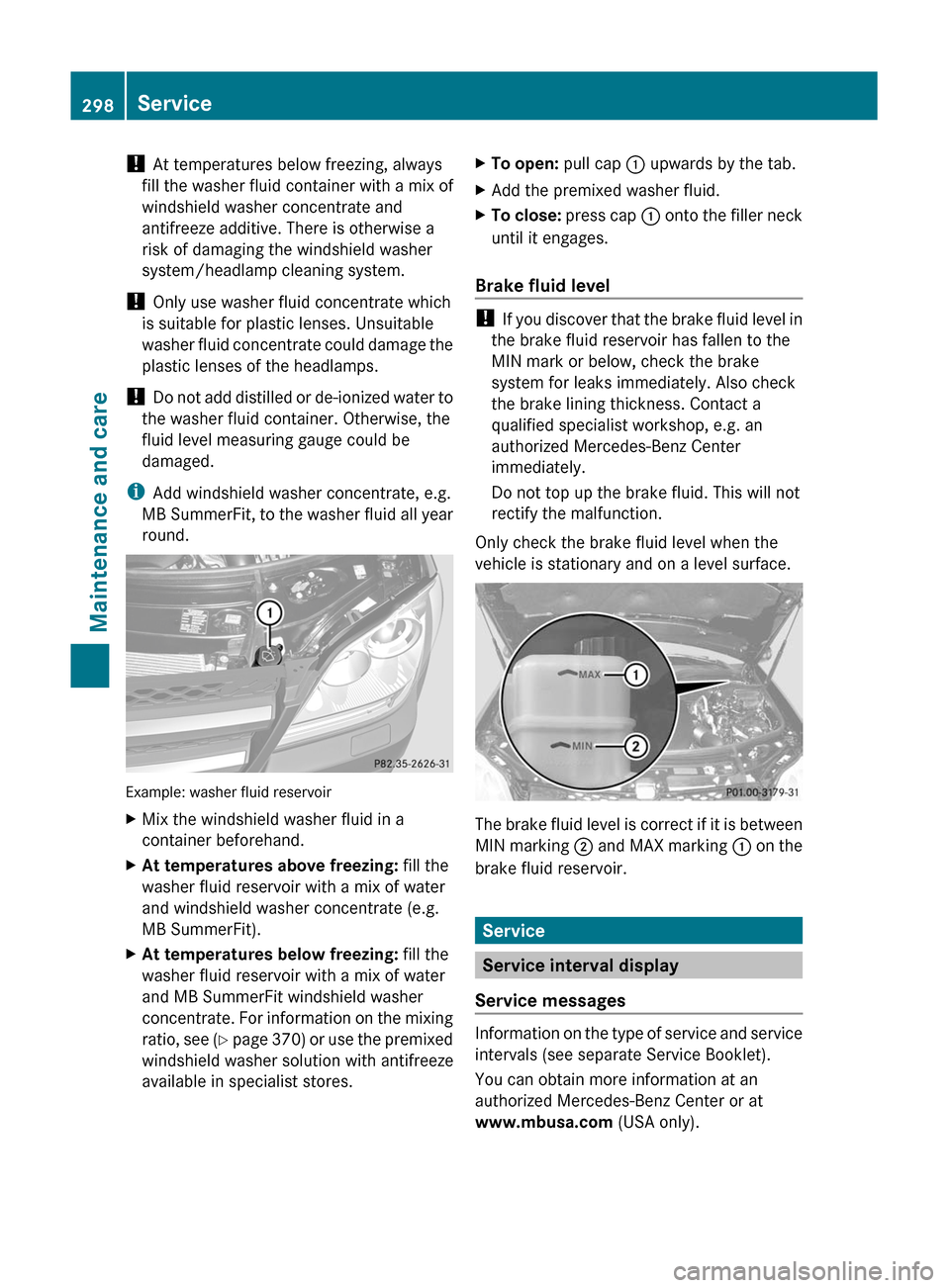

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual ! At temperatures below freezing, always
fill the washer fluid container with a mix of
windshield washer concentrate and
antifreeze additive. There is otherwise a
risk of damaging the windshield washe

Page 301 of 376

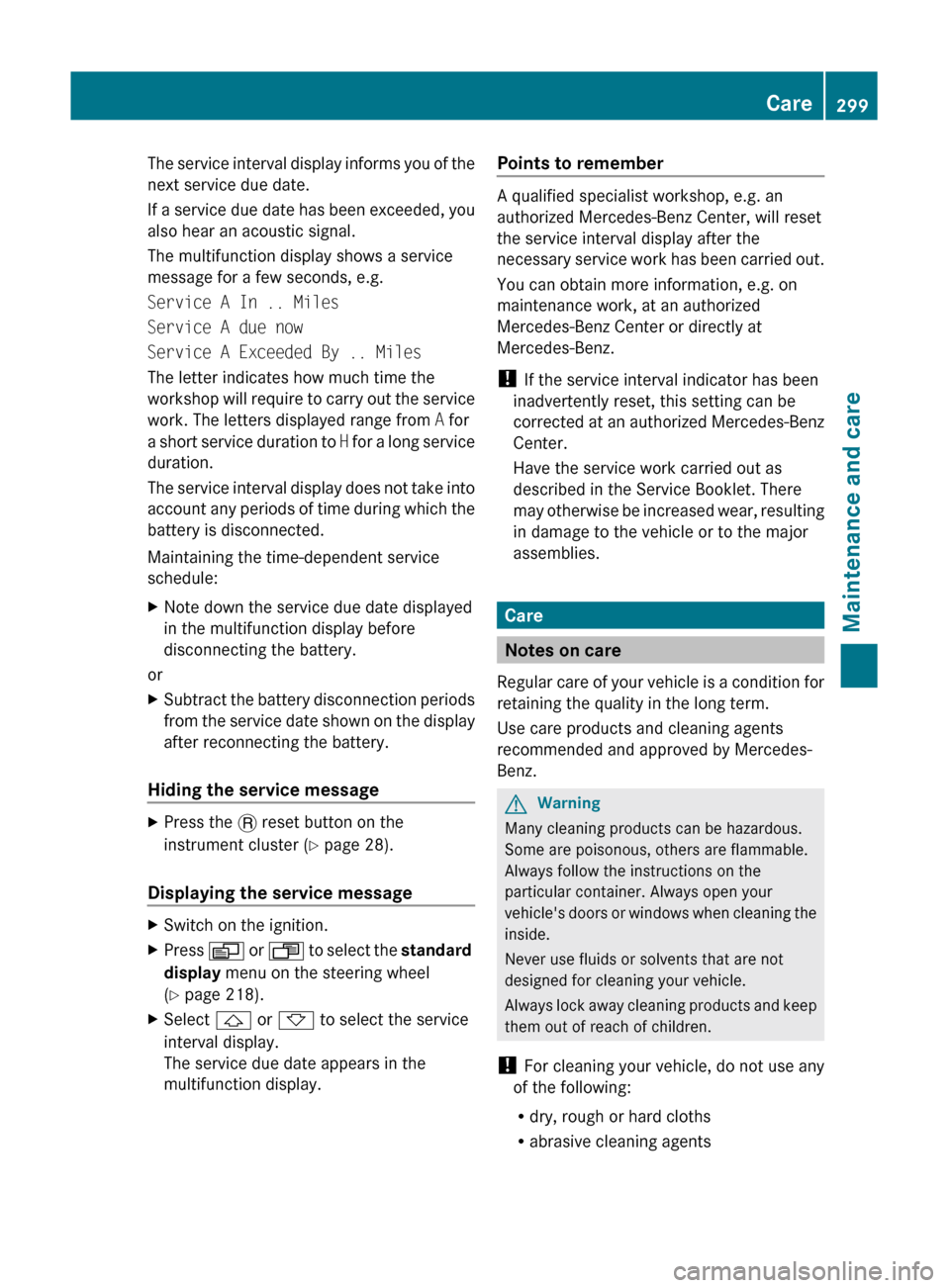

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual The service interval display informs you of the
next service due date.
If a service due date has been exceeded, you
also hear an acoustic signal.
The multifunction display shows a service
message for

Page 302 of 376

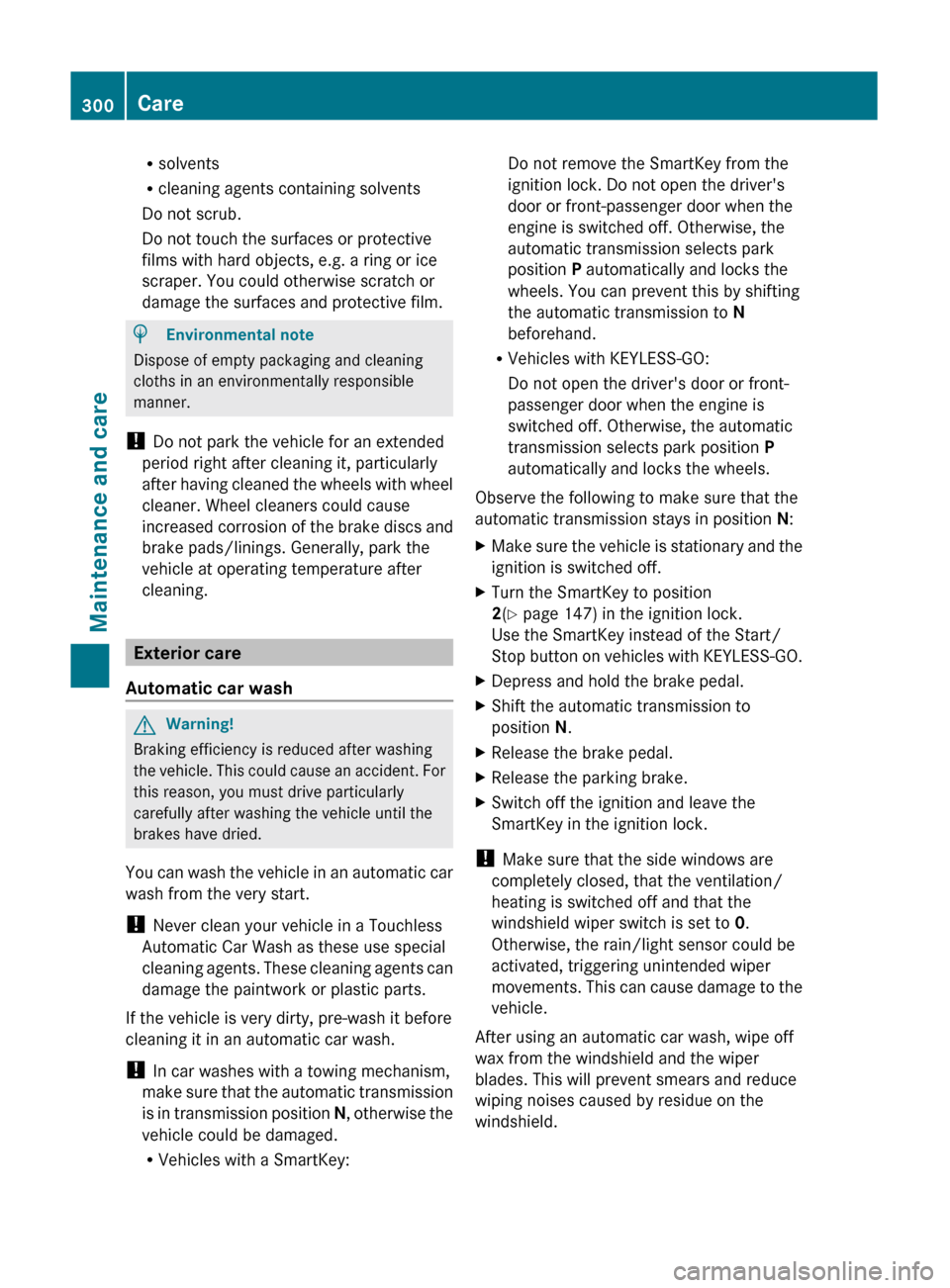

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Rsolvents
R cleaning agents containing solvents
Do not scrub.
Do not touch the surfaces or protective
films with hard objects, e.g. a ring or ice
scraper. You could otherwise scratch or
damage the sur

Page 303 of 376

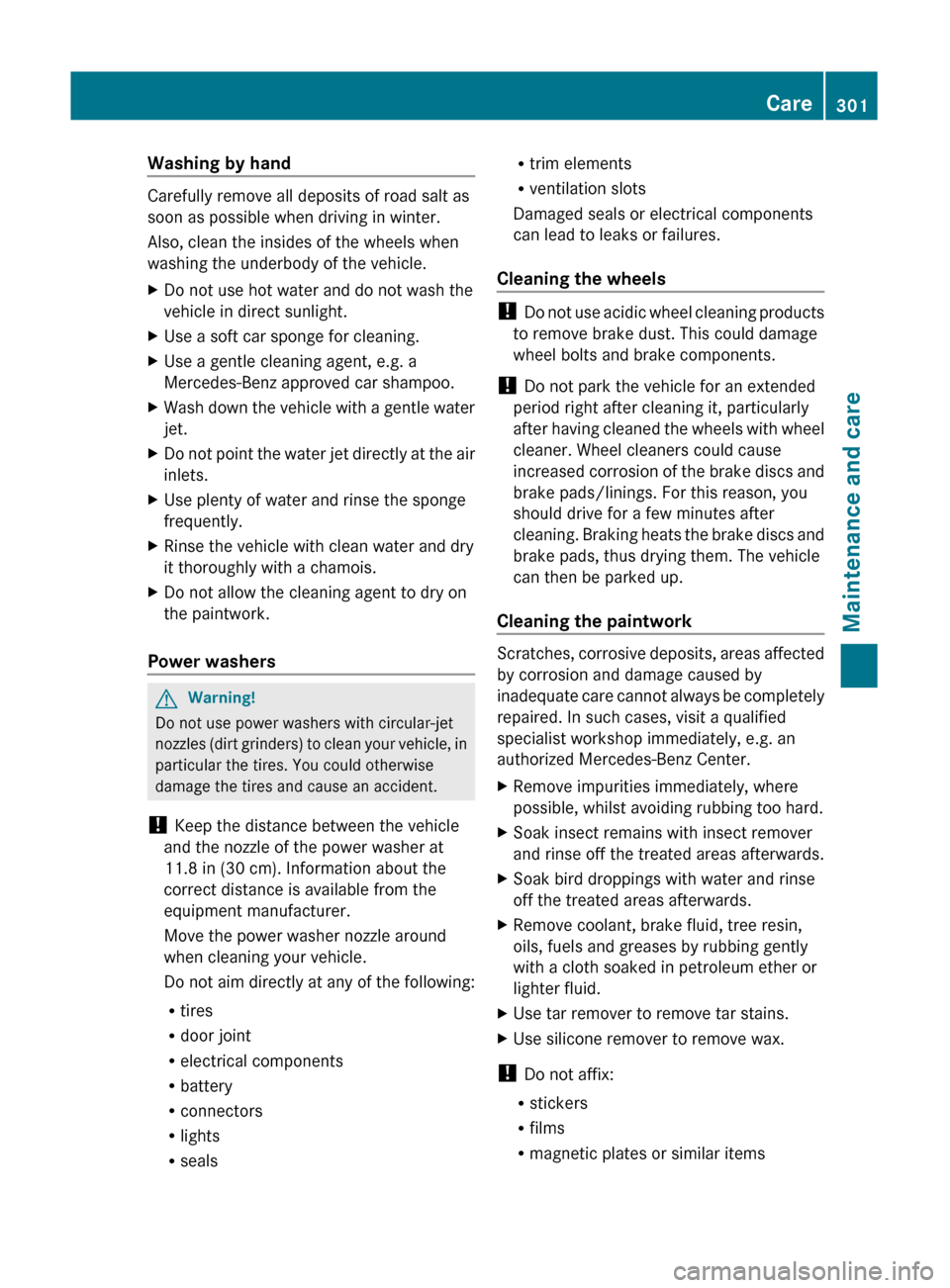

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Washing by hand
Carefully remove all deposits of road salt as
soon as possible when driving in winter.
Also, clean the insides of the wheels when
washing the underbody of the vehicle.
XDo not use hot

Page 304 of 376

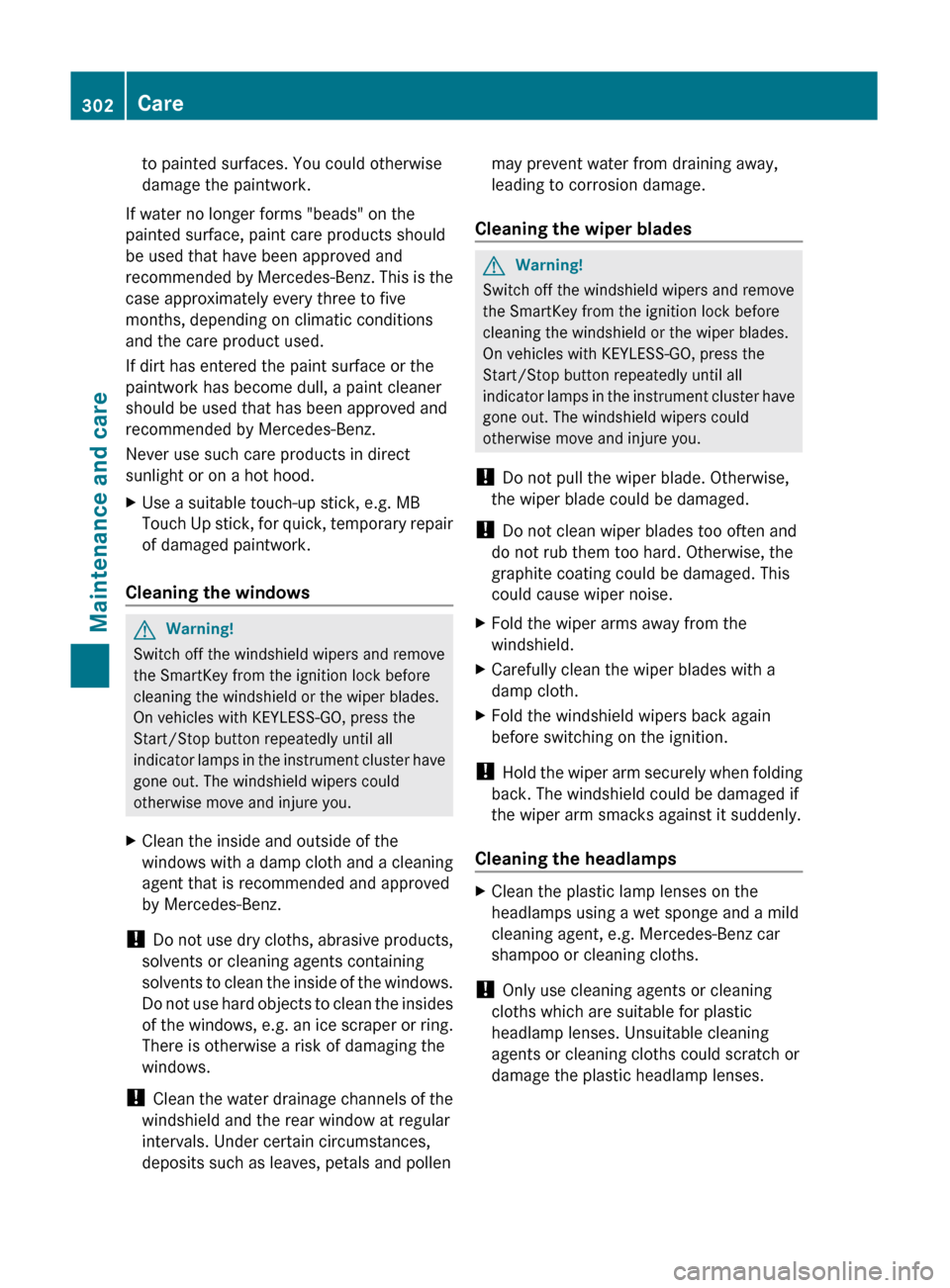

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual to painted surfaces. You could otherwise
damage the paintwork.
If water no longer forms "beads" on the
painted surface, paint care products should
be used that have been approved and
recommended by Me
