2011 MERCEDES-BENZ GL350 BlueTEC Owner's Manual

Page 225 of 376

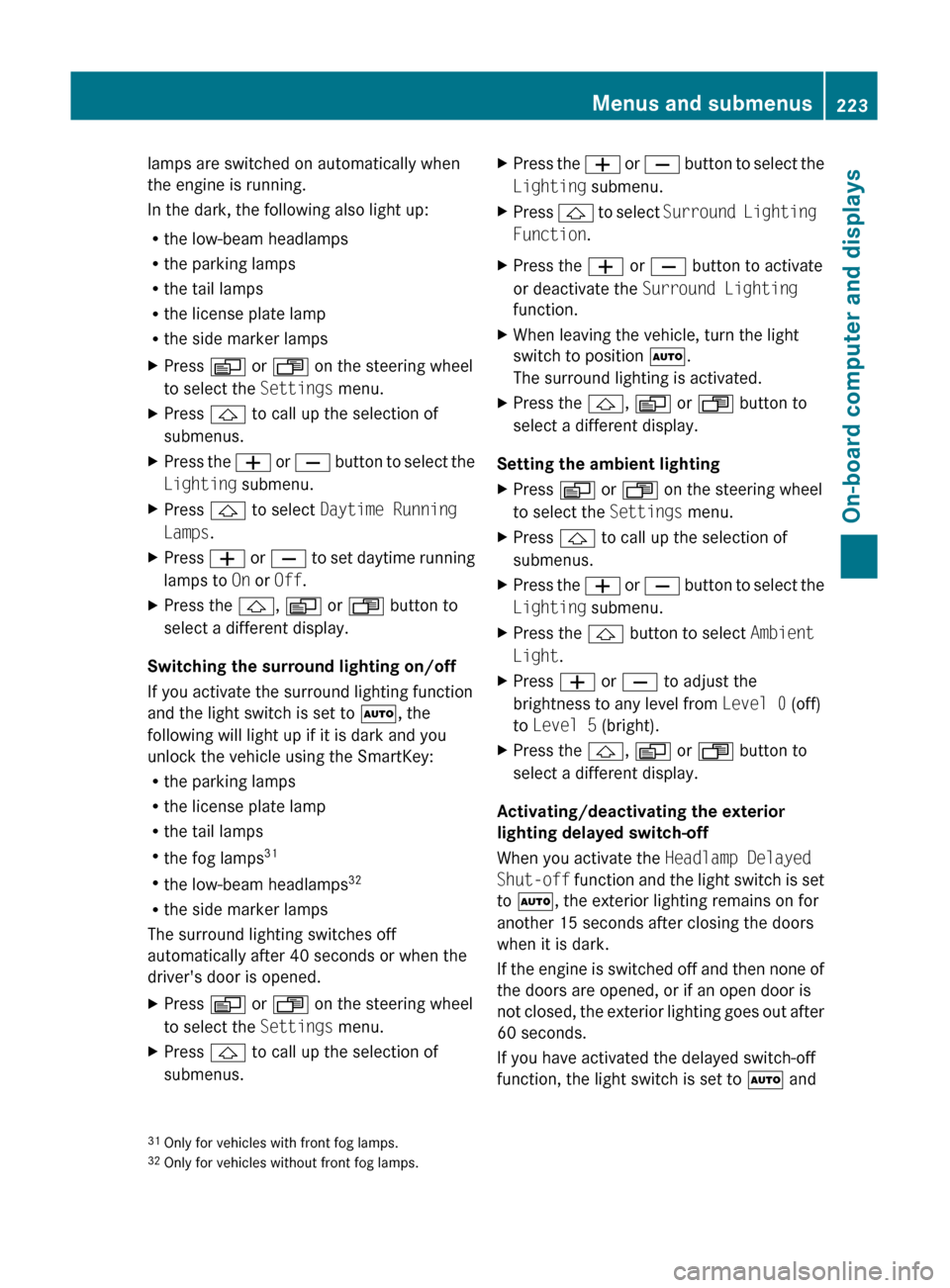

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual lamps are switched on automatically when
the engine is running.
In the dark, the following also light up:
R the low-beam headlamps
R the parking lamps
R the tail lamps
R the license plate lamp
R the s

Page 226 of 376

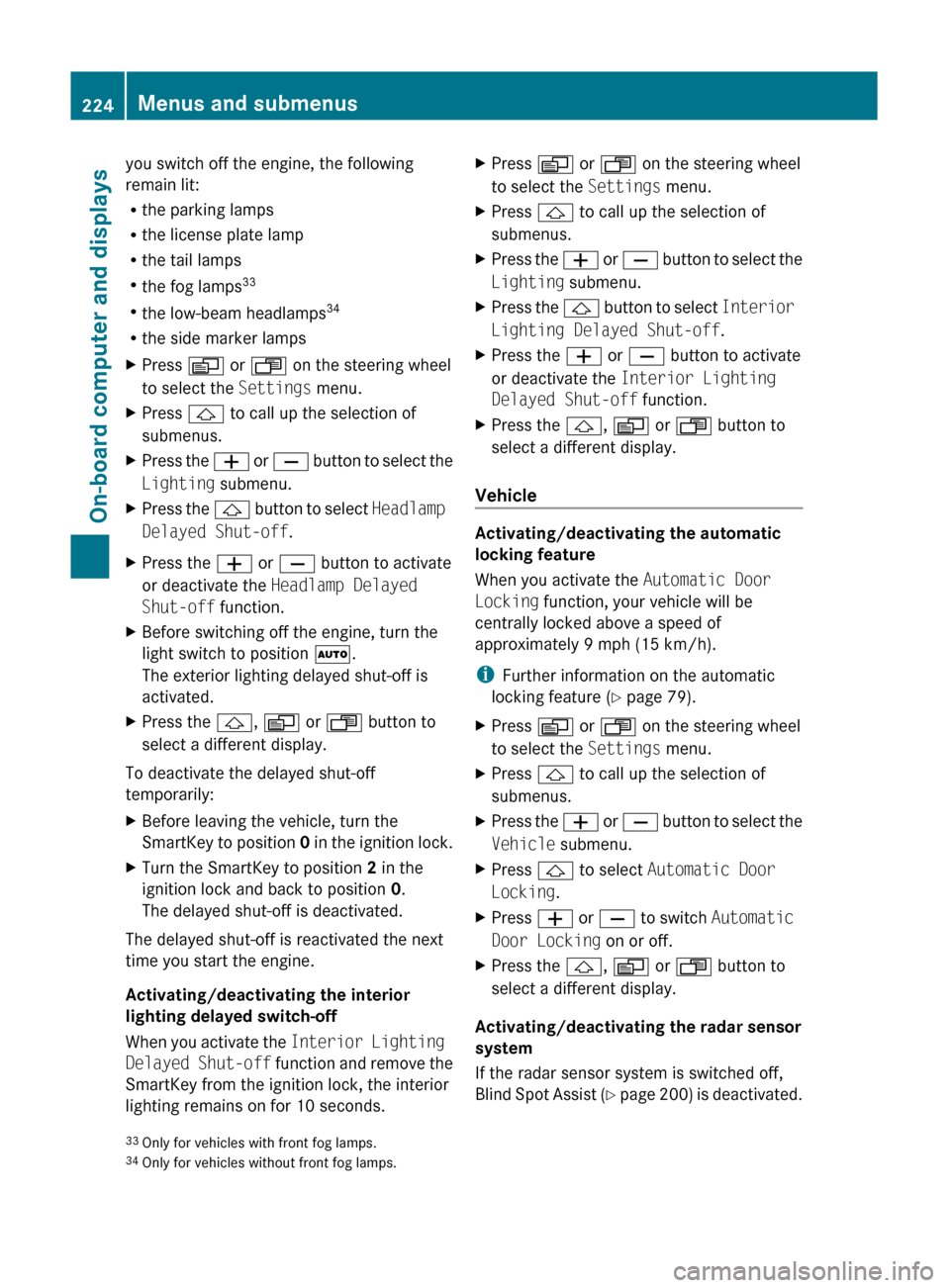

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual you switch off the engine, the following
remain lit:
R the parking lamps
R the license plate lamp
R the tail lamps
R the fog lamps 33
R the low-beam headlamps 34
R the side marker lampsXPress  V or U

Page 227 of 376

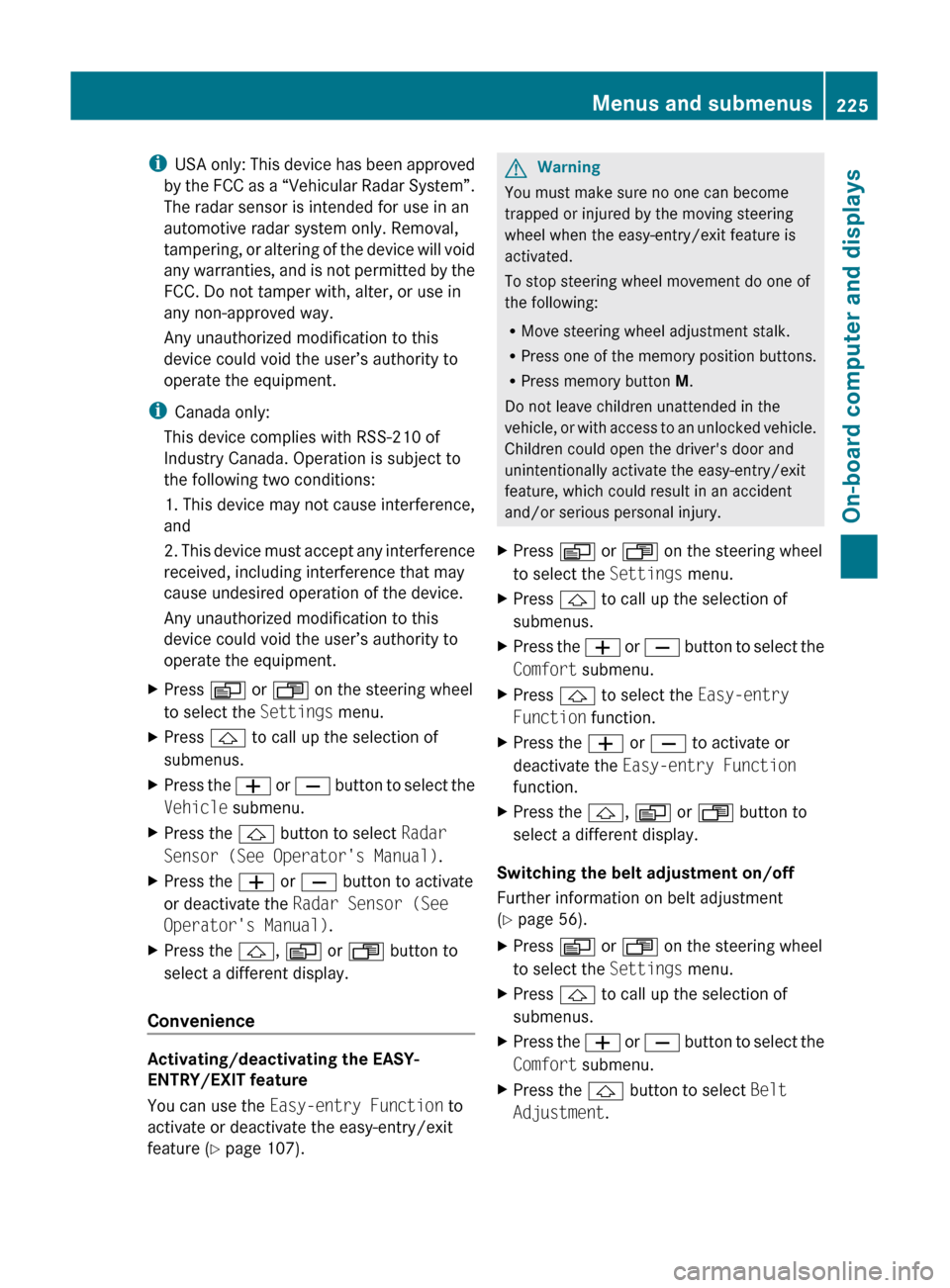

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual iUSA only: This device has been approved
by the FCC as a “Vehicular Radar System”.
The radar sensor is intended for use in an
automotive radar system only. Removal,
tampering, or altering of the d

Page 228 of 376

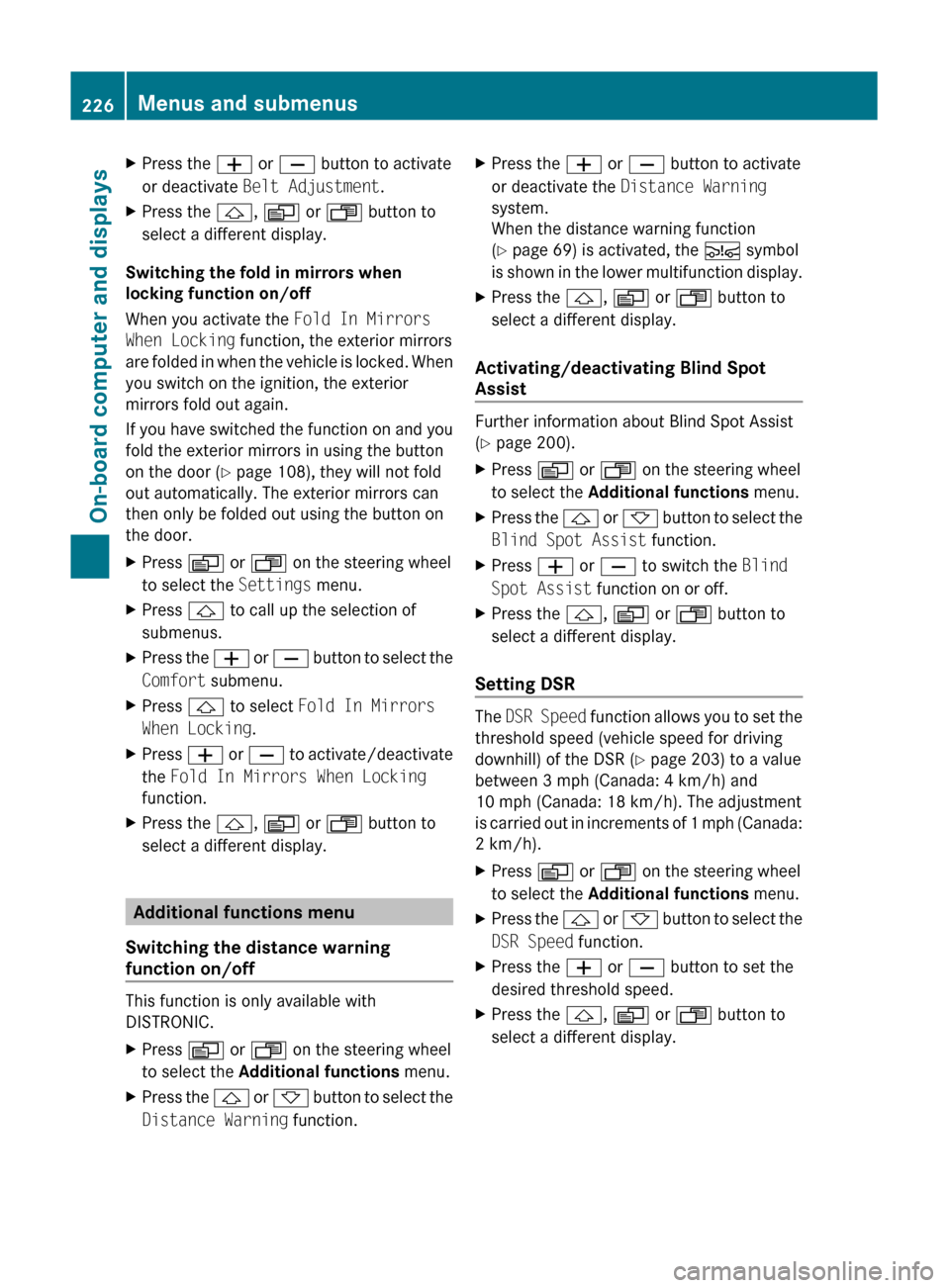

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual XPress the W or X  button to activate
or deactivate  Belt Adjustment .XPress the &, V  or U  button to
select a different display.
Switching the fold in mirrors when
locking function on/off
When you a

Page 229 of 376

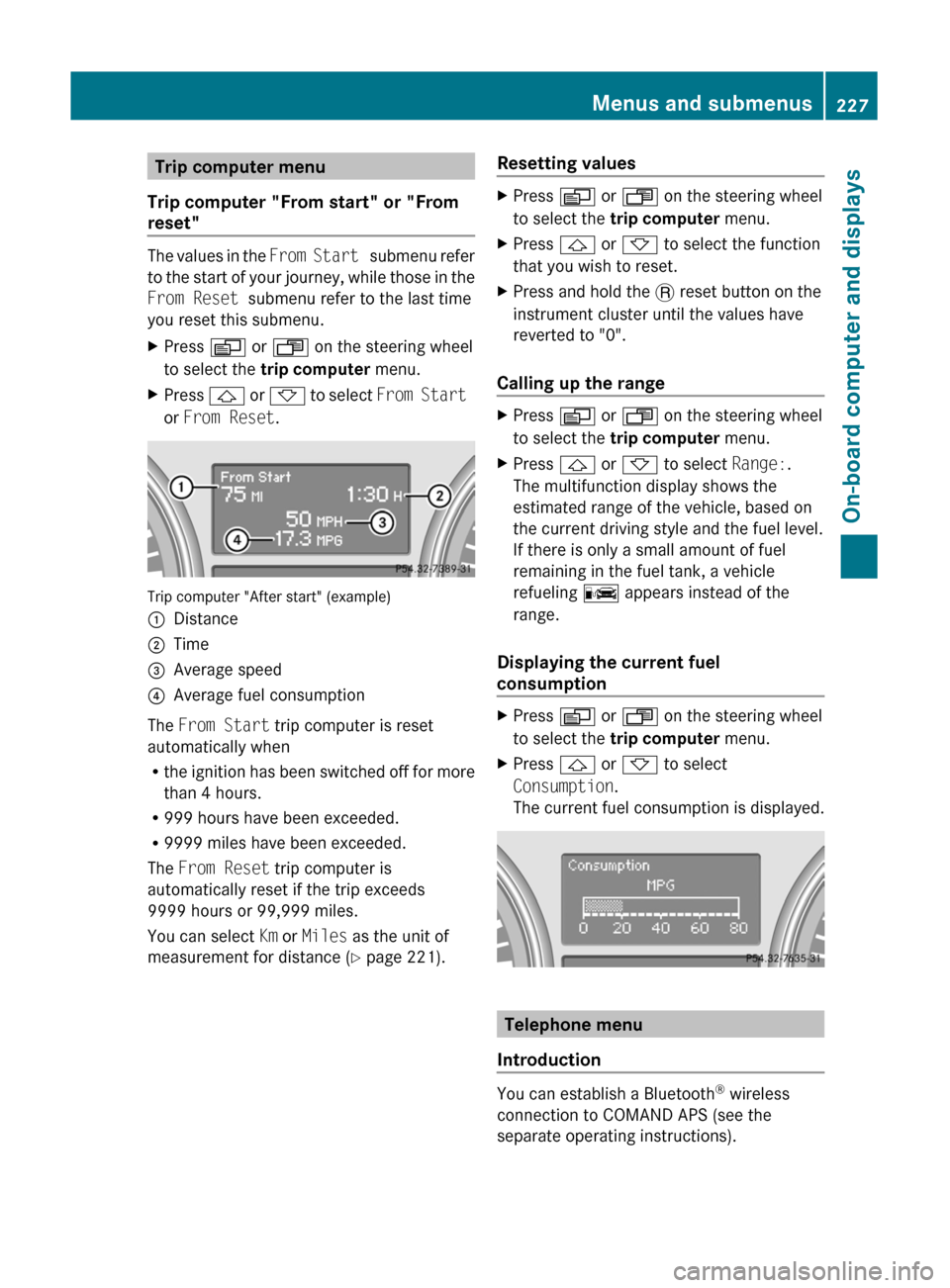

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Trip computer menu
Trip computer "From start" or "From
reset"
The values in the  From Start  submenu refer
to the start of your journey, while those in the
From Reset  submenu refer to the last time
y

Page 230 of 376

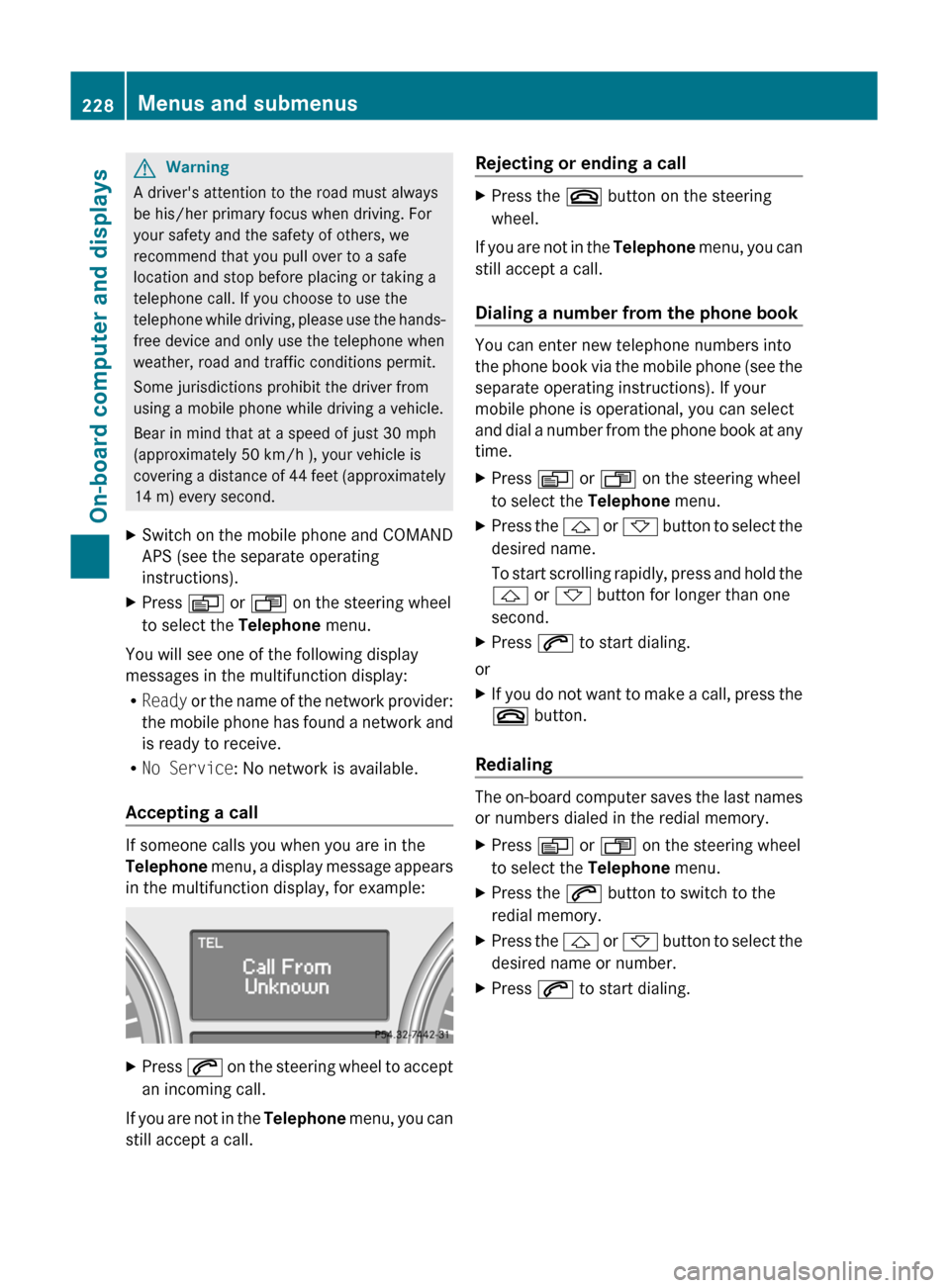

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual GWarning
A drivers attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we
recommend that you pull over to a safe
location and stop befor

Page 231 of 376

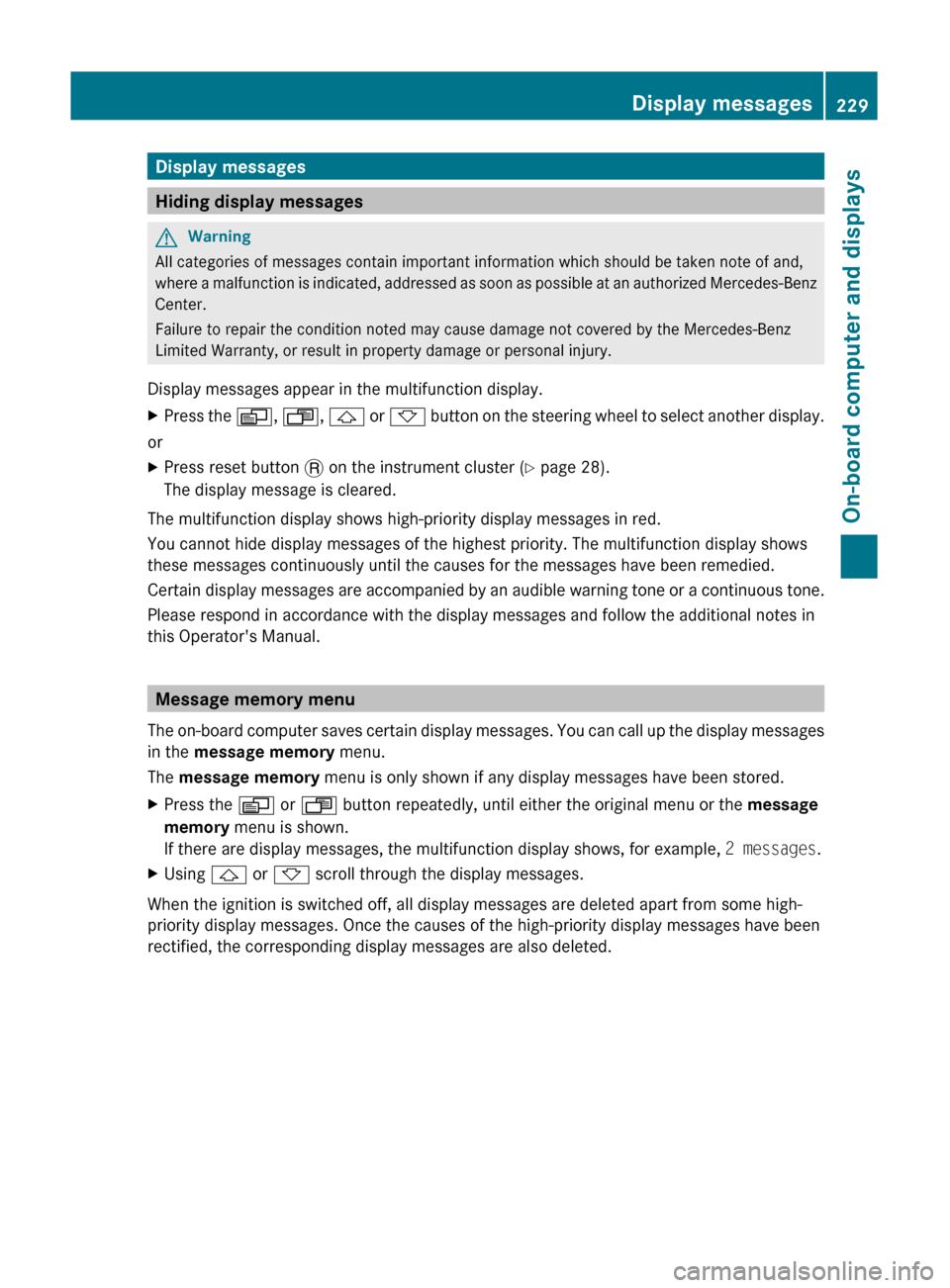

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Display messages
Hiding display messages
GWarning
All categories of messages contain important information which should be taken note of and,
where a malfunction is indicated, addressed as soon as pos

Page 232 of 376

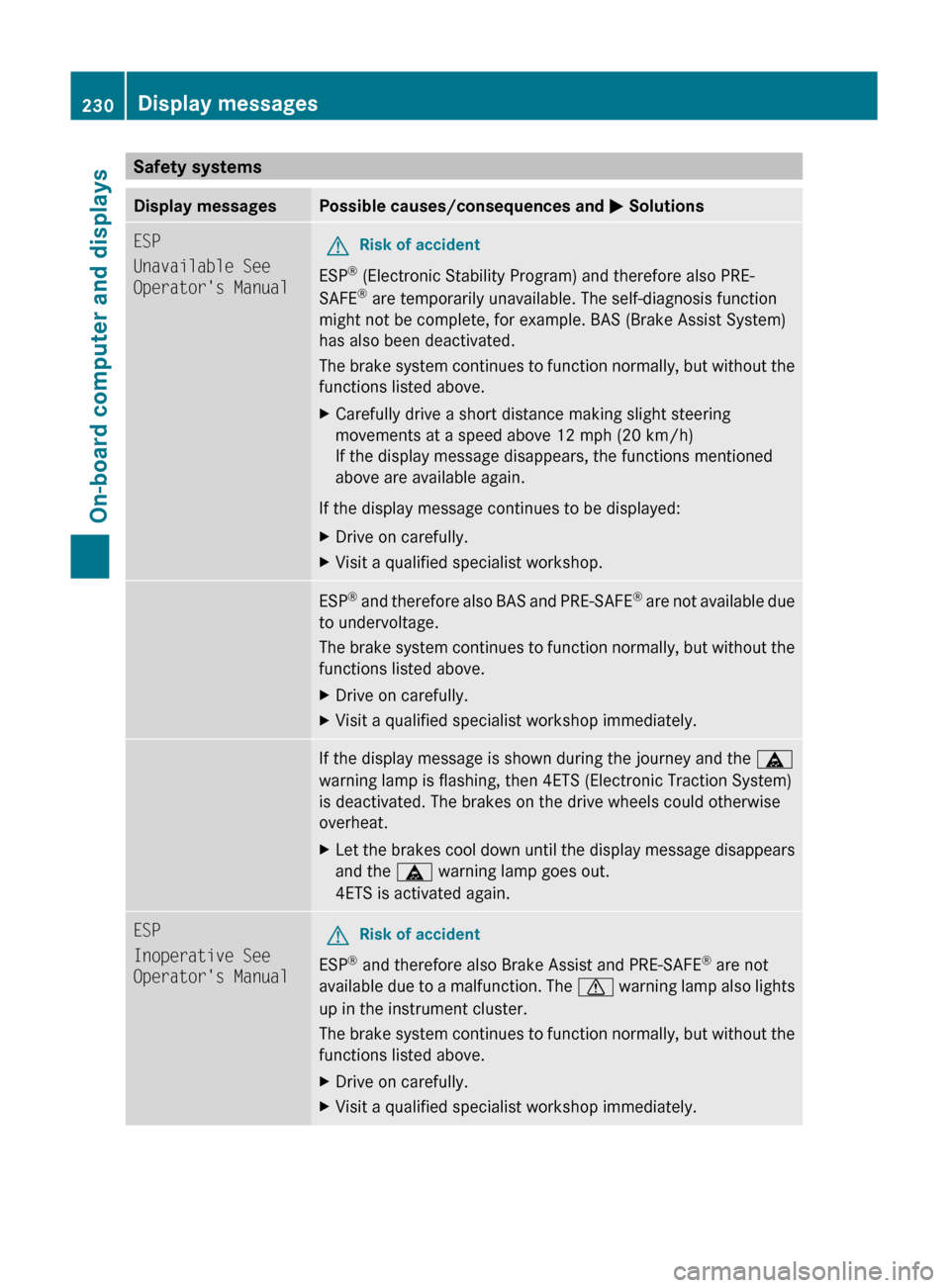

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Safety systemsDisplay messagesPossible causes/consequences and M SolutionsESP
Unavailable See
Operators ManualGRisk of accident
ESP ®
 (Electronic Stability Program) and therefore also PRE-
SAFE ®
