2011 MERCEDES-BENZ GL350 BlueTEC Owner's Manual

Page 121 of 376

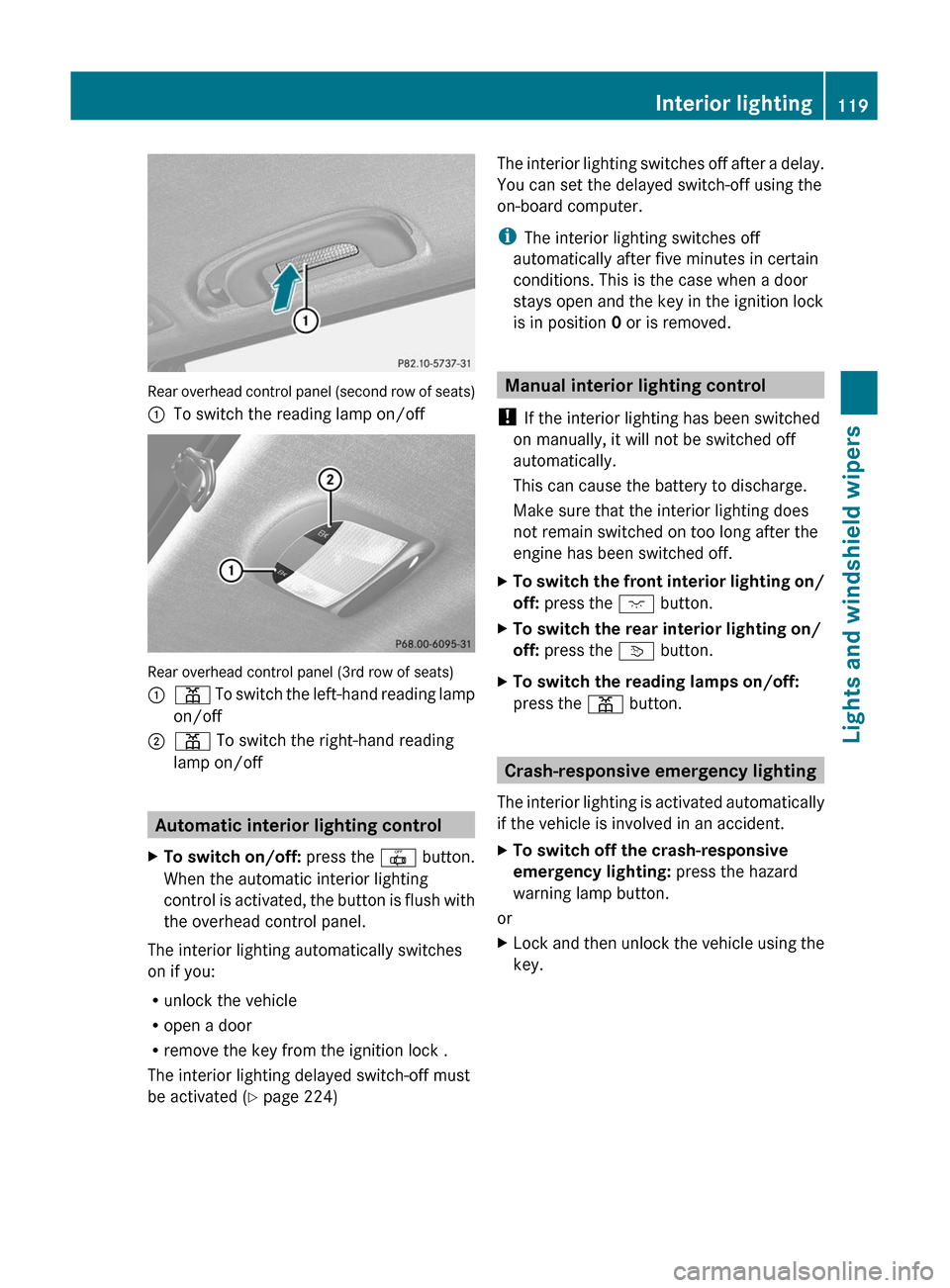

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Rear overhead control panel (second row of seats)
:To switch the reading lamp on/off
Rear overhead control panel (3rd row of seats)
:p To switch the left-hand reading lamp
on/off;p  To switch the righ

Page 122 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Changing bulbs
Important safety notes
Xenon bulbs
If your vehicle is equipped with Xenon bulbs,
you can recognize this by the following: the
cone of light from the Xenon bulbs moves
from the top to th

Page 123 of 376

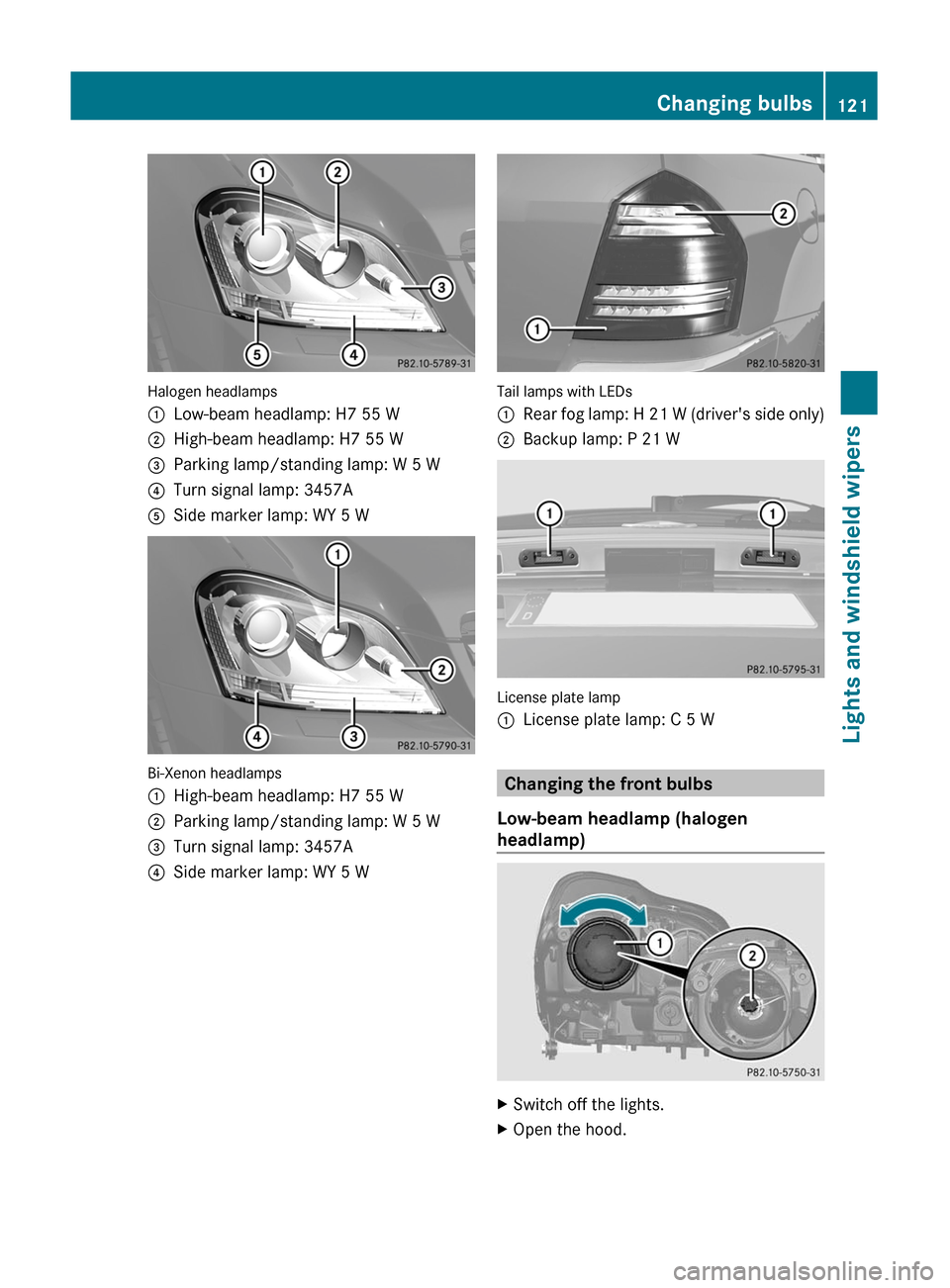

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Halogen headlamps
:Low-beam headlamp: H7 55 W;High-beam headlamp: H7 55 W=Parking lamp/standing lamp: W 5 W?Turn signal lamp: 3457AASide marker lamp: WY 5 W
Bi-Xenon headlamps
:High-beam headlamp: H7

Page 124 of 376

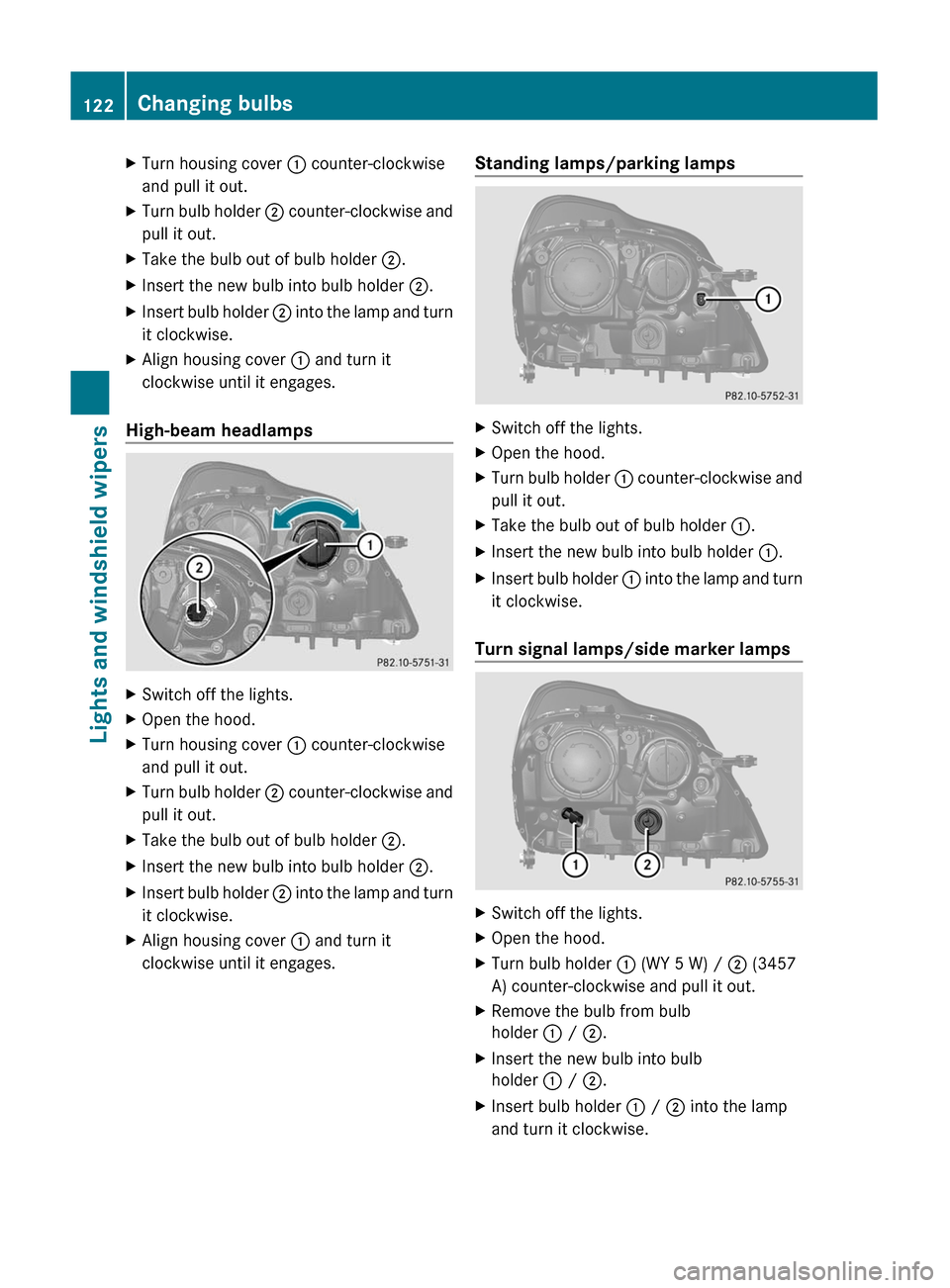

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual XTurn housing cover : counter-clockwise
and pull it out.XTurn bulb holder  ; counter-clockwise and
pull it out.XTake the bulb out of bulb holder  ;.XInsert the new bulb into bulb holder  ;.XInsert bul

Page 125 of 376

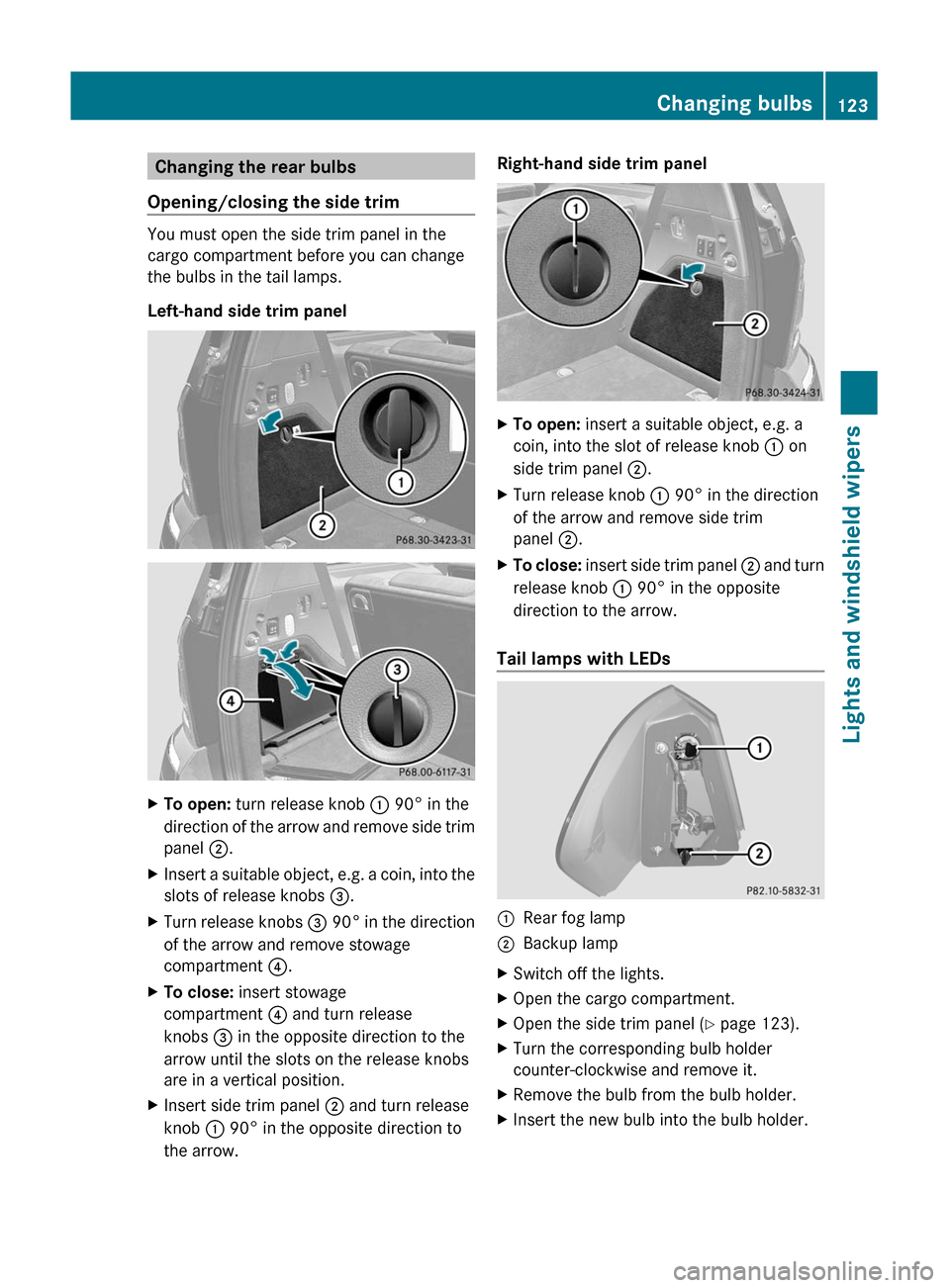

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Changing the rear bulbs
Opening/closing the side trim
You must open the side trim panel in the
cargo compartment before you can change
the bulbs in the tail lamps.
Left-hand side trim panel
XTo open:

Page 126 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual XInsert the bulb holder and turn it clockwise.XClose the side trim panel (Y page 123).
License plate lamp
XSwitch off the lights.XOpen the tailgate.XRemove screws :.XRemove the license plate lamp.XRep

Page 127 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual adjustment performed at an authorized
Mercedes-Benz Center.
Windshield wipers
Important safety notes
GWarning!
Wiper blades are components that are subject
to wear and tear. Replace the wiper blades
t

Page 128 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual prevents a person from being splashed
inadvertently when getting into or out of the
vehicle.
Intermittent wiping continues when all doors
are closed and
R you shift the automatic transmission to
drive
