2011 MERCEDES-BENZ GL350 BlueTEC Owner's Manual

Page 137 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual FunctioniNotes/tips?Defrosts the windshieldOnly use the "defrosting" function briefly until the
windshield is clear again.AIncreases the airflowBSwitches the rear window
heating on/offCDirects the air

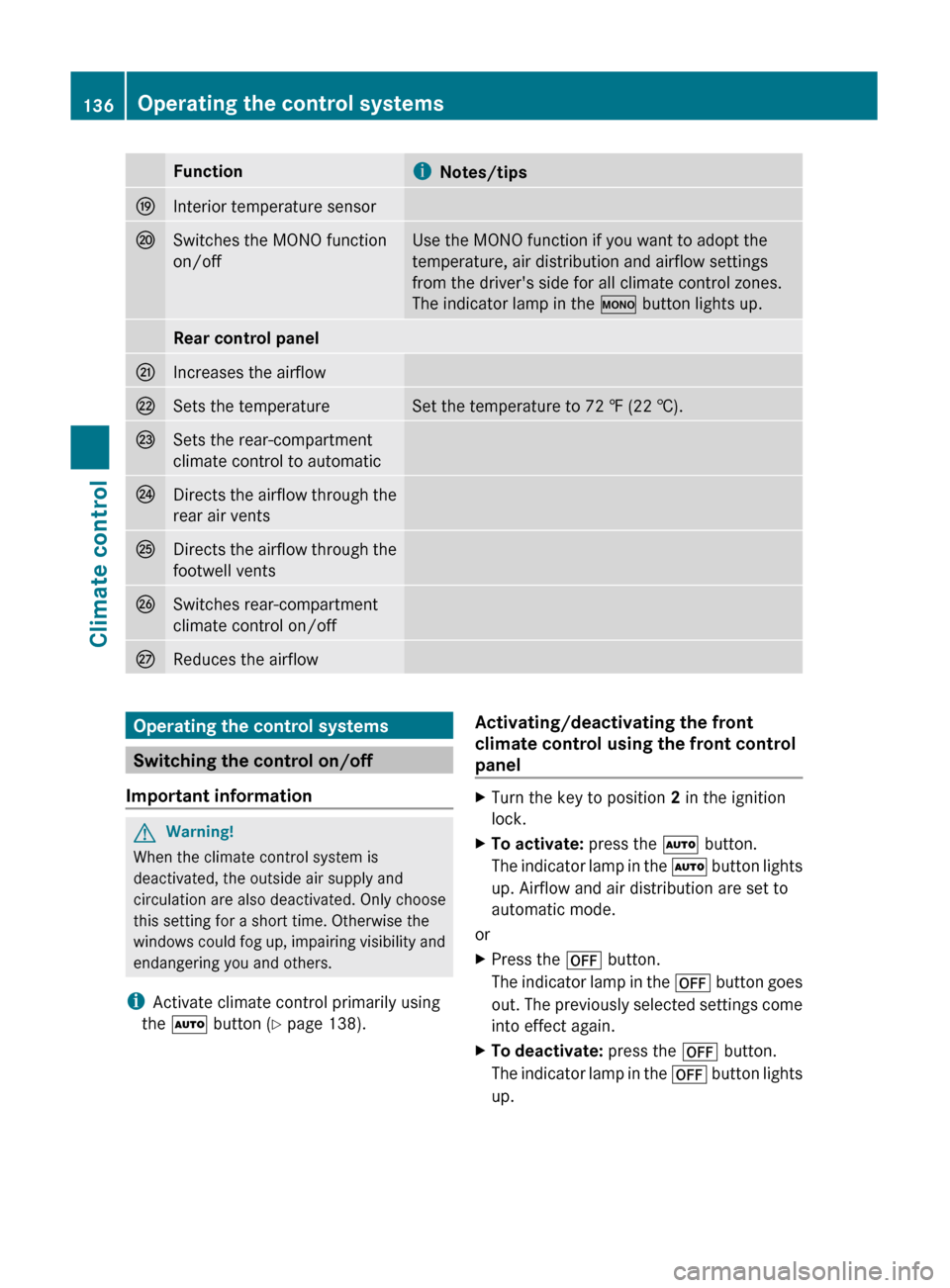

Page 138 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual FunctioniNotes/tipsOInterior temperature sensorPSwitches the MONO function
on/offUse the MONO function if you want to adopt the
temperature, air distribution and airflow settings
from the drivers sid

Page 139 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Activating/deactivating the rear-
compartment climate control using the
front control panel (dual-zone
automatic climate control)XTurn the key to position  2 in the ignition
lock.XTo activate/deactiva

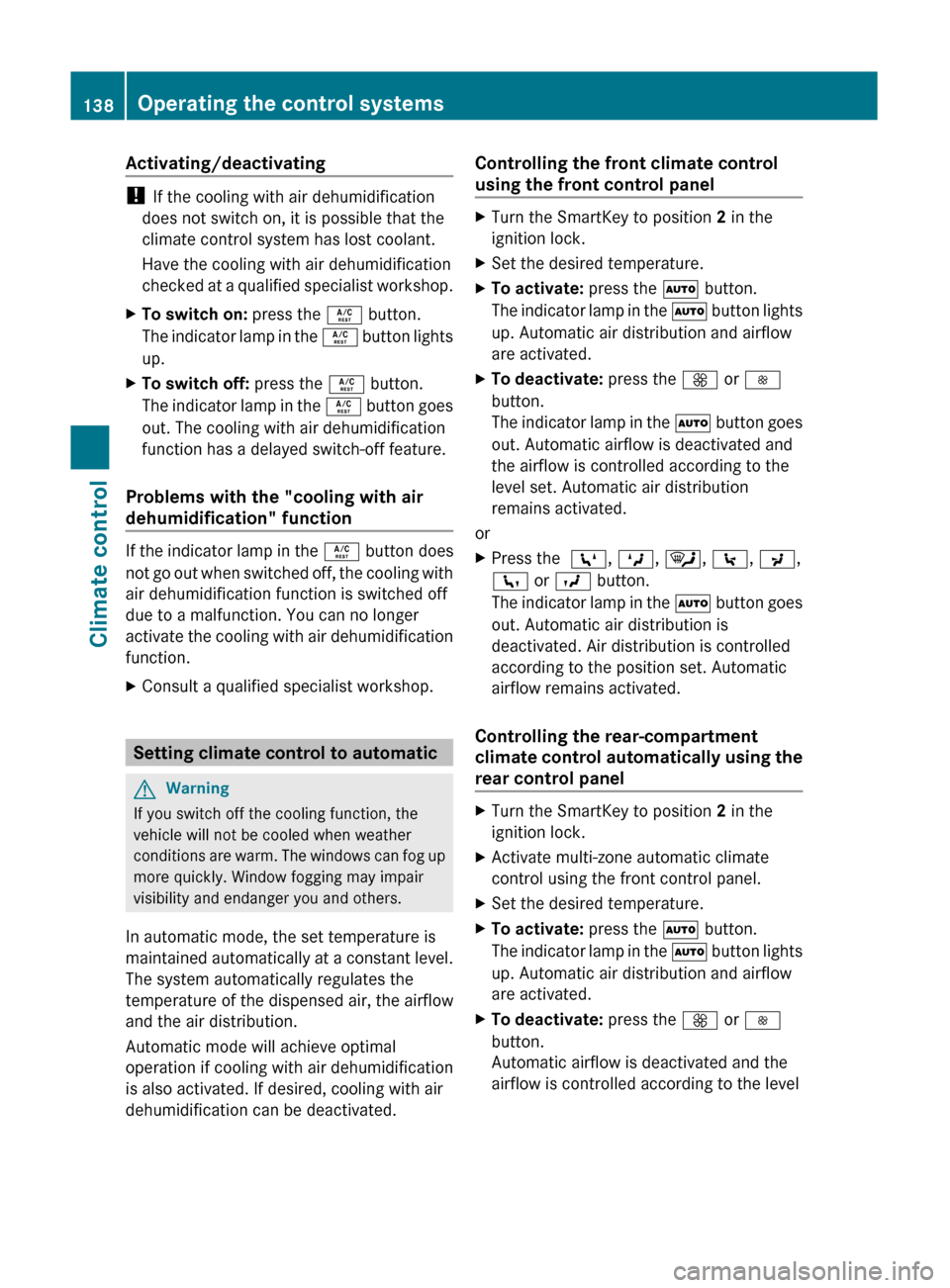

Page 140 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Activating/deactivating
! If the cooling with air dehumidification
does not switch on, it is possible that the
climate control system has lost coolant.
Have the cooling with air dehumidification
check

Page 141 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual set. Automatic air distribution remains
activated.
or
XPress one of the  M or O  buttons.
Automatic air distribution is deactivated.
Air distribution is controlled according to
the position set. Autom

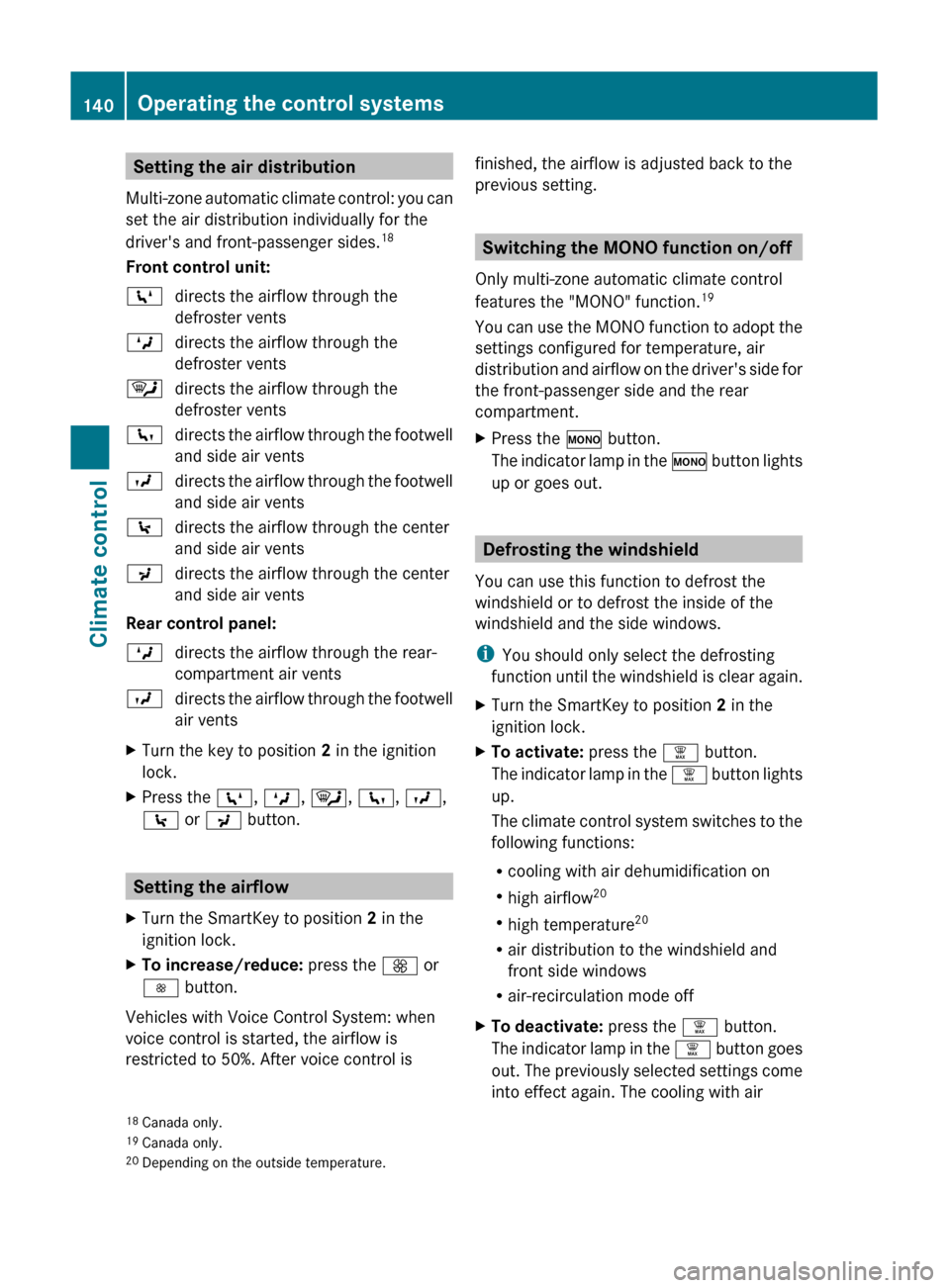

Page 142 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Setting the air distribution
Multi-zone automatic climate control: you can
set the air distribution individually for the
drivers and front-passenger sides. 18
Front control unit:Zdirects the airflow

Page 143 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual dehumidification function remains on. Air-
recirculation mode remains deactivated.
or
XPress the  ^ button.
or
XPress the  Ã button.
or
XTurn the temperature control clockwise or
counter-clockwise.
o

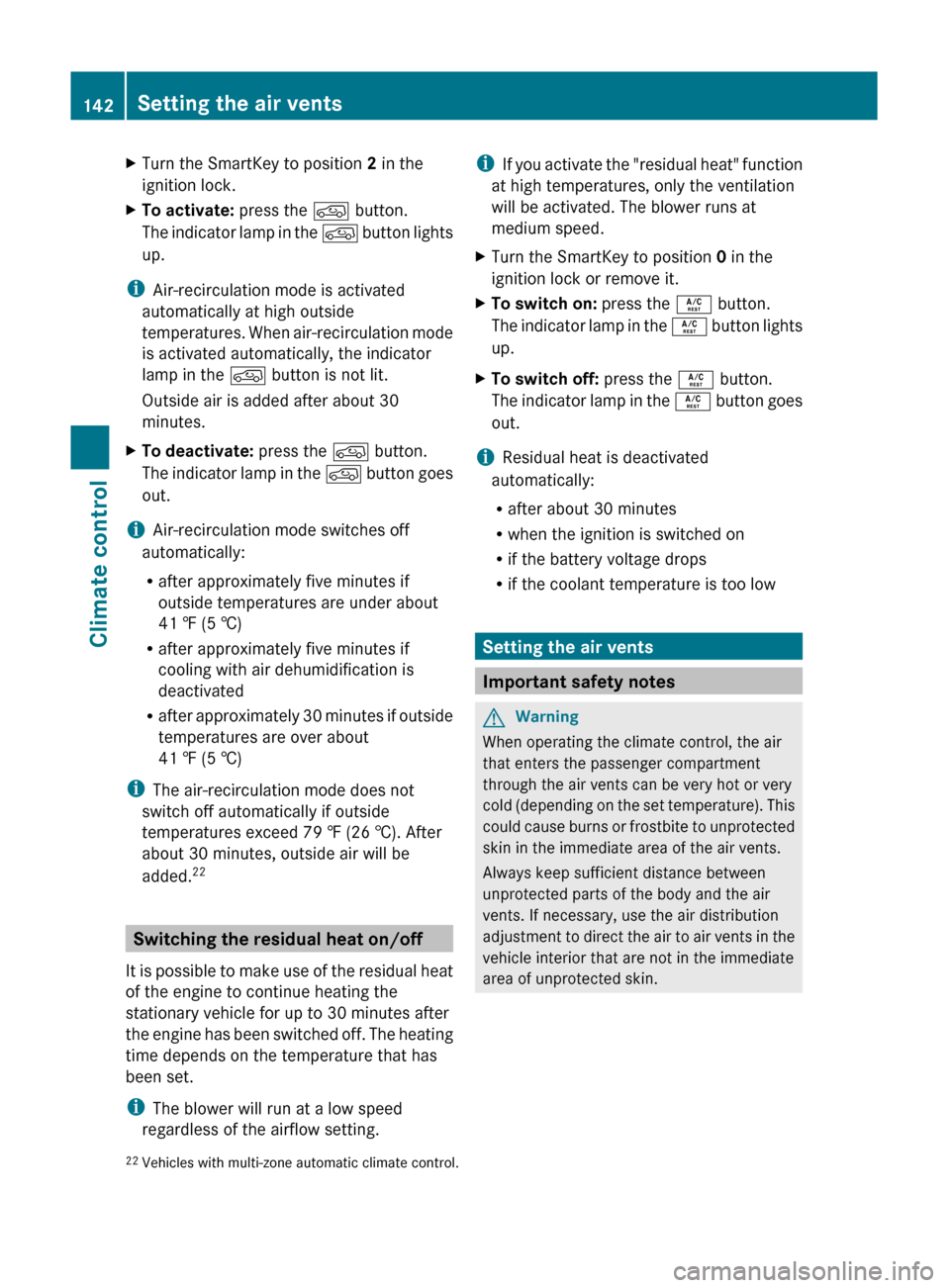

Page 144 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual XTurn the SmartKey to position 2 in the
ignition lock.XTo activate:  press the d button.
The indicator lamp in the  d button lights
up.
i Air-recirculation mode is activated
automatically at high outs
