2011 MERCEDES-BENZ GL350 BlueTEC Owner's Manual

Page 321 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual XPosition jack = at jacking point  ;.XMake sure that the base of the jack is
positioned directly under the jacking point.XTurn ratchet ring spanner  ? until jack  =
sits completely on jacking point  ;

Page 322 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Do not tighten the wheel bolts when the
vehicle is raised. Otherwise, the vehicle could
fall off the jack.1Wheel bolts for 19", 20" and 21" wheels2Wheel bolts for the "Minispare"
emergency spare wheel

Page 323 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual and transport the wheel in the cargo
compartment.
or
XDepending on the size of the wheel, you
may also be able to secure the faulty wheel
in the emergency spare wheel well. In this
case, you must remo

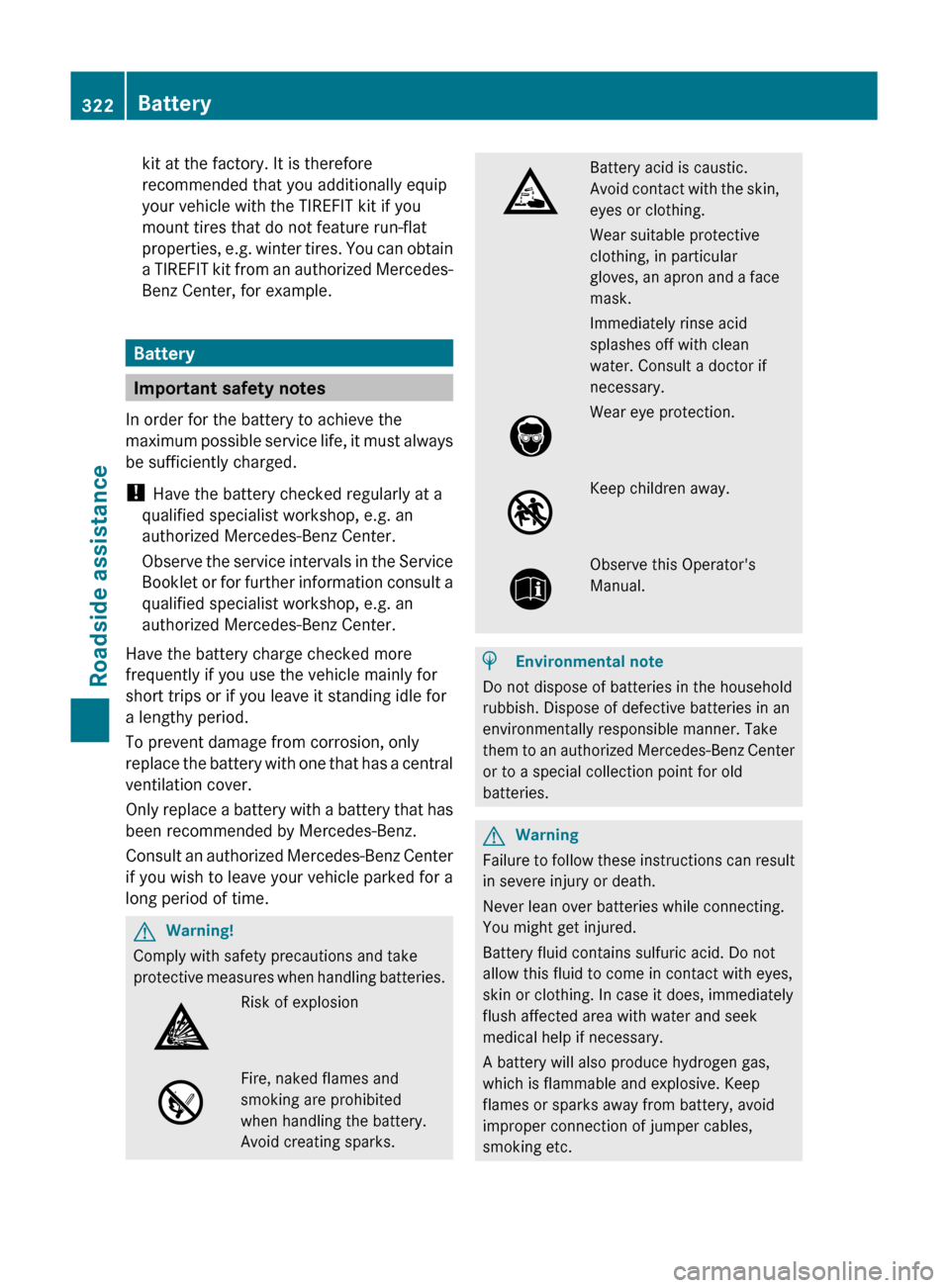

Page 324 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual kit at the factory. It is therefore
recommended that you additionally equip
your vehicle with the TIREFIT kit if you
mount tires that do not feature run-flat
properties, e.g. winter tires. You can obt

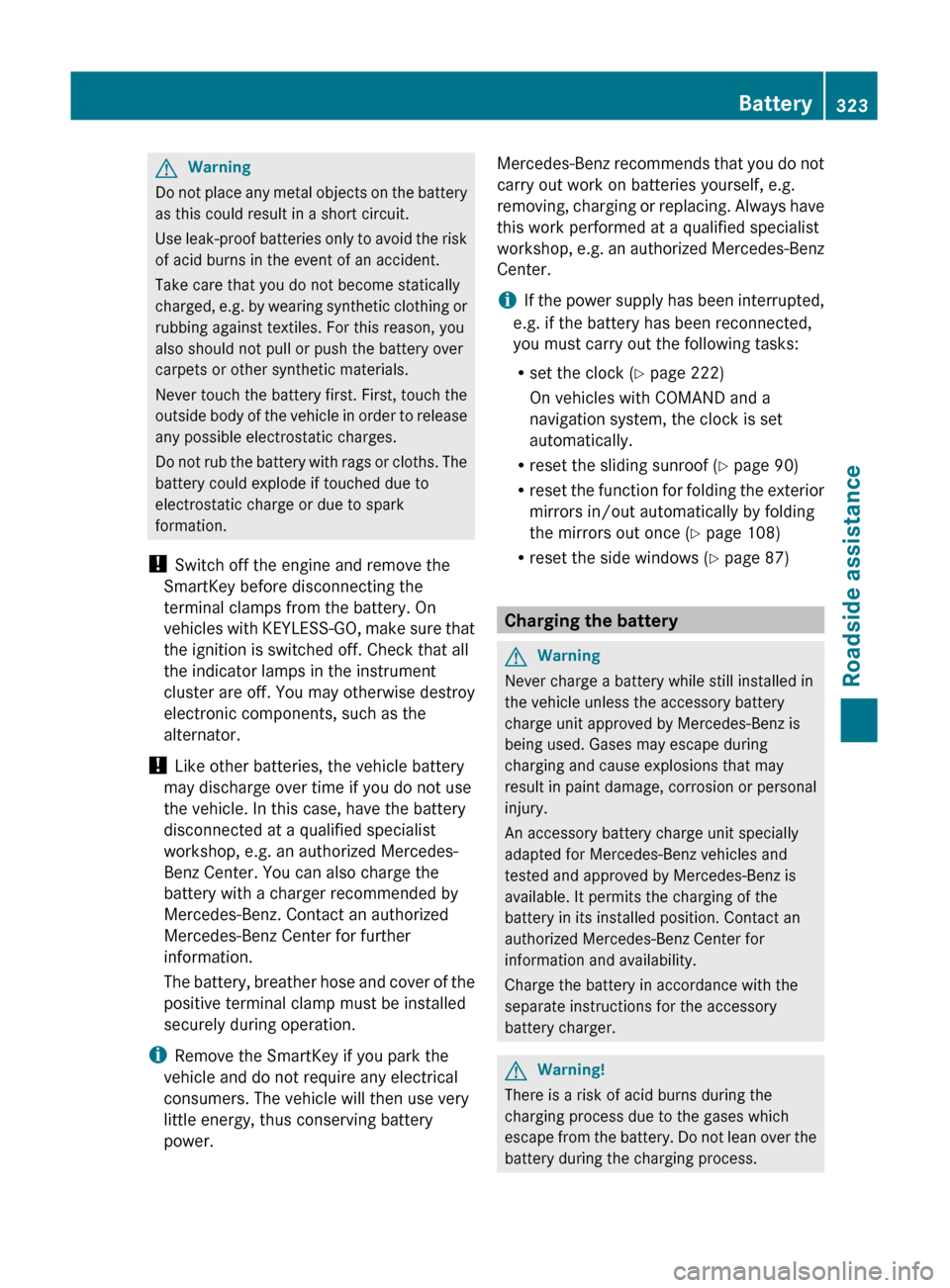

Page 325 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual GWarning
Do not place any metal objects on the battery
as this could result in a short circuit.
Use leak-proof batteries only to avoid the risk
of acid burns in the event of an accident.
Take care tha

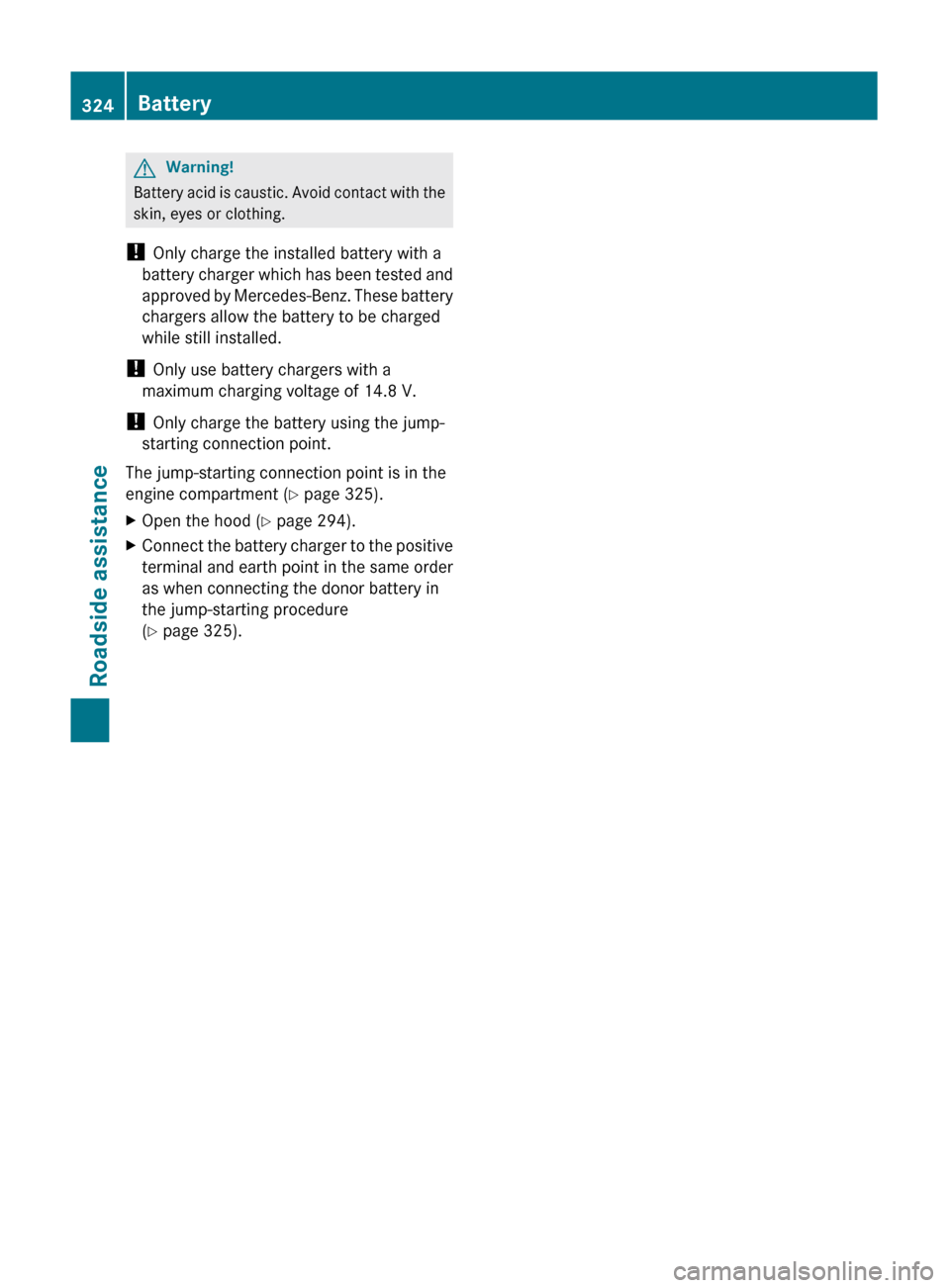

Page 326 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual GWarning!
Battery acid is caustic. Avoid contact with the
skin, eyes or clothing.
!  Only charge the installed battery with a
battery charger which has been tested and
approved by Mercedes-Benz. These

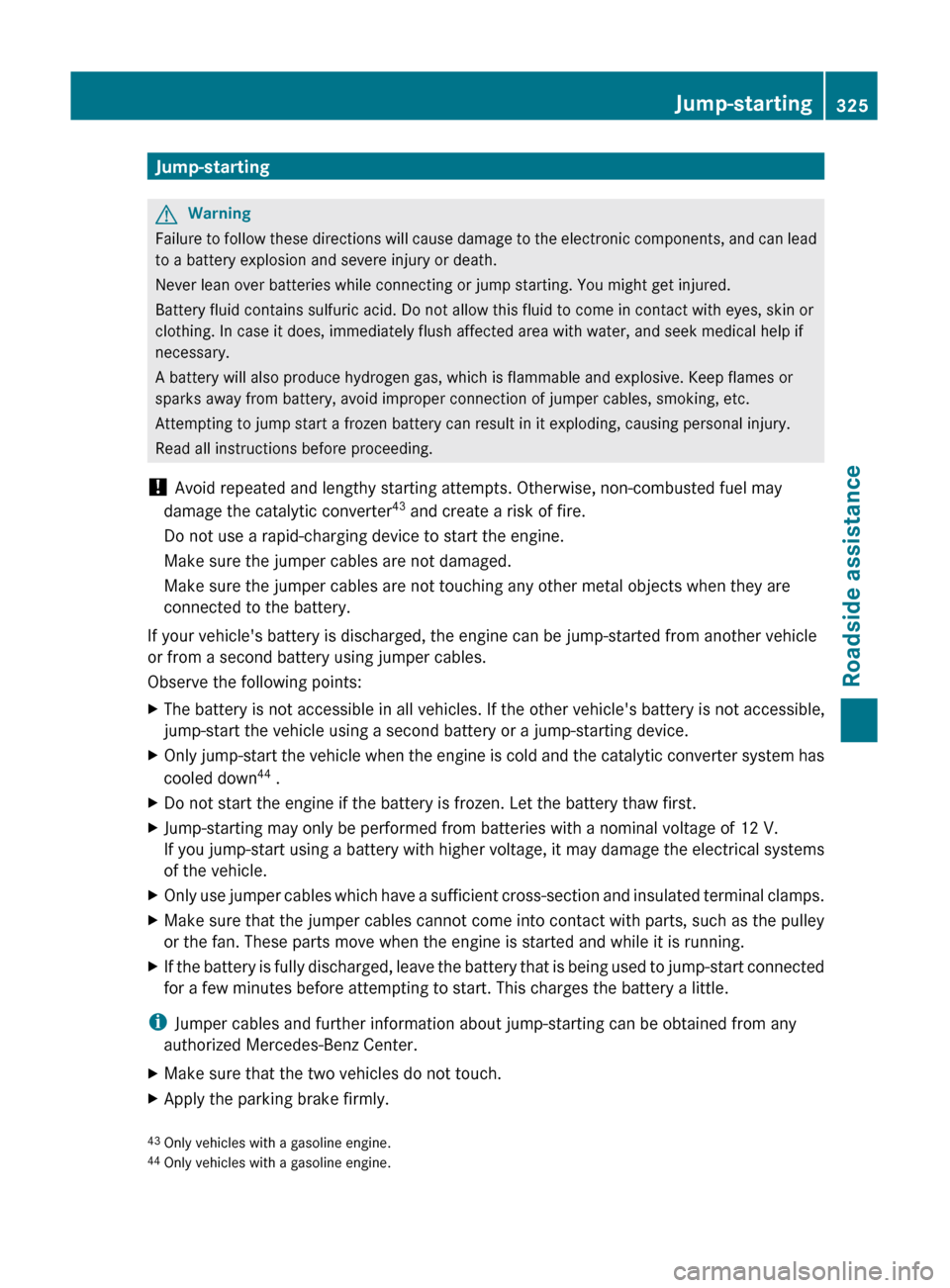

Page 327 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual Jump-startingGWarning
Failure to follow these directions will cause damage to the electronic components, and can lead
to a battery explosion and severe injury or death.
Never lean over batteries while

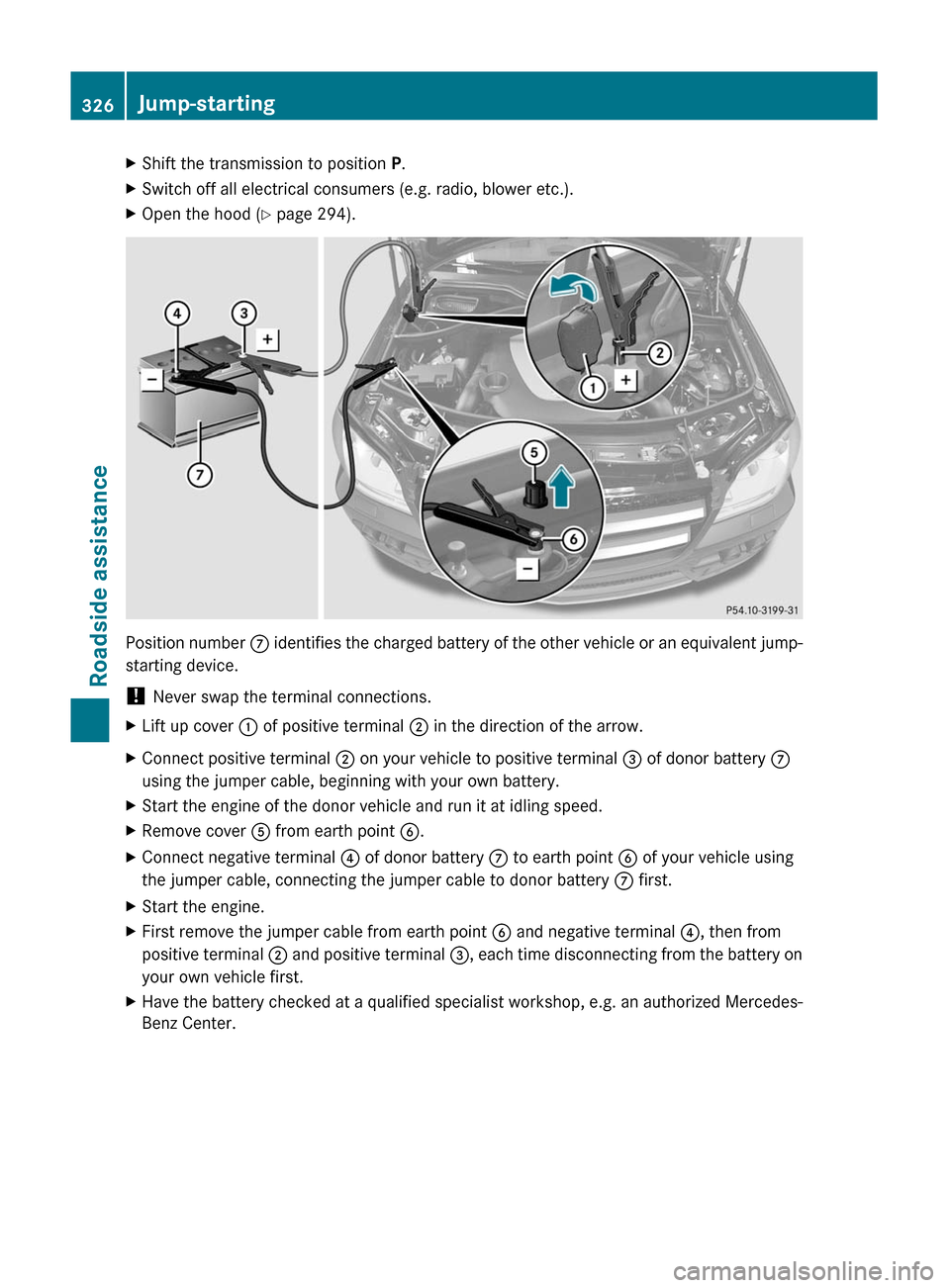

Page 328 of 376

MERCEDES-BENZ GL350 BlueTEC 2011 X164 Owners Manual XShift the transmission to position P.XSwitch off all electrical consumers (e.g. radio, blower etc.).XOpen the hood ( Y page 294).
Position number  C identifies the charged battery of the other vehicl
