2010 TOYOTA PRIUS Owners Manual

385
3-6. Other interior features
3
Interior features
PRIUS_U (OM47668U) U.S.A.

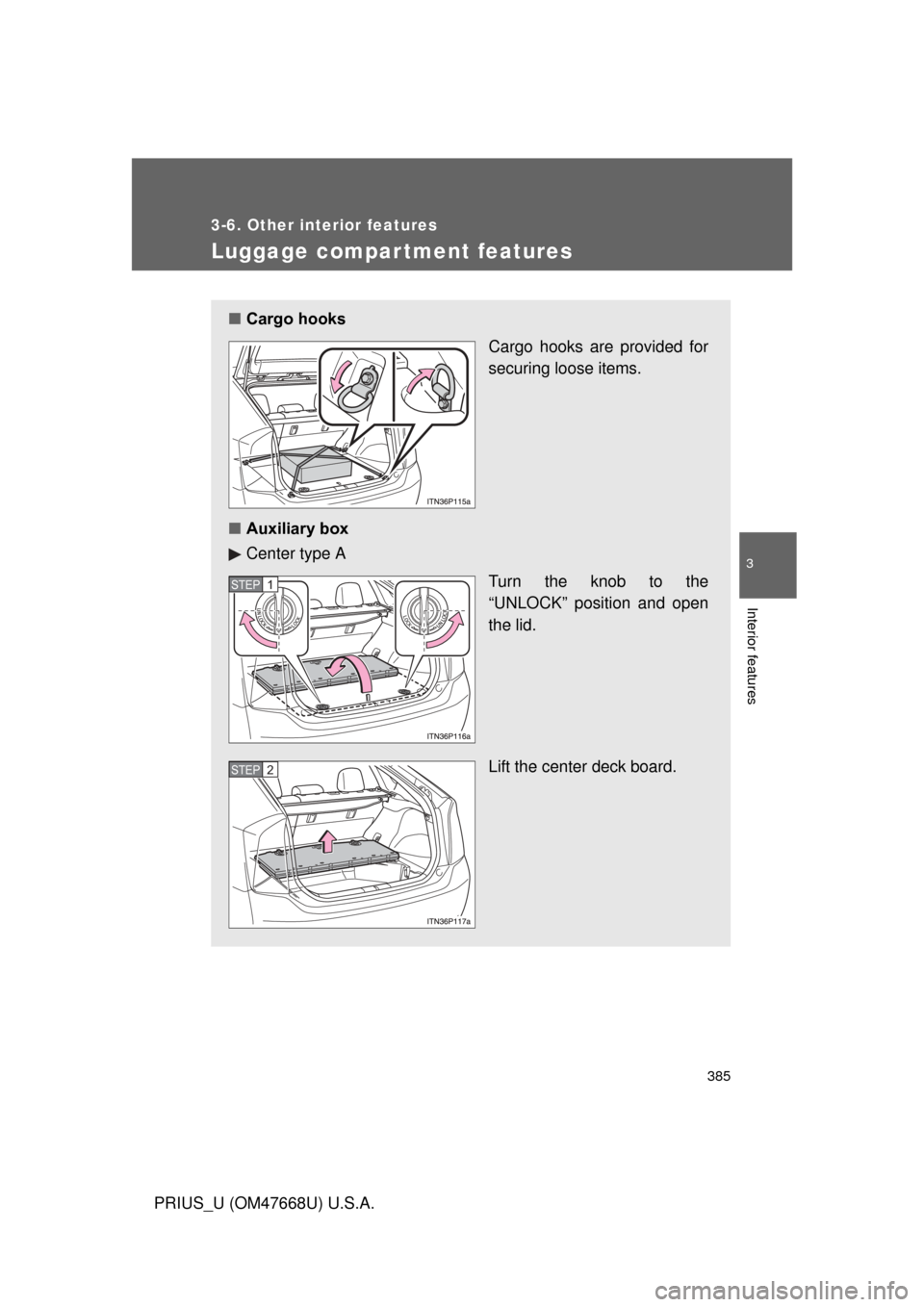

Luggage compar tment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Auxiliary box
Center type A
Turn the knob to the
“UNLOCK” position and open
the lid.
Lift the center deck board.
STEP1
STEP2

386 3-6. Other interior features
PRIUS_U (OM47668U) U.S.A.
Center type BLift the center deck board.
Side Lift the side deck board.

387
3-6. Other interior features
3
Interior features
PRIUS_U (OM47668U) U.S.A.
Removing the luggage cover
Lift it up.
■Luggage cover (If equipped)
Adjust the cover so that “TOP”
is facing upwards.
Pull out the luggage cover and
secure it to the hook brackets.
STEP1
STEP2

388 3-6. Other interior features
PRIUS_U (OM47668U) U.S.A.
■Stowing the luggage cover (vehicles with center auxiliary box type A
only)
■ When not using the luggage cover
Place the cover in a horizontal position.
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
■ While driving
Do not place anything on the luggage cover. Such items may be thrown
about and possibly injure people in the vehicle during sudden braking or an
accident.
Remove the side deck boards and
open the center auxiliary box.
Adjust the cover so that “TOP” is facing
up.STEP1
STEP2

389
3-6. Other interior features
3
Interior features
PRIUS_U (OM47668U) U.S.A.
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufac-
tured under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
 compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Buttons
Indicator
■ Programming the HomeLink

Point the remote control for the
device 1 to 3 in. (25 to 75 mm)
from the HomeLink
 control but-
tons.
Keep the indicator light on the
HomeLink in view while pro-
gramming.
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, hom e lighting systems, and
security systems, and other devices.
ITO36P12R
STEP1

390 3-6. Other interior features
PRIUS_U (OM47668U) U.S.A.Press and hold down one of the
buttons on the HomeLink
 and
the button on the transmitter.
When the indicator light on the
HomeLink
 changes from a slow
to a rapid flash after 20 seconds,
you can release both buttons.
Test the operation of the
HomeLink
 by pressing the
newly programmed button.
If programming a garage door
opener, check to see if the garage
door opens and closes. If the
garage door does not operate,
see if your garage transmitter is
of the Rolling Code type. Press
and hold the programmed
HomeLink
 button. The garage
door has the rolling code feature
if the indicator light (on the
HomeLink
) flashes rapidly for 2
seconds and then remains lit. If
your transmitter is the Rolling
Code type, proceed to the head-
ing “Programming a rolling code
system”.
Repeat the steps above to program another device for each of
the remaining HomeLink buttons.
STEP2
STEP3
STEP4

391
3-6. Other interior features
3
Interior features
PRIUS_U (OM47668U) U.S.A.
■
Programming a Rolling Code sys tem (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with
the steps listed below.
Locate the learn button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the learn button.
Press the learn button.
Press and hold the vehicle’s programmed HomeLink
 button
for 2 seconds and release it. Repeat this step one again. The
garage door may open.
If the garage door opens, the programming process is complete. If
the door does not open, press and release the button a third time.
This third press and release will complete the programming process
by opening the garage door.
The ceiling mounted garage door opener motor should now recog-
nize the HomeLink
 transceiver and operate the garage door.
Repeat the steps above to prog ram another rolling code sys-
tem for any of the remaining HomeLink buttons.
STEP1
STEP2
STEP3
STEP4

392 3-6. Other interior features
PRIUS_U (OM47668U) U.S.A.■
Programming an entry gate (f or U.S.A. owners)/Programming
all devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the
surface of the HomeLink
.
Keep the indicator light on the HomeLink in view while program-
ming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote
control button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans-
ceiver start to flashing rapidly, release the buttons.
Test the operation of the HomeLink
 by pressing the newly
programmed button. Check to se e if the gate/device operates
correctly.
Repeat the steps above to program another device for each of
the remaining HomeLink
 buttons.
■ Programming other devices
To program other devices such as home security systems, home
door locks or lighting, contact your authorized Toyota dealer for
assistance.
■ Reprogramming a button
The individual HomeLink
 buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Basic program-
ming” instructions.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
