2010 TOYOTA PRIUS Owners Manual

329
3-3. Using the hands-free system (for cellular phone)
3
Interior features
PRIUS_U (OM47668U) U.S.A.
Using the hands-free system
■Audio unit
Displays Bluetooth
® con-
nection condition
If “BT” is not displayed, the
hands-free system cannot
be used.
Displays the reception level
Displays such items as
message, name, and phone
number
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Selects items such as menu
or number
Turn: Selects an item 
Press: Inputs the selected
item
Push and hold: Displays
information that is too long
to be displayed at one time
on the display
Selects speed dials

330 3-3. Using the hands-free system (for cellular phone)
PRIUS_U (OM47668U) U.S.A.

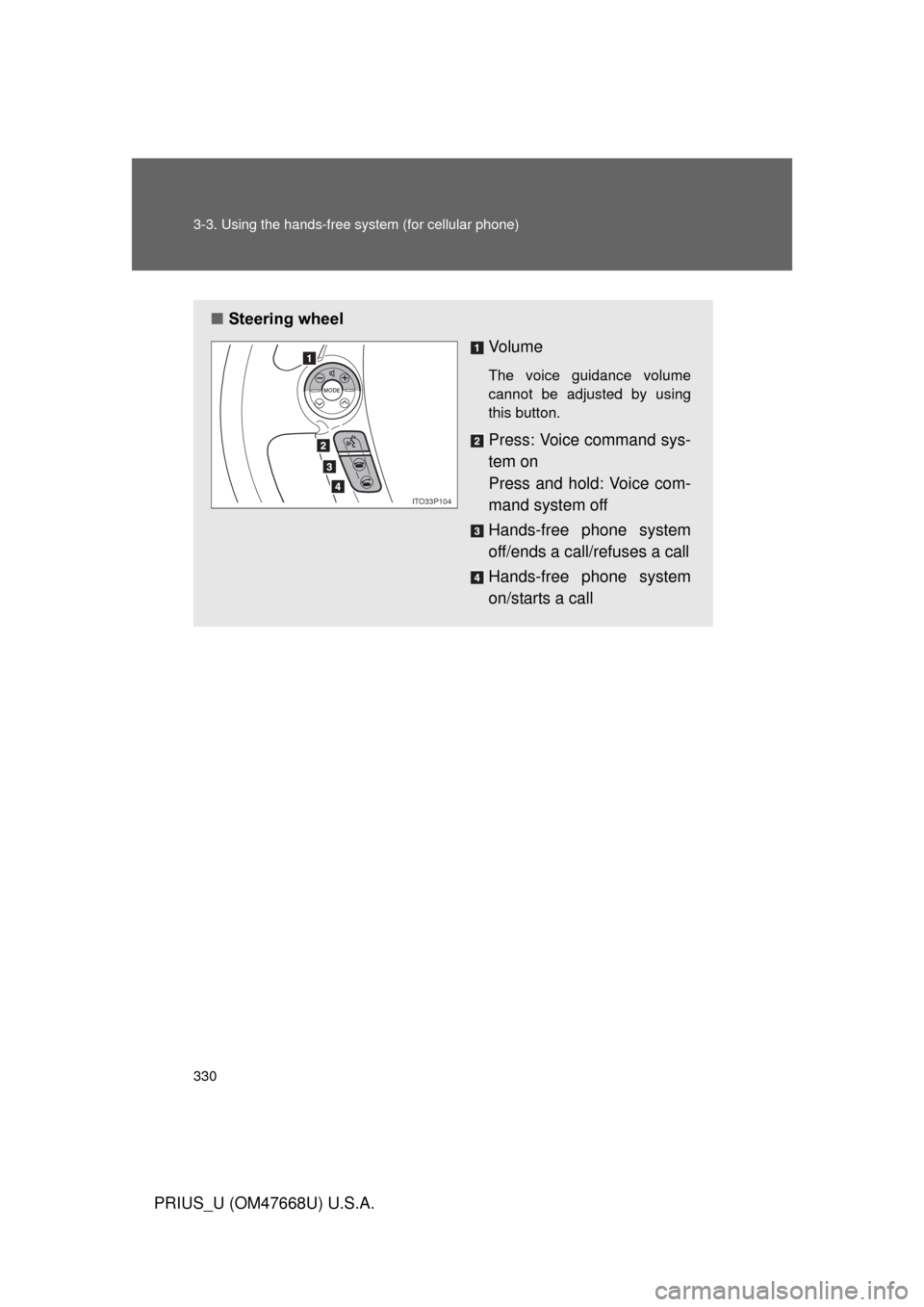

■Steering wheel
Vo l u m e
The voice guidance volume
cannot be adjusted by using
this button.
Press: Voice command sys-
tem on
Press and hold: Voice com-
mand system off
Hands-free phone system
off/ends a call/refuses a call
Hands-free phone system
on/starts a call
ITO33P104

331
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U (OM47668U) U.S.A.

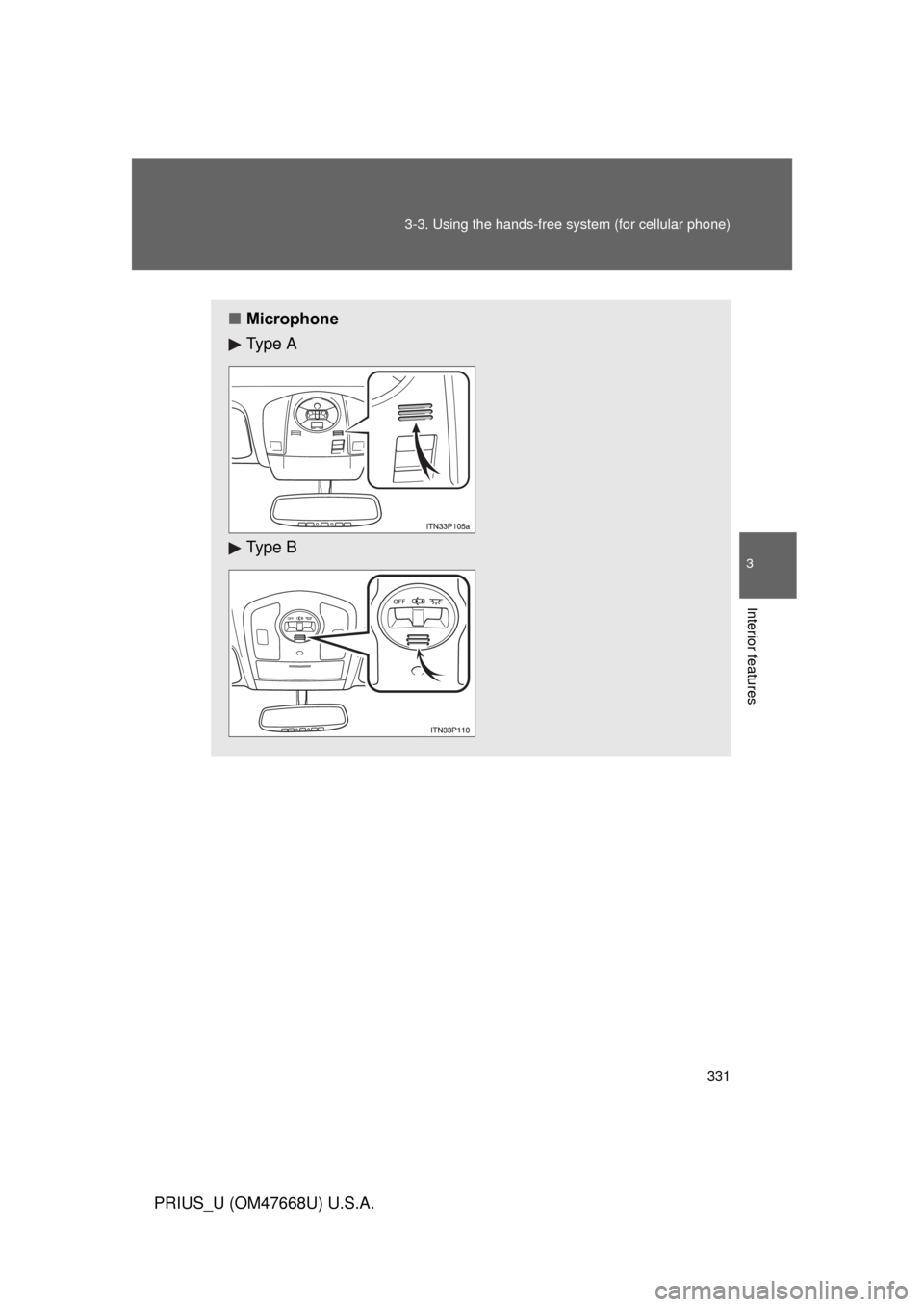

■Microphone
Ty p e A
Ty p e B

332 3-3. Using the hands-free system (for cellular phone)
PRIUS_U (OM47668U) U.S.A.
Operating the system by using a voice commandBy following voice gui dance instructions output from the speaker,
voice commands can be given to allow for operation of the hands-
free system without checking the display or operating .
■ Operation procedure when using a voice command
Press and say a command for a desired function. 
(  P. 334)
■ Auxiliary commands when using a voice command
The following auxiliary commands can be used:
Cancel: Exits the hands-free system
Repeat: Repeats the previous voice guidance instruction
Go back: Returns to the previous procedure
Help: Reads aloud the function summary if a help comment is registered for the selected function
Using the hands-free system for the first time
Before using the hands-free system, it is necessary to register a cel-
lular phone in the system. The phone registration mode will be
entered automatically when starting the system with no cellular
phone registered. Follow the procedure below to register a cellular
phone:

333
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U (OM47668U) U.S.A.Press
or .
The introductory guidance and phone name registration instructions
are heard.
Register a phone name by either of the following methods.
a. Select “Record Name” by using , and say a name to
be registered.
b. Press and say a name to be registered.
A voice guidance instruction to confirm the input is heard.
Select “Confirm” by using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction
for inputting the passkey into the cellular phone is heard. Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
Guidance for registration completion is heard.
STEP1
STEP2
STEP3
STEP4

334 3-3. Using the hands-free system (for cellular phone)
PRIUS_U (OM47668U) U.S.A.
Menu list of the hands-free system■ Normal operation
First menuSecond
menuThird menuOperation detail
Callback

Dialing a number stored in
the incoming call history
memory
Redial

Dialing a number stored in
the outgoing call history
memory
Dial by 
number
Dialing by inputting a number
Dial by 
name
Dialing by inputting a name
registered in the phone book
Phone-
book Add Entry
Adding a new number
Change
Name
Changing a name in the
phone book
Delete
Entry
Deleting the phone book
data
Delete
Speed
Dial (Del
Spd Dial)
Deleting a registered speed
dial
List
Names
List the phone book data
Set
Speed
Dial 
(Speed
Dial) 
Registering a speed dial

335
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U (OM47668U) U.S.A.
First menuSecond
menuThird menuOperation detail
Setup Security
Set PIN Setting a PIN code
Phonebook Lock Locking the phone book
Phonebook
Unlock
Unlocking the phone book
Phone
Setup Pair Phone
Registering a cellular phone
to be used
Change Name Changing a registered name
of a cellular phone
Delete Deleting a registered cellular
phone
List phones Listing the registered cellular
phones
Select phone Selecting a cellular phone to
be used
Set Passkey Changing the passkey
System
Setup Guidance 
Vo l u m e

(Guidance Vol) Setting voice guidance

volume
Initialize Initialization

336 3-3. Using the hands-free system (for cellular phone)
PRIUS_U (OM47668U) U.S.A.■
Using a short cut key
First menuSecond menuOperation detail
Dial “XXX (name)”
Dialing a number registered
in the phone book
Phone book add
entry
Adding a new number
Phone book change
name
Changing a name of a phone
number in the phone book
Phone book delete
entry
Deleting phone book data
Phone book set
speed dial
Registering a speed dial
Phone book delete
speed dial
Deleting a speed dial
Phonebook Phonebook Unlock Unlocking the phone book
Phonebook Lock Locking the phone book
