2010 TOYOTA PRIUS Owners Manual

209
2-3. Operating the lights and windshield wipers
2
When driving
PRIUS_U (OM47668U) U.S.A.
Fog light switch
: If equipped
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. The fog lights can be used when the headlights are
on low beam.
Off
On
ITO23P109

210
2-3. Operating the lights and windshield wipers
PRIUS_U (OM47668U) U.S.A.

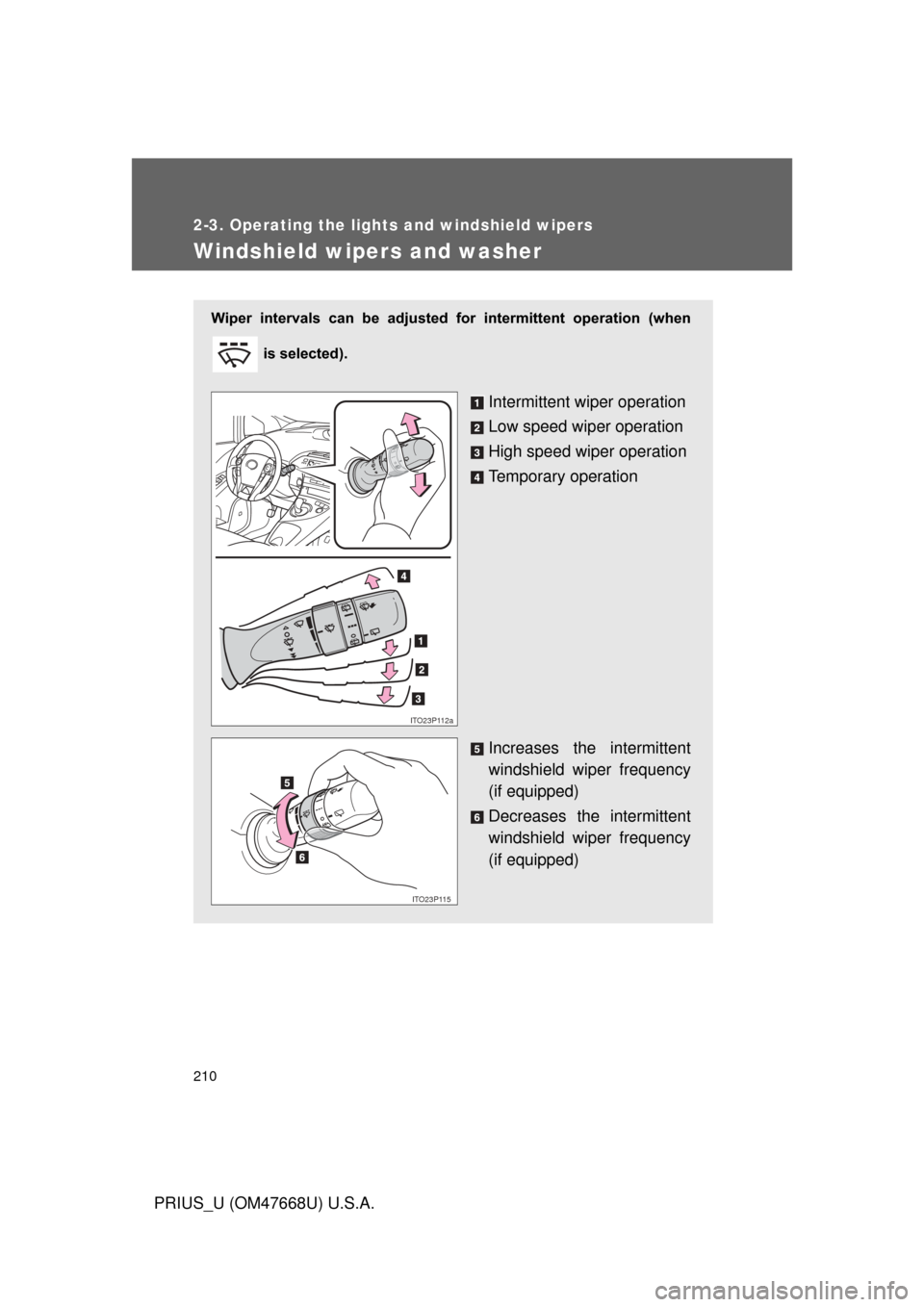

Windshield wipers and washer
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
(if equipped)
Decreases the intermittent
windshield wiper frequency
(if equipped)
ITO23P112a
ITO23P115

211
2-3. Operating the lights and windshield wipers
2
When driving
PRIUS_U (OM47668U) U.S.A.
■
The windshield wipers and washer can be operated when
The “POWER” switch is in ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
Wash/wipe operation
Wipers operate automatically.
ITO23P118

212
2-3. Operating the lights and windshield wipers
PRIUS_U (OM47668U) U.S.A.
Rear window wiper and washer
: If equipped
■The rear window wiper and w asher can be operated when
The “POWER” switch is in ON mode.
NOTICE
■ When the rear window is dry
Do not use the wipers, as they may damage the rear window.
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer/wiper dual opera-
tion
Washer/wiper dual opera-
tion
ITO23P121a

213
2-3. Operating the lights and windshield wipers
2
When driving
PRIUS_U (OM47668U) U.S.A.
Headlight cleaner switch
: If equipped
■The headlight cleaner can be operated when
The “POWER” switch is in ON mode and the headlight switch is turned on.
If equipped, the headlight switch is in the “AUTO” position and the headlight
is on.
■ Windshield washer linked operation
When the windshield washer is operated with the “POWER” switch in ON
mode and the low beam headlights on, the headlight cleaner will operate
once. ( P. 210)
NOTICE
■When the washer fluid tank is empty
Do not use this function when the washer fluid tank is empty. This may
cause the washer fluid pump to overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.
ITO23P124

214
PRIUS_U (OM47668U) U.S.A.
2-4. Using other driving systems
Cruise control
: If equipped
Use the cruise control to maintain a set speed without using the
accelerator.
Cruise control switch
Indicators
■ Set the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Press the button once more to
deactivate the cruise control.
Accelerate or decelerate to
the desired speed and press
the lever down to set the
cruise control speed.
ITO24P101
ITO24P103
STEP1
ITO24P104
STEP2

215
2-4. Using other
driving systems
2
When driving
PRIUS_U (OM47668U) U.S.A.
■Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set
speed can be made by lightly
pushing the lever up or down
and releasing it.
■Canceling and resuming regular acceleration
Cancel
Pull the lever towards you to
cancel cruise control.
The speed setting is also can-
celed when the brakes are
applied.
Resume
To resume cruise control and
return to the set speed, push
the lever up.
ITO24P105
ITO24P106

216 2-4. Using other driving systems
PRIUS_U (OM47668U) U.S.A.
■Cruise control can be set when
● The shift lever is in “D”.
● Vehicle speed is more than approximately 25 mph (40 km/h).
■ Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
■ Automatic cruise control cancelation
The set speed is automatically canceled in any of the following situations.
● Actual vehicle speed falls more than 10 mph (16 km/h) below the preset
vehicle speed
● Actual vehicle speed is below 25 mph (40 km/h)
● Enhanced VSC is activated
■ If the cruise main indicator light flashes
Press the “ON-OFF” button once, and then press the button again to reacti-
vate the system. 
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Contact your Toyota dealer, and have your Toyota inspected.
