1-8. Safety information
Before driving
PRIUS_U (OM47668U) U.S.A.

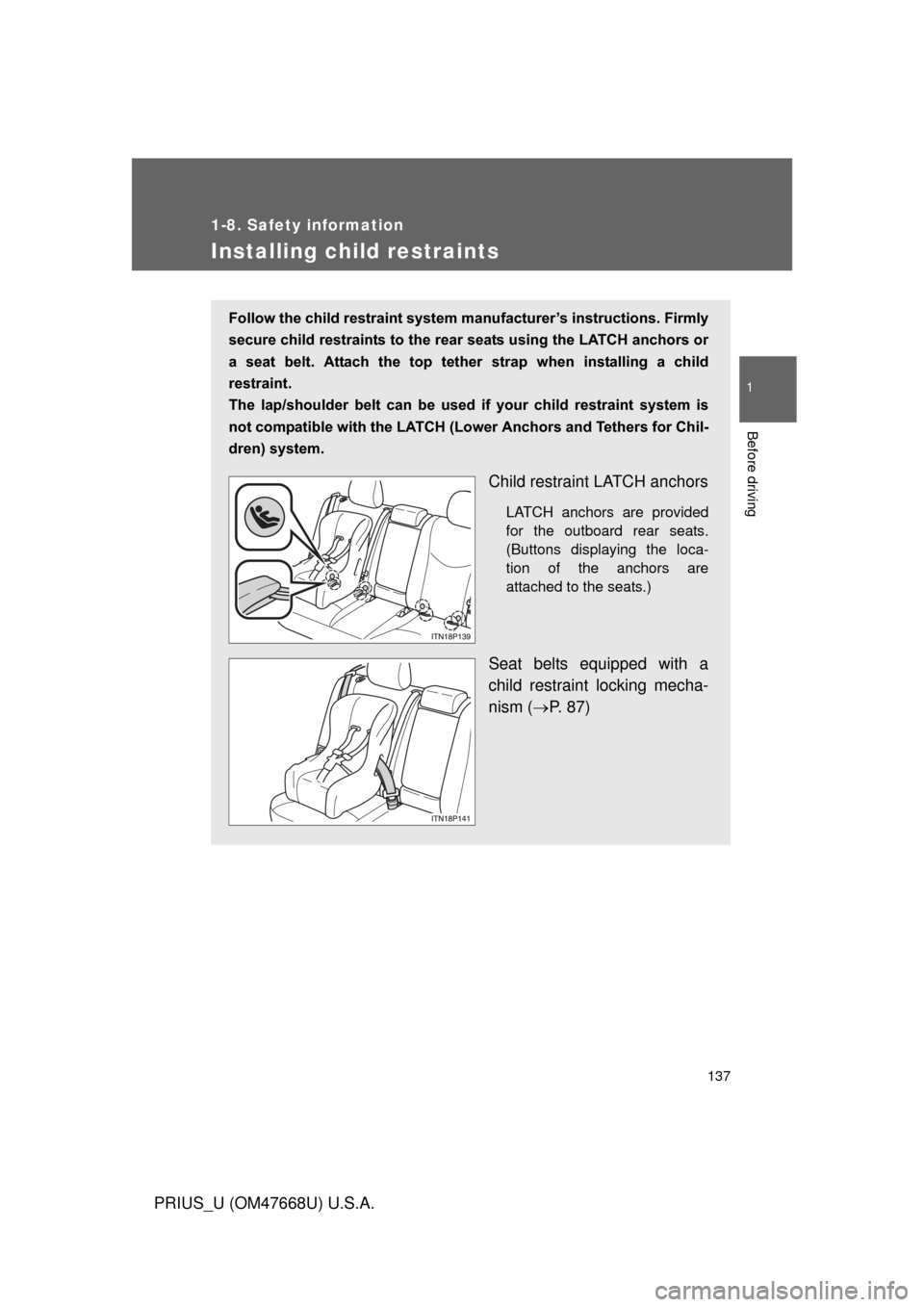

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the rear seats using the LATCH anchors or
a seat belt. Attach the top tether strap when installing a child
restraint. 
The lap/shoulder belt can be used if your child restraint system is
not compatible with the LATCH (Low er Anchors and Tethers for Chil-
dren) system.
Child restraint LATCH anchors
LATCH anchors are provided
for the outboard rear seats.
(Buttons displaying the loca-
tion of the anchors are
attached to the seats.)
Seat belts equipped with a
child restraint locking mecha-
nism ( P. 87)

138 1-8. Safety information
PRIUS_U (OM47668U) U.S.A.
Installation with LATCH systemType A Widen the gap between
the seat cushion and
seatback slightly.
Latch the hooks of the
lower straps onto the
LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Anchor bracket (for top tether
strap)
Anchor brackets are provided
for all rear seats.
Canada only
STEP1
STEP2
STEP3

139
1-8. Safety information
1
Before driving
PRIUS_U (OM47668U) U.S.A.
Type B
Widen the gap between
the seat cushion and
seatback slightly.
Latch the buckles onto
the LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
For owners in Canada: 
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only
STEP1
STEP2
STEP3

140 1-8. Safety information
PRIUS_U (OM47668U) U.S.A.
Installing child restraints using a seat belt (child restraint lock
function belt)
■ Rear facing Infant seat/convertible seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate the
ALR lock mode.
Lock mode allows the seat belt to
retract only.
STEP1
STEP2
STEP3

141
1-8. Safety information
1
Before driving
PRIUS_U (OM47668U) U.S.A.
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■
Forward facing Convertible seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP4
STEP1
STEP2

142 1-8. Safety information
PRIUS_U (OM47668U) U.S.A.Fully extend the shoulder strap
and then allow it to retract
slightly into the ALR lock mode.
Lock mode allows the seat belt to
retract only.
While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top te
ther strap, the top tether strap
should be latched onto the top tether strap anchor. ( P. 144)
■ Booster seat
Place the child restraint system
on the seat facing the front of the
vehicle.
STEP3
STEP4
STEP5
STEP1

143
1-8. Safety information
1
Before driving
PRIUS_U (OM47668U) U.S.A.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.

( P. 85)
Removing a child restraint system installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
STEP2

144 1-8. Safety information
PRIUS_U (OM47668U) U.S.A.
Child restraint systems with a top tether strapSecure the child restraint syst em using a seat belt or lower
anchors, and do the following.
Outside (foldable type)
Adjust the head restraint to the
upmost position.
Outside (non-foldable type) Remove the head restraint.
Center Adjust the head restraint to the
upmost position.
STEP1
