Page 65 of 592
65
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
L/C200_UOpen one of the doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set. In
case that the alarm is triggered, immediately stop the alarm.
(
P. 98)
Using the door lock switch
Carry only the key to which you want to link the driving position. If 2
or more keys are in the vehicle, the driving position cannot be
linked properly.
Turn the “ENGINE START STOP” switch to OFF after closing
the driver’s door. While pressing the desired but-
ton (“1”, “2”, or “3”), press the
lock or unlock side on the door
lock switch until the signal
beeps.
The driving position is recalled
when the driver’s door is
unlocked using the entry function
or wireless remote control and the
driver’s door is opened.
STEP3
STEP1
STEP2
Page 66 of 592

66 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_U
■Canceling the linked door unlock operation
Turn the “ENGINE START STOP” switch to OFF after closing the
driver’s door.
Using the wireless remote control: While pressing “SET” button,
press button on the wireless remote control until the signal
beeps.
Using the door lock switch: While pressing “SET” button, press the
lock or unlock side on the door lock switch until the signal beeps.
■ Retained accessory power
● Each memorized position (except for the steering wheel position) can be
activated within 3 minutes after the driver’s door is opened, even if the
“ENGINE START STOP” switch is turned off.
● Each memorized position (except for the steering wheel position) can be
activated within 60 seconds after the driver’s door is closed, even if the
“ENGINE START STOP” switch is turned off.
■ To cancel seat position recall
Perform any one of the following operations.
● Press the “SET” button
● Press button “1”, “2” or “3”.
● Adjust the seat using the switches (only cancels seat position recall)
■ If the battery is disconnected
The memorized positions must be reset because the computer’s memory is
erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear pas-
senger or squeeze your body against the steering wheel.
STEP1
STEP2
Page 67 of 592
67
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
L/C200_U
Head restraints
Head restraints are provided for all seats.
Front seatsVertical adjustment
Up
Pull the head restraint up.
Down
Press and hold the lock
release button when lowering
the head restraint.
Angle adjustment
Second seats Vertical adjustment
Up
Down
Push the head restraint up or
down while pressing the lock
release button.
Lock release button
Lock release button
Page 68 of 592
68 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_U
■Adjusting the height of the head restraints
■ Adjusting the second cente r seat head restraint
Always raise the head restraint one level from the stowed position when
using.
Third outboard seats
To f o l d
Pull the head restraint angle
lever to fold the head restraint.
ITY13C040
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Page 69 of 592
69
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
L/C200_U
■Removing the head restraints
Front seats and third center seat
Second seats
Third outboard seats
While pressing in the screwdriver, pull up the head restraint.
Pull the head restraint up while pressing
the lock release button.
ITO13C143Lock release button
Pull the head restraint up while pressing
the lock release button.
Lock release button
Push a flathead screwdriver into the slot.
The slot is located on the left side of the
left head restraint anchor.
ITY13C035
STEP1
STEP2
Page 70 of 592
70 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_U
■Installing the head restraints
Align the head restraint with the installation holes.
Push down the head restraint to the lock position.
■ When not using the third center seat head restraint
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
STEP1
STEP2
Open the zipper on the back of the third
seat and stow the head restraint inside.
ITY13C043
Page 71 of 592
71
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
L/C200_U

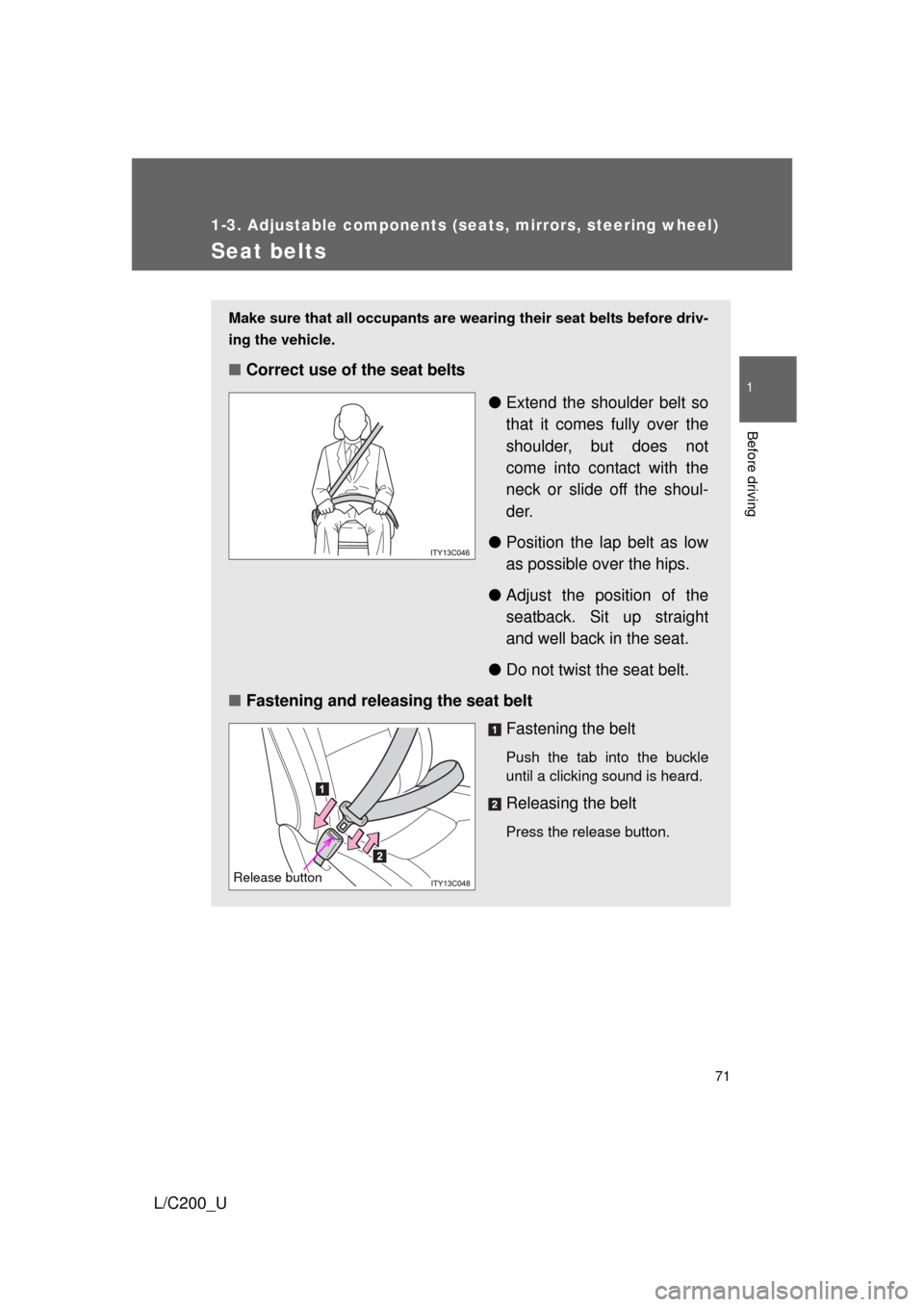

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.
Releasing the belt
Press the release button.
Release button
Page 72 of 592
72 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_U
Third center seat belt
The third center seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be correctly located and securely latched
for proper operation. Make sure that the buckle with
the gray buckle release button is
securely latched for ready use of
the center seat belt.
■Adjusting the height of the belt (front and second outboard
seats)
Down
Up
Move the height adjuster up
and down as needed until you
hear a click.
1
2
ITY13C055
ITY13C049
