2010 TOYOTA LAND CRUISER Owners Manual

545
6-1. Specifications
6
Vehicle specifications
L/C200_U
Lubrication system
*1: Vehicles with a blue-markered dipstick handle
*2: Vehicles with a green-markered dipstick handle
(Location of the marker: P. 430)
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toy-
ota approved “Toyota Genuine Motor Oil” or equivalent to satisfy the
following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-20 or 0W-20
SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE
0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.
Oil capacity
Drain and refill
(Reference)
With filter
Without filter7.4 qt. (7.0 L, 6.2 Imp.qt.)*1
7.9 qt. (7.5 L, 6.6 Imp.qt.)*2
7.0 qt. (6.6 L, 5.8 Imp.qt.)*1
7.5 qt. (7.1 L, 6.2 Imp.qt.)*2
Outside temperature

546 6-1. Specifications
L/C200_UHow to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to
help you select the oil you should use.
Cooling system
Capacity17.6 qt. (16.7 L, 14.7 lmp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

547
6-1. Specifications
6
Vehicle specifications
L/C200_U
Ignition system
Electrical system
Spark plug
Make DENSO
GapSK20HR11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at
68 F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after
the key is removed with all lights
turned off.)
Charging rates5 A max.

548 6-1. Specifications
L/C200_U
Differential
“Toyota Genuine Differential Oil” is filled in your Toyota vehicle at factory
fill.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to sa tisfy the above specification. Please
contact your Toyota dealer for further details.
Automatic transmission
Oil capacity
Front
Rear2.01 qt. (1.90 L, 1.67 lmp.qt.)
4.44 qt. (4.20 L, 3.70 lmp.qt.)
Oil type and
viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Fluid
capacityWithout oil cooler12.3 qt. (11.6 L, 10.2 Imp.qt.)
With oil cooler12.6 qt. (11.9 L, 10.5 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

549
6-1. Specifications
6
Vehicle specifications
L/C200_U
Transfer
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
*2: Parking brake pedal travel when pulled with a force of 45 lbf (200 N, 20 kgf).
Chassis lubrication
Oil capacity1.53 qt. (1.45 L, 1.28 lmp.qt.)
Oil typeGear oil API GL-5
Recommended oil viscositySAE 75W-90
Pedal clearance *13.62 in. (92 mm) Min.
Pedal free play0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake adjustment *25  7 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Propeller shafts
Spider
Slide yokeLithium base chassis grease, NLGI No.2
Molybdenum-disulfide lithium base chas-
sis grease, NLGI No.2 or lithium base
chassis grease, NLGI No.2

550 6-1. Specifications
L/C200_U
Steering
Tires and wheels
Free playLess than 1.18 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II
or III
Tire sizeP285/60R18 114V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Normal driving Front tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare tire:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Trailer towing Front tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare tire:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size18  8 J
Wheel nut torque97 ft•lbf (131 N•m, 13.4 kgf•m)

551
6-1. Specifications
6
Vehicle specifications
L/C200_U

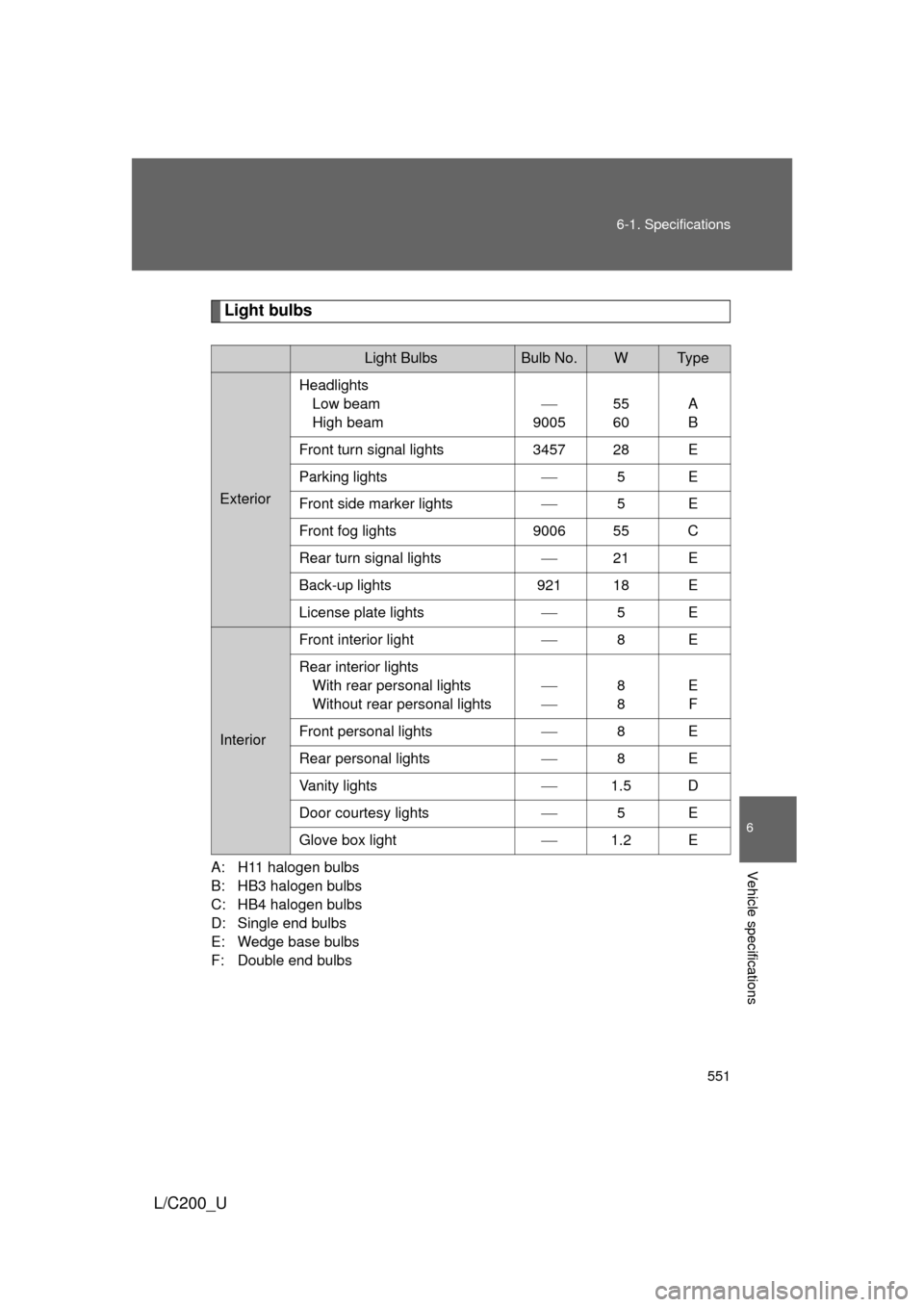

Light bulbs
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: HB4 halogen bulbs
D: Single end bulbs
E: Wedge base bulbs
F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
Low beam
High beam

900555
60A
B
Front turn signal lights345728E
Parking lights5E
Front side marker lights5E
Front fog lights900655C
Rear turn signal lights21E
Back-up lights92118E
License plate lights5E
Interior
Front interior light8E
Rear interior lights With rear personal lights
Without rear personal lights

8
8EF
Front personal lights8E
Rear personal lights8E
Vanity lights1.5D
Door courtesy lights5E
Glove box light1.2E

552
6-1. Specifications
L/C200_U
Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
Your vehicle must use only unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A.
