Installation with LATCH system
Fold the seatback forward and
then adjust it as upright as possi-
ble.
Take off the covers between the
seat cushion a nd seatback, then
confirm the position of the
LATCH anchors below the sym-
bol in the seatback.
STEP1
ITY17C106
STEP2

130 1-7. Safety information
L/C200_UType A
Latch the hooks of the
lower straps onto the
LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
Type B Latch the buckles onto
the LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
ITY17C124
STEP3
STEP4
ITY17C056
STEP3
STEP4

131
1-7. Safety information
1
Before driving
L/C200_U
Installing child restraints using a
seat belt (child restraint lock
function belt)
■ Rear-facing  Infant seat/convertible seat
Fold the seatback while pulling
the seatback angle lever.
Return the seatback and secure
it at the first lock position.
( P. 54)
Place the child restraint system
on the second or third seat fac-
ing the rear of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP1
STEP2
STEP3

132 1-7. Safety information
L/C200_UFully extend the shoulder belt
and then allow it to retract
slightly in order to activate the
ALR lock mode.
Lock mode allows the seat belt to
retract only.
While pushing the child restraint
system down into the seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
STEP4
STEP5

133
1-7. Safety information
1
Before driving
L/C200_U
■
Forward-facing Convertible seat
Fold the seatback while pulling
the seatback angle lever.
Return the seatback and secure
it at the first lock position.
( P. 54)
Place the child restraint system
on the second or third seat fac-
ing the front of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP1
STEP2
STEP3

134 1-7. Safety information
L/C200_UFully extend the shoulder strap
and then allow it to retract
slightly into the ALR lock mode.
Lock mode allows the seat belt to
retract only.
While pushing the child restraint
system into the seat, allow the
shoulder belt to retract until the
child restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint system has a top tether strap, the top
tether strap should be latched onto the top tether strap
anchor. (
P. 129)
STEP4
STEP5
STEP6

135
1-7. Safety information
1
Before driving
L/C200_U
■
Booster seat
Fold the seatback while pulling
the seatback angle lever.
Return the seatback and secure
it at the first lock position.
( P. 54)
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in th e child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 71)
STEP1
STEP2
STEP3

136 1-7. Safety information
L/C200_U

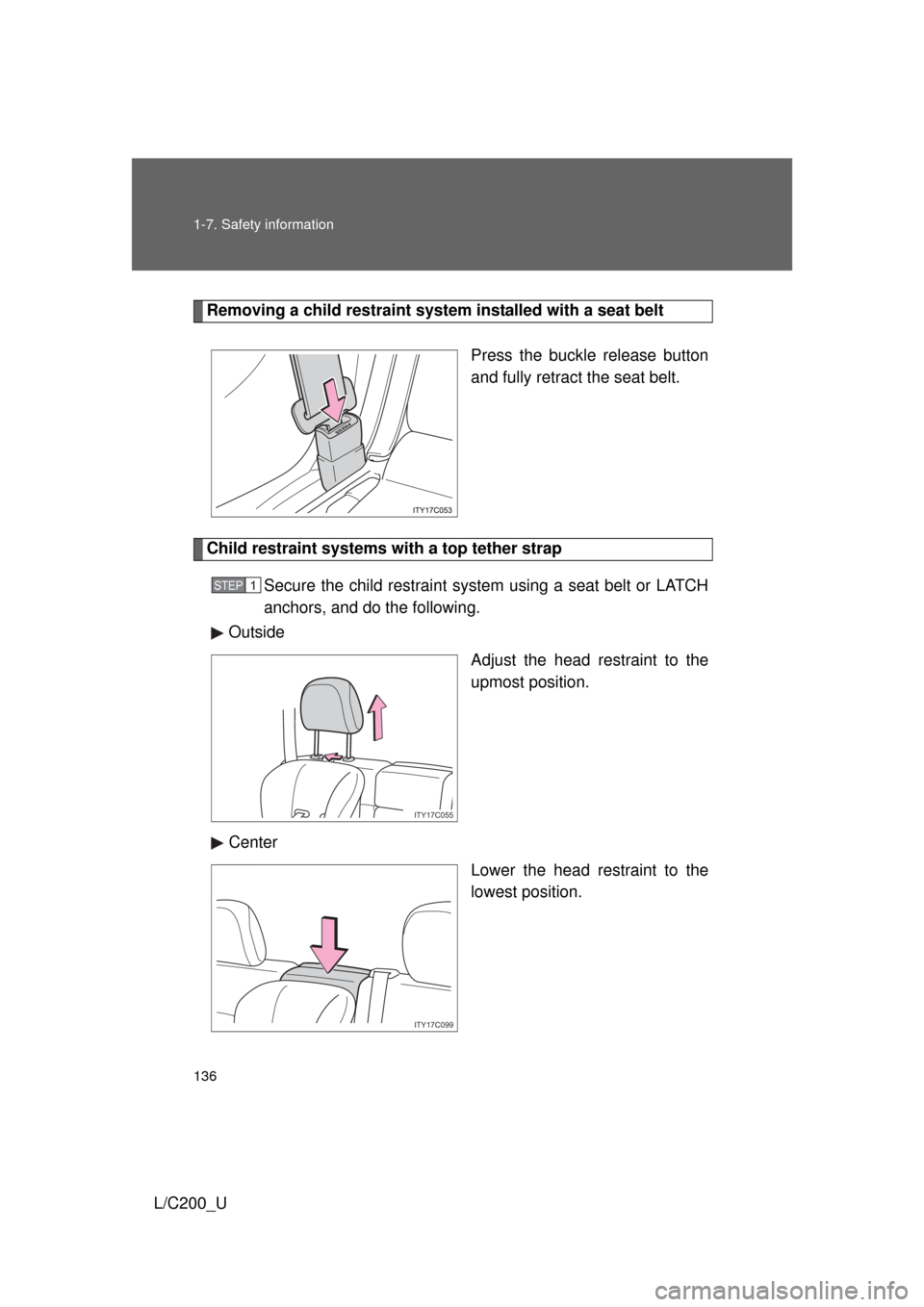

Removing a child restraint system installed with a seat beltPress the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strapSecure the child restraint system using a seat belt or LATCH
anchors, and do the following.
Outside
Adjust the head restraint to the
upmost position.
Center Lower the head restraint to the
lowest position.
STEP1
ITY17C055
STEP1
ITY17C099
