2010 TOYOTA LAND CRUISER Owners Manual

369
3
Interior features
L/C200_U
3-5. Using the interior lights

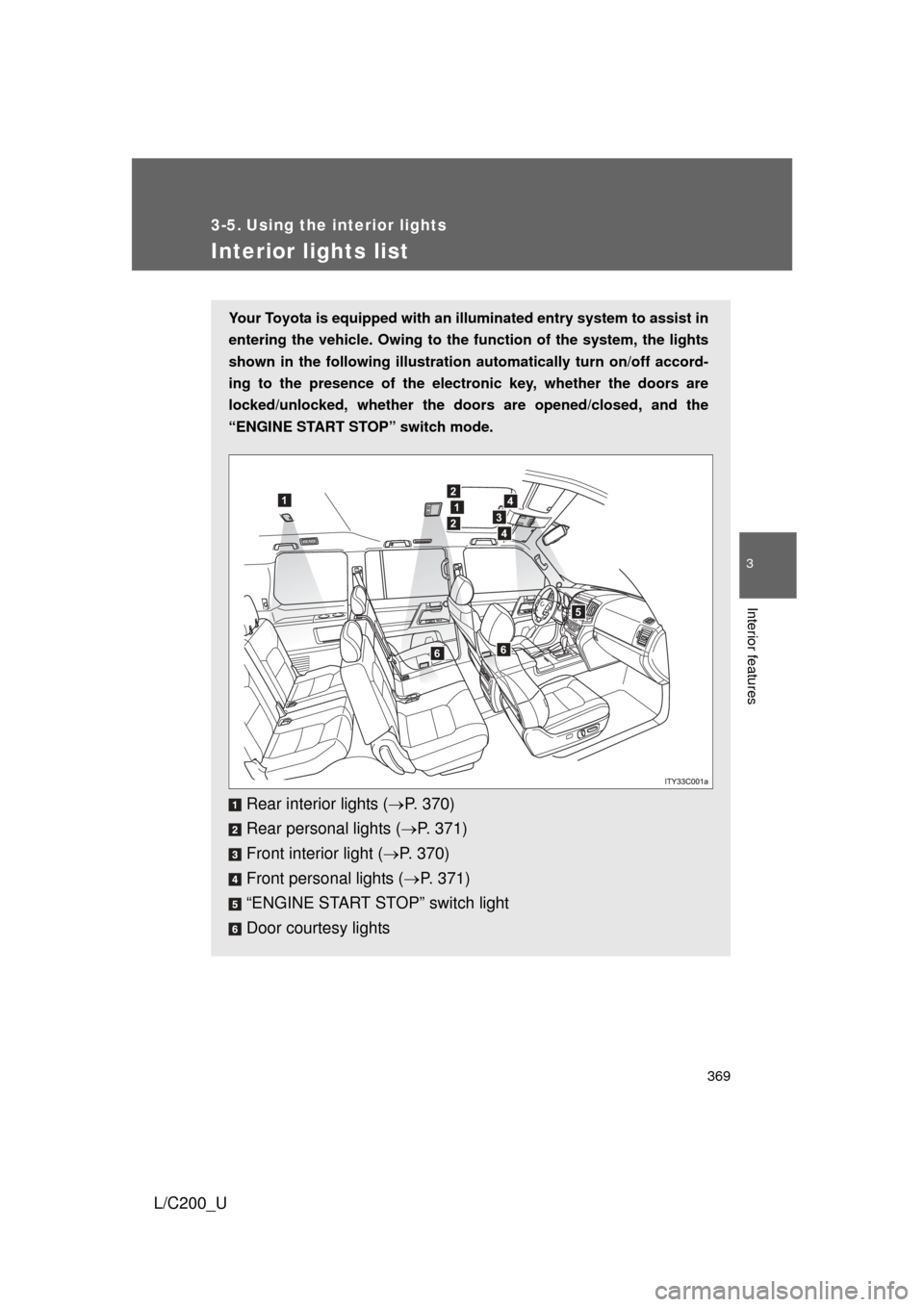

Interior lights list
Your Toyota is equipped with an illuminated entry system to assist in
entering the vehicle. Owing to the function of the system, the lights
shown in the following illustration automatically turn on/off accord-
ing to the presence of the electr onic key, whether the doors are
locked/unlocked, whether the door s are opened/closed, and the
“ENGINE START STOP” switch mode.
Rear interior lights ( P. 370)
Rear personal lights ( P. 371)
Front interior light ( P. 370)
Front personal lights ( P. 371)
“ENGINE START STOP” switch light
Door courtesy lights
12
1
2
4
3
4
5
66

370 3-5. Using the interior lights
L/C200_U
Interior lightsFront Door position on/off
On/off
Rear Door position
On
■To prevent the battery from being discharged
If the interior lights and “ENGINE START STOP” switch light remain on when
the door is not fully closed and the interior light switch is in the door position,
the lights will go off automatically after 20 minutes.
■ Customization
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
P. 567)
ITY33C008
Interior lights

371
3-5. Using the interior lights
3
Interior features
L/C200_U
Personal lights
Front On/off
Rear (type A) On/off
Rear (type B) On/off
ITY33C014
Personal lights

372
L/C200_U
3-6. Using the storage features
List of storage features
Card holders
Overhead console
Glove box
Bottle holders
Door pockets
Auxiliary box
Console box/cool box
Cup holders
411234545
67845
ITY34C001

373
3-6. Using the
storage features
3
Interior features
L/C200_U
Glove box
Open (push button)
Lock with the mechanical key
Unlock with the mechanical
key
ITY34C003
■Glove box light
The glove box light turns on when the tail lights are on.
CAUTION
■While driving
Keep the glove box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
Glove box

374 3-6. Using the storage features
L/C200_U
Console boxYour vehicle is equipped with either a lower console box or cool box.
For vehicles with the cool box, refer to page 380.
Upper console box Press the tab to open.
Lower console box (if equipped) Lift the lever to open.
Remove the tray.
ITY34C005
ITY34C006
STEP1
ITY34C033
STEP2
Console box

375
3-6. Using the
storage features
3
Interior features
L/C200_U
Overhead console
Press the button.
The overhead console is useful
for temporarily storing small
items.
CAUTION
■While driving
Keep the console box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
ITY34C009
CAUTION
■Items that should not be le ft in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses
may warp or become cracked.
■ While driving
Do not leave the overhead console open.
Items may fall out and cause injury.
Console box and overhead console

376 3-6. Using the storage features
L/C200_U
Cup holdersFront Press down and release the lid.
You can adjust or remove the
separator inside.
RearPull the armrest down. ( P. 393)
Press the button.
ITY34C011
STEP1
ITY34C015
STEP2
Cup holders
