2010 TOYOTA LAND CRUISER Owners Manual

257
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U
Adjusting the settings
■ Adjusting the temperature setting
Press “ ” to increase the temperature and “ ” to decrease the tem-
perature on .
The temperature for the right-hand and left-hand rear seats can be
set separately.
■ Adjusting the fan speed
Press “ ” (increase) or “ ” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
■Changing the air outlets
Press .
The air outlets switch each time the button is pressed.

258 3-1. Using the air conditioning system and defogger
L/C200_U Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
ITY31C020
ITY31C021
ITY31C022

259
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U
Adjusting the position and opening and closing the air outlets
Rear center outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Roof side outlets Direct air flow to the left or
right, up or down.
Turn the knob fully to the back
of the vehicle to close the
vent.
ITY31C035
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

260
3-1. Using the air conditioning system and defogger
L/C200_U

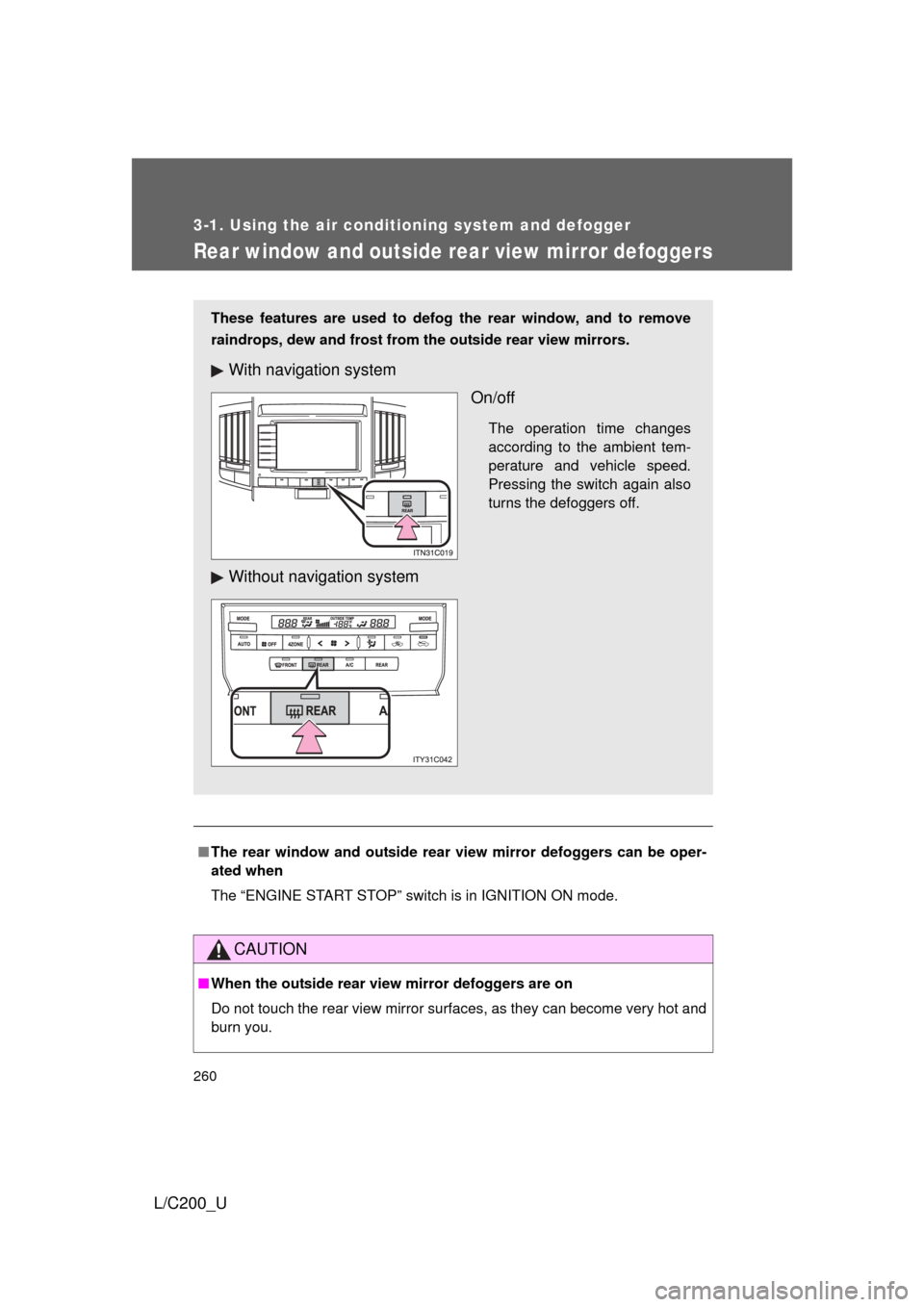

Rear window and outside rear view mirror defoggers
■The rear window and outside rear vi ew mirror defoggers can be oper-
ated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
■ When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
These features are used to defog the rear window, and to remove
raindrops, dew and frost from the outside rear view mirrors.
With navigation system
On/off
The operation time changes
according to the ambient tem-
perature and vehicle speed.
Pressing the switch again also
turns the defoggers off.
Without navigation system

261
3-1. Using the air conditioning system and defogger
3
Interior features
L/C200_U
Windshield wiper de-icer
: If equipped
■The windshield wiper de-icer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
■When the windshield wiper de-icer is on
Do not touch the glass at the lower part of the windshield or to the side of the
front pillars as the surfaces can become very hot and burn you.
This feature is used to prevent ice from building up on the wind-
shield and wiper blades.
With navigation system
On/off
The windshield wiper de-icer
will automatically turn off after
approximately 15 minutes.
Pressing the switch again also
turns the de-icer off.
Without navigation system

262
L/C200_U

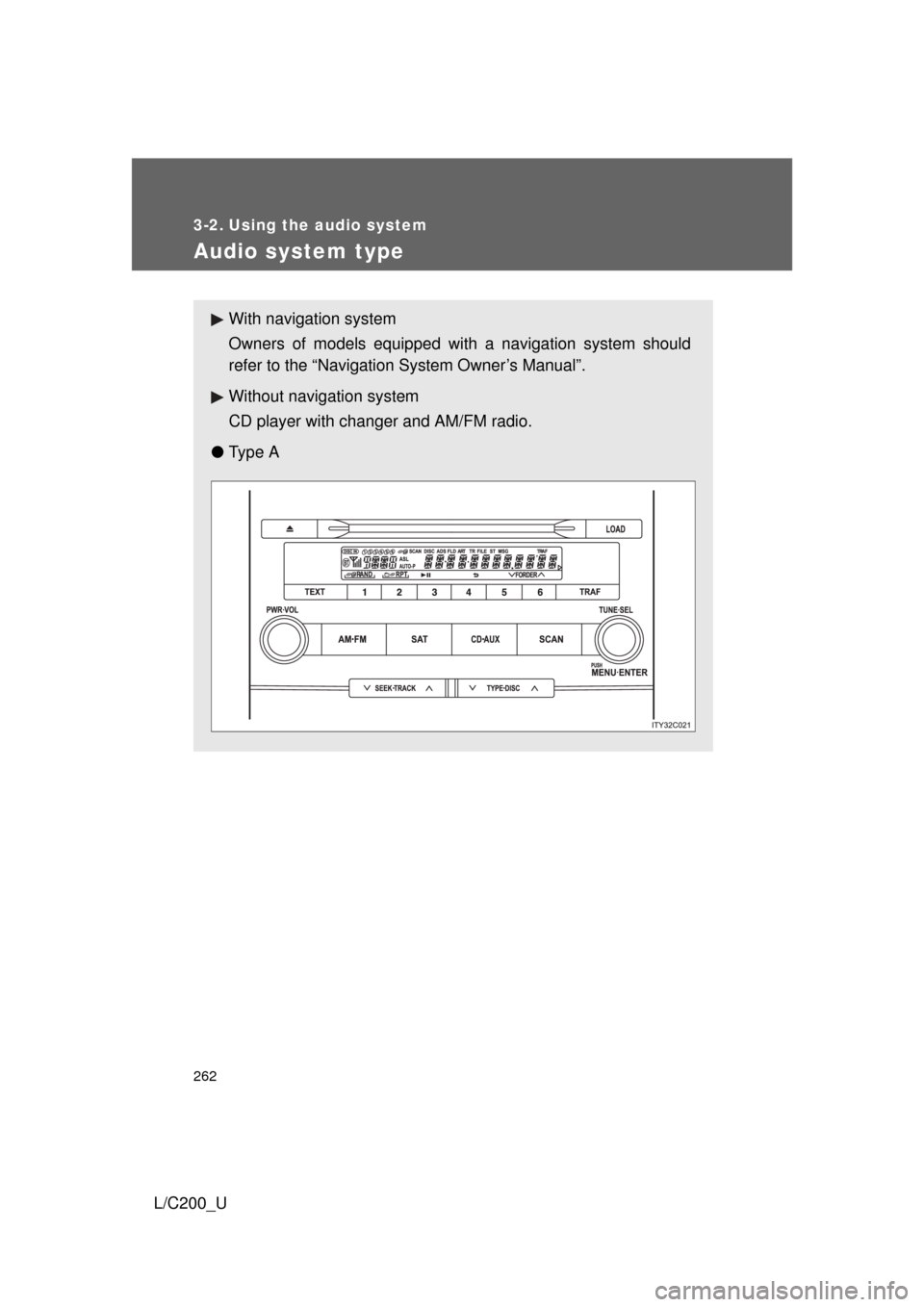

3-2. Using the audio system
Audio system type
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
CD player with changer and AM/FM radio.
● Ty p e A

263
3-2. Using the audio system
3
Interior features
L/C200_U
●
Ty p e B

TitlePage
Using the radioP. 265
Using the CD playerP. 274
Playing back MP3 and WMA discs P. 282
Operating an iPod®P. 289
Operating a USB memoryP. 296
Optimal use of the audio systemP. 304
Using the AUX adapter P. 306
Using the steering switchesP. 307

264 3-2. Using the audio system
L/C200_U
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio syste\
m is
operating.
CAUTION
■For vehicles sold in the U.S.A.
● Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the
user’s authority to operate this device.
● Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disas-
semble the player or alter any of its parts since you may be exposed to
laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo-
sure.
NOTICE
■To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine o\
ff.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.
