2010 SKODA ROOMSTER Owner's Manual

Fuses and light bulbs
192
Fuse assignment in the dash panelFig. 157 Schematic representation of the fuse box for vehicles with left-hand steering / right-
hand steeringCertain electrical components are only standard on certain vehicle model versions or
only suppliable as optional equipment for certain models.No.
Power consumer
Amperes
1
Not assigned
2
Start/stop
5
3
Instrument cluster, headlamp beam adjustment
10
4
ABS control unit
5
5
Petrol engine: Cruise control system
5
6
Reversing light (manual gearbox)
10
7
Ignition
15
Engine control unit, automatic gearbox
7,5
8
Brake pedal switch, coolant fan
5
9
Operating controls for the heating, control unit for air condi-
tioning system, parking aid, control unit for cornering lights,
coolant fan
5
10
Not assigned
11
Mirror adjustment
5
12
Control unit for trailer detection
5
13
Control unit for automatic gearbox
5
14
Motor for halogen projector headlights with cornering light
function
10
15
Navigation PDA
5
16
Electrohydraulic power steering
5
17
Radio
10
Daylight driving lights
7,5
18
Mirror heater
5
19
S-contact
5
20
Engine control unit
5
Engine control unit
7,5
Fuel pump relay
15
Fuel pump control unit
15
21
Reversing light, fog lights with the function “CORNER”
10
22
Operating controls for the heating, control unit for air condi-
tioning system, parking aid, mobi le phone, instrument cluster,
steering angle sender , ESP, vehicle voltage control unit, multi-
function steering wheel
7,5
23
Interior lighting, storage compartment and luggage compart-
ment, side lights
15
24
Central control unit of the vehicle
5
25
Seat heaters
20
26
Rear window wiper
10
27
Not assigned
28
Petrol engine: AKF valve, petrol engine: Control flap
10
29
Injection, water pump
10
No.
Power consumer
Amperes
s16g.4.book Page 192 Wednesda y, February 10, 2010 3:53 PM

Fuses and light bulbs193
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
Replacing fuses at the battery (manual gearbox, automatic gearbox DSG)Fig. 158 The battery: Fuse cover– Press together the interlocks of the fuse cover simultaneously in direction of arrow
 fig. 158 and push out the cover in direction of arrow .
30
Fuel pump
15
Ignition
20
Cruise control system, operation of PTC relay
5
31
Lambda probe
10
32
High pressure pump, pressure valve
15
33
Engine control unit
30/15
34
Engine control unit
15
Vacuum pump
20
35
Power supply of ignition lock
5
36
Main beam light
15
37
Rear fog light
7,5
38
Fog lights
10
39
Blower
30
40
Heatable windscreen washing nozzles, windscreen cleaning
system
15
41
Not assigned
42
Rear window heater
25
43
Horn
20
44
Front window wiper
20
45
Central control unit fo r convenience system
25/10
46
Anti-theft alarm system
15
47
Cigarette lighter, power socket in the luggage compartment
a)
15
48
ABS
15
49
Turn signal lights, brake lights
15
50
Radio
10
No.
Power consumer
Amperes
51
Electrical power window (front and rear) - left side
25
52
Electrical power window (front and rear) - right side
25
53
Parking light - left side
5
Electric sliding/tilting roof
25
54
Anti-theft alarm system
15/5
55
Control unit for automatic gearbox DSG
30
56
Headlight cleaning system
25
Parking light - right side
5
57
Left low beam, headlight range adjustment
15
58
Low beam on the right
15
a)If the engine is switched off already one electr ical component which is connected can discharge
the battery.No.
Power consumer
Amperes
AA
AB
s16g.4.book Page 193 Wednesda y, February 10, 2010 3:53 PM

Fuses and light bulbs
194
– Release the fixtures in the openings using a flat screwdriver and fold the cover
upwards in direction of arrow .
– Find out which fuse belongs to th e component which is not operating.
– Defect fuses can be detected by their melted metal strips. Replace the defect fuse by a new fuse of the same ampere number.
Caution

Never attempt to “repair” fuses and also do not replace them with a fuse of a higher
amperage - risk of fire! This may also cause damage at an other part of the electrical
system.

Have the electrical system checked as quickl y as possible by a specialist garage if a
newly inserted fuse blows again after a short time.Note
We recommend that you have these fuses replaced by a specialist garage.Fuse assignment at the battery (manual gearbox, automatic gearbox DSG)Certain electrical components are only standard on certain vehicle model versions or
only suppliable as optional equipment for certain models.
Caution
Observe the following guidelines  in “Replacing fuses at the battery (manual
gearbox, automatic gearbox DSG)” on page 193.
Note
The fuses 1 - 7 can be replac ed by a specialist garage.
AC
AD
Fig. 159 Schematic representation of
fuse assignment at battery
No.
Power consumer
Amperes
1
Dynamo
175
2
Not assigned
3
Interior
80
4
Electrical auxiliary heating system
60
5
Interior
40
6
Glow plugs, coolant fan
50
7
Electrohydraulic power steering
50
8
ABS or TCS or ESP
25
9
The radiator fan
30
10
The radiator fan
5
11
ABS or TCS or ESP
40
12
Central control unit
5
13
Automatic gearbox
electrical auxiliary heating system
5
40
s16g.4.book Page 194 Wednesda y, February 10, 2010 3:53 PM

Fuses and light bulbs195
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
Replace fuses at the battery (automatic gearbox)Fig. 160 The battery: Open the posi tive terminal cover / fuse cover– Open the positive terminal cover (+) fig. 160 .
– Press onto the interlocks of the fuse covers fig. 160 on the right and open the
covers.
– Press together the interlocks of the fuse cover simultaneously and push out the
cover in the direction of the arrow.
– Find out which fuse belongs to th e component which is not operating page 194,
“Fuse assignment at the battery (ma nual gearbox, automatic gearbox DSG)”.
– Defect fuses can be detected by their melted metal strips. Replace the defect fuse by a new fuse of the same ampere number.
Caution

Never attempt to “repair” fuses and also do not replace them with a fuse of a higher
amperage - risk of fire! This may also cause damage at an other part of the electrical
system.

Have the electrical system checked as quickl y as possible by a specialist garage if a
newly inserted fuse blows again after a short time.Note

We recommend that you have these fuses replaced by a specialist garage.

Some vehicles are only fitted with the cover fig. 160 on the right.
Fuse assignment at the battery (automatic gearbox)Certain electrical components are only stan dard on certain vehicle model versions or
only suppliable as optional equipment for certain models.
AAABAB
No.
Power consumer
Amperes
1
Dynamo
175
2
Interior
80
3
Electrical auxiliary heating system
60
4
ESP
40
5
Electrohydraulic power steering
50
6
Glow plugs
50
7
ESP
25
8
The radiator fan
30
9
Air conditioning system
5
10
ABS
40
11
Central control unit
5
12
Automatic gearbox
electrical auxiliary heating system
5
40
Fig. 161 Schematic representation of
fuse assignment at battery
s16g.4.book Page 195 Wednesda y, February 10, 2010 3:53 PM

Fuses and light bulbs
196Caution
Observe the following guidelines  in “Replace fuses at the battery (automatic
gearbox)”.BulbsReplacing bulbsThe relevant lamp must always be switch ed off before a light bulb is replaced.
Do not take hold of the glass bulb with naked fingers (even the smallest amount of dirt
reduces the working life of the light bulb). Use a clean cloth, serviette or something
similar.
Defect light bulbs should only be replaced with light bulbs of the same type. The desig-
nation is located on the ligh t socket or the glass bulb.
Changing certain bulbs is not something whic h you can do yourself, but requires to be
done by a specialist. Other parts of the vehicle must be removed in order to change the
light bulbs. This applies, in particular, to bulbs which can only be reached from the
engine compartment.
We therefore recommend that you have any bulbs changed by a specialist garage or,
in exceptional cases, by calling on other professional assistance.
Please note that the engine compartment is a hazardous area page 162, “Working
in the engine compartment”.
We recommend that you always have a small box of replacement bulbs in your vehicle.
You can obtain replacement bulbs from Škoda original accessories or from a specialist
garage
16).
A stowage place for the bulbs is located in the box in the spare wheel.
Bulb - Overview
16)The small box with replacement bulbs is part of the basic equipping of the vehicle in some coun-
tries.
Front headlight
Halogen headlight
Halogen projector
headlights
Low beam light
H4
H7
Main beam light
H4
H7
Parking lights
W5W
Turn signals
PY21W
Fog lights*
H8/HB4
a)
a)Valid for vehicles Scout.Daylight driving lights*
P21W
Rear light unit
Bulb
Reversing light
P21W
Turn signals
PY21W
Brake lights
P21W
Fog lights
P21W
Parking lights
2x W5W
Others
Bulb
Side turn signal lights
WY5W
Licence plate light
C5W / T4W (5W)
3. Brake light
LED
Interior lighting front / rear
C10W
Reading lights
W5W
Luggage compartment light
W5W
Storage compartment light - front passenger
side
W5W
s16g.4.book Page 196 Wednesda y, February 10, 2010 3:53 PM

Fuses and light bulbs197
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
WARNING

Bulbs H7 and H4 are pressurised and may burst when changing the bulb -
risk of injury!

It is recommended to wear gloves and safety glasses when changing a bulb.Note
This Owner's Manual only describes the replacement of bulbs where it is assumed that
no major complications will arise. Other light bulbs should be replaced by your
specialist garage.Front headlightFig. 162 Fitting position of the bulbs: Halo gen headlights / halogen projector headlightsPositions of the light bulbs in the halogen headlights fig. 162 on the left and in the
halogen projector headlights fig. 162 on the right.
- low beam, main beam and side lights
- front turn signal light
- low beam light
- main beam and side lights
- front turn signal light
Low beam and main beam (halogen headlights)– Open the bonnet.
– Remove the protective cap fig. 162 .
– Pull off the connector from the lamp, rele ase the sprung wire clamp and pull out
the lamp towards the rear.
– Replace the lamp H4, insert into the opening in the reflector (with the fixing lugs in the recesses), secure with the sprung wi re clamp, mount the connector and posi-
tion the protective cap.
– We recommend that you have the headli ght setting checked by a Skoda Service
Partner after replacing the light bulb.Low beam (halogen projector headlights)– Open the bonnet.
AAABA1A2A3
Fig. 163 Removing the light bulb for the
low beam and main beam light
AA
Fig. 164 Removing the light bulb for the
low beam light
s16g.4.book Page 197 Wednesda y, February 10, 2010 3:53 PM

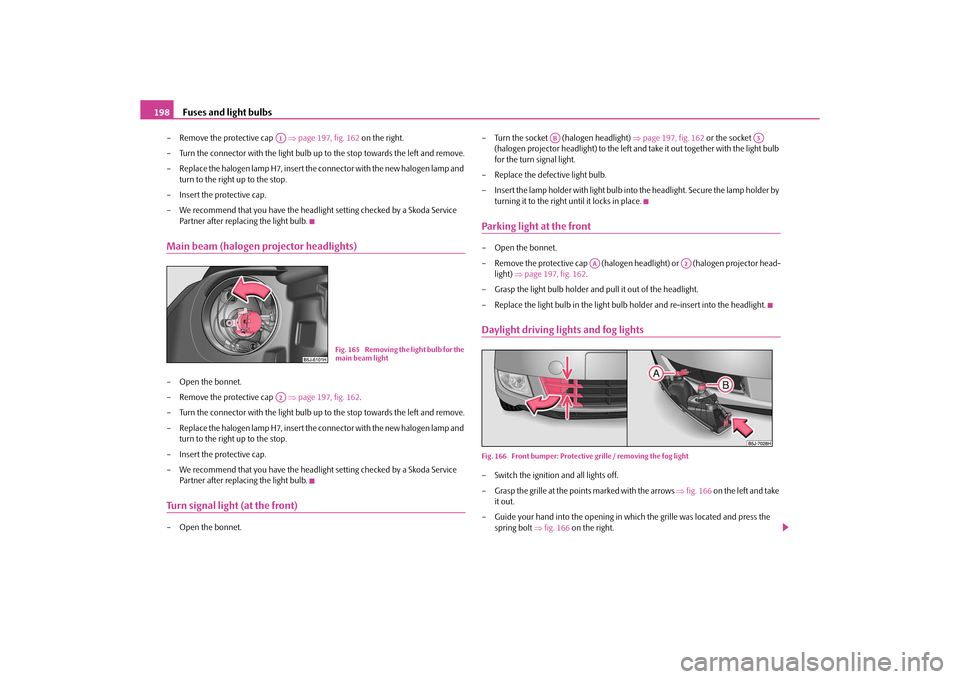

Fuses and light bulbs
198
– Remove the protective cap page 197, fig. 162 on the right.
– Turn the connector with the light bulb up to the stop towards the left and remove.
– Replace the halogen lamp H7, insert the connector with the new halogen lamp and turn to the right up to the stop.
– Insert the protective cap.
– We recommend that you have the headlight setting checked by a Skoda Service Partner after replacing the light bulb.Main beam (halogen projector headlights)– Open the bonnet.
– Remove the protective cap page 197, fig. 162 .
– Turn the connector with the light bulb up to the stop towards the left and remove.
– Replace the halogen lamp H7, insert the connector with the new halogen lamp and turn to the right up to the stop.
– Insert the protective cap.
– We recommend that you have the headlight setting checked by a Skoda Service Partner after replacing the light bulb.Turn signal light (at the front)– Open the bonnet. – Turn the socket (halogen headlight)
page 197, fig. 162 or the socket
(halogen projector headlight) to the left and take it out together with the light bulb
for the turn signal light.
– Replace the defective light bulb.
– Insert the lamp holder with light bulb into the headlight. Secure the lamp holder by
turning it to the right until it locks in place.
Parking light at the front– Open the bonnet.
– Remove the protective cap (halogen headlight) or (halogen projector head- light) page 197, fig. 162 .
– Grasp the light bulb holder and pull it out of the headlight.
– Replace the light bulb in the light bulb holder and re-insert into the headlight.Daylight driving lights and fog lightsFig. 166 Front bumper: Protective grille / removing the fog light– Switch the ignition and all lights off.
– Grasp the grille at the points marked with the arrows fig. 166 on the left and take
it out.
– Guide your hand into the opening in wh ich the grille was located and press the
spring bolt fig. 166 on the right.
A1
Fig. 165 Removing the light bulb for the
main beam light
A2
AB
A3
AA
A2
s16g.4.book Page 198 Wednesda y, February 10, 2010 3:53 PM

Fuses and light bulbs199
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
– Take out the fog light.
– Turn the socket with the bulb for daylight driving light or the socket with the
bulb of the fog light to the left up to stop and take it out.
– Replace the lamp, insert the connector with the new lamp and turn to the right up
to the stop.
– For the installation, first of all insert the fog light with the interlock to the side far
away from the marking of the vehicle.
– Press into place the headlight onto the side facing the marking.
– First of all put the grille with the latch in place on the side opposite the marking.
– Press into place the protective grille onto the side facing the marking.
Cover of fog lights - Roomster ScoutRemoving the cover - Roomster Scout– Switch the ignition and all lights off.
– Guide the wire clamp from the vehicle tool kit into the opening above the fog light
 fig. 167 and remove the cover.
Fog lights - Roomster ScoutFig. 168 Front bumper: Fog lights / changing the bulbRemoving the fog light– Screw out the screws fig. 168 with the aid of the screwd river*, which is part of
the vehicle tool kit
17).
– Take out the fog light.
Changing the bulb and installing the fog light– Press the locking button fig. 168 of the plug and remove the plug from
the socket .
– Turn the socket with the bulb to the left up to the stop and take it out.
– Change the bulb, insert again the socket wi th the new bulb and turn it to the right
up to the stop.
– Connect the plug to the socket .
– Screw in the screws again and insert th e cover. The cover must engage firmly.
AA
AB
Fig. 167 Front bumper: Roomster Scout
17)Valid for Roomster Scout.
A1
AA
AB
ABAA
AB
s16g.4.book Page 199 Wednesday, February 10, 2010 3:53 PM
