2010 PEUGEOT 308 SW BL Owners Manual

i

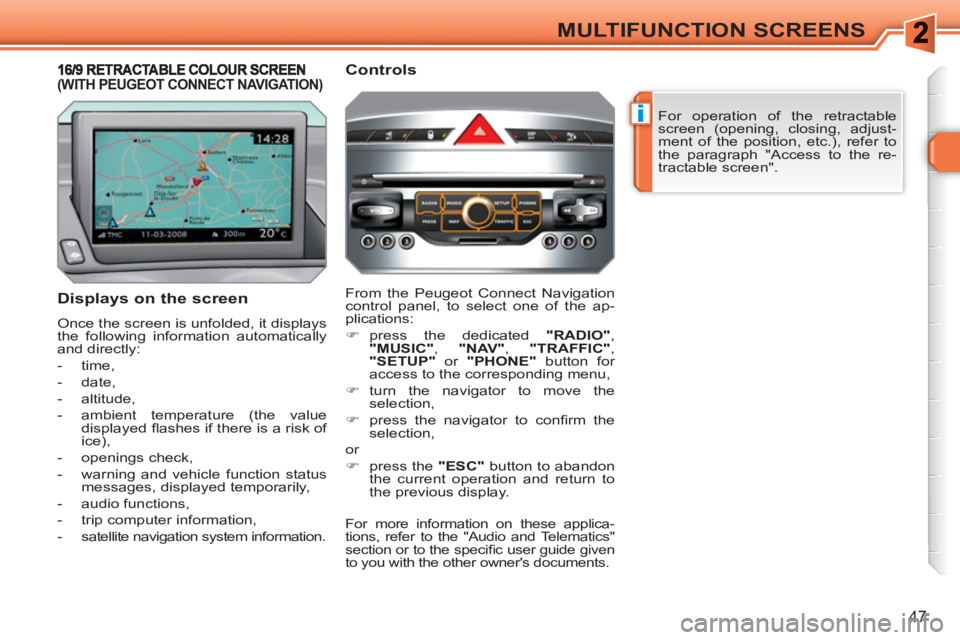

47
MULTIFUNCTION SCREENS
For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen".


Displays on the screen

Once the screen is unfolded, it displays
the following information automatically
and directly:


- time,

- date,

- altitude,

- ambient temperature (the value
displayed fl ashes if there is a risk of
ice),

- openings check,

- warning and vehicle function status
messages, displayed temporarily,

- audio functions,

- trip computer information,

- satellite navigation system information.
From the Peugeot Connect Navigation
control panel, to select one of the ap-
plications:


)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button for
access to the corresponding menu,

)
turn the navigator to move the
selection,

)
press the navigator to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display.
(WITH PEUGEOT CONNECT NAVIGATION)

Controls

For more information on these applica-
tions, refer to the "Audio and Telematics"
section or to the specifi c user guide given
to you with the other owner's documents.

!

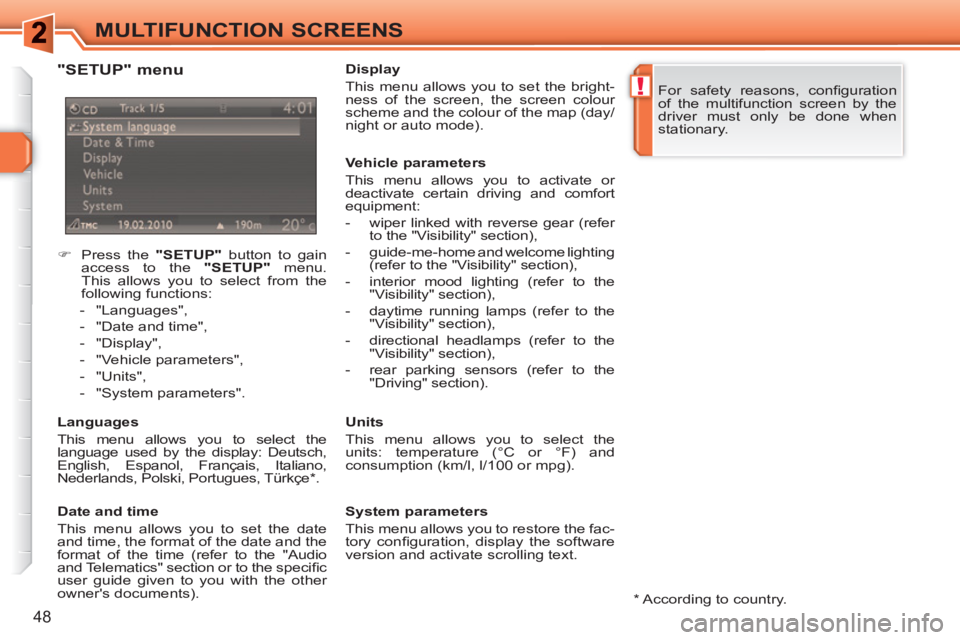

48
MULTIFUNCTION SCREENS



)
Press the "SETUP"
button to gain
access to the "SETUP"
menu.
This allows you to select from the
following functions:


- "Languages",

- "Date and time",

- "Display",

- "Vehicle parameters",

- "Units",

- "System parameters".



Languages
This menu allows you to select the
language used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .

Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specifi c
user guide given to you with the other
owner's documents). For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.

System parameters
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:


- wiper linked with reverse gear (refer
to the "Visibility" section),

- guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Units
This menu allows you to select the
units: temperature (°C or °F) and
consumption (km/l, l/100 or mpg).


"SETUP" menu


*
According to country.

i

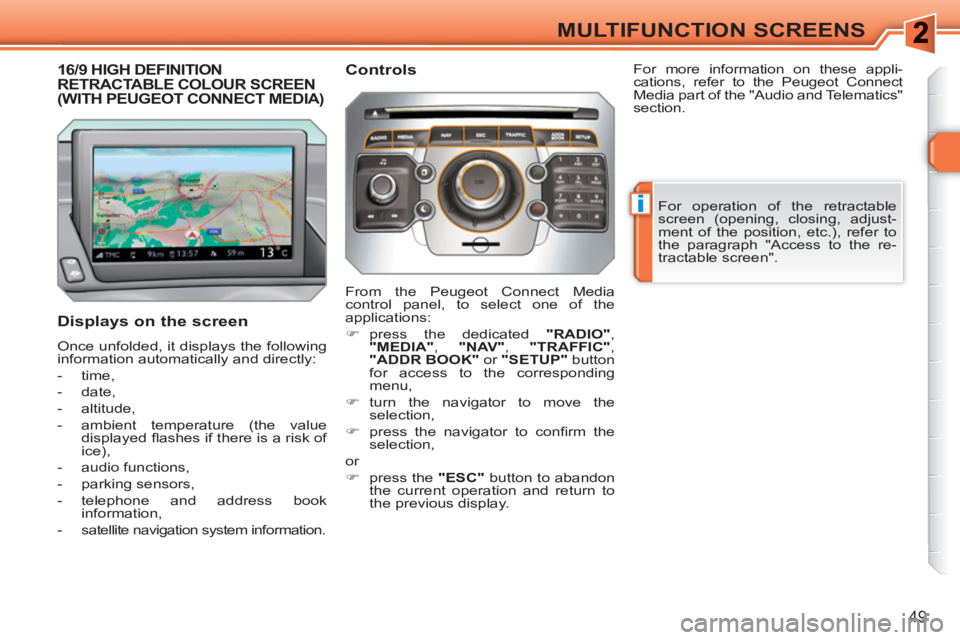

49
MULTIFUNCTION SCREENS
16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN(WITH PEUGEOT CONNECT MEDIA)

Displays on the screen

Once unfolded, it displays the following
information automatically and directly:


- time,

- date,

- altitude,

- ambient temperature (the value
displayed fl ashes if there is a risk of
ice),

- audio functions,

- parking sensors,

- telephone and address book
information,

- satellite navigation system information.
From the Peugeot Connect Media
control panel, to select one of the
applications:


)
press the dedicated "RADIO"
,
"MEDIA"
, "NAV"
, "TRAFFIC"
,
"ADDR BOOK"
or "SETUP"
button
for access to the corresponding
menu,

)
turn the navigator to move the
selection,

)
press the navigator to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display. For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen". For more information on these appli-
cations, refer to the Peugeot Connect
Media part of the "Audio and Telematics"
section.

Controls

!

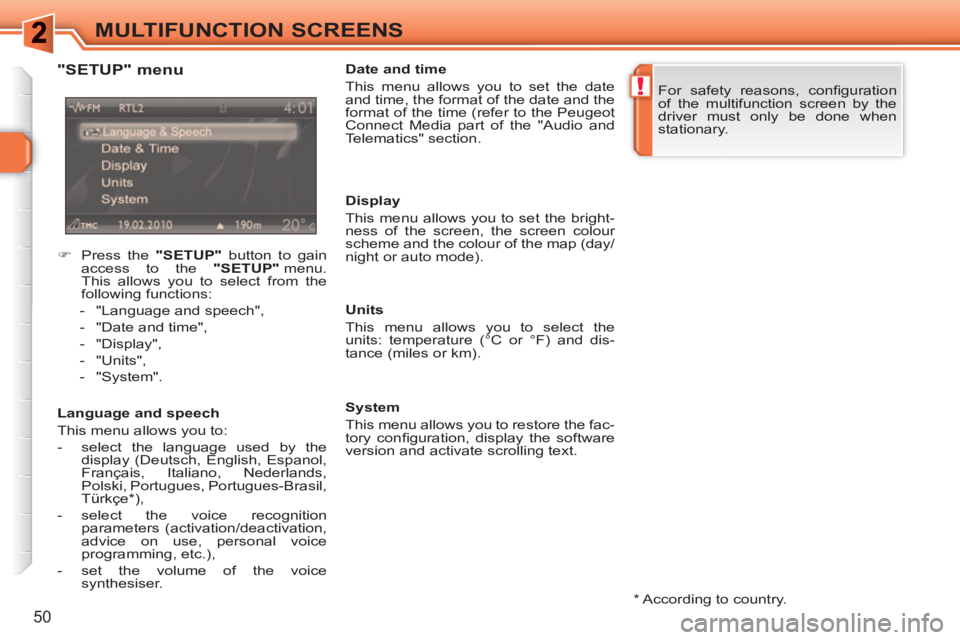

50
MULTIFUNCTION SCREENS

*
According to country.


"SETUP" menu


Language and speech
This menu allows you to:


- select the language used by the
display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Portugues-Brasil,
Türkçe * ),

- select the voice recognition
parameters (activation/deactivation,
advice on use, personal voice
programming, etc.),

- set the volume of the voice
synthesiser.

Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the Peugeot
Connect Media part of the "Audio and
Telematics" section.

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (miles or km).

System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.


)
Press the "SETUP"
button to gain
access to the "SETUP"
menu.
This allows you to select from the
following functions:


- "Language and speech",

- "Date and time",

- "Display",

- "Units",

- "System".

i
i

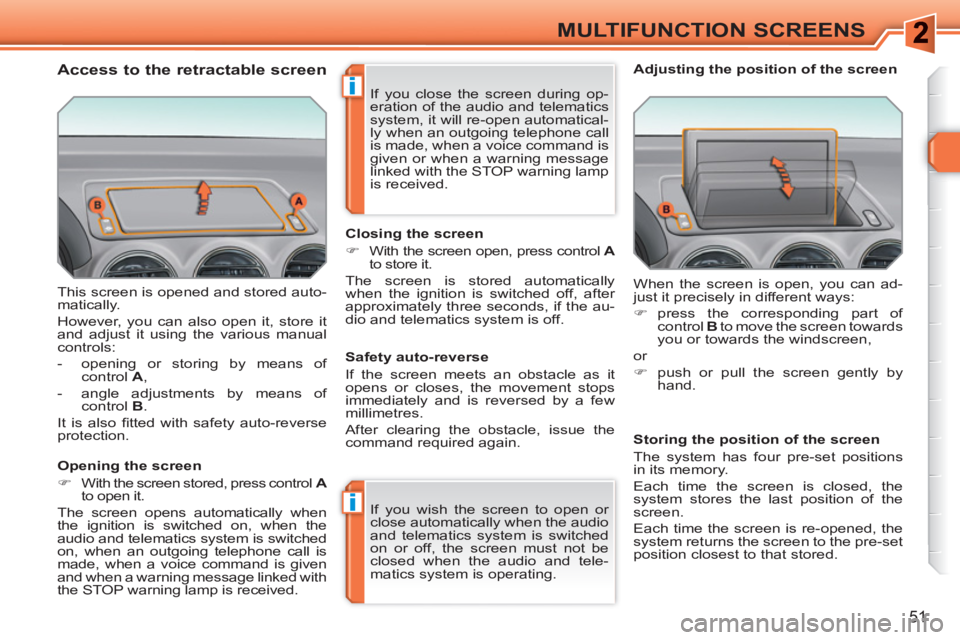

51
MULTIFUNCTION SCREENS
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:


- opening or storing by means of
control A
,

- angle adjustments by means of
control B
.
It is also fi tted with safety auto-reverse
protection.

Opening the screen


)
With the screen stored, press control A

to open it.
The screen opens automatically when
the ignition is switched on, when the
audio and telematics system is switched
on, when an outgoing telephone call is
made, when a voice command is given
and when a warning message linked with
the STOP warning lamp is received.
Closing the screen


)
With the screen open, press control A

to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio and telematics system is off.
If you wish the screen to open or
close automatically when the audio
and telematics system is switched
on or off, the screen must not be
closed when the audio and tele-
matics system is operating. When the screen is open, you can ad-
just it precisely in different ways:


)
press the corresponding part of
control B
to move the screen towards
you or towards the windscreen,
or


)
push or pull the screen gently by
hand.

Adjusting the position of the screen

Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again.
Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during op-
eration of the audio and telematics
system, it will re-open automatical-
ly when an outgoing telephone call
is made, when a voice command is
given or when a warning message
linked with the STOP warning lamp
is received.



















Access to the retractable screen

52
MULTIFUNCTION SCREENS
TRIP COMPUTER


)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer data
in succession. The trip computer provides the follow-
ing information: System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).


)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.




Monochrome screen A


Zero reset

Information displays

- range,

- current fuel consumption,

- distance travelled,

- average fuel consumption,

- average speed.
)
The next press then returns you to
the normal display.

i

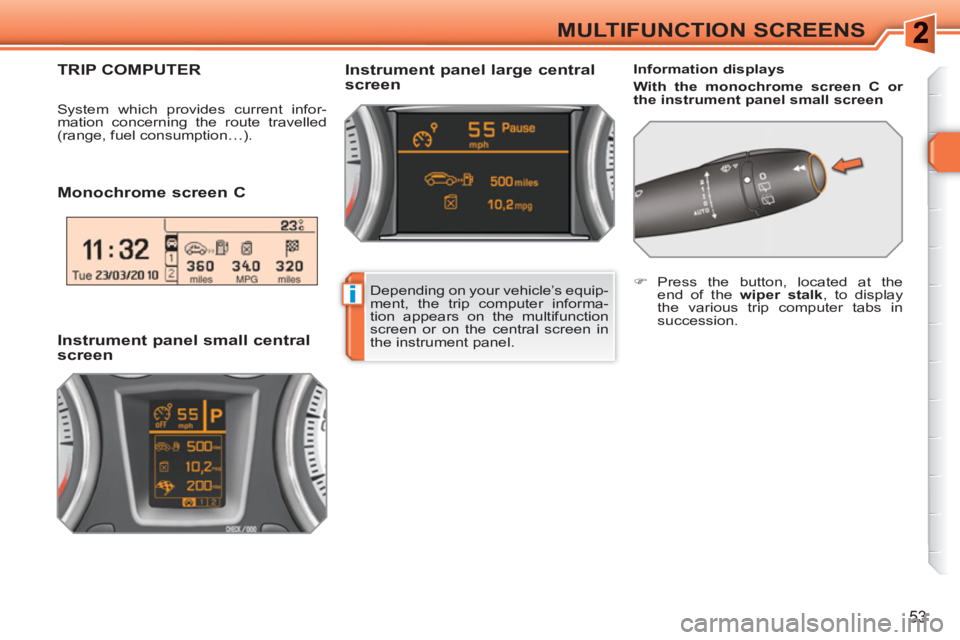

53
MULTIFUNCTION SCREENS

Monochrome screen C


Information displays

With the monochrome screen C or
the instrument panel small screen


Instrument panel large central
screen TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, fuel consumption…).

Instrument panel small central
screen

Depending on your vehicle’s equip-
ment, the trip computer informa-
tion appears on the multifunction
screen or on the central screen in
the instrument panel.

)
Press the button, located at the
end of the wiper stalk
, to display
the various trip computer tabs in
succession.

54
MULTIFUNCTION SCREENS

Trip zero reset

With the monochrome screen C or
the instrument panel small screen



)
When the trip required is displayed,
press the button on the end of
the wiper stalk
for more than two
seconds.
With the instrument panel



large cen-
tral screen



)
When the required trip is displayed,
press the "OK"
button on the
instrument panel navigator
,
associated with Peugeot Connect
Media, for more than two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.


- The trip "2"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the second trip.



)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.

With the instrument panel

large cen-
tral screen



- The current information
tab with:


●
the range,

●
the current fuel
consumption,

●
the distance remaining
to be travelled.


)
Press the up and down arrows on
the instrument panel
navigator
,
associated with Peugeot Connect
Media, to display the various trip
computer tabs in succession.


- The trip "1"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the fi rst trip.
