2010 PEUGEOT 308 SW BL Owners Manual

i

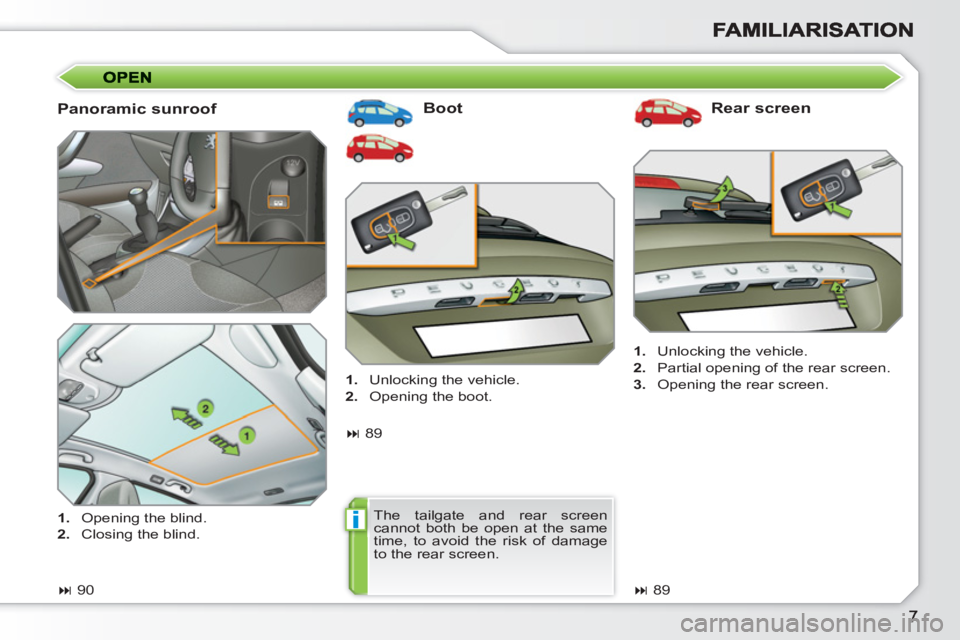

Panoramic sunroof
Boot
Rear screen




1.
Unlocking the vehicle.

2.
Partial opening of the rear screen.

3.
Opening the rear screen.




90


1.
Opening the blind.

2.
Closing the blind.

1.
Unlocking the vehicle.

2.
Opening the boot.



89
The tailgate and rear screen
cannot both be open at the same
time, to avoid the risk of damage
to the rear screen.



89

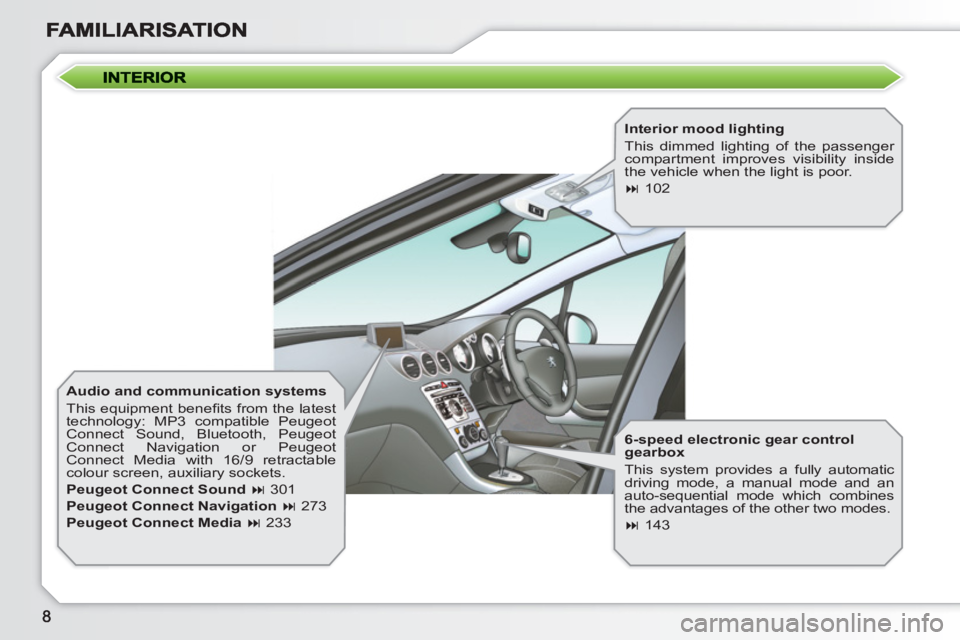

Interior mood lighting
This dimmed lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.



102


6-speed electronic gear control
gearbox
This system provides a fully automatic
driving mode, a manual mode and an
auto-sequential mode which combines
the advantages of the other two modes.



143

Audio and communication systems
This equipment benefi ts from the latest
technology: MP3 compatible Peugeot
Connect Sound, Bluetooth, Peugeot
Connect Navigation or Peugeot
Connect Media with 16/9 retractable
colour screen, auxiliary sockets.

Peugeot Connect Sound



301

Peugeot Connect Navigation



273

Peugeot Connect Media



233

1.
Audio and telematics system
steering mounted controls.

2.
Steering lock and ignition.

3.
Wiper/screenwash/trip computer
control stalk.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
Panoramic sunroof blind control.

9.
Heated seat control.

10.
Door mirror controls.
Electric window controls.

11 .
Passenger’s airbag deactivation
switch.

12.
Manual headlamp height
adjustment.

13.
Side adjustable air vent.

14.
Front side window demisting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting vent.

1.
Steering wheel adjustment control.

2.
Cruise control/speed limiter
switches.

3.
Lighting and direction indicators
control stalk.

4.
Central adjustable air vents.

5.
Multifunction screen.

6.
Sunshine sensor.

7.
Passenger’s airbag.

8.
Glove box/Audio/video sockets/
Fusebox.

9.
Bonnet release lever.

10.
Storage compartment or control
panel navigator associated with
Peugeot Connect Media.

11 .
12 V accessories socket.

12.
Front ashtray.

13.
Heating/air conditioning controls.

14.
CD changer.

15.
Audio and telematics system.

16.
Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control
(ESP/ASR) button.
Parking sensors button.
PEUGEOT services button.

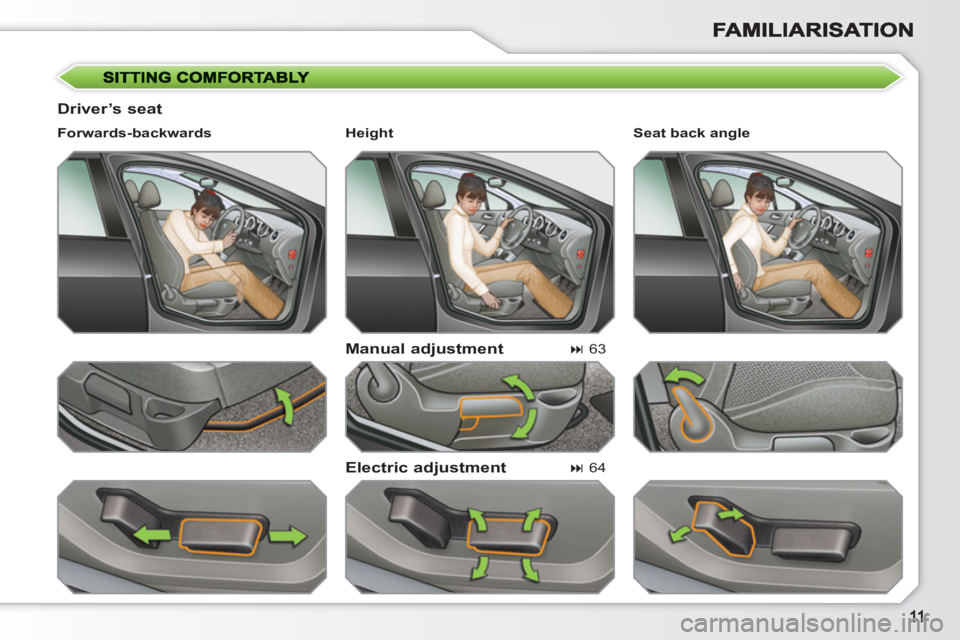

Driver’s seat

Manual adjustment

Electric adjustment


Forwards-backwards



63




64

Seat back angle


Height

i
!

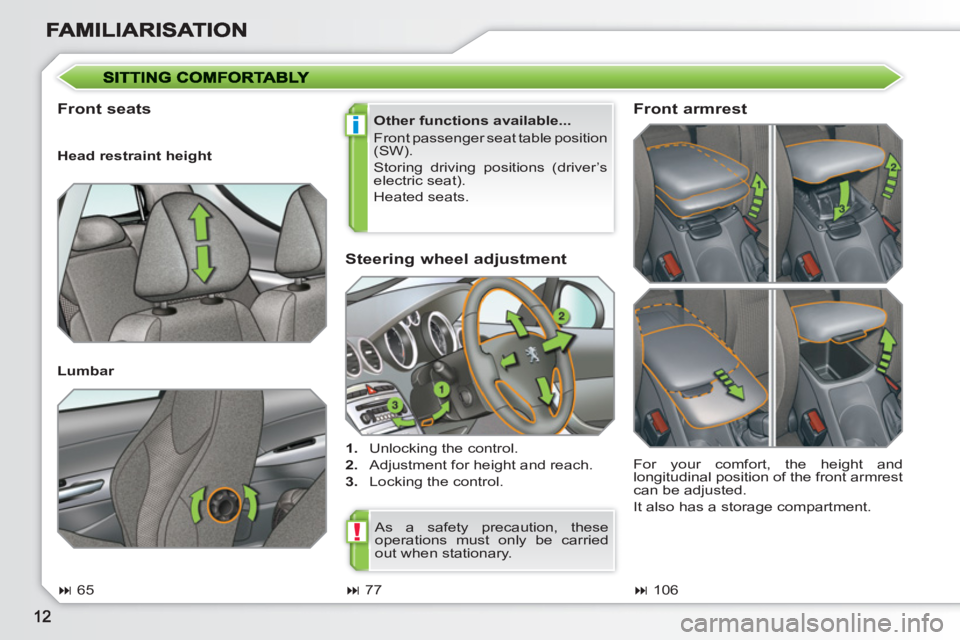

Steering wheel adjustment



1.
Unlocking the control.

2.
Adjustment for height and reach.

3.
Locking the control.


Front seats

Other functions available...
Front passenger seat table position
(SW).
Storing driving positions (driver’s
electric seat).
Heated seats.

Head restraint height

Lumbar

Front armrest




65




106




77
For your comfort, the height and
longitudinal position of the front armrest
can be adjusted.
It also has a storage compartment.
As a safety precaution, these
operations must only be carried
out when stationary.

i

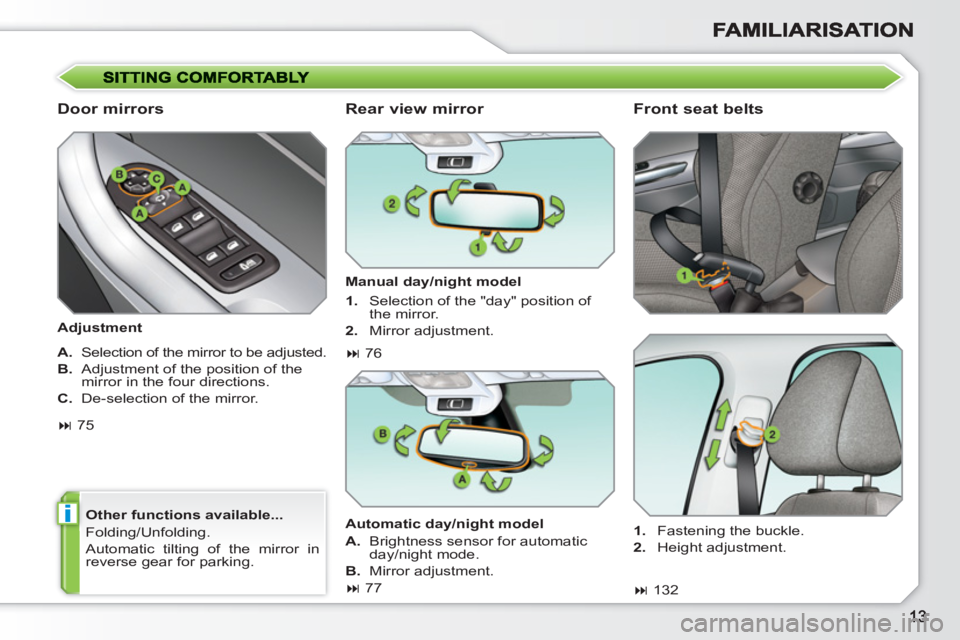

Door mirrors


Adjustment

Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in
reverse gear for parking.



Rear view mirror


Manual day/night model


Front seat belts



1.
Fastening the buckle.

2.
Height adjustment.

A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.

C.
De-selection of the mirror.


76



132



75

1.
Selection of the "day" position of
the mirror.

2.
Mirror adjustment.

Automatic day/night model


A.
Brightness sensor for automatic
day/night mode.

B.
Mirror adjustment.



77

Lighting


Ring A

Ring B Raise or lower the lighting stalk
passing the point of resistance; the
corresponding direction indicators will
fl ash for as long as the stalk remains in
this position.

Direction indicators


Switching on "AUTO"


)
Press the stalk down and release it.


Ring B: rear wiper



93





99

Lighting off.
Automatic illumination of
headlamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers



98



Wipers


Switching off "AUTO"


)
Push the stalk up and return it to
position "0"
.



100




128


"Motorway" function
Raise or lower the lighting stalk once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any
speed, but it is particularly useful when
changing lane on high-speed roads.
