TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre Turbo HDI 90 hp



1.6

litre

Turbo HDI 92 hp



Gearboxes


Manual



Manual



Model codes:
4H...


9HX-B



9HX-C



9HP-0




- Unladen weight
1 480
1 467
1 430


- Kerb weight
1 555
1 542
1 505


- Payload
640
633
670


- Gross vehicle weight (GVW)
2 120
2 100
2 100


- Gross train weight (GTW)
on a 12 % gradient
3 120
3 100
3 100


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 000
1 000
1 000


- Braked trailer * (with load transfer
within the GTW limit)
1 350
1 400
1 200


- Unbraked trailer
750
750
750


- Recommended nose weight
75
60
60

1
224
TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

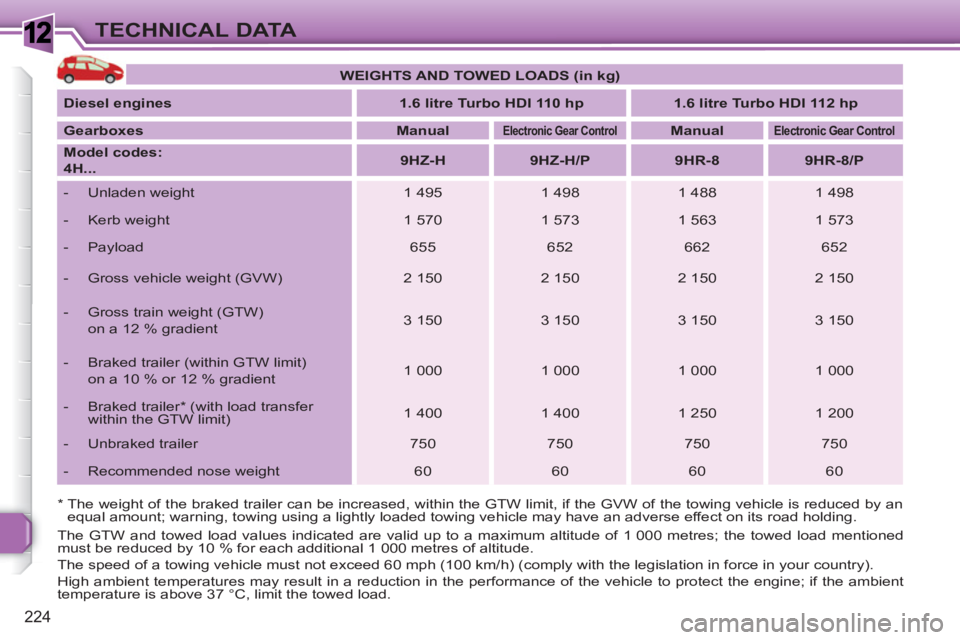

WEIGHTS AND TOWED LOADS (in kg)



Diesel



engines


1.6 litre Turbo HDI 110 hp



1.6

litre

Turbo HDI 112 hp



Gearboxes


Manual





Electronic Gear Control



Manual




Electronic Gear Control




Model codes:
4H...


9HZ-H



9HZ-H/P



9HR-8



9HR-8/P




- Unladen weight
1 495
1 498
1 488
1 498


- Kerb weight
1 570
1 573
1 563
1 573


- Payload
655
652
662
652


- Gross vehicle weight (GVW)
2 150
2 150
2 150
2 150


- Gross train weight (GTW)
on a 12 % gradient
3 150
3 150
3 150
3 150


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 000
1 000
1 000
1 000


- Braked trailer * (with load transfer
within the GTW limit)
1 400

1 400
1 250
1 200


- Unbraked trailer
750
750
750
750


- Recommended nose weight
60
60
60
60

1
225
TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

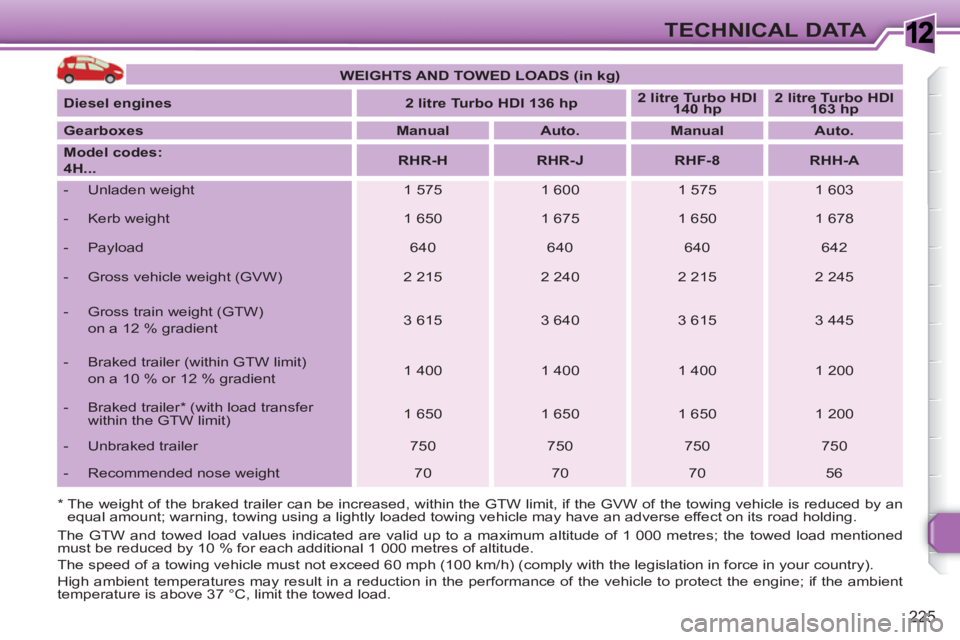

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


2 litre Turbo HDI 136 hp



2 litre Turbo HDI
140 hp



2 litre Turbo HDI
163 hp



Gearboxes


Manual



Auto.



Manual



Auto.



Model codes:
4H...


RHR-H



RHR-J



RHF-8



RHH-A




- Unladen weight
1 575
1 600
1 575
1 603


- Kerb weight
1 650
1 675
1 650
1 678


- Payload
640
640
640
642


- Gross vehicle weight (GVW)
2 215
2 240
2 215
2 245


- Gross train weight (GTW)
on a 12 % gradient
3 615
3 640
3 615
3 445


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 400
1 400
1 400
1 200


- Braked trailer * (with load transfer
within the GTW limit)
1 650
1 650
1 650
1 200


- Unbraked trailer
750
750
750
750


- Recommended nose weight
70
70
70
56

1
226
TECHNICAL DATA

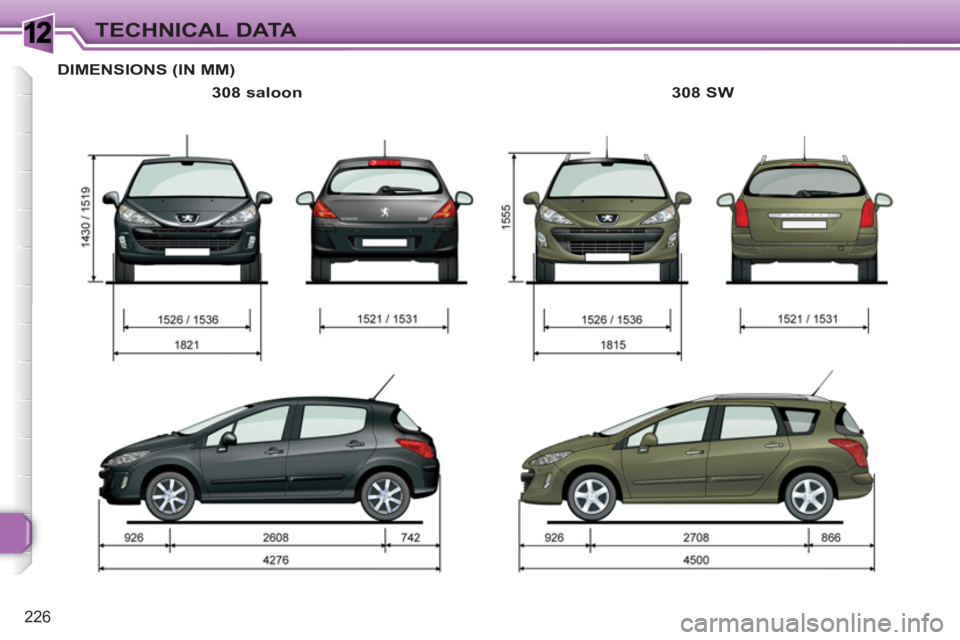

DIMENSIONS (IN MM)

308 saloon
308 SW

1
i
227
TECHNICAL DATA

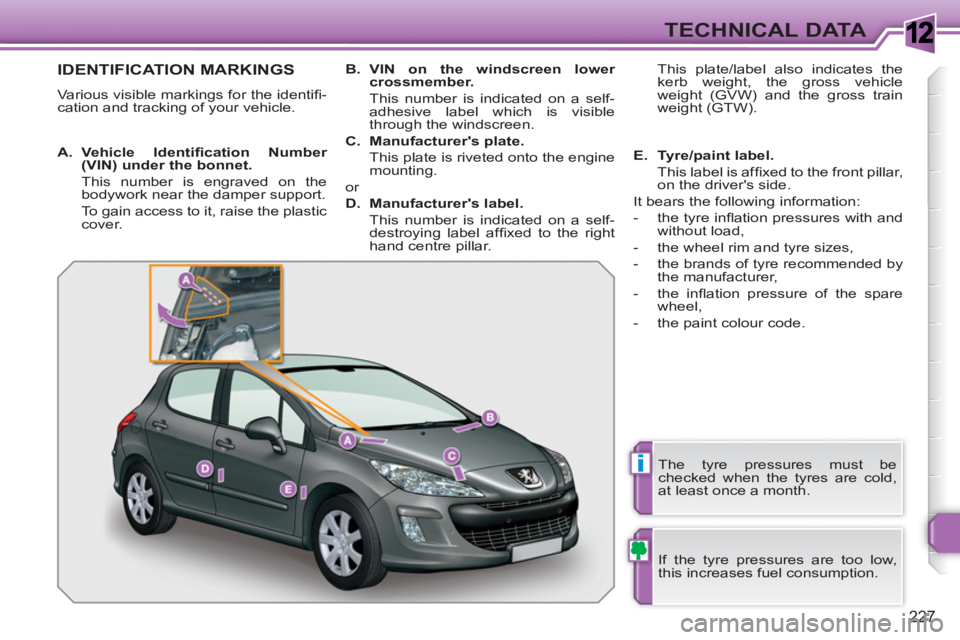

IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracking of your vehicle.
If the tyre pressures are too low,
this increases fuel consumption.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.


A.
Vehicle Identifi cation Number
(VIN)

under the bonnet.


This number is engraved on the
bodywork near the damper support.
To gain access to it, raise the plastic
cover.
B.
VIN

on the windscreen lower
crossmember.


This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's plate.


This plate is riveted onto the engine
mounting.
or

D.
Manufacturer's label.


This number is indicated on a self-
destroying label affi xed to the right
hand centre pillar. This plate/label also indicates the
kerb weight, the gross vehicle
weight (GVW) and the gross train
weight (GTW).

E.
Tyre/paint label.


This label is affi xed to the front pillar,
on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.

1
228
TECHNICAL DATA

229

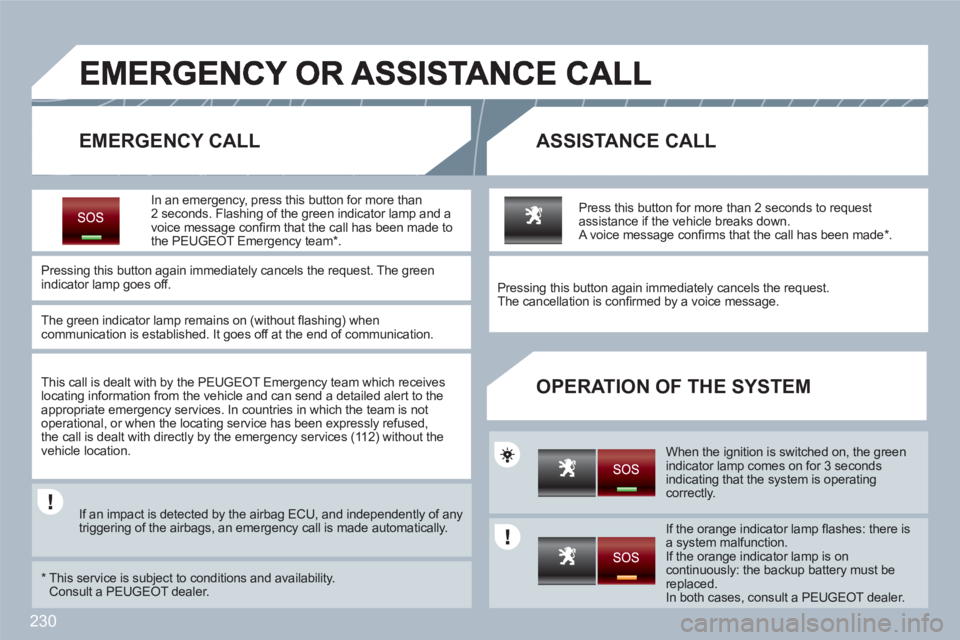

EMERGENCY OR ASSISTANCE CALL

230

EMERGENCY CALLASSISTANCE CALL
OPERATION OF THE SYSTEM
In an emergency, press this button for more than 2 seconds. Flashing of the green indicator lamp and avoice message confi rm that the call has been made tothe PEUGEOT Emergency team *
.
Pressing this button again immediately cancels the request. The greenindicator lamp goes off.
The green indicator lamp remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with by the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is not operational, or when the locating service has been expressly refused,the call is dealt with directly by the emergency services (11 2) without thevehicle location.


If an impact is detected by the airbag ECU, and independently of any triggering of the airbags, an emergency call is made automatically.

*
This service is subject to conditions and availability. Consult a PEUGEOT dealer.


Press this button for more than 2 seconds to requestassistance if the vehicle breaks down. A voice message confi rms that the call has been made * .


Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.



When the ignition is switched on, the greenindicator lamp comes on for 3 seconds indicating that the system is operating correctly.


If the orange indicator lamp fl ashes: there isa system malfunction.
If the orange indicator lamp is oncontinuously: the backup battery must bereplaced.
In both cases, consult a PEUGEOT dealer.
