2010 PEUGEOT 308 SW BL Owners Manual

295
1
2
4
2
3
4
2
3
4
4
4
4
4
4
4
4
4
4
4
3
3
3
3
24
4
4
3
3
3
3
4
4
4
2
3
3
3
3
3
3
3
3
4
4
2
4
4
4
4
4
3
3
3
3
4
4
4

ROUTE OPTIONS
Route type
Fast route
Short route
Optimized route
Route dynamics
Traffi c independent
Semi-dynamic
Avoidance criteria
Avoid motorways
Avoid toll roads
Avoid ferries
Recalculate
STOPOVERS

Add stopover
Address input

Navigate HOME

Choose from address book
Choose from last destinations

Rearrange route
Replace stopover
Delete stopover

Recalculate

Fast route
Short route
Optimized route


"NAVIGATION" MENU


ABORT GUIDANCE/RESUME GUIDANCE
POI SEARCH

POI nearby

POI near destination

POI in city

POI in country

POI near route

SETTINGS
Navi volume
POI categories on MAP
Set parameters for risk areas
Display on MAP
Visual alert
Sound alert



DESTINATION INPUT
Address input

Country

City
Street
House number
Start route guidance

Postal code
Save to address book

Intersection
City district
Geo position
MAP

Navigate HOME

Choose from address book

Choose from last destinations


TMC station information

296
1
2
3
4
1
3
4
3
4
2
2
2
3
4
4
4
4
2
3
3
3
2
3
3
3
2
3
4
4
4
4
2
4
3
4
3
3
3
3
3
3
3
3
2
4
4
2
3
4
4
3
4
4
4
2
3
3
3

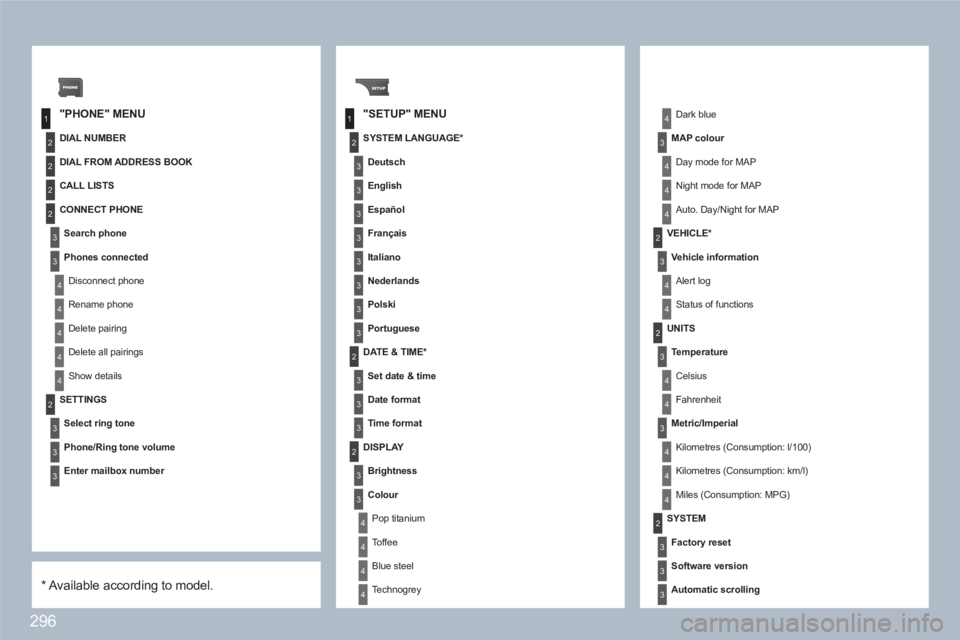

"PHONE" MENU"SETUP" MENU


DIAL NUMBER


SETTINGS

Select ring tone

Phone/Ring tone volume

Enter mailbox number



SYSTEM LANGUAGE *
Deutsch
English

Español

Français

Italiano
Nederlands
Polski

Portuguese


DATE & TIME *

Set date & time

Date format

Time format
Dark blue
MAP colour
Day mode for MAP
Night mode for MAP
Auto. Day/Night for MAP
VEHICLE *
Vehicle information
Alert log
Status of functions


DISPLAY

Brightness

Colour
Pop titanium
Toffee
Blue steel
Technogrey
UNITS
Temperature
Celsius
Fahrenheit
Metric/Imperial
Kilometres (Consumption: l/100)
Kilometres (Consumption: km/l)
Miles (Consumption: MPG)
SYSTEM
Factory reset
Software version
Automatic scrolling
*
Available according to model.


DIAL FROM ADDRESS BOOK


CALL LISTS


CONNECT PHONE

Search phone


Phones connected
Disconnect phone
Rename phone

Delete pairing

Delete all pairings
Show details

297
FREQUENTLY ASKED QUESTIONS


QUESTION



ANSWER SOLUTION

There is a difference insound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble,Ambience, Loudness) can be adapted to the different sound sources, whichmay result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIOfunctions (Bass, Treble, Front-Rear Balance,Left-Right Balance) to the middle position, select the Linear musical ambience and set the loudnesscorrection to the "Active" position in CD mode or tothe "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play. The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the playerthe right way up.

- Check the condition of the CD: the CD cannot beplayed if it is too damaged.

- Check the content in the case of a recorded CD: consult the advice in the Audio section.

- The audio equipment’s CD player does not play DVDs.

- Because of their quality level, certain writeable CDs will not be played by the audio system.

The CD player sound is poor. The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitableconditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

298

QUESTION



ANSWER SOLUTION

The stored stations do not function (no sound,87.5 Mhz is displayed...)

An incorrect waveband is selected.
Press the BAND AST button to return to thewaveband (AM, FM1, FM2, FMAST) on whichthe stations are stored.

The quality of reception of the radio station listened to gradually deterioratesor the stored stations donot function (no sound,87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system tocheck whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequencypermitting better reception of the station.
Deactivate the RDS function if the phenomenon istoo frequent and always on the same route.

With the engine off, theaudio equipment switches off after a few minutesof use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.The switch-off is normal: the audio equipment switches to economy modeand switches off to prevent discharging of the vehicle’s battery.
Start the vehicle’s engine to increase the batterycharge.

299

QUESTION



ANSWER SOLUTION

The TA box is selected. However, certain traffi c jams along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive thetraffi c information.
Wait until the traffi c information is being receivedcorrectly (displaying of the traffi c information symbols on the map).
In certain countries, only major routes (motorways...) are listed for the traffi cinformation.
This phenomenon is normal. The system is dependent on the traffi c information available.

The time taken to calculatea route sometimes seemslonger than usual.
The performance of the system may slow down temporarily if a CD is beingcopied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.

I receive a speed cameraalert for a camera which is not on my route.
The system announces all speed cameras located in a conical zoneforward of the vehicle. It may detect speed cameras on nearby or parallel roads.

Zoom the map to view the exact position of thespeed camera.

The audible speedcamera alert is not working.

Audible alerts are not active. Activate audible alerts in Navigation Menu,Settings, Set parameters for risk areas.
The alert volume level is set to minimum.
Increase the speed camera alert volume.

The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes toreceive more than 3 satellites correctly.
Wait until the system has started up completely.Check that there is a GPS coverage of at least3 satellites (long press on the SETUP button, thenselect GPS coverage).
Depending on the geographical environment (tunnel...) or the weather,the conditions of reception of the GPS signal may vary.
This phenomenon is normal. The system is dependent on the conditions of reception ofthe GPS signal.

The route is notcalculated successfully. The exclusion criteria may confl ict with the current location (exclusion of tollroads on a motorway with tolls). Check the exclusion criteria.

300

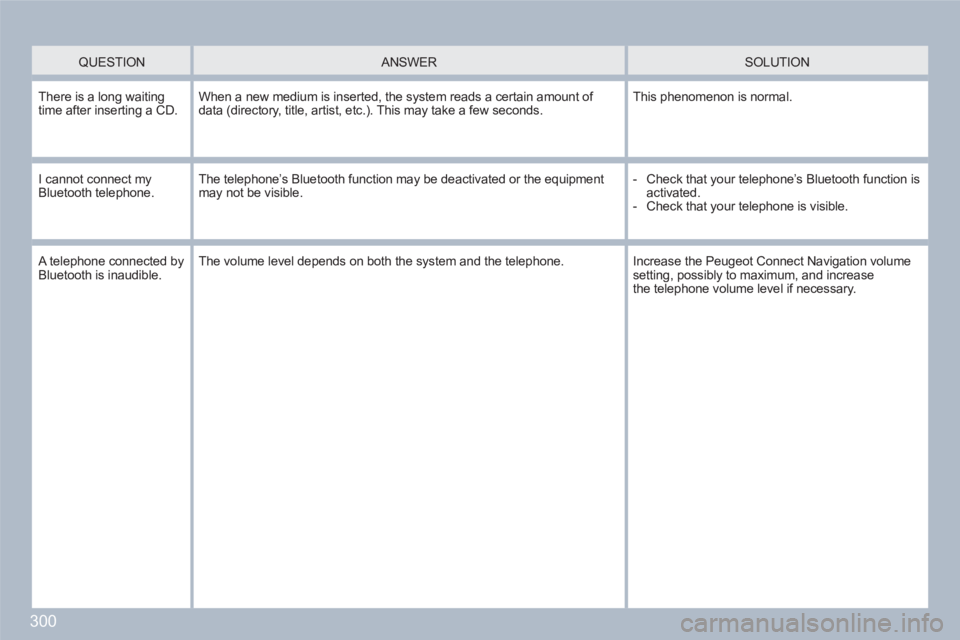

QUESTION

ANSWER
SOLUTION

There is a long waitingtime after inserting a CD. When a new medium is inserted, the system reads a certain amount of data (directory, title, artist, etc.). This may take a few seconds.
This phenomenon is normal.

I cannot connect myBluetooth telephone.The telephone’s Bluetooth function may be deactivated or the equipmentmay not be visible.

- Check that your telephone’s Bluetooth function isactivated.

- Check that your telephone is visible.
A telephone connected byBluetooth is inaudible.The volume level depends on both the system and the telephone.
Increase the Peugeot Connect Navigation volume setting, possibly to maximum, and increasethe telephone volume level if necessary.

301

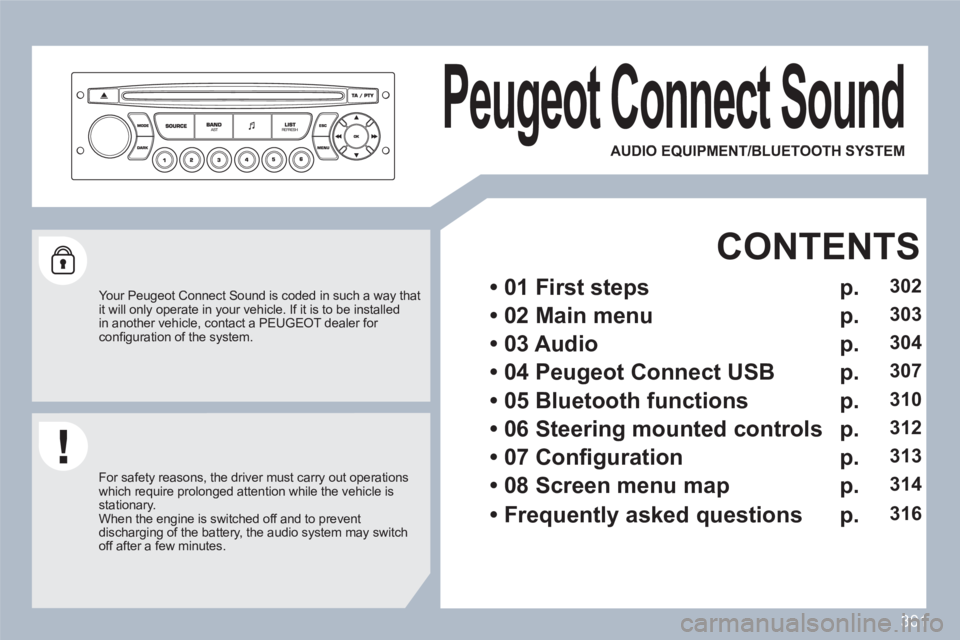

Peugeot Connect Sound

Your Peugeot Connect Sound is coded in such a way thatit will only operate in your vehicle. If it is to be installedin another vehicle, contact a PEUGEOT dealer for confi guration of the system.


For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the audio system may switch off after a few minutes.

AUDIO EQUIPMENT/BLUETOOTH SYSTEM


• 01 First steps
CONTENTS


• 02 Main menu



• 03 Audio


• 04
Peugeot Connect
USB



• 05 Bluetooth functions



• 06 Steering mounted controls


• 07 Confi guration


• 08 Screen menu map




• Frequently asked questions
p.
p.
p.
p.
p.
p.
p.
p.
p.
302
303
304
307
310
312
313
314
316

302
11
22
10101111
133144155
33445566778899
122
01 FIRST STEPS
1. On/Off and volume adjustment.
2. CD eject.
3. Selection of the display on the screen from the modes: Audio (AUDIO), Vehicle Diagnostics and Telephone (TEL) functions.
4. Selection of the source: radio, audio CD/MP3 CD, CD changer, USB, Jack connection, Streaming.
5. Selection of the FM1, FM2, FMast and AM wavebands.
6. Setting audio options: front/rear balance, left/right balance, loudness, sound ambiences.
7. Display the list of local stations, of the tracks on the CD or of the MP3 directories.
8. Abandon current operation.


9. TA (Traffi c Announcement) function on/off. Long press: access to the PTY (Types of radio programme)mode.


10. Confi rmation.


11 . Automatic search for a lower/higher frequency. Selection of previous/next CD, MP3 or USB track.


12. Selection of a lower/higher radio frequency. Selection of the previous/next CD. Selection of the previous/next MP3 directory. Selection of the previous/next USB equipment directory/genre/artist/playlist.


13. Display the general menu.

14. Buttons 1 to 6: Selection of a stored radio station. Selection of a CD in the CD changer. Long press: storing of a station.
15. The DARK button changes the display on the screen toimprove driving comfort at night. 1st press: lighting of the top banner only. 2nd press: displaying of a black screen. 3rd press: return to the standard display.
