2010 PEUGEOT 308 SW BL Owners Manual

311
05
11
22
11
22
33
22
11

RECEIVING A CALL


An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated fromthe vehicle's telephone function menu or via the telephone's keypad. See steps 1 to 10 on theprevious pages. During the pairing phase, the vehiclemust be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function menu. The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display using the buttons and confi rm bypressing OK.


Press the steering mounted control OK to accept the call.


From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.


Press the end of the steering mounted control for more than two seconds to gain access to your directory. Or
To dial a number, use your telephoneís keypad, with the vehicle stationary.


MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)

Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriatebluetooth profi les (Profi les A2DP/AVRCP).
*

In certain cases, playing of the Audio fi les must be initiated fromthe keypad. **
If the telephone supports the function.
Activate the streaming source bypressing the SOURCE button * . Thetracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls
** . The contextual information can be displayed on the screen.

BLUETOOTH

312

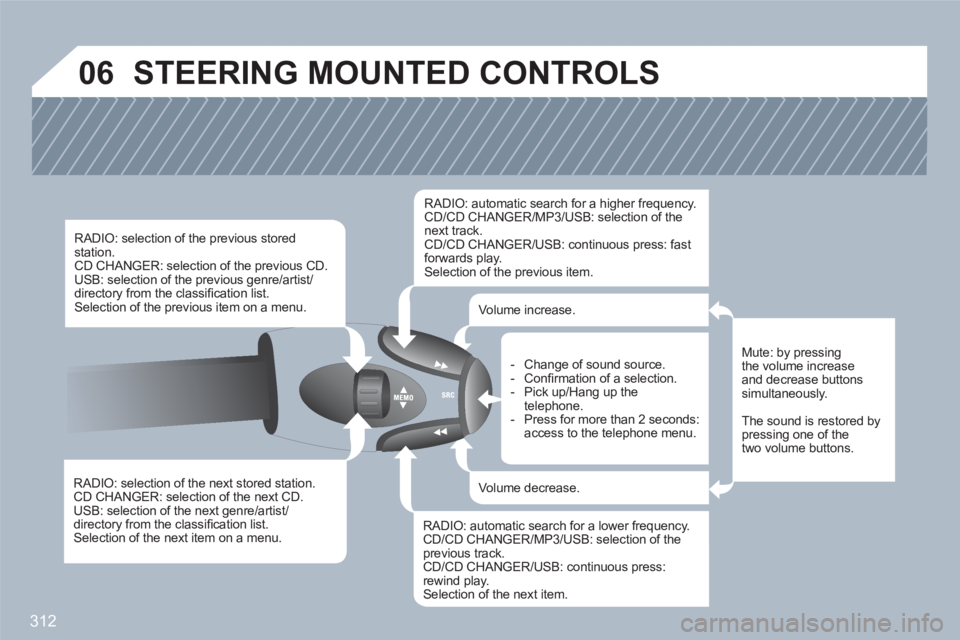

06 STEERING MOUNTED CONTROLS
RADIO: selection of the next stored station.CD CHANGER: selection of the next CD.USB: selection of the next genre/artist/directory from the classifi cation list.Selection of the next item on a menu.
RADIO: selection of the previous storedstation. CD CHANGER: selection of the previous CD. USB: selection of the previous genre/artist/directory from the classifi cation list.Selection of the previous item on a menu.


RADIO: automatic search for a higher frequency. CD/CD CHANGER/MP3/USB: selection of thenext track. CD/CD CHANGER/USB: continuous press: fastforwards play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/CD CHANGER/MP3/USB: selection of the previous track.CD/CD CHANGER/USB: continuous press: rewind play.Selection of the next item.


Volume increase.
Volume decrease.
Mute: by pressingthe volume increaseand decrease buttonssimultaneously.
The sound is restored bypressing one of thetwo volume buttons.
- Change of sound source. - Confi rmation of a selection.- Pick up/Hang up the telephone.- Press for more than 2 seconds: access to the telephone menu.

313
11
22
33
44
55
66
77
88

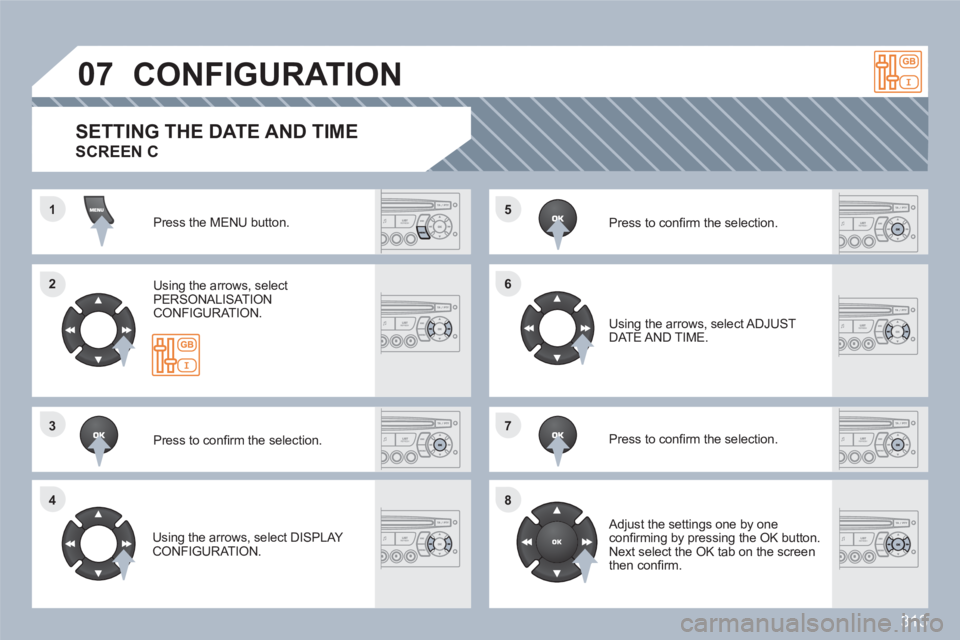

07CONFIGURATION
Press the MENU button.
Using the arrows, select PERSONALISAT ION CONFIGURATION.
Press to confi rm the selection.


Using the arrows, select DISPLAY CONFIGURATION.
Press to confi rm the selection.
Press to confi rm the selection.
Using the arrows, select ADJUSTDATE AND TIME.


Adjust the settings one by oneconfi rming by pressing the OK button.Next select the OK tab on the screen then confi rm.

SETTING THE DATE AND TIME
SCREEN C

314
1
2
2
2
2
1
2
2
1
2
3
3
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
1
2
2
123
23
08
1
1
1
1
1
1
1
1
RADIO-CD
DISPLAY ADJUST


YEAR


MONTH
DAY


HOUR


MINUTES


12 H/24 H MODE

SCREEN MENU MAP
MAIN FUNCTION
*

The parameters vary according to vehicle.


CHOICE A

Choice A1

Choice A2

CHOICE B...



LANGUAGE
FRANCAIS
ITALIANO
NEDERLANDS
PORTUGUES
PORTUGUES-BRASIL
DEUTSCH
ENGLISH
ESPA N O L

Press the OK dial for access to short-cutmenus according to the display on the screen:









monochrome A monochrome C


RADIO
activate/deactivate RDS
activate/deactivate REG mode
activate/deactivate radiotext



RANDOM PLAY



RDS SEARCH


REG MODE

CD REPEAT

VEHICLE CONFIG *
REV WIPE ACT
GUIDE LAMPS


OPTIONS
DIAGNOSTICS


consult


abandon


UNITS
TEMPERATURE: °CELSIUS/°FAHRENHEIT
FUEL CONSUMPTION: KM/L - L/100 - MPG



CD/MP3 CD/CD CHANGER
activate/deactivate Intro
activate/deactivate track repeat (the entire current CDfor CD or CD Changer, the entire current folder for MP3CD or MP3 Changer)
activate/deactivate random play (the entire current CD for CD or CD Changer, the entire current folder for MP3 CD, all of the folders of the current CD for MP3 Changer)



USB
activate/deactivate track repeat (of the current folder/artist/genre/playlist)
activate/deactivate random play
(of the current folder/artist/genre/playlist)

315
1
1
2
3
4
3
4
3
4
2
3
4
3
4
2
3
4
2
4
4
3
3
4
4
1
2
2
08
3
4
4
1
2
3
3
3
4
4
4
2
3
4
2
3
3

AUDIO FUNCTIONS


FM BAND PREFERENCES


alternative frequencies (RDS)

activate/deactivate


regional mode (REG)

activate/deactivate


radio-text information (RDTXT)

activate/deactivate


PLAY MODES


album repeat (RPT)

activate/deactivate


track random play (RDM)

activate/deactivate


ALERT LOG


PERSONALISATION-CONFIGURATION


DEFINE THE VEHICLE PARAMETERS *



DISPLAY CONFIGURATION


video brightness adjustment
normal video
inverse video
brightness (- +) adjustment

date and time adjustment

day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit

*

The parameters vary according to vehicle.


CHOICE OF LANGUAGE


BLUETOOTH TELEPHONE
MANAGE THE TELEPHONE CALL
Terminate the current call
Activate private mode


BLUETOOTH CONFIGURATION
Connect/Disconnect a device
Te l ephone function
Audio Streaming function

Consult the paired device

Delete a paired device


Perform a Bluetooth search

CALL
Calls list

Directory
SCREEN MENU MAP

VEHICLE DIAGNOSTICS
Pressing the MENU button displays:
monochrome C

316
FREQUENTLY ASKED QUESTIONS


QUESTION



ANSWER SOLUTION

There is a difference insound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble,Ambience, Loudness) can be adapted to the different sound sources,which may result in audible differences when changing source(radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIOfunctions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select themusical ambience "None" and set the loudness correction to the "Active" position in CD mode or tothe "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play. The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
-
Check that the CD is inserted in the player the right way up.-
Check the condition of the CD: the CD cannot be played if it is too damaged.-
Check the content in the case of a recorded CD:consult the advice in the "Audio" section. -
The audio equipment’s CD player does not play DVDs.-
Due to their quality level, certain writeable CDs will not be played by the audio system.

The message "USBperipheral error" is displayed on the screen. The Bluetooth connection is cut.
The battery of the peripheral may not be suffi ciently charged.
Recharge the battery of the peripheral device.
The USB memory stick is not recognised.The memory stick may be corrupt.
Reformat the memory stick.

The CD player sound is poor. The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitableconditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable.
Set the treble or bass level to 0, without selectingan ambience.

317

QUESTION



ANSWER

SOLUTION

The stored stations do not function (no sound,87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return tothe waveband (AM, FM1, FM2, FMAST) on whichthe stations are stored.

The traffi c announcement(TA) is displayed. I do not receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of reception of the radio station listened to gradually deterioratesor the stored stations donot function (no sound,87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system tocheck whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequencypermitting better reception of the station.
Deactivate the RDS function if the phenomenon istoo frequent and always on the same route.

With the engine off, theaudio equipment switches off after a few minutesof use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.The switch-off is normal: the audio equipment switches to economy modeand switches off to prevent discharging of the vehicleís battery.
Start the vehicleís engine to increase the batterycharge.

The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is too high,the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.

Switch the audio system off for a few minutes to allow the system to cool.
