87
ACCESS
If the vehicle is locked or dead-
locked from the outside, the red in-
dicator lamp fl ashes and button A

is inactive.


)
In this case, use the remote
control or the key to unlock the
vehicle.


If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot or the rear screen is
open, the automatic central locking
of the doors is active.

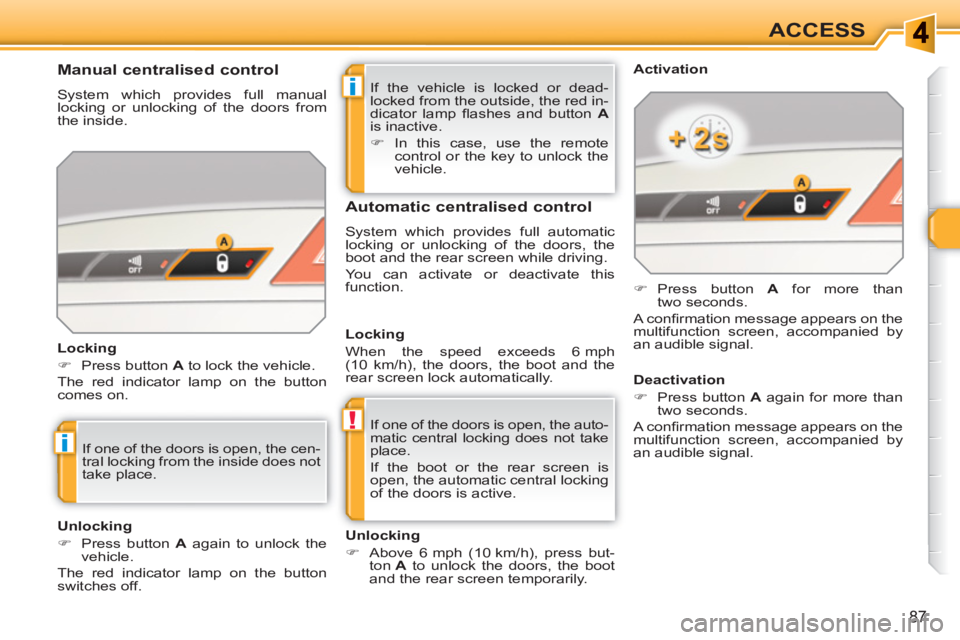

Manual centralised control

System which provides full manual
locking or unlocking of the doors from
the inside.

Locking


)
Press button A
to lock the vehicle.
The red indicator lamp on the button
comes on.

Automatic centralised control

System which provides full automatic
locking or unlocking of the doors, the
boot and the rear screen while driving.
You can activate or deactivate this
function.
Activation


)
Press button A
for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.

Unlocking


)
Above 6 mph (10 km/h), press but-
ton A
to unlock the doors, the boot
and the rear screen temporarily.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.

Unlocking


)
Press button A
again to unlock the
vehicle.
The red indicator lamp on the button
switches off.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors, the boot and the
rear screen lock automatically.

Deactivation


)
Press button A
again for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.

88
ACCESS






Emergency control

To lock or unlock the doors manually in
the event of a malfunction of the central
locking system or battery failure.


)
On the rear doors, check that the
child lock is not activated.

)
Remove the black cap, located on
the edge of the door, using the key.

)
Insert the key in the socket without
forcing it, then without turning it,
move the latch sideways towards
the inside of the door

)
Remove the key and refi t the cap.



Opening



)
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.

BOOT



- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,

- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by
an audible signal and a message
on the multifunction screen for a
few seconds.








Tailgate release

System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.

Unlocking


)
Fold back the rear seats to gain
access to the lock from inside the
boot.

)

Insert a small screwdriver into hole A

of the lock to unlock the tailgate.


Locking the driver's door


)
Insert the key in the lock, then turn it
to the rear.


Unlocking the driver's door


)
Insert the key in the lock, then turn it
to the front.


Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors


)
Pull the interior door opening control.




Closing



)
Lower the tailgate using the interior
grab handle. If the tailgate is not closed correctly:

i
i
89
ACCESS

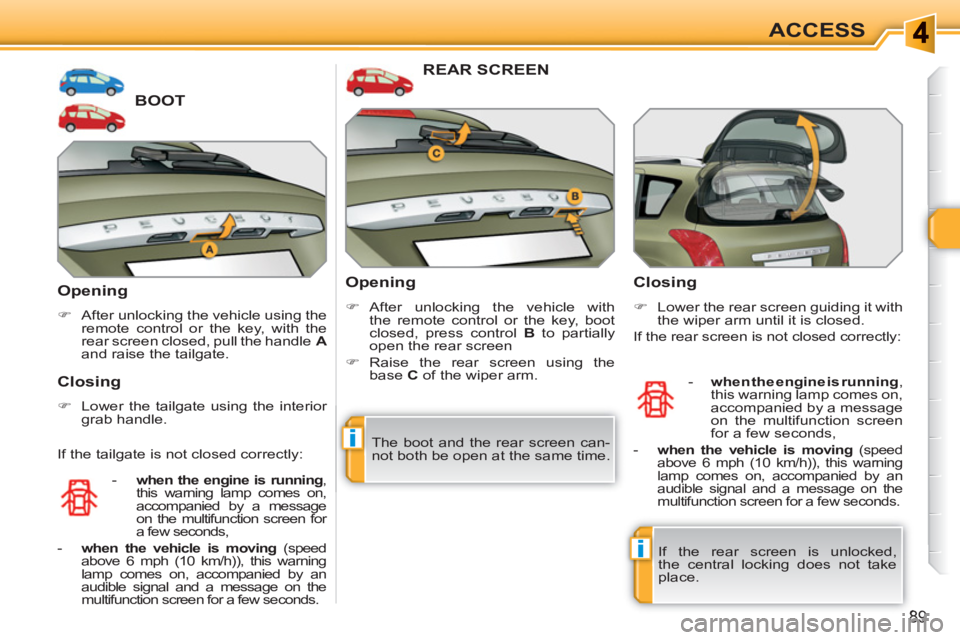

BOOT

Opening



)
After unlocking the vehicle using the
remote control or the key, with the
rear screen closed, pull the handle A

and raise the tailgate.



Closing



)
Lower the tailgate using the interior
grab handle.

REAR SCREEN

Opening



)
After unlocking the vehicle with
the remote control or the key, boot
closed, press control B
to partially
open the rear screen

)
Raise the rear screen using the
base C
of the wiper arm.


Closing



)
Lower the rear screen guiding it with
the wiper arm until it is closed.
If the rear screen is not closed correctly:


- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen for
a few seconds,

- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.


- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,

-

when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
If the tailgate is not closed correctly:
If the rear screen is unlocked,
the central locking does not take
place. The boot and the rear screen can-
not both be open at the same time.

!
i
90
ACCESS

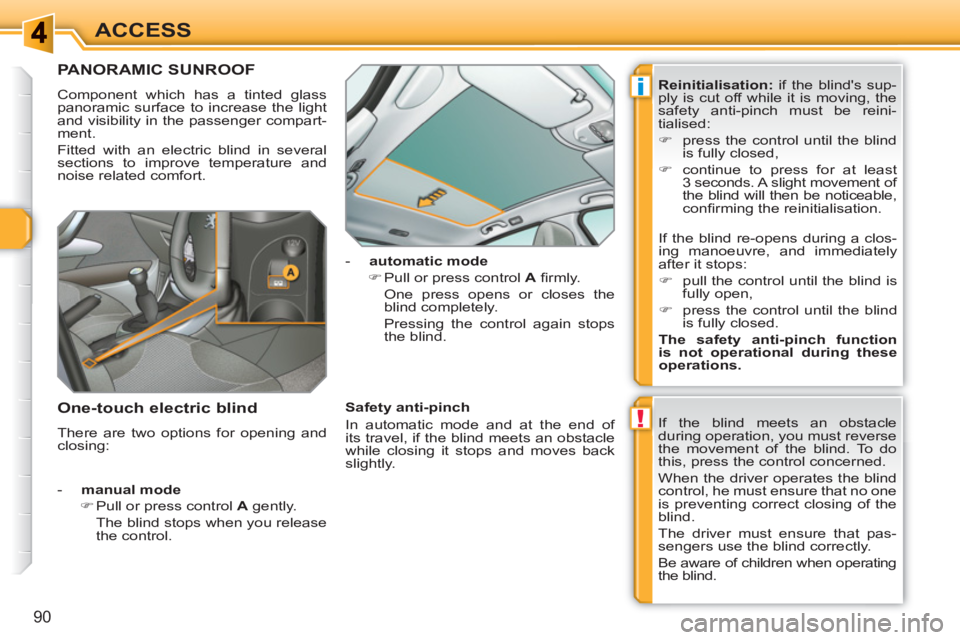

PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle
during operation, you must reverse
the movement of the blind. To do
this, press the control concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that pas-
sengers use the blind correctly.
Be aware of children when operating
the blind.


- manual mode



)
Pull or press control A
gently.
The blind stops when you release
the control.
- automatic mode



)
Pull or press control A
fi rmly.
One press opens or closes the
blind completely.
Pressing the control again stops
the blind.


Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.

One-touch electric blind

There are two options for opening and
closing:
Reinitialisation:
if the blind's sup-
ply is cut off while it is moving, the
safety anti-pinch must be reini-
tialised:


)
press the control until the blind
is fully closed,

)
continue to press for at least
3 seconds. A slight movement of
the blind will then be noticeable,
confi rming the reinitialisation.


If the blind re-opens during a clos-
ing manoeuvre, and immediately
after it stops:


)
pull the control until the blind is
fully open,

)
press the control until the blind
is fully closed.

The safety anti-pinch function
is not operational during these
operations.

i
91
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.
Opening the cap may cause an in-
rush of air. This vacuum, which is
perfectly normal, is caused by the
sealing of the fuel system.
FUEL TANK


Capacity of the tank: approximately
60 litres.
To fi ll the tank safely:


)
it is essential that the engine is
switched off,


)
open the fuel fi ller fl ap,

)
insert the key in the cap, then turn it
to the left,
When fi lling is complete:


)
refi t the cap,

)
turn the key to the right, then remove
it from the cap,

)
close the fl ap.

)
remove the cap and secure it on the
hook, located on the inside of the
fl ap,

)
fi ll the tank, but do not continue
after the 3rd cut-off of the nozzle
;
this could cause malfunctions.


Low fuel level

Filling

A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge.
Operating fault

A fuel gauge malfunction is indicated by
the return of the fuel gauge needle to
zero.
Have it checked by a PEUGEOT dealer. When the low fuel level is
reached, this warning lamp
comes on on the instrument
panel, accompanied by an
audible signal and a message on the
multifunction screen. When it fi rst comes
on, you have approximately 6 litres
of
fuel remaining.
Until suffi cient fuel has been added, this
warning lamp comes on every time the
ignition is switched on, accompanied
by an audible signal and a message.
Depending on version, this audible sig-
nal and message are repeated with in-
creasing frequency as the level drops
towards "0"
.
Refuel as soon as possible to avoid run-
ning out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.

i
92
ACCESS

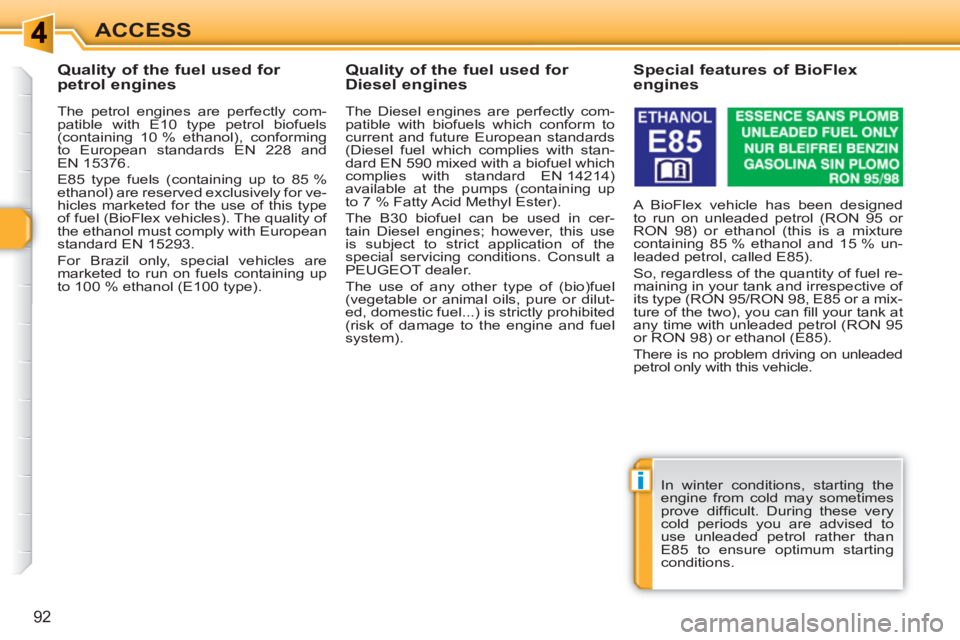

Quality of the fuel used for
petrol engines

The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).














Quality of the fuel used for
Diesel engines

The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).












Special features of BioFlex
engines
A BioFlex vehicle has been designed
to run on unleaded petrol (RON 95 or
RON 98) or ethanol (this is a mixture
containing 85 % ethanol and 15 % un-
leaded petrol, called E85).
So, regardless of the quantity of fuel re-
maining in your tank and irrespective of
its type (RON 95/RON 98, E85 or a mix-
ture of the two), you can fi ll your tank at
any time with unleaded petrol (RON 95
or RON 98) or ethanol (E85).
There is no problem driving on unleaded
petrol only with this vehicle.
In winter conditions, starting the
engine from cold may sometimes
prove diffi cult. During these very
cold periods you are advised to
use unleaded petrol rather than
E85 to ensure optimum starting
conditions.

93

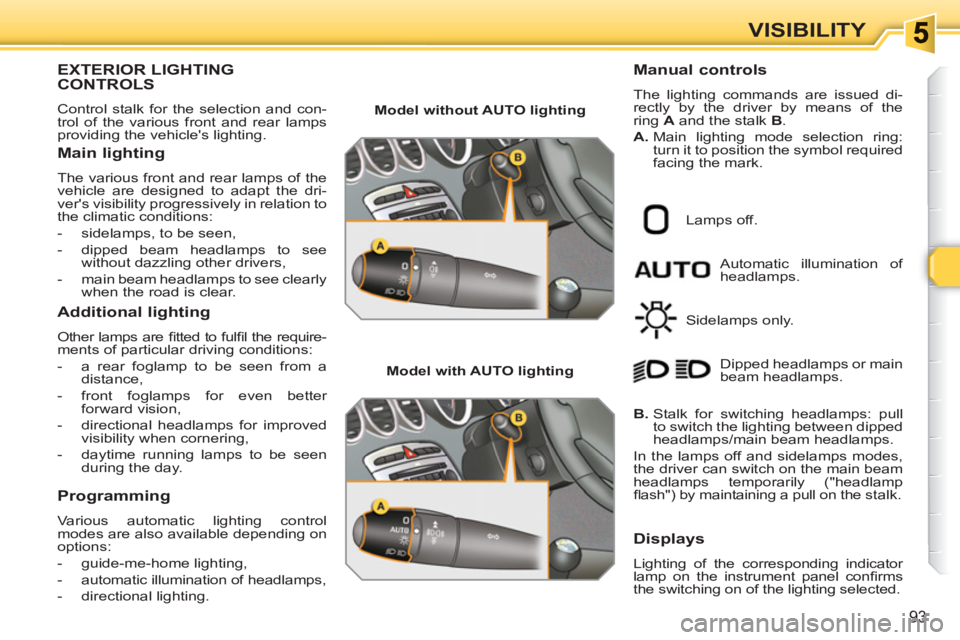

VISIBILITY
EXTERIOR LIGHTINGCONTROLS
Control stalk for the selection and con-
trol of the various front and rear lamps
providing the vehicle's lighting.

Main lighting

The various front and rear lamps of the
vehicle are designed to adapt the dri-
ver's visibility progressively in relation to
the climatic conditions:


- sidelamps, to be seen,

- dipped beam headlamps to see
without dazzling other drivers,

- main beam headlamps to see clearly
when the road is clear.



Additional lighting

Other lamps are fi tted to fulfi l the require-
ments of particular driving conditions:


- a rear foglamp to be seen from a
distance,

- front foglamps for even better
forward vision,

- directional headlamps for improved
visibility when cornering,

- daytime running lamps to be seen
during the day.



Programming

Various automatic lighting control
modes are also available depending on
options:


- guide-me-home lighting,

- automatic illumination of headlamps,

- directional lighting.


Model without AUTO lighting



Model with AUTO lighting





Automatic illumination of
headlamps.

Manual controls

The lighting commands are issued di-
rectly by the driver by means of the
ring A
and the stalk B
.

A.
Main lighting mode selection ring:
turn it to position the symbol required
facing the mark.
Lamps off.
Sidelamps only.

B.
Stalk for switching headlamps: pull
to switch the lighting between dipped
headlamps/main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the stalk. Dipped headlamps or main
beam headlamps.

Displays

Lighting of the corresponding indicator
lamp on the instrument panel confi rms
the switching on of the lighting selected.

!
i
94
VISIBILITY


Model with rear foglamp only
Rear foglamp


)
To switch on the foglamp, turn the
ring C
forwards.
When the lighting is switched off au-
tomatically (with AUTO model), the fo-
glamp and the dipped beam headlamps
will remain on.


)
To switch off all of the lighting, turn
the ring C
rearwards.






In good or rainy weather, both day
and night, the front foglamps and
the rear foglamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the brightness
sensor may detect suffi cient light.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.

Switching off of the lamps when
the ignition is switched off
On switching off the ignition, all of
the lamps turn off immediately, ex-
cept for dipped beam if guide-me-
home lighting is activated.

Model with front foglamps and
a rear foglamp
Front and rear foglamps
Rotate and release the ring C
:


)
forwards a fi rst time to switch on the
front foglamps.

)
forwards a second time to switch on
the rear foglamp,

)
rearwards a fi rst time to switch off
the rear foglamp

)
rearwards a second time to switch
of the front fog lamps.
When the lighting is switched off auto-
matically (with AUTO model) or when
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.


)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.










C.
Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.

Switching on the lamps after
the ignition is switched off
To reactivate the lighting control, ro-
tate ring A
to the "0"
position - lamps
off, then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically
after a maximum duration of thir-
ty minutes to prevent discharging of
the battery.
