2010 PEUGEOT 308 SW BL Owners Manual

1
191
PRACTICAL INFORMATION

Table of mini and midi-fuses above the battery

Table of maxi-fuses

Fuse N°



Rating



Functions




F1



-

Not used.


F2



5 A

Dual function brake switch.


F3



5 A

Battery charge unit.


F4



25 A

ABS/ESP electrovalves.


F5



-

Not used.


F6



15 A

Gearbox (electronic gear control or automatic).


F7 *



80 A

Power steering electropump assembly.


F8 *



60 A

Fan assembly.


F9 *



70 A/30 A

Pre-heat unit (Diesel)/Valvetronic electric motor
(1.6 litre THP 16V).


F10 *



40 A

ABS/ESP electropump assembly.


F11 *



100 A

Switching and protection unit.


F12 *



30 A

Electronic gear control gearbox electropump assembly.


Fuse N°



Rating



Functions




MF1 *




-

Not used.


MF2 *



30 A

Trailer fusebox.


MF3 *



50 A

Passenger compartment fuse box.


MF4 *



80 A

Built-in systems interface.


MF5 *



80 A

Built-in systems interface.


MF6 *



-

Not used.


MF7 *



30 A

Heated seats.


MF8 *



20 A

Headlamp wash.
*

The midi-fuses and maxi-fuses provide
additional protection for the electrical sys-
tems. All work on these types of fuse must
be carried out by a PEUGEOT dealer.

1
i

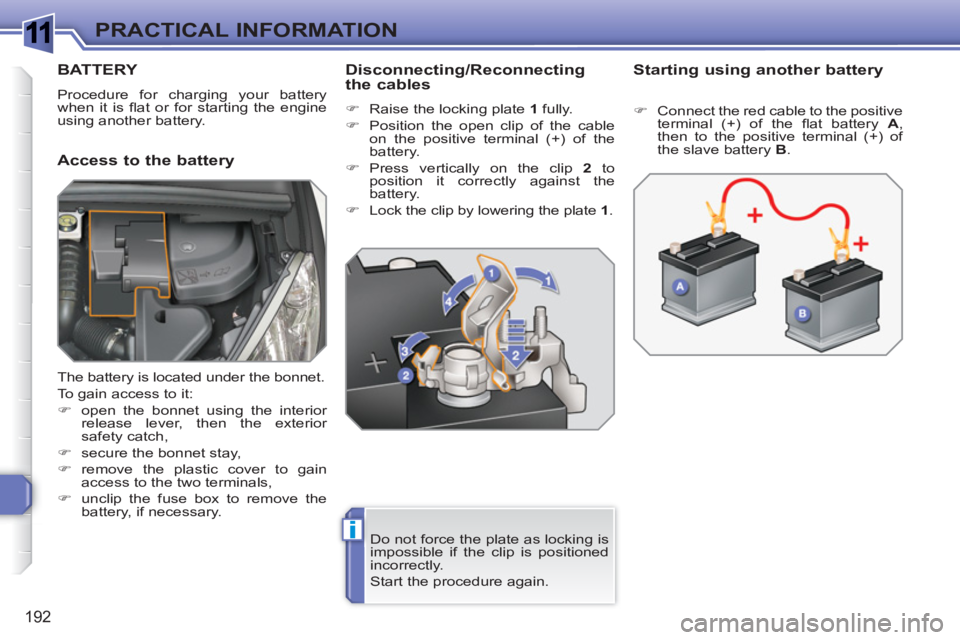

192
PRACTICAL INFORMATION
BATTERY
Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.

Access to the battery
Disconnecting/Reconnecting
the cables


)
Raise the locking plate 1
fully.

)
Position the open clip of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 2
to
position it correctly against the
battery.

)
Lock the clip by lowering the plate 1
.


Starting using another battery

Do not force the plate as locking is
impossible if the clip is positioned
incorrectly.
Start the procedure again.

)
Connect the red cable to the positive
terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.
The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior
release lever, then the exterior
safety catch,

)
secure the bonnet stay,

)
remove the plastic cover to gain
access to the two terminals,

)
unclip the fuse box to remove the
battery, if necessary.

1
!
i

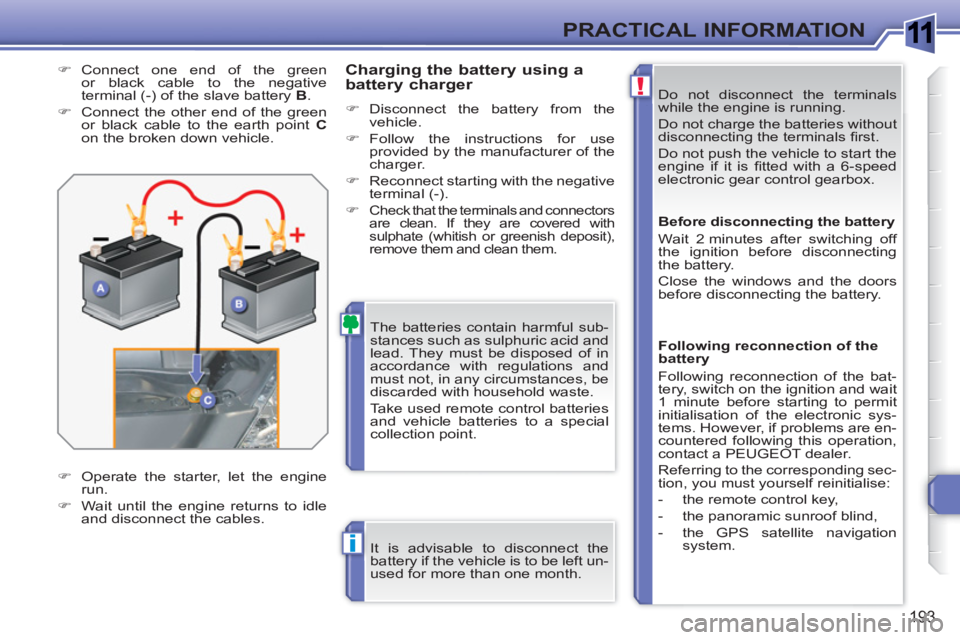

193
PRACTICAL INFORMATION
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with a 6-speed
electronic gear control gearbox.
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.

Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if problems are en-
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:


- the remote control key,

- the panoramic sunroof blind,

- the GPS satellite navigation
system.




Charging the battery using a
battery charger


)
Disconnect the battery from the
vehicle.

)
Follow the instructions for use
provided by the manufacturer of the
charger.

)
Reconnect starting with the negative
terminal (-).

)
Check that the terminals and connectors
are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.


)
Connect one end of the green
or black cable to the negative
terminal (-) of the slave battery B
.

)
Connect the other end of the green
or black cable to the earth point C

on the broken down vehicle.

)
Operate the starter, let the engine
run.

)
Wait until the engine returns to idle
and disconnect the cables.

1
!
i
194
PRACTICAL INFORMATION
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph). If the telephone is being used at
this time:


- it will be maintained for 10 minutes
with the hands-free kit of your
Peugeot Connect Sound,

-
it will be maintained for 10 minutes
with the Peugeot Connect Navi-
gation or the Peugeot Connect
Media, then it will transfer to your
telephone depending on the tele-
phone model.


System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
lamps, etc. for a maximum combined
duration of thirty minutes.

Exiting economy mode

These functions are reactivated auto-
matically next time the vehicle is driven.


)
In order to resume the use of these
functions immediately, start the
engine and let it run:


- for less than ten minutes, to use
the equipment for approximately
fi ve minutes,

- for more than ten minutes, to
use the equipment for up to
approximately thirty minutes.



Switching to economy mode

Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A WIPER BLADE

Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper
blade


)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades vertically
on the windscreen.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.

LOAD REDUCTION MODE
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condition-
ing, the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

1
!i

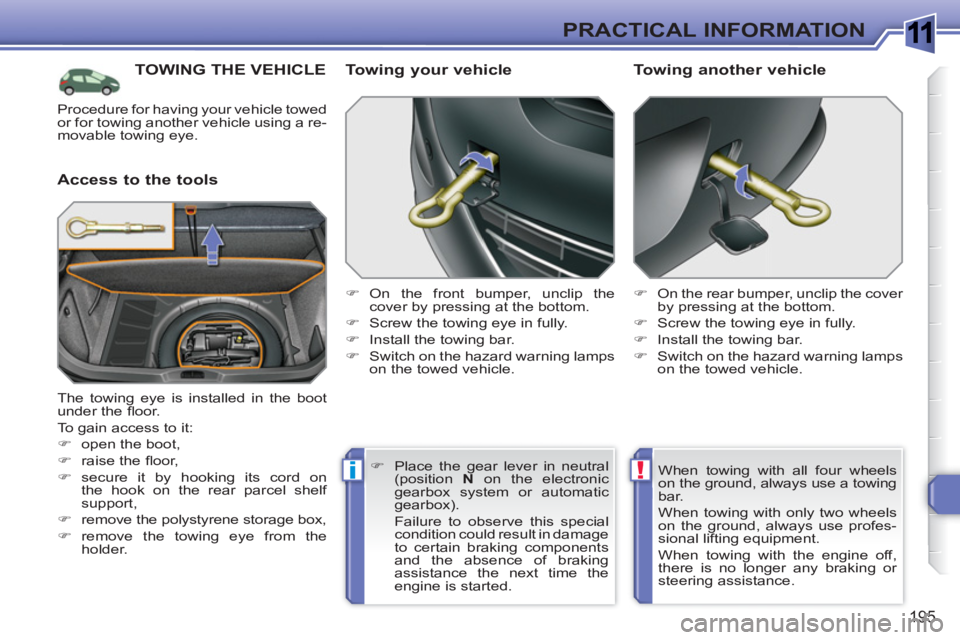

195
PRACTICAL INFORMATION
TOWING THE VEHICLE

Access to the tools
Towing your vehicle



)
On the front bumper, unclip the
cover by pressing at the bottom.

)
Screw the towing eye in fully.

)
Install the towing bar.

)
Switch on the hazard warning lamps
on the towed vehicle.

)
On the rear bumper, unclip the cover
by pressing at the bottom.

)
Screw the towing eye in fully.

)
Install the towing bar.

)
Switch on the hazard warning lamps
on the towed vehicle.


Towing another vehicle

The towing eye is installed in the boot
under the fl oor.
To gain access to it:


)
open the boot,

)
raise the fl oor,

)
secure it by hooking its cord on
the hook on the rear parcel shelf
support,

)
remove the polystyrene storage box,

)
remove the towing eye from the
holder.
When towing with all four wheels
on the ground, always use a towing
bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
)
Place the gear lever in neutral
(position N
on the electronic
gearbox system or automatic
gearbox).
Failure to observe this special
condition could result in damage
to certain braking components
and the absence of braking
assistance the next time the
engine is started.
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.

1
!i

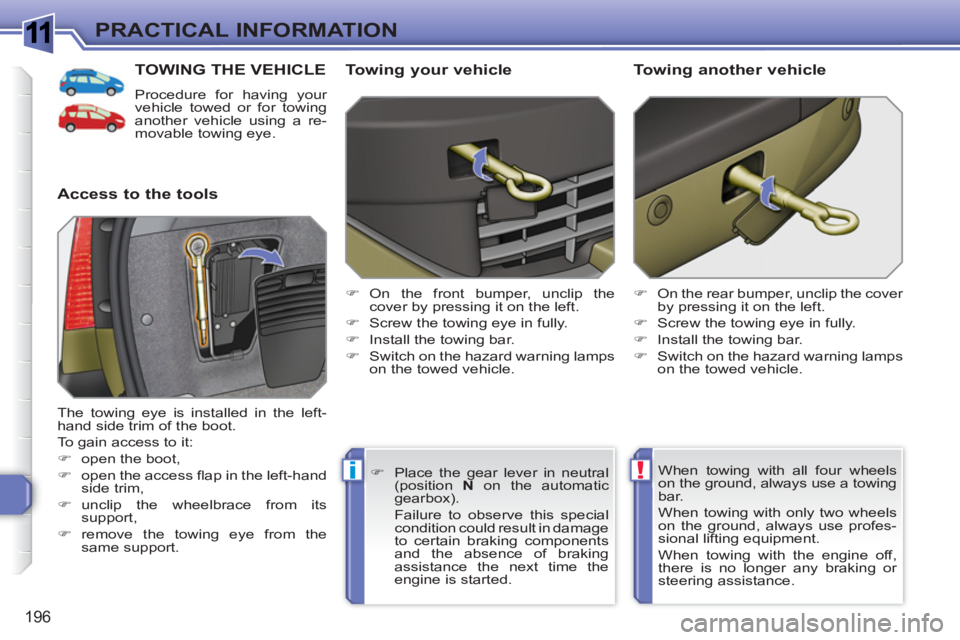

196
PRACTICAL INFORMATION
TOWING THE VEHICLE
Procedure for having your
vehicle towed or for towing
another vehicle using a re-
movable towing eye.

Access to the tools
Towing your vehicle



)
On the front bumper, unclip the
cover by pressing it on the left.

)
Screw the towing eye in fully.

)
Install the towing bar.

)
Switch on the hazard warning lamps
on the towed vehicle.

)
On the rear bumper, unclip the cover
by pressing it on the left.

)
Screw the towing eye in fully.

)
Install the towing bar.

)
Switch on the hazard warning lamps
on the towed vehicle.


Towing another vehicle

The towing eye is installed in the left-
hand side trim of the boot.
To gain access to it:


)
open the boot,

)
open the access fl ap in the left-hand
side trim,

)
unclip the wheelbrace from its
support,

)
remove the towing eye from the
same support.
When towing with all four wheels
on the ground, always use a towing
bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
)
Place the gear lever in neutral
(position N
on the automatic
gearbox).
Failure to observe this special
condition could result in damage
to certain braking components
and the absence of braking
assistance the next time the
engine is started.

1
i
i
!
197
PRACTICAL INFORMATION
TOWING A TRAILER,A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.

Driving advice

As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
The maximum towing load on a long
slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.

Side wind


)
Take into account the increased
sensitivity to side wind.


Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
Braking
Towing a trailer increases the braking
distance.

Tyres


)

Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.



Lighting


)
Check the electrical lighting and
signalling on the trailer.
The rear parking sensors will be de-
activated automatically if a genuine
PEUGEOT towbar is used.


)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.

Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.

Distribution of loads


)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing load
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle. Driving with a trailer subjects the towing
vehicle to more signifi cant stress and its
driver must be particularly careful.
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to a
PEUGEOT dealer.
If the trailer is not fi tted by a
PEUGEOT dealer, it is imperative
that it is fi tted using the electrical
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions.
If your vehicle is fi tted with the
1.6 THP 200 hp engine, you can-
not fi t a towbar. The space occu-
pied by the sport exhaust system
prevents this.

1
ii
PRACTICAL INFORMATION

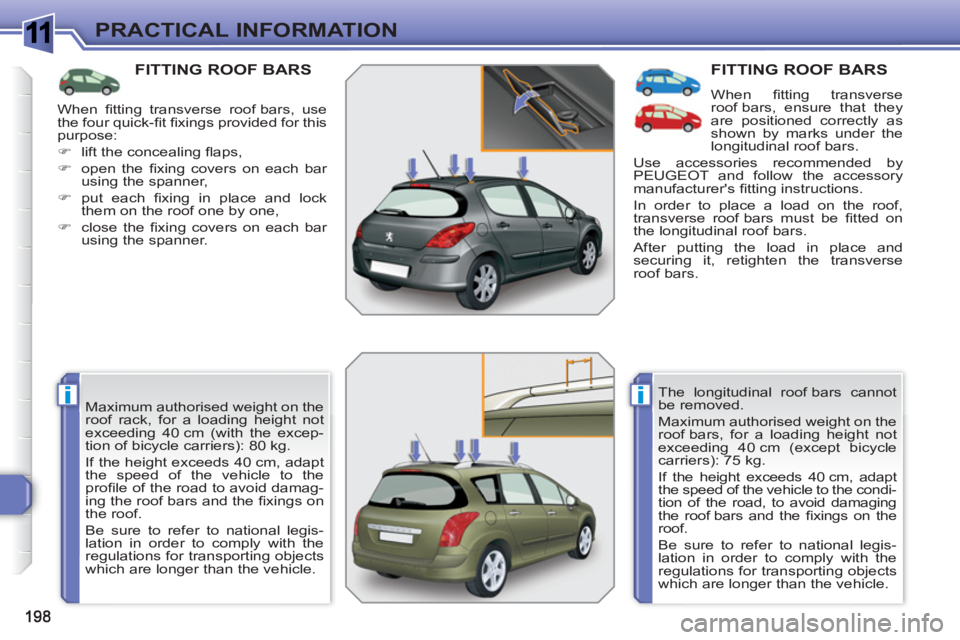

FITTING ROOF BARS
Maximum authorised weight on the
roof rack, for a loading height not
exceeding 40 cm (with the excep-
tion of bicycle carriers): 80 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the
profi le of the road to avoid damag-
ing the roof bars and the fi xings on
the roof.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.
FITTING ROOF BARS


When fi tting transverse
roof bars, ensure that they
are positioned correctly as
shown by marks under the
longitudinal roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
manufacturer's fi tting instructions.
In order to place a load on the roof,
transverse roof bars must be fi tted on
the longitudinal roof bars.
After putting the load in place and
securing it, retighten the transverse
roof bars.
The longitudinal roof bars cannot
be removed.
Maximum authorised weight on the
roof bars, for a loading height not
exceeding 40 cm (except bicycle
carriers): 75 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the condi-
tion of the road, to avoid damaging
the roof bars and the fi xings on the
roof.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle. When fi tting transverse roof bars, use
the four quick-fi t fi xings provided for this
purpose:


)
lift the concealing fl aps,

)
open the fi xing covers on each bar
using the spanner,

)
put each fi xing in place and lock
them on the roof one by one,

)
close the fi xing covers on each bar
using the spanner.
