2010 PEUGEOT 308 SW BL Owners Manual

231
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
PEUGEOT ASSISTANCE

CUSTOMER CALL

Press this button for access to PEUGEOT services * .
Select "Customer call" to request any information about the PEUGEOTmarque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
* These services and options are subject to conditions and availability.
EMERGENCY CALL

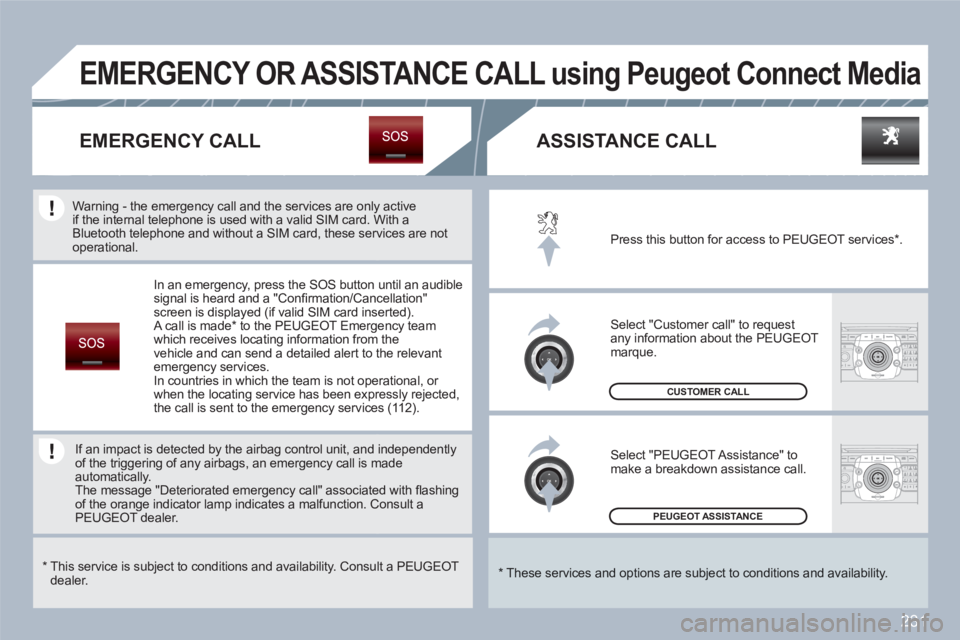

EMERGENCY OR ASSISTANCE CALL using Peugeot Connect Media
ASSISTANCE CALL


In an emergency, press the SOS button until an audible signal is heard and a "Confi rmation/Cancellation"screen is displayed (if valid SIM card inserted). A call is made *
to thePEUGEOT Emergency team Twhich receives locating information from the vehicle and can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or when the locating service has been expressly rejected, the call is sent to the emergency services (11 2).


If an impact is detected by the airbag control unit, and independentlyof the triggering of any airbags, an emergency call is mmade automatically.
The message "Deteriorated emergency call" associateed with fl ashingof the orange indicator lamp indicates a malfunction. CConsult aPEUGEOT dealer.





Warning - the emergency call and the services are onlyy activeif the internal telephone is used with a valid SIM card. WWith aBluetooth telephone and without a SIM card, these serrvices are notoperational.

*

This service is subject to conditions and availability. Consult a PEUGEOTdealer.

232

233
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1
RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK

The Peugeot Connect Media is protected in such away that it will only operate in your vehicle. If it is to beinstalled in another vehicle, contact a PEUGEOT dealer for confi guration of the system.
Certain functions described in this handbook will become available during the course of the year.

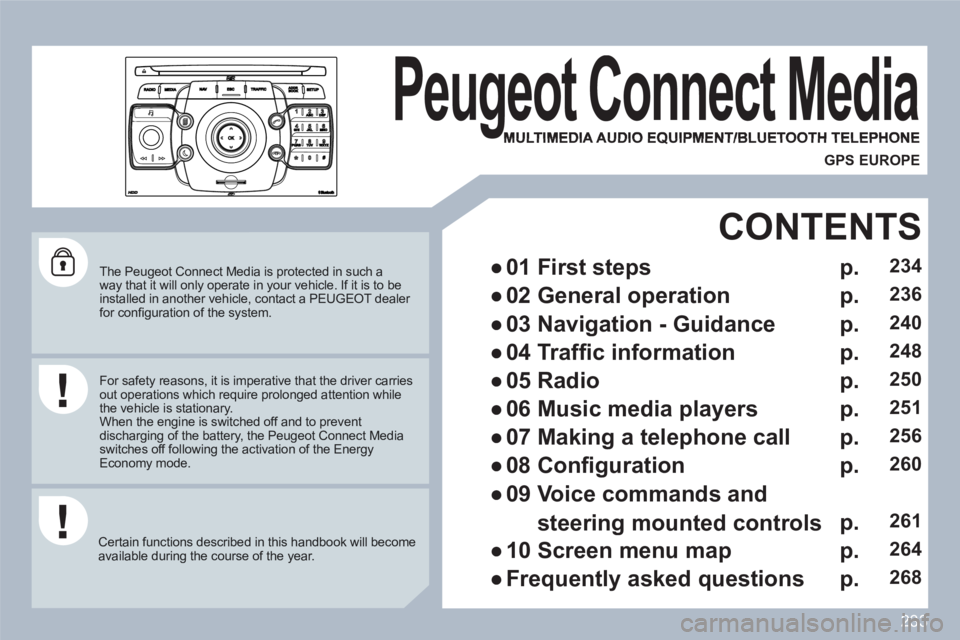

Peugeot Connect Media
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
gg


GPS EUROPE



For safety reasons, it is imperative that the driver carriesout operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the Peugeot Connect Mediaswitches off following the activation of the EnergyEconomy mode.



●
01 First steps
CONTENTS


●
02 General operation


●
03 Navigation - Guidance


●
04 Traffi c information


●
05 Radio


●
06 Music media players


●
07 Making a telephone call


●
08 Confi guration


●
09 Voice commands and
steering mounted controls


●
10 Screen menu map


●
Frequently asked questions
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
234
236
240
248
250
251
256
260
261
264
268

234
01
2ABC3DEF
5JKL4GHI6MNO
8TUV7PQRS9WXYZ
0*#
1
RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
1
10
2
3
4
612
9
7
8
115
TU PQRS
0*
1.
CD eject.
2.
RADIO: access to the "Radio" Menu. Display the list of stations in alphabetical order (FM waveband) or frequency order (AM waveband).
MEDIA: access to the "Media" Menu (Audio CD, Jukebox, External Device). Display the list of tracks. Change of source.
NAV: access to the "Navigation" Menu and display of thelast destinations.
ESC: abandon the operation in progress. Long press: return to the main display.
TRAFFIC: access to the "Traffi c" Menu (function describedin detail in sections 02 and 10).
ADDR BOOK: access to the "Address book" Menu (function described in detail in section 10).
SETUP: access to the "SETUP" Menu (confi guration) (function described in detail in sections 02 and 10). Long press: GPS coverage.
3.
Audio settings (Balance/Fader, Bass/Treble, MusicalAmbience...).
4.
Volume adjustment (each source is independent, including message and navigation alert) Long press: reinitialisation of the system. Short press: mute.
5.
Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
6.
Automatic search for a radio station on a higher frequency. Selection of the next CD or MP3 track.
FIRST STEPS

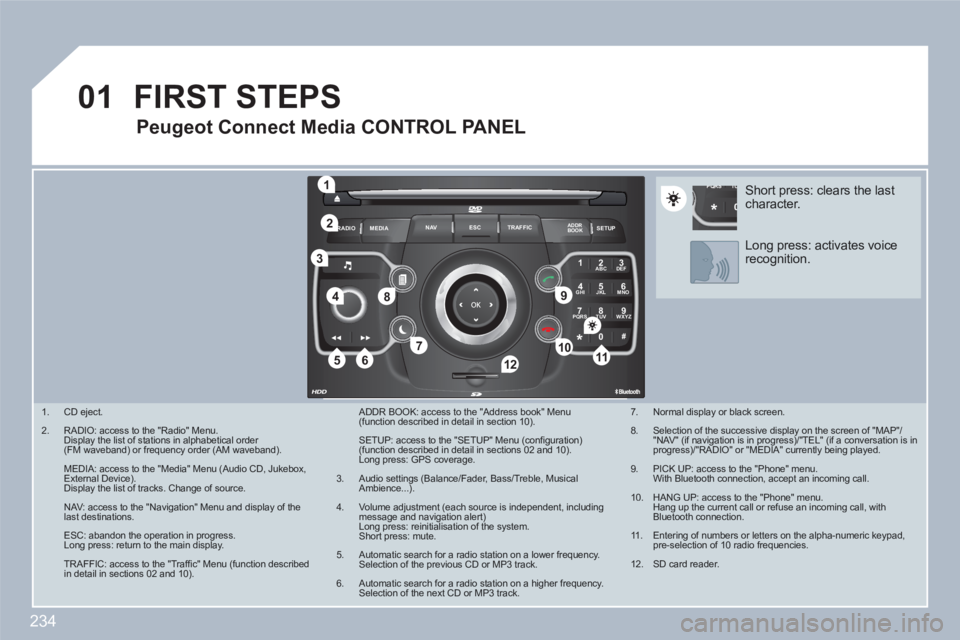

Peugeot Connect Media CONTROL PANEL



7.
Normal display or black screen.



8.
Selection of the successive display on the screen of "MAP"/"NAV" (if navigation is in progress)/"TEL" (if a conversation is inprogress)/"RADIO" or "MEDIA" currently being played.


9.
PICK UP: access to the "Phone" menu. With Bluetooth connection, accept an incoming call.



10.
HANG UP: access to the "Phone" menu. Hang up the current call or refuse an incoming call, withBluetooth connection.



11 .
Entering of numbers or letters on the alpha-numeric keypad, pre-selection of 10 radio frequencies.



12.
SD card reader.
Short press: clears the last character.
Long press: activates voicerecognition.

235
01
2ABC3DEF
5JKL4GHI6MNO
8TUV7PQRS9WXYZ
0*#
1
13
14
- 4-direction navigator: press to the left/right.
When the "RADIO" screen is displayed: selection of theprevious/next frequency.
When "MEDIA" is displayed: selection of the previous/nexttrack.
When "MAP" or "NAV" is displayed: horizontal movement of the map.
- 4-direction navigator: press up/down.
When "RADIO" is displayed: selection of the previous/nextradio station on the list.
When the "MEDIA" screen is displayed: selection of the MP3directory.
When "MAP" or "NAV" is displayed: vertical movement of themap.
Switch to the next or previous page of a menu. Movement on the virtual keypad displayed.
FIRST STEPS
Peugeot Connect Media NAVIGATOR



14.
Rotation of the ring: When the "RADIO" screen is displayed: selection of the previous/next radio station on the list.
When the "MEDIA" screen is displayed: selection of the previous/next CD or MP3 track.
When "MAP" or "NAV" is displayed: front/rear map zoom.
Movement of the menu selection curser.

236
02
SETUP
MEDIA
TRAFFIC

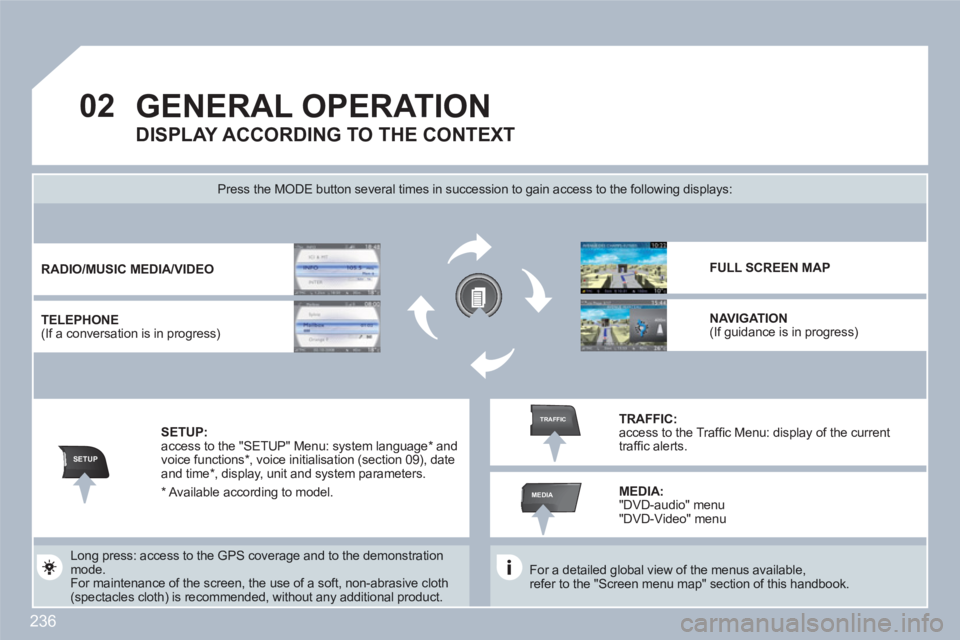

GENERAL OPERATION

For a detailed global view of the menus available, refer to the "Screen menu map" section of this handbook.


Press the MODE button several times in succession to gain access to the following displays:


Long press: access to the GPS coverage and to the demonstration mode.
For maintenance of the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any additional product.
RADIO
/


MUSIC
MEDIA/VIDEO
TELEPHONE (If a conversation is in progress)
FULL SCREEN MAP

NAVIGATION (If guidance is in progress)



SETUP: access to the "SETUP" Menu: system language * and voice functions *
, voice initialisation (section 09), dateand time * , display, unit and system parameters.
TRAFFIC: access to the Traffi c Menu: display of the currenttraffi c alerts.
DISPLAY ACCORDING TO THE CONTEXT
MEDIA:
"DVD-audio" menu "DVD-Video" menu


* Available according to model.

237
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
2
2
1
1
2
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
2
2
2
2
2
GENERAL OPERATION

Pressing OK gives access to short-cut menus according to the display on the screen.
MUSIC MEDIA PLAYERS:
TA
PLAY OPTIONS
NAVIGATION (IF GUIDANCE IS IN PROGRESS):

ABORT GUIDANCE

REPEAT ADVICE

BLOCK ROAD

UNBLOCK

MORE

LESS

CALCULATE

ZOOM/SCROLL

BROWSE ROUTE

ROUTE INFO
SHOW DESTINATION

TRIP INFO

Route type


RADIO:
IN FM MODE
TA

RDS

RADIOTEXT

REGIONAL PROG.
AM


IN AM MODE

TA

REFRESH AM LIST
FM


TELEPHONE:

END CALL

HOLD CALL

DIAL

DTMF-TONES

PRIVATE MODE

MICRO OFF
DISPLAY ACCORDING TO THE CONTEXT
Avoid
Satellites

Stopovers
BROWSE ROUTE
ZOOM/SCROLL
VOICE ADVICE

ROUTE OPTIONS

ROUTE TYPE
ROUTE DYNAMICS
AVOIDANCE CRITERIA
RECALCULATE
NORMAL ORDER
RANDOM TRACK
SCAN
SELECT MEDIA

238

02
1
1
1
1
1
2
1
2
2
2
2
2
1
3
3
3
31
2
2
3
3
3
3
2
3
2
3
1
2
2
3
3
3
GENERAL OPERATION
DISPLAY ACCORDING TO THE CONTEXT
FULL SCREEN MAP:
ABORT GUIDANCE/RESUME GUIDANCE

SET DESTINATION/ADD STOPOVER

POIS NEARBY

POSITION INFO

OPTIONS
Navigate to
Dial
Save position
Zoom/Scroll

MAP SETTINGS

2D MAP

2.5D MAP

3D MAP

NORTH UP

HEADING UP

ZOOM/SCROLL


AUDIO DVD (LONG PRESS):
STOP
GROUP
Group 1.2/n
PLAY OPTIONS
Normal order/Random track/Scan
TA
SELECT MEDIA

DVD OPTIONS

Audio

Subtitles
Angle
Examples:

VIDEO DVD (LONG PRESS):
PLAY
STOP
DVD MENUS
DVD menu
DVD top menu
List of titles
List of chapters
